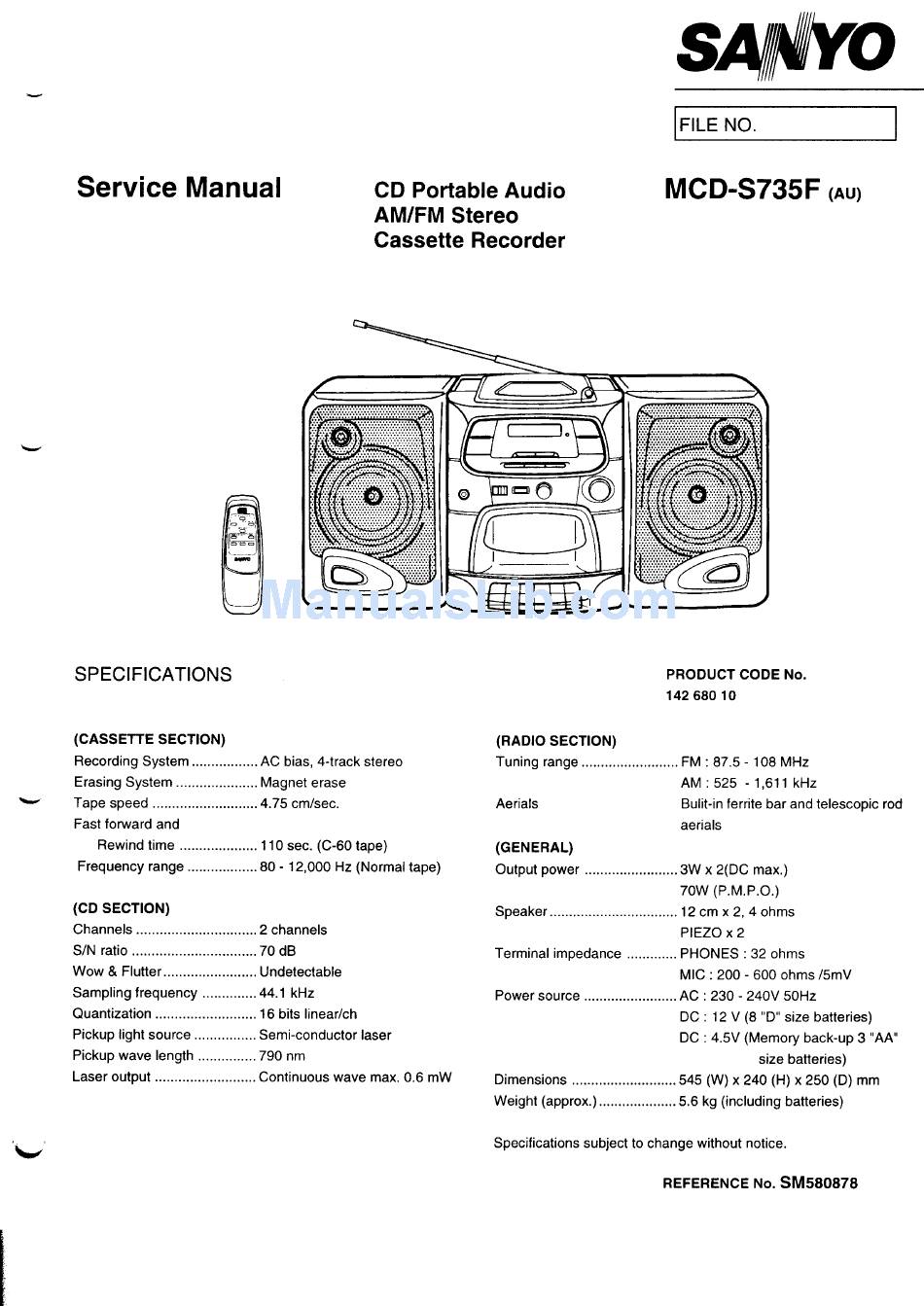

IFILE No.
Service Manual
CD Portable Audio
AM/FM Stereo
Cassette Recorder
MCD-S735F
(AU)
llI\
~/
II *:.":.":::"=
SPECIFICATIONS
(CASSETTE
SECTION)
Recording
System . .. ... . .. ... . .. .. AC bias, 4-track stereo
Erasing
System
. .. ... . .. ... .. . ... ... Magnet
erase
*
Tape speed
. .. ... . .. ... .. . ... .. .. . ....4.75
cmlsec.
Fast forward
and
Rewind time .. ... . .. ... .. .. . ... . 110 sec. (C-60 tape)
Frequency
range .. ... .. .. ... . .. ... 80-12,000
Hz (Normal
tape)
(CD SECTION)
Channels
.. . ... . .. .. .. .. ... . .. .. ... . ....2 channels
S/N ratio .. . ... .. . ... . .. ... . .. .. ... . .. ...70
dB
Wow & Flutter . .. ... . .. ... .. . ... .. .. .. Undetectable
Sampling
frequency
. . ... .. .. .. ...44.1
kHz
Quantization
. .. .. .. .. ... . .. . .. . .. .. .. . 16 bits linear/ch
Pickup light source .. . ... .. .. .. .. .. Semi-conductor
laser
Pickup wave length .. . ... .. .. .. ...79o
nm
Laser output . .. .. .. .. ... . .. ... .. .. . ... Continuous
wave max. 0.6 mW
PRODUCT
CODE
No.
14268010
(RADIO
SECTION)
Tuning range .. ... .. .. ... ... . .... .. . .. FM :87.5-108
MHz
AM :525
-1,611
kHz
Aerials
Bulit-in ferrite bar and telescopic
rod
aerials
(GENERAL)
Output power
. .. ... .. ... ... .. ... . .. ..3WX
2(DC
max. )
70W (P. M. P. O.)
Speaker
. .. ... .. ... .. .. ... .. ... .. ... . ... . 12cm
x 2, 4 ohms
PIEZO
X
2
Terminal
impedance
... ... .. ... .. PHONES
:32
ohms
MIC :200-600
ohms /5mV
Power source ... ... .. ... .. .. ... .. .. ..AC
:230-
240V
50Hz
DC :12 V (8 "D" size batteries)
DC : 4.5V (Memory
back-up
3 "AA"
size batteries)
Dimensions
.. ... .. .... . ... ... .. .. ... .. 545 (W) x 240 (H) x 250 (D) mm
Weight (approx.) . .. ... .. ... ... . ... .. 5.6 kg (including
batteries)
Specifications
subject to change
without notice.
REFERENCE
No.
SM580878
