Summary of Contents for Denon AVR-X7200W

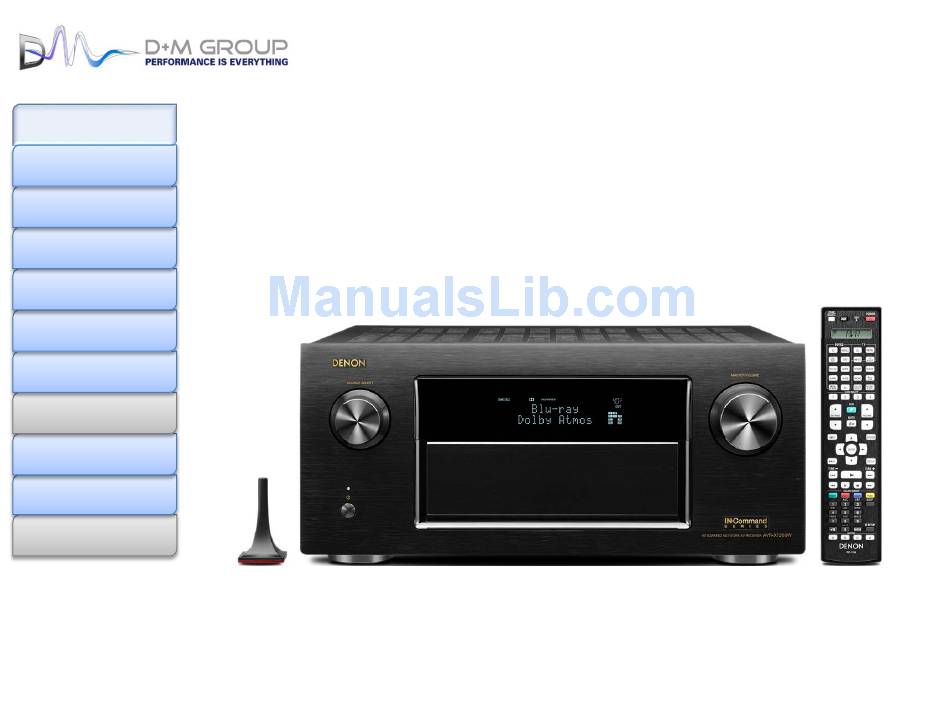

Page 1 MODEL: AVR-X7200W Model Information Index Model Information Front Panel INTEGRATED NETWORK AV RECEIVER Rear Panel Remote Control Warranty Reset Procedure Accessories FAQ’s Upgrades/Updates Product Specifications I/R Codes NOTE: This edition is missing the FAQ’s content (pages 16 and 17) ………………………………………………………..7/1/2015 This edition is missing the link to the IR Codes………………………………………………………………………..7/1/2015...
Page 2 Front Panel  Power operation button (  SOURCE SELECT knob Used to turn the power of the MAIN ZONE This selects the input source. (room where this unit is located) on/off (standby).  Remote control sensor  Power indicator This receives signals from the remote control unit.
Page 3: Buttons And Connectors Behind The Compartment Door (1 Of 2)
Buttons and Connectors Behind the Compartment Door (1 of 2)   ZONE2 ON/OFF button Information button (INFO) This turns the power of ZONE2 on/off. This displays the status information on the TV screen.   ZONE2 SOURCE button Cursor buttons  This selects the input source for ZONE2.
Page 4: Buttons And Connectors Behind The Compartment Door (2 Of 2)
Buttons and Connectors Behind the Compartment Door (2 of 2)  AUX1 HDMI connector  BACK button This is used to connect HDMI output compatible devices such as This returns to the previous screen. video camcorders and game consoles.  ENTER button ...
Page 5 Display 7 8 9     Input signal indicators  MUTE indicator The respective indicator will light corresponding to the input signal. This blinks while the sound is muted. link,  Decoder indicators  Volume indicator These light when Dolby or DTS signals are input or when the Dolby or DTS ...
Page 6: Rear Panel (1 Of 2)
Used to connect to a LAN cable when connecting to a wired LAN network. Denon Link HD connector  Used to connect a Denon Link HD compatible Blu-ray Disc player. USB port  This is used to connect USB storages (such as USB memory devices) and the SIGNAL GND terminal USB cable supplied with iPod.
Page 7: Rear Panel (2 Of 2)
Rear Panel (2 of 2)  FM/AM antenna terminals (ANTENNA)  Digital audio connectors (DIGITAL AUDIO) Used to connect FM antennas and AM loop antennas. Used to connect devices equipped with digital audio connectors.  TRIGGER OUT jacks  Speaker terminals (SPEAKERS) Used to connect devices equipped with the trigger function.
Page 8: Remote Control (1 Of 4)
Remote Control (1 of 4)  indicator This is lit when signals are sent from the remote control unit.  Zone select button (ZONE SELECT) These switch the zone (MAIN ZONE, ZONE2, ZONE3) that is operated through the remote control unit. ...
Page 9: Remote Control
Remote Control (2 of 4)  QUICK SELECT buttons (1 – 4). These call up settings registered to each button, such as input source, volume level and sound mode settings.  Channel/page search buttons (CH/PAGE ▲▼). These select radio stations registered to presets or switch pages. ...
Page 10: Remote Control (3 Of 4)
Remote Control (3 of 4) Number / Character buttons  These enter letters or numbers into the unit. Remote control signal transmitter  This transmits signals from the remote control unit. POWER button (  This turns the power on/off. TV operation buttons (TV / TV MENU / TV INPUT) ...
Page 11: Remote Control (4 Of 4)
Remote Control (4 of 4) SETUP button  This displays the menu on the TV screen.  SOUND MODE buttons These select the sound mode. • MOVIE button • MUSIC button • GAME button • PURE button SLEEP button  This sets the sleep timer.
Page 12: Denon Limited Warranty (1 Of 2)
Length of Non-Transferable Warranty This warranty on your DENON product which is distributed and warranted by DENON ELECTRONICS (USA), LLC remains in effect for the following periods from the date of the original consumer purchase from an AUTHORIZED DENON ELECTRONICS (USA), LLC DEALER.
Page 13 Except as specified below, this Warranty covers all defects in material and workmanship in this product occurring during the above warranty periods. The following are not covered by the Warranty: (1) Any product which is not distributed in the U.S.A. by DENON ELECTRONICS (USA), LLC. (2) Any product which is not purchased in the U.S.A.
Page 14 Reset Important: Back up the settings before resetting the microprocessor. Most settings are reset to the factory default values after performing this procedure. This means that all the settings data will be completely lost if it’s not previously saved. “INFO” button Power/Standby button Reset procedure:...
Page 15 Accessories Sound Remote Control Sound Calibration (RC1194) Calibration Microphone Microphone Stand (ACM1HB) 30701016300AD $55.99 32401000800AD $31.99 42911002000AS $14.99 AM Loop FM Indoor Power Cord) Antenna Antenna 11601005100AS $----- 3950029002 $5.87 61105010000AS $9.99 Safety CD ROM External Instructions Antennas For Owner’s Bluetooth/Wire Manual less...
Page 16 FAQ’s ( 1 of 2) HOME ACCESSORIES FAQ’s 2...
Page 17 FAQ’s (2 of 2) HOME FAQ’s 1 UPGRADE...
Page 18 You can upgrade your Denon AV Receiver through our website: http://upgrade.denon.com. The upgrade costs $199.00 and it’s available for the Denon models: AVR-X4100W, AVR-X4200W, AVR-X5200W, AVR-X6200W, AVR-X7200W and AVR- X7200WA. Once the AVR is registered and the payment is performed the AV Receiver is registered as the Auro version and ready to download the Auro firmware version automatically, through the setup menu of the AV Receiver.
Page 19 Server is busy Login failed To Check for Firmware Update from the Denon server when the unit is connected to the internet via the Ethernet port (When Firmware Notification is turned off). Press “SETUP” and select “GENERAL” and then select “FIRMWARE” followed by “UPDATE” and finally, select “CHECK FOR UPDATE”.
Page 20: Specifications - Audio Section
Specifications – Audio Section Audio section 150 W + 150 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.05% T.H.D.) Front 190 W + 190 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.) 150 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.05% T.H.D.) Center 190 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.) 150 W + 150 W (8 Ω/ohms, 20 Hz –...
Page 21: Specifications - Video Section, Tuner Section, Wireless Lan Section
Specifications - Video section, Tuner Section, Wireless LAN Section Video section Input/output level and impedance 1 Vp-p, 75 Ω/ohms Standard video connectors Frequency response 5 Hz -10MHz, 0, - 3dB Y signal 1 Vp-p, 75 Ω/ohms Input/output level and impedance PB/CB signal 0.7 Vp-p, 75 Ω/ohms Color component video connector...
Page 22: Specifications - Bluetooth Section, General Section
Specifications – Bluetooth Section, General Section Bluetooth section Communications system Bluetooth Version 2.1 + EDR (Enhanced Data Rate) Transmission power Maximum 2.5 mW (Class 2) Maximum communication range Approx. 3 x. 32.8 ft/10 m in line of sight Frequency band 2.4 GHz band Modulation scheme FHSS (Frequency-Hopping Spread Spectrum)
Page 23: Specifications - Dimensions, Weight
Specifications – Dimensions, Weight Dimensions section (Unit : inch/mm) Weight: 39 lbs 4 oz (17.8 kg) HOME SPECIFICATIONS - SPECIFICATIONS - VIDEO – SPECIFICATIONS SPECIFICATIONS - AUDIO TUNER – WIRELESS LAN BLUETOOTH - GENERAL DIMENSIONS - WEIGHT...
Page 24 The End NOTE: This edition is missing the FAQ’s content (pages 16 and 17) ………………………………………………………..7/1/2015 This edition is missing the link to the IR Codes………………………………………………………………………..7/1/2015 HOME...
