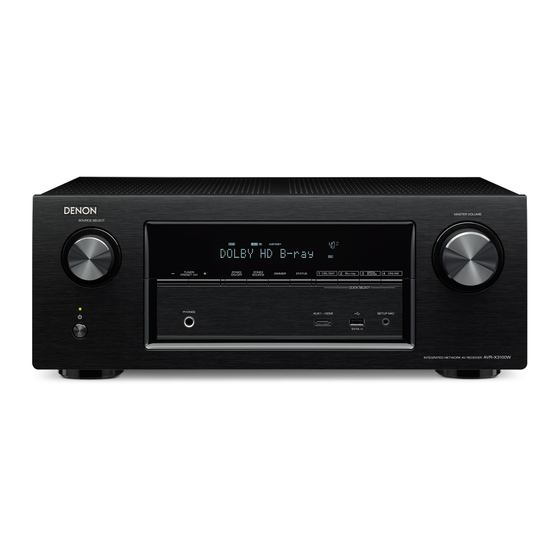

Denon AVR-X3100W Service Manual
  1. Manuals
  2. Brands
  3. Denon Manuals
  4. Receiver
  5. AVR-X3100W
  6. Service manual

Denon AVR-X3100W Service Manual

Hide thumbs Also See for AVR-X3100W:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual, Model Information
e
AVR-X3100W
• For purposes of improvement, specifications and design are subject to change without notice.
• Please use this service manual with referring to the operating instructions without fail.
• Some illustrations using in this service manual are slightly different from the actual set.
S0880-0V02DM/DG1407

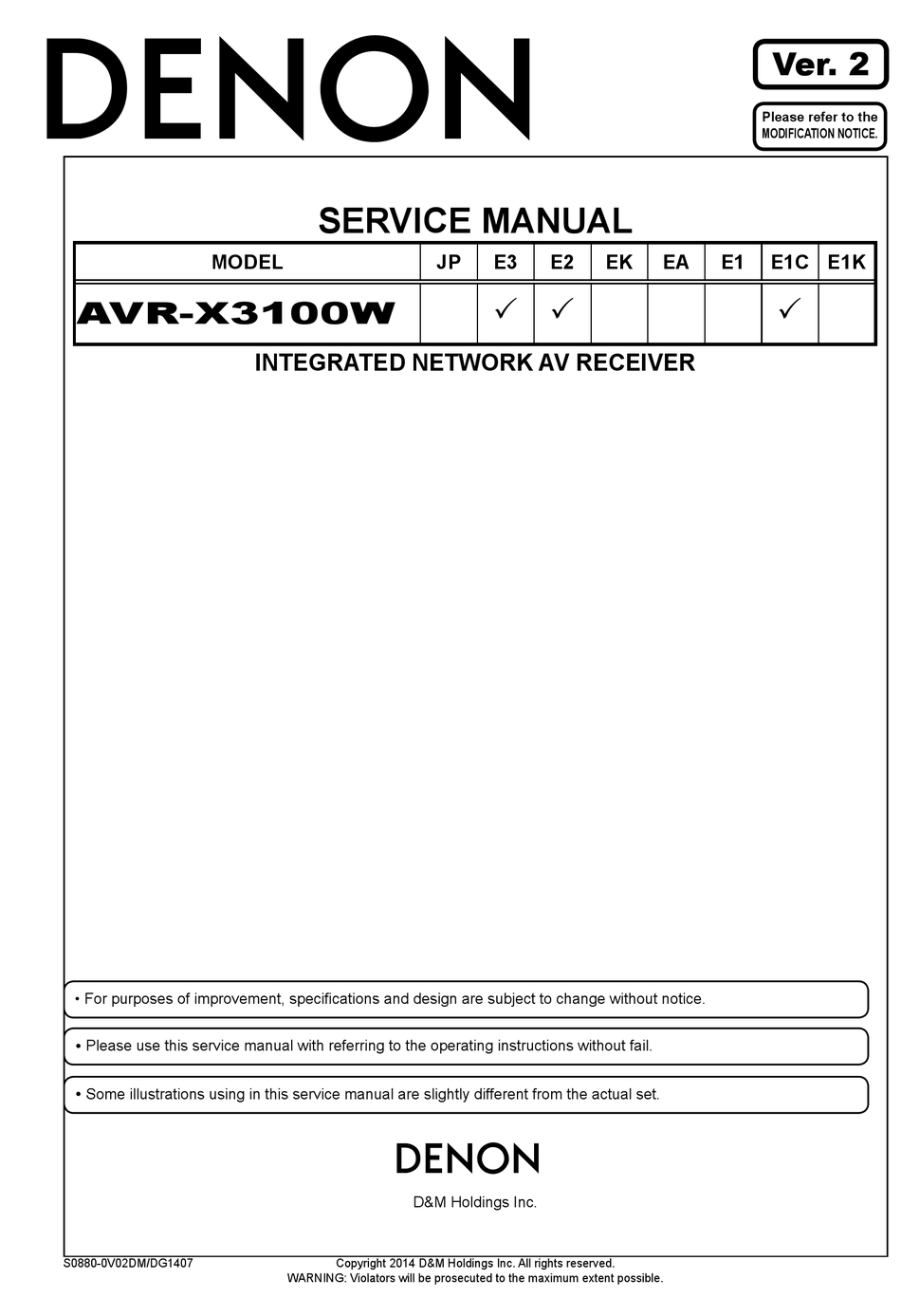

SERVICE MANUAL

MODEL
INTEGRATED NETWORK AV RECEIVER
Copyright 2014 D&M Holdings Inc. All rights reserved.
WARNING: Violators will be prosecuted to the maximum extent possible.
JP
E3
E2
P P
e
D&M Holdings Inc.
Ver. 2
Please refer to the
MODIFICATION NOTICE.
EK
EA
E1
E1C E1K
P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVR-X3100W and is the answer not in the manual?

Questions and answers

Related Manuals for Denon AVR-X3100W

Summary of Contents for Denon AVR-X3100W

  • Page 1: Service Manual

    MODIFICATION NOTICE. SERVICE MANUAL MODEL E1C E1K AVR-X3100W INTEGRATED NETWORK AV RECEIVER • For purposes of improvement, specifications and design are subject to change without notice. • Please use this service manual with referring to the operating instructions without fail.

  • Page 2: Table Of Contents

    CONTENTS ABOUT THIS MANUAL .............3 Audio Check PASS ..............107 What you can do with this manual ..........3 CLOCK FLOW & WAVE FORM IN DIGITAL BLOCK ...108 Using Adobe Reader (Windows version) ........4 LEVEL DIAGRAM ..............109 SAFETY PRECAUTIONS ............6 BLOCK DIAGRAM ..............115 NOTE FOR SCHEMATIC DIAGRAM .........7 POWER DIAGRAM ..............116 NOTE FOR PARTS LIST ............7...

  • Page 3: About This Manual

    ABOUT THIS MANUAL Read the following information before using the service manual. What you can do with this manual Search for a Ref. No. (phrase) Jump to the target of a schematic diagram connector (Ctrl+Shift+F) You can use the search function in Acrobat Reader to search for a Ref.

  • Page 4: Using Adobe Reader (Windows Version)

    Using Adobe Reader (Windows version) Add notes to this data (Sign) Magnify schematic / printed circuit board diagrams - 1 TheSignfunctionletsyouaddnotestothedatain (Ctrl+Space, mouse operation) this manual. Savethefileonceyouhavefinishedaddingnotes. Press Ctrl+Spaceonthekeyboardanddragthe [Example using Adobe Reader X] mousetoselecttheareayouwanttoview. On the "View" menu, click "Sign". • Theselectedareaismagnified.
  • Page 5 Magnify schematic / printed circuit Magnify schematic / printed circuit board diagrams - 2 board diagrams - 3 (Pan & Zoom function) (Loupe Tool function) ThePan&Zoomfunctionletsyouseewhichpartof TheLoupeToolfunctionletsyoumagnifyaspecific amagnifieddiagramisbeingshowninaseparate part of a diagram in a separate window. window. [Example using Adobe Reader X] On the "View"...

  • Page 6: Safety Precautions

    SAFETY PRECAUTIONS The following items should be checked for continued protection of the customer and the service technician. leakage current check Beforereturningthesettothecustomer,besuretocarryouteither(1)aleakagecurrentcheckor(2)alinetochassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the set is defective.

  • Page 7: Note For Schematic Diagram

    NOTE FOR SCHEMATIC DIAGRAM WARNING: Partsindicatedbythe z markhavecriticalcharacteristics.UseONLYreplacementpartsrecommendedbythemanufacturer. CAUTION: Beforereturningthesettothecustomer,besuretocarryouteither(1)aleakagecurrentcheckor(2)alinetochassisresistancecheck. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the set is defective. WARNING: DONOTreturnthesettothecustomerunlesstheproblemisidentifiedandremedied.
  • Page 8 Personal notes:...

  • Page 9: Technical Specifications

    TECHNICAL SPECIFICATIONS n Audio section n Wireless LAN section • Power amplifier Network type Rated output : (wireless LAN standard): Conforming to Wi-Fi®z1 Front : Security : WEP 64 bit, WEP 128 bit 105W+105W(8Ω, 20Hz - 20kHz with 0.08% T.H.D.) WPA/WPA2-PSK (AES) 135W+135W(6Ω, 1kHz with 0.7% T.H.D) WPA/WPA2-PSK (TKIP)

  • Page 10: Precautions During Service

    PRECAUTIONS DURING SERVICE Initializing This Unit Initialize this unit if you have replaced the microcomputer, one of the parts around the microcomputer, or the digital PCB. Press the power button to turn off the power. Hold down buttons "ZONE2 SOURCE" and "DIMMER" at the same time and press the power button to turn on the power.

  • Page 11: Disassembly

    DISASSEMBLY • Remove each part in the order of the arrows below. • Reassemble removed parts in the reverse order. • Read "Precautions During Work" before reassembling removed parts. • If wire bundles are removed or moved during adjustment or part replacement, reshape the wires after completing the work.
  • Page 12 Explanatory Photos for DISASSEMBLY • The angles from which the photos are taken are shown by "Photo angle: A, B, C, D". • See the diagram below about the shooting direction of each photograph. • Photographs with no shooting direction indicated were taken from the top of the unit. •...

  • Page 13: Front Panel Assy

    1. FRONT PANEL ASSY TOP COVER → FRONT PANEL ASSY Proceeding : (1) Remove the screws. View from the bottom (2) Cut the wire clamp, then remove the connector wires and FFC. Remove the screws. Front side CN602 STYLE PIN CN916 CN916...

  • Page 14: Radiator Assy

    2. RADIATOR ASSY TOP COVER → FRONT PANEL ASSY → RADIATOR ASSY Proceeding : (1) Remove the screws. View from the bottom (2) Remove the STYLE PIN. Remove the screws. STYLE PIN (3) Remove the connector wire. CN461 CN704 CN702 CN701 CN703...

  • Page 15: Digital Pcb

    3. DIGITAL PCB TOP COVER → BACK CHASSIS → DIGITAL PCB Proceeding : (1) Remove the screws. (2) Cut the wire clamp, then remove the connector wires and FFC. CN903 CN704 CON1 STYLE PIN CON2 CN916 CN914 STYLE PIN (3) Remove the connector wire. Front side BN24A BN26A...

  • Page 16: Video Pcb

    4. VIDEO PCB TOP COVER → BACK CHASSIS → DIGITAL PCB → VIDEO PCB Proceeding : (1) Remove the connector wire. Front side BN21B BN28B BN27B PCB HOLDER 5. INPUT PCB TOP COVER → BACK CHASSIS → DIGITAL PCB → VIDEO PCB → INPUT PCB Proceeding : (1) Remove the connector wire.

  • Page 17: Spk Pcb

    6. SPK PCB TOP COVER → BACK CHASSIS → DIGITAL PCB → VIDEO PCB → INPUT PCB Proceeding : → SPK PCB (1) Remove the screws. View from the bottom (2) Remove the connector wire. CN461 CN704 CN702 CN701 CN703 (3) Remove the connector wire.

  • Page 18: Smps Pcb

    7. SMPS PCB TOP COVER → BACK CHASSIS → DIGITAL PCB → Proceeding : SMPS PCB See "EXPLODED VIEW" for instructions on how to remove each PCB of the "SMPS PCB". 8. TRANS POWER TOP COVER → BACK CHASSIS → DIGITAL PCB → TRANS POWER Proceeding : See "EXPLODED VIEW"...

  • Page 19: Special Mode

    ↑ ↑ Mode Audio channel/video channel. (See page) If there are multiple DENON AV receivers in the same area, this mode stops the other AV receivers from being oper- Remote ID Setup Mode ↑ ↑ ↑ ated concurrently with this device.

  • Page 20: Version Display Mode

    1. Version Display Mode 1.1. Actions Version information is displayed when the device is started in this mode. 1.2. Starting up Hold down buttons "DIMMER" and "STATUS" at the same time and press the power button to turn on the power. Press the "STATUS"...
  • Page 21 Q1 GUI SFLASH : G U I : 6 8 1 Z * * * * Z ： Region code(E3=1, E2=2, E1C=5), * ： version Q2 Ethernet 1st Boot Loader, Hardware ID : E t h e r n e t F B L Press the "STATUS"...

  • Page 22: Error Display

    1.4. Error display See the table below for descriptions of displayed errors and countermeasures for these. Display order is q , w , e , r . Condition States Display TROUBLE SHOOTING The model name, brand name and region F I R M E R R O R information written in the firmware are compared to the region settings in the...
  • Page 23 1.5. Version Display in the Setup Menu Follow the steps below to display the firmware information. (1) Press the "SETUP" button on the remote control. (2) Select "General - Information - Firmware". The version information is displayed as a 12-digit number as shown in the screenshot below. General/Firmware Version XXXX - XXXX - XXXX...

  • Page 24: Panel / Remote Lock Selection Mode

    2. PANEL / REMOTE LOCK Selection Mode 2.1. Actions Turn the PANEL LOCK and REMOTE LOCK modes on and off. 2.2. Starting up Hold down buttons "TUNER PRESET CH+" and "ZONE2 SOURCE" at the same time and press the power button to turn on the power.

  • Page 25: Selection Modes For Service-Related Operations

    3. Selection Modes for Service-related Operations 3.1. Actions Select diagnostic mode (service path check mode), protection history display mode, or 232C standby clear mode. 3.2. Starting up Hold down buttons "ZONE2 SOURCE", "DIMMER" and "STATUS" at the same time and press the power button to turn on the power.
  • Page 26 Personal notes:...
  • Page 27 3.4 PROTECTION DIAGRAM PAMP PCB DIGITAL PCB TR_THERMAL uCOM DC 113pin/PD4 PROTECTION LOGIC ASO 112pin/PD5 ⇒ L_activeshutdown ⇒ L_activeshutdown THER PROTF ⇒ L_activeshutdown TR_THERMAL THER PROTB ⇒ L_activeshutdown THER_PROT_E 66pin/P77 THER PROTA ⇒ L_activeshutdown THER_PROT_F 81pin/PB5 THER_PROT_A 125pin/P95 THER_PROT_B 126pin/P94 TR_THERMAL CURRENT (After 90sec ) CURRENT DET 144pin/IRQ8-B...
  • Page 28 3.5. DIAGNOSTIC MODE (Service Path Check Mode) 3.5.1. Actions This function is convenient for confirming problem paths in the product and executing a path check after repair. The Video and Audio paths can be checked. The backup data is not rewritten. 3.5.2.
  • Page 29 3.5.6. Audio system confirmation items fig. XX: See the block diagram of the fig.XXth. Paths confirmation item Display Settings Contents of confirmation Remarks Analog Input Source : CBL/SAT ・Analog input ⇒ Speaker output (FRONT L,R) A 0 1 : A N A L O G P A S S Input Mode : ANALOG(fixed) ・Analog input ⇒...

  • Page 30: Diagnostic Path Diagram

    DIAGNOSTIC PATH DIAGRAM AVR-X3100W ANALOG VIDEO BLOCK fig.01 CBL/SAT CBL/SAT_V DVD_V CVBS IN GAME Blu-Ray_V V.AUX(FRONT) V.AUX_V NOT USED NOT USED CVBS MONITOR COMPONENT OUT Y CBL/SAT_Y COMPONENT OUT PB CBL/SAT CBL/SAT_PB COMPONENT OUT PR CBL/SAT_PR NJM2595MTE1 AVR-X3100WBKE3 ONLY V_AUX_V...
  • Page 31 AVR-X3100W ANALOG VIDEO BLOCK fig.02a CBL/SAT CBL/SAT_V DVD_V CVBS IN GAME Blu-Ray_V V.AUX(FRONT) V.AUX_V NOT USED NOT USED CVBS MONITOR COMPONENT OUT Y CBL/SAT_Y COMPONENT OUT PB CBL/SAT CBL/SAT_PB COMPONENT OUT PR CBL/SAT_PR NJM2595MTE1 AVR-X3100WBKE3 ONLY V_AUX_V DVD_Y CBL/SAT_V COMPONENT IN...
  • Page 32 AVR-X3100W HDMI VIDEO BLOCK fig.02b HDMI SW2(MN864777) HDMI ZONE2 P3 RX HDMI IN1 (CBL/SAT) MAIN P0 TX P2 RX HDMI IN2 HDMI TX(MN864777) (DVD) P1 RX P1 RX P1 TX HDMI IN3 (BLU-RAY) P0 RX P0 RX HDMI Rx 4K/2K...
  • Page 33 AVR-X3100W HDMI VIDEO BLOCK fig.03 HDMI SW2(MN864777) HDMI ZONE2 P3 RX HDMI IN1 (CBL/SAT) MAIN P0 TX P2 RX HDMI IN2 HDMI TX(MN864777) (DVD) P1 RX P1 RX P1 TX HDMI IN3 (BLU-RAY) P0 RX P0 RX 4K/2K HDMI Rx...
  • Page 34 AVR-X3100W HDMI VIDEO BLOCK fig.04 HDMI SW2(MN864777) HDMI ZONE2 P3 RX HDMI IN1 (CBL/SAT) MAIN P0 TX P2 RX HDMI IN2 HDMI TX(MN864777) uCOM (DVD) P1 RX P1 RX P1 TX HDMI IN3 (BLU-RAY) P0 RX P0 RX HDMI Rx...
  • Page 35 AVR-X3100W ANALOG AUDIO BLOCK ATT. fig.05a POWER AMP PART NOT USED ANA_FL/FR ANA_FL AMPFL 29dB DAFL TONE EXTFL SPK OUT_A 58,59 AMPFR 29dB ANAFR 60,61 DAFR TONE EXTFR 62,63 MIC(Mini Jack) 64,65 TUNER 66,67 EXTC TUNER 68,69 TUNER(FM/AM) DASW1 CBL/SAT...
  • Page 36 AVR-X3100W DIGITAL AUDIO BLOCK fig.05b ADINL ADINR 24.576MHz DIGTAL IN DIRCE Z2DIRSPDIF DACMUTE DIRCLK DAFL DACRST1 DIRXMCK DIRDIN OPT1(TV) DACMS DIRMCK DAFR DIRDOUT DACMDI DIRBCK DIRRST DACMC DIRLRCK OPT2(CD) OPT.1 DIRDATA DASW1 OPT.2 DIRSBCK DACMCK COAX1(CBL/SAT) ADC+DIR COAX.1 DIRSLRCK DACBCK...
  • Page 37 AVR-X3100W HDMI VIDEO BLOCK fig.05c HDMI SW2(MN864777) HDMI ZONE2 P3 RX HDMI IN1 (CBL/SAT) MAIN P0 TX P2 RX HDMI IN2 HDMI TX(MN864777) (DVD) P1 RX P1 RX P1 TX HDMI IN3 (BLU-RAY) P0 RX P0 RX 4K/2K HDMI Rx...
  • Page 38 AVR-X3100W DIGITAL AUDIO BLOCK fig.06a ADINL ADINR 24.576MHz DIGTAL IN DIRCE Z2DIRSPDIF DACMUTE DIRCLK DAFL DACRST1 DIRXMCK DIRDIN OPT1(TV) DACMS DIRMCK DAFR DIRDOUT DACMDI DIRBCK DIRRST DACMC DIRLRCK OPT2(CD) OPT.1 DIRDATA DASW1 OPT.2 DIRSBCK DACMCK COAX1(CBL/SAT) ADC+DIR COAX.1 DIRSLRCK DACBCK...
  • Page 39 AVR-X3100W HDMI VIDEO BLOCK fig.06b HDMI SW2(MN864777) HDMI ZONE2 P3 RX HDMI IN1 (CBL/SAT) MAIN P0 TX P2 RX HDMI IN2 HDMI TX(MN864777) (DVD) P1 RX P1 RX P1 TX HDMI IN3 (BLU-RAY) P0 RX P0 RX 4K/2K HDMI Rx...
  • Page 40 AVR-X3100W HDMI VIDEO BLOCK fig.07 HDMI SW2(MN864777) HDMI ZONE2 P3 RX HDMI IN1 (CBL/SAT) MAIN P0 TX P2 RX HDMI IN2 HDMI TX(MN864777) (DVD) P1 RX P1 RX P1 TX HDMI IN3 (BLU-RAY) P0 RX P0 RX HDMI Rx 4K/2K...
  • Page 41 AVR-X3100W HDMI VIDEO BLOCK fig.08 HDMI SW2(MN864777) HDMI ZONE2 P3 RX HDMI IN1 (CBL/SAT) MAIN P0 TX P2 RX HDMI IN2 HDMI TX(MN864777) (DVD) P1 RX P1 RX P1 TX HDMI IN3 (BLU-RAY) P0 RX P0 RX 4K/2K HDMI Rx...
  • Page 42 AVR-X3100W ANALOG AUDIO BLOCK ATT. fig.09 POWER AMP PART NOT USED ANA_FL/FR ANA_FL AMPFL 29dB DAFL TONE EXTFL AMPFR SPK OUT_A 58,59 29dB ANAFR 60,61 DAFR TONE EXTFR 62,63 MIC(Mini Jack) 64,65 TUNER 66,67 EXTC TUNER 68,69 TUNER(FM/AM) DASW1 CBL/SAT...
  • Page 43 AVR-X3100W ANALOG AUDIO BLOCK ATT. fig.10a POWER AMP PART NOT USED ANA_FL/FR ANA_FL AMPFL 29dB DAFL TONE EXTFL SPK OUT_A 58,59 AMPFR 29dB ANAFR 60,61 DAFR TONE EXTFR 62,63 MIC(Mini Jack) 64,65 TUNER 66,67 EXTC TUNER 68,69 TUNER(FM/AM) DASW1 CBL/SAT...
  • Page 44 AVR-X3100W DIGITAL AUDIO BLOCK fig.10b ADINL ADINR 24.576MHz DIGTAL IN DIRCE Z2DIRSPDIF DACMUTE DIRCLK DAFL DACRST1 DIRXMCK DIRDIN OPT1(TV) DACMS DIRMCK DAFR DIRDOUT DACMDI DIRBCK DIRRST DACMC DIRLRCK OPT2(CD) OPT.1 DIRDATA DASW1 OPT.2 DIRSBCK DACMCK COAX1(CBL/SAT) ADC+DIR COAX.1 DIRSLRCK DACBCK...
  • Page 45 AVR-X3100W HDMI VIDEO BLOCK fig.11c HDMI SW2(MN864777) HDMI ZONE2 P3 RX HDMI IN1 (CBL/SAT) MAIN P0 TX P2 RX HDMI IN2 HDMI TX(MN864777) (DVD) P1 RX P1 RX P1 TX HDMI IN3 (BLU-RAY) P0 RX P0 RX 4K/2K HDMI Rx...
  • Page 46 AVR-X3100W ANALOG AUDIO BLOCK ATT. fig.11a POWER AMP PART NOT USED ANA_FL/FR ANA_FL AMPFL 29dB DAFL TONE EXTFL AMPFR SPK OUT_A 58,59 29dB ANAFR 60,61 DAFR TONE EXTFR 62,63 MIC(Mini Jack) 64,65 TUNER 66,67 EXTC TUNER 68,69 TUNER(FM/AM) DASW1 CBL/SAT...
  • Page 47 AVR-X3100W DIGITAL AUDIO BLOCK fig.11b ADINL ADINR 24.576MHz DIGTAL IN DIRCE Z2DIRSPDIF DACMUTE DIRCLK DAFL DACRST1 DIRXMCK DIRDIN OPT1(TV) DACMS DIRMCK DAFR DIRDOUT DACMDI DIRBCK DIRRST DACMC DIRLRCK OPT2(CD) OPT.1 DIRDATA DASW1 OPT.2 DIRSBCK DACMCK COAX1(CBL/SAT) ADC+DIR COAX.1 DIRSLRCK DACBCK...
  • Page 48 AVR-X3100W ANALOG AUDIO BLOCK ATT. fig.12a POWER AMP PART NOT USED ANA_FL/FR ANA_FL AMPFL 29dB DAFL TONE EXTFL AMPFR SPK OUT_A 58,59 29dB ANAFR 60,61 DAFR TONE EXTFR 62,63 MIC(Mini Jack) 64,65 TUNER 66,67 EXTC TUNER 68,69 TUNER(FM/AM) DASW1 CBL/SAT...
  • Page 49 AVR-X3100W DIGITAL AUDIO BLOCK fig.12b ADINL ADINR 24.576MHz DIGTAL IN DIRCE Z2DIRSPDIF DACMUTE DIRCLK DAFL DACRST1 DIRXMCK DIRDIN OPT1(TV) DACMS DIRMCK DAFR DIRDOUT DACMDI DIRBCK DIRRST DACMC DIRLRCK OPT2(CD) OPT.1 DIRDATA DASW1 OPT.2 DIRSBCK DACMCK COAX1(CBL/SAT) ADC+DIR COAX.1 DIRSLRCK DACBCK...
  • Page 50 AVR-X3100W HDMI VIDEO BLOCK fig.12c HDMI SW2(MN864777) HDMI ZONE2 P3 RX HDMI IN1 (CBL/SAT) MAIN P0 TX P2 RX HDMI IN2 HDMI TX(MN864777) (DVD) P1 RX P1 RX P1 TX HDMI IN3 (BLU-RAY) P0 RX P0 RX HDMI Rx 4K/2K...
  • Page 51 AVR-X3100W ANALOG AUDIO BLOCK ATT. fig.13a POWER AMP PART NOT USED ANA_FL/FR ANA_FL AMPFL 29dB DAFL TONE EXTFL SPK OUT_A 58,59 AMPFR 29dB ANAFR 60,61 DAFR TONE EXTFR 62,63 MIC(Mini Jack) 64,65 TUNER 66,67 EXTC TUNER 68,69 TUNER(FM/AM) DASW1 CBL/SAT...
  • Page 52 AVR-X3100W DIGITAL AUDIO BLOCK fig.13b ADINL ADINR 24.576MHz DIGTAL IN DIRCE Z2DIRSPDIF DACMUTE DIRCLK DAFL DACRST1 DIRXMCK DIRDIN OPT1(TV) DACMS DIRMCK DAFR DIRDOUT DACMDI DIRBCK DIRRST DACMC DIRLRCK OPT2(CD) OPT.1 DIRDATA DASW1 OPT.2 DIRSBCK DACMCK COAX1(CBL/SAT) ADC+DIR COAX.1 DIRSLRCK DACBCK...
  • Page 53 AVR-X3100W ANALOG AUDIO BLOCK ATT. fig.14 POWER AMP PART NOT USED ANA_FL/FR ANA_FL AMPFL 29dB DAFL TONE EXTFL SPK OUT_A 58,59 AMPFR 29dB ANAFR 60,61 DAFR TONE EXTFR 62,63 MIC(Mini Jack) 64,65 TUNER 66,67 EXTC TUNER 68,69 TUNER(FM/AM) DASW1 CBL/SAT...
  • Page 54 AVR-X3100W ANALOG AUDIO BLOCK ATT. fig.15a POWER AMP PART NOT USED ANA_FL/FR ANA_FL AMPFL 29dB DAFL TONE EXTFL AMPFR SPK OUT_A 58,59 29dB ANAFR 60,61 DAFR TONE EXTFR 62,63 MIC(Mini Jack) 64,65 TUNER 66,67 EXTC TUNER 68,69 TUNER(FM/AM) DASW1 CBL/SAT...
  • Page 55 AVR-X3100W DIGITAL AUDIO BLOCK fig.15b ADINL ADINR 24.576MHz DIGTAL IN DIRCE Z2DIRSPDIF DACMUTE DIRCLK DAFL DACRST1 DIRXMCK DIRDIN OPT1(TV) DACMS DIRMCK DAFR DIRDOUT DACMDI DIRBCK DIRRST DACMC DIRLRCK OPT2(CD) OPT.1 DIRDATA DASW1 OPT.2 DIRSBCK DACMCK COAX1(CBL/SAT) ADC+DIR COAX.1 DIRSLRCK DACBCK...
  • Page 56 AVR-X3100W ANALOG AUDIO BLOCK ATT. fig.16a POWER AMP PART NOT USED ANA_FL/FR ANA_FL AMPFL 29dB DAFL TONE EXTFL AMPFR SPK OUT_A 58,59 29dB ANAFR 60,61 DAFR TONE EXTFR 62,63 MIC(Mini Jack) 64,65 TUNER 66,67 EXTC TUNER 68,69 TUNER(FM/AM) DASW1 CBL/SAT...
  • Page 57 AVR-X3100W DIGITAL AUDIO BLOCK fig.16b ADINL ADINR 24.576MHz DIGTAL IN DIRCE Z2DIRSPDIF DACMUTE DIRCLK DAFL DACRST1 DIRXMCK DIRDIN OPT1(TV) DACMS DIRMCK DAFR DIRDOUT DACMDI DIRBCK DIRRST DACMC DIRLRCK OPT2(CD) OPT.1 DIRDATA DASW1 OPT.2 DIRSBCK DACMCK COAX1(CBL/SAT) ADC+DIR COAX.1 DIRSLRCK DACBCK...
  • Page 58 AVR-X3100W ANALOG AUDIO BLOCK ATT. fig.17a POWER AMP PART NOT USED ANA_FL/FR ANA_FL AMPFL 29dB DAFL TONE EXTFL AMPFR SPK OUT_A 58,59 29dB ANAFR 60,61 DAFR TONE EXTFR 62,63 MIC(Mini Jack) 64,65 TUNER 66,67 EXTC TUNER 68,69 TUNER(FM/AM) DASW1 CBL/SAT...
  • Page 59 AVR-X3100W DIGITAL AUDIO BLOCK fig.17b ADINL ADINR 24.576MHz DIGTAL IN DIRCE Z2DIRSPDIF DACMUTE DIRCLK DAFL DACRST1 DIRXMCK DIRDIN OPT1(TV) DACMS DIRMCK DAFR DIRDOUT DACMDI DIRBCK DIRRST DACMC DIRLRCK OPT2(CD) OPT.1 DIRDATA DASW1 OPT.2 DIRSBCK DACMCK COAX1(CBL/SAT) ADC+DIR COAX.1 DIRSLRCK DACBCK...
  • Page 60 3.6. Protection History Display Mode 3.6.1. Actions This mode records and displays an event in which the THERMAL, CURRENT, ASO or DC protection was activated. If protections have been activated multiple times, the latest protection operation is recorded. 3.6.2. Starting up Hold down buttons "ZONE2 SOURCE", "DIMMER"...
  • Page 61 3.6.4. Clearing the Protection History There are two ways to clear the protection history. (1) Start Protection History Display Mode. Press the button "STATUS" to display the protection history. Press and hold the button "DIMMER" for 3 seconds. P R T : D C Press and hold the button "DIMMER"...
  • Page 62 3.7. Operation Info Mode 3.7.1. Actions This mode displays the accumulated operating time, power on count and each protection count. 3.7.2. Starting up Hold down buttons "ZONE2 SOURCE", "DIMMER" and "STATUS" at the same time and press the power button to turn on the power.
  • Page 63 3.8. TUNER STEP mode (E2/E3 only) 3.3.1. Actions This is a special mode for enabling reception STEP of the ANALOG TUNER to be changed. 3.8.2. Starting up Hold down buttons "ZONE2 SOURCE", "DIMMER" and "STATUS" at the same time and press the power button to turn on the power.

  • Page 64: Remote Id Setup Mode

    4. Remote ID Setup Mode 4.1. Actions This function allows only the desired AV receiver to be operated if multiple DENON AV receivers are used in the same room. 4.2. Starting up Hold down buttons "ZONE2 SOURCE", "DIMMER" and "STATUS" at the same time and press the power button to turn on the power.

  • Page 65: Protection Pass Mode

    5. Protection Pass Mode 5.1. Actions • This mode allows the power to be turned on without activating protections. • This is the same as normal power-on, except that protections are not activated. 5.2. Operations Hold down buttons "TUNER PRESET CH -", "ZONE2 SOURCE" and "STATUS" at the same time and press the power button to turn on the power.

  • Page 66: Cx870 / Cy920 Initialization Mode

    7. CX870 / CY920 Initialization mode 7.1. Actions The following items are initialized. (1) Favorites (2) Quick Select (3) Presets (4) Internet Radio Recently Played (5) Flickr contacts (6) User ID (7) Resume Playback station 7.2. Operations Hold down buttons "ZONE2 SOURCE" and "DIMMER" for at least 3 seconds while the power is on. Initializing Display I n i t i a l i z i n g I n i t i a l i z i n g .

  • Page 67: Jig For Servicing

    JIG FOR SERVICING The following jigs (extension cable kit) are used when repairing the PCBs. Order the jigs from your dealer if necessary. CAUTION : Incorrect connections may cause malfunction. • Connection of Jig for DIGITAL PCB -Items to Be Prepared- 8U- 110084S EXTENSION UNIT KIT 1 Set...
  • Page 68 Front side BN21B BN28B BN27B PCB HOLDER Front side TO CN461 BN26B CN706A BN64C BN23C (3) Remove the DIGITAL PCB from the chassis and turn it over. Place an insulation sheet larger than the PCB underneath the DIGITAL PCB. Connect the earth of the PCB to the chassis using an earth wire, etc. PCB INPUT PCB VIDEO PCB DIGITAL...
  • Page 69 (4) Connect the expansion cables. PCB FRT CNT PCB HDMI PCB SIDE CNT PCB FRT CNT PCB VIDEO PCB SIDE CNT PCB FRT CNT PCB SIDE CNT PCB VIDEO Connection table of Board to Board Ref. No. Ref. No. 15pin CN27A SIDE CNT BN27A...

  • Page 70: Procedure After Replacing The Microprocessor, Etc

    PROCEDURE AFTER REPLACING THE MICROPROCESSOR, ETC. The procedure after replacing the u-COM (microprocessor), flash ROM, etc. is as follows. Proce- dure after PCB Name Ref. No. Description Remark Replace- ment R5F56108VNFP SOFTWARE: Main DIGITAL IC151 R5F5210ABDFP s SOFTWARE: Sub DIGITAL IC171 DIGITAL IC253...
  • Page 71 1.3. File structure on USB Memory Copy the update files to the USB memory with the following structure: USB memory root Model Name Model Area Product ID AVR-X3100WE3 North America (E3) 000100680100 AVR-X3100WE2 Europe (E2) 000100680200 AVR-X3100WE1C China (E1C) 000100680500 + firmwares + 000100XXXXXX + APLD.bin...
  • Page 72 1.5. Start the update. Hold down buttons "TUNER PRESET CH -" and "STATUS" at the same time and press the power button to turn on the power. 1.6. Display during USB update The following message appears on the display after around 30 seconds Display U S B U p d a t e...
  • Page 73 1.10. About the error code See the table below for error codes and details of faults when the firmware is updated through USB memory. Error Details of Error code Display Coping strategies Code Disconnect and connect the USB Unable to detect USB. C o n n e c t i o n F a i l 0 1 memory.
  • Page 74 Error Details of Error code Display Coping strategies Code This unit automatically retries several times. Wait until the FL display stops. Block Erase failed before rewriting If the FL display stops at the Error dis- E r a s e f a i l Main.
  • Page 75 Error Details of Error code Display Coping strategies Code This unit automatically retries several times. Wait until the FL display stops. Firmware File in USB for unsup- If the FL display stops at the Error dis- N o t M a t c h F i r m ported Model name/area.
  • Page 76 Error Details of Error code Display Coping strategies Code This unit automatically retries several Invalid DeviceID in response or no times. Wait until the FL display stops. response from Sub for C com- If the FL display stops at the Error dis- C o n n e c t i o n F a i l 5 A mand.
  • Page 77 Error Details of Error code Display Coping strategies Code This unit automatically retries several times. Wait until the FL display stops. Abnormal data in Update Packet If the FL display stops at the Error dis- U p d a t i n g f a i l received from CX870 (CRCError).

  • Page 78: M A I N

    Error Details of Error code Display Coping strategies Code This unit automatically retries several times. Wait until the FL display stops. Failed to transit to BootLoader If the FL display stops at the Error dis- U p d a t i n g f a i l Mode.

  • Page 79: Updating By Dpms

    2. Updating by DPMS Download the latest firmware from the internet and update the firmware. 2.1. Network Connection (1) System Requirements • A broadband internet connection • Modem • Router • Ethernet cable (CAT-5 or greater recommended) (2) Settings Internet Computer Modem ComputerLAN port / Ethernet connector...
  • Page 80 2.3. About the error code See the following table for details on the error code, details of the error code, display and coping strategies when updating the firmware from DPMS. (DPMS:Denon Product Management Server). Error Details of Error code Display...
  • Page 81 Error Details of Error code Display Coping strategies Code Abnormal data in Update Packet Turn on the power again. Update will received from CX870 (PacketNo- U p d a t i n g f a i l start automatically. Error). Block Erase failed before rewriting Turn on the power again.
  • Page 82 Error Details of Error code Display Coping strategies Code Check the network connection. Update Connect Time Out by DPMS con- in an environment where there is a C o n n e c t i o n F a i l 3 9 nection.
  • Page 83 Error Details of Error code Display Coping strategies Code NACK received in response or no Turn on the power again. Update will response from Sub for L com- U p d a t i n g f a i l start automatically.
  • Page 84 Error Details of Error code Display Coping strategies Code Check the network connection. Update IP Address acquisition failure in an environment where there is a C o n n e c t i o n F a i l A 1 (Time Out).
  • Page 85 Device display during firmware update Display of target device during firmware update. Target device Display Error code when an error occurs 08 - 0C 10 - 15 Main M a i n : * * % * * * m i n 22 - 24 36 - 3E 50 - 52...

  • Page 86: Adjustment

    ADJUSTMENT Adjusting Idling Current 1. Preparation (1) Prepare a DV voltmeter. (2) Place the unit in normal usage conditions, away from highly ventilated areas such as next to an air conditioning machine or electric fan. The set requires an ambient temperature of 15℃ to 30℃ and standard humidity. (3) Settings of This Unit •...

  • Page 87: Surround Modes And Parameters

    SURROUND MODES AND PARAMETERS Contents Connections Playback Settings Tips Appendix Sound modes and channel output S This indicates the audio output channels or surround parameters that can be set. D This indicates the audio output channels. The output channels depend on the settings of “Speaker Config.” (v p. 191). Channel output Sound mode (v p.
  • Page 88 Contents Connections Playback Settings Tips Appendix Surround Parameter (v p. 153) Audyssey (v p. 159) Neo:X Pro Logicg/gx Music mode only mode only Restorer Tone Sound mode (v p. 119) Panorama Dimension Center Center Dynamic Dynamic Audyssey MultEQ ® (v p. 115) (v p.
  • Page 89 Contents Connections Playback Settings Tips Appendix Types of input signals, and corresponding sound modes F This indicates the default sound mode. S This indicates the selectable sound mode. 2-channel signal Multi-channel signal Analog / Dolby DTS-HD DTS ES DTS ES Dolby Dolby Dolby...

  • Page 90: Trouble Shooting

    TROUBLE SHOOTING 1. POWER 1.1. The unit does not power on The unit does not power on Does the power indicator on Does the power indicator on the the front panel flash in green front panel flash in red when the or white when the power is power is turned on? turned on?

  • Page 91: Analog Video

    2. Analog video COMPONENT/HDMI OUT NG Input CVBS Input COMPONENT Input Function ： CBL / SAT Function ： CBL / SAT HDMI TO "3 HDMI/DVI" To A <DIGITAL PCB> test point JK382 T222 JK394 JK393 JK392 JK391 JK384 JK383 JK381 T224 BN111 C4371...
  • Page 92 Input CVBS / COMPONENT Check the input signal to the VIDEO DECODER. Can a signal be confirmed at the following points? DIGITAL PCB Check the connection between Input CVBS：Check B : R3527 the PCBs. Input COPONENT：Check C COMPONENT-Y : R3530 COMPONENT-Cb : R3528 COMPONENT-Cr : R3529...
  • Page 93 Input CVBS Check the set value of each IC. Are the voltage values as follows? DIGITAL PCB The DIGITAL PCB is faulty. BN21A - 6pin : Hi(3.3V) BN21A - 7pin : Hi(3.3V) BN21A - 9pin : Lo(0V) Use the jigs to extend the DIGITAL PCB.
  • Page 94 Input COMPONENT Check the set value of each IC. Are the voltage values as follows? The DIGITAL PCB is faulty. DIGITAL PCB BN21A - 4pin : Lo(0V) BN21A - 3pin : Hi(3.3V) Use the jigs to extend the DIGITAL PCB. Is the power supply voltage Check the connection between the being output correctly?

  • Page 95: Hdmi/Dvi

    (7) Are the HDMI output settings of the Blu-ray/DVD player correct? and set the HDMI output correctly. (8) If using a DENON Blu-ray/DVD player, is the "HDMI" indicator of the fluorescent display lit? Proceed to YES if using a Blu-ray/DVD player from another com- pany.
  • Page 96 (11) Are a picture and sound output when a different Blu-ray/DVD The Blu-ray/DVD player is faulty. player is used? Check the TV. Use a TV that supports HDCP. Computer monitors can- (12) Does the TV support HDCP? not be used. If the TV does not support 1080P/4K, a picture cannot be (13) Does the TV support 1080P/4K? output even if the Blu-ray/DVD player is set to 1080P/4K.

  • Page 97: Audio

    4. AUDIO 4.1. AUDIO CHECK No audio output Refer to "Audio Check PATH" (107 page). CHECK1 INPUT SURROND MODE SOURCE Check the ANALOG AUDIO BLOCK Audio output OK? ANALOG 2CH DIRECT ANALOG CHECK2 INPUT SURROND MODE SOURCE Check the DIGITAL AUDIO Legacy BLOCK Audio output OK?
  • Page 98 4.2. Power AMP (AMP PCB) No audio output. Protection is activated. Is the power transistor open or short circuit- Replace the power transistor. 2SB1647/2SD2560 s Is the emitter resistor of the power transistor open? Replace the emitter resistor. 0.47Ω Is the base resistor of the power transistor open? Replace the base resistor.

  • Page 99: Analog Audio

    4.3. Analog audio No audio output. Is a voltage of ±7V supplied to SIDE Repair the ±7V power supply. CNT PCB CN64C 4-7pin? Is there an audio signal in INPUT Repair the power amplifier. PCB CN461? Connect the connectors correctly. Is electron volume serial data be- Is the connector correctly connected ing sent to SIDE CNT PCB CN23C...

  • Page 100: Network/Bluetooth/Usb

    5. Network/Bluetooth/USB 5.1. Cannot connect to the network Check the connection environment Insert the LAN cable correctly and then turn Is the LAN cable correctly inserted? on the power again. Check the connection environment Set the IP address, etc. correctly. If the IP settings are fixed, check that no Are the network settings of this unit correct? other devices have the same IP address and...
  • Page 101 The circuit between the AC inlet and CN903 Can a voltage (5V) be confirmed between pin 2 and pin 5 of is faulty. Check the SMPS PCB. CN903? Can an output voltage (3.3V) to Is D5V_POWER (IC151 uCOM 85pin) The circuit of D5V_POWER between IC112(DC-DC Conv.) be confirmed? "Hi"...
  • Page 102 5.2. Cannot connect to the Bluetooth Can a voltage (5V) be confirmed between pin 1 and pin 4 of BN111 on The circuit between the AC inlet and BN111 is faulty. DIGITAL PCB? Check the SMPS PCB. The circuit between BN111 of the DIGITAL PCB and Can a voltage (5V) be confirmed pin 10 of CN916 on Bluetooth PCB? CN916 of the Bluetooth PCB are faulty of wire or board.
  • Page 103 5.3. A connected USB device is not recognized. Check the USB device being used Is a USB hub being used? Do not use a USB hub. This unit supports devices in the FAT16 and FAT32-formatted mass storage class, MTP- Is the USB device supported by this unit? compatible devices and iPods (with the exception of some models).
  • Page 104 HDMI test point JK382 T222 T224 JK394 JK393 JK392 JK391 JK384 JK383 JK381 BN111 C4371 TP31 R4357 R4358 T214 T126 TP30 T296 T274 T275 T269 T270 T232 T233 T220 JW507 T297 JK431 TP29 C4426 T277 C4425 CN503 C1138 T298 TP28 C4372 T267 T227...

  • Page 105: Smps

    6. SMPS DC 5V is not output. Replace the IC901 (TOP256YN) and Is IC901 (TOP256YN) damaged? D9001 / D9002 / D9003 / D9004. Are there the damage in IC901 and Has a fuse (F9001) broken? Replace the damaged part(s). D9001 / D9002 / D9003 / D9004 / C9004? Are there any short circuits caused by Repair the short circuited area(s) by the...
  • Page 106 Operation waveform for each part OPTION AC100 ~ 120V CCQF2E104KZE-T Primary drain After primary side rectification AC220 ~ 240V OPEN (Caution: High voltage, electric shock) (Caution: High voltage, electric shock) C9002 0.01uF 250V OPTION HEATSINK (16*16*30) D9001 1N4007 or CHASSIS After secondary rectifications D9002 1N4007 D9012...

  • Page 107: Audio Check Pass

    AUDIO CHECK PASS Refer to troubleshooting "4.1. AUDIO CHECK"(97 page). HDMI BLOCK CHECK6 HDMI HDMI OUTPUT INPUT CHECK5 HDMI INPUT CHECK4 HDMI Tranceiver HDMI Tranceiver MN8647771 MN8647771 TMDS FRONT BUFFER HDMI AD8195 INPUT Digital audio BLOCK DIR/ADC SPDIF COAXIAL PCM9211PTR DIGITAL INPUT OPTICAL...

  • Page 108: Clock Flow & Wave Form In Digital Block

    CLOCK FLOW & WAVE FORM IN DIGITAL BLOCK WAVE FORM MCKO Z2DIRMCK Z2DACMCK IC202 IC203 BCKO Z2DIRBCK Z2DACBCKO LC89091JA RXIN PCM5100 LRCKO Z2DIRLRCK Z2DACLRCKO LRCK DATAO Z2DIRDATA Z2DACDATAO ③ CH1:RXIN0 DAC256FS MCLK DAC64FS BICK CH0AMCLK RXMCK/DSDMCK DACFS LRCK IC301 CH0ABCLK RXBCK/DSDSCK PCM1690 DATAF...

  • Page 109: Level Diagram

    LEVEL DIAGRAM AVR-X3100 LEVEL DIAGRAM FRONT ch R2A15218FP ANALOG H/P OUT SPEAKER LINE IN ＋ GAIN MUTE PRE OUT ＋ ADJ. PCM1690 ＋ ＋ PCM9211 (E2 Only) － － +30dB 4.22Vrms:A/D FULL SCALE SP OUT R2A15218FP MAX. OUTPUT 3.8Vrms 4.48Vrms/8Ω Differential Out PCM1690 2.83Vrms=0dBFS...
  • Page 110 AVR-X3100 LEVEL DIAGRAM CENTER ch R2A15218FP SPEAKER ＋ GAIN MUTE PRE OUT ADJ. PCM1690 ＋ ＋ (E2 Only) － － +30dB SP OUT R2A15218FP MAX. OUTPUT 3.8Vrms 4.48Vrms/8Ω Differential Out PCM1690 2.83Vrms=0dBFS MAX. SIGNAL LEVEL +20dB +20dB DOLBY LIMIT LEVEL (ALLch-3dBFS) +29dB -10dBFS +10dB...
  • Page 111 AVR-X3100 LEVEL DIAGRAM SUBWOOFER ch R2A15218FP MUTE PRE OUT GAIN ADJ. PCM1690 ＋ ＋ － － +30dB MAX. SIGNAL LEVEL R2A15218FP MAX. OUTPUT 3.8Vrms Differential Out PCM1690 DOLBY LIMIT LEVEL (ALLch-3dBFS) 2.83Vrms=0dBFS +20dB +20dB -10dBFS +10dB +10dB PREOUT -20dBFS 310mVrms 200mVrms PRE OUT 159mVrms...
  • Page 112 AVR-X3100 LEVEL DIAGRAM SURROUND ch R2A15218FP SPEAKER ＋ GAIN MUTE PRE OUT ADJ. PCM1690 ＋ ＋ (E2 Only) － － +30dB SP OUT R2A15218FP MAX. OUTPUT 3.8Vrms 4.48Vrms/8Ω Differential Out PCM1690 2.83Vrms=0dBFS MAX. SIGNAL LEVEL +20dB +20dB DOLBY LIMIT LEVEL (ALLch-3dBFS) +29dB -10dBFS +10dB...
  • Page 113 AVR-X3100 LEVEL DIAGRAM SURR.BACK ch R2A15218FP SPEAKER ＋ GAIN MUTE PRE OUT ADJ. PCM1690 ＋ ＋ (E2 Only) － － +30dB SP OUT R2A15218FP MAX. OUTPUT 3.8Vrms 4.48Vrms/8Ω Differential Out PCM1690 2.83Vrms=0dBFS MAX. SIGNAL LEVEL +20dB +20dB DOLBY LIMIT LEVEL (ALLch-3dBFS) +29dB -10dBFS +10dB...
  • Page 114 AVR-X3100 LEVEL DIAGRAM ZONE2 R2A15218FP from F-ch from D/A SB-ch SPEAKER To MAIN LINE IN ＋ ZONE GAIN ADJ. NJW1194 MONO TONE MUTE PRE OUT PCM5100 MONO +30dB SP OUT R2A15218FP MAX. OUTPUT 3.8Vrms 4.48Vrms/8Ω PCM5100 MAX. SIGNAL LEVEL +20dB 2.0Vrms=0dBFS +20dB +29dB...

  • Page 115: Block Diagram

    BLOCK DIAGRAM AVR-X3100W GND DIAGRAM NOT USED OPT. WiFi Bluetooth Ethernet HDMI HDMI(FRT) ANALOG IN PRE_OUT Remote COAX. ZONE2 OUT ANALOG TUNER A-VIDEO INPUTS AC CORD SPEAKER OUT DGND DGND DGND DGND VGND AGND AGND BN706 VGND DGND BN903 BN24C...

  • Page 116: Power Diagram

    POWER DIAGRAM AVR-X3100W POWER BLOCK DIAGRAM HI+B LOW+B RY931 AVRX3100W:180mA S1(AMP+B,-B) +12V(RELAY) LOW-B HI-B 45mA +3.3V (Z2 DAC) NJM2845DL133 AVRX3100W AVRX3100 : 357mA IC205 Max.217mA 122mA S2 + 357mA KIA7807BPI KIA7805BPI A+5V (DAC/DIR/ADC) AVRX3100W : 140mA S2 - 140mA IC936 IC931 A+7V (A.

  • Page 117: Wiring Diagram

    WIRING DIAGRAM WIRING DIAGRAM (AVRX3100W) WiFi Antenna WiFi Antenna DIGITAL PCB INLET CN915 WAFER/3pin-2.5mm/SMD CN901 CUP12638Z CN914 (USB) BN111 WAFER/5pin-2mm WAFER, 2P, 3.96mm UL1007#24 Network PCB WIRE/4pin-2.0mm/120mm CN902 WAFER, 2P, 7.92mm CN431 CN903 CN69B CON2 WAFER, FFC, SMD(23P-1mm) WiFi Antenna WAFER/2.5mm-05P WAFER, FFC, SMD(40P-1mm) CN704...

  • Page 118: Printed Wiring Boards

    PRINTED WIRING BOARDS Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu). DIGITAL (A SIDE) CX870 MIDDLE (A SIDE) CUSHION CN915 JK394 JK392 JK391 JK384 JK383 JK382 T222 T224 JK393 JK381 BN111 JW913 C4371 TP31 R4357 R4358 T296 T274 T275 T269 T270 T232...
  • Page 119 INPUT (A SIDE) INPUT (B SIDE) PREOUT ZONE2 PHONO MEDIA BLURAY F.HDMI (A SIDE) C8611 C8582 C8532 C8742 R1106 D1101 BK101 R1105 C1101 R1108 D1102 JK853 JK851 JK465 R4645 R4646 C4643 C4644 JK464 R4632 L4662 L4661 JK466 JK462 JK461 JK854 JK852 JK463 C4628...
  • Page 120 VIDEO (A SIDE) VIDEO (B SIDE) D5252 D5253 C5252 C5105 C5253 R5105 D5251 JK521 JK532 JK531 C5102 C5101 C5103 C5153 C5151 C5157 C5155 C5161 C5159 JK513 JK511-AVRX3000 JK511 J5141 JK523 JK512 J5140 C5236 J5112 R5253 J5139 J5124 D5232 C5336 D5231 C5334 J5114 C5238 C5239...
  • Page 121 SPK (A SIDE) SPK (B SIDE) R9828 C9828 R9824 R9822 R9820 C9826 C9824 R9826 R9823 R9821 D9302 C9825 R9306 R9825 C9307 D9306 R9819 R9827 C9823 C9827 GUIDE (A SIDE) GUIDE (B SIDE) D9914 R9914 R9915 D9913 R9913 C9918 C9917 D9230 R9908 C9920 R9907...
  • Page 122 AMP (A SIDE) CUP12625 Z A SBL-CH WIRE CLAMP 4 BAR CODE LABEL JW771 SBR-CH WIRE CLAMP 3 SL-CH BK701 FL-CH C-CH CN461 SR-CH FR-CH WIRE CLAMP 2 J7013 WIRE CLAMP 1 JW772 R7601 R7201 C7306 C7104 C7304 C7504 C7204 C7704 C7604 C7404...
  • Page 123 FRONT (A SIDE) FRONT (B SIDE) FRONT HDMI FFC CABLE (A SIDE) FRONT HDMI FFC CABLE (B SIDE) JW602 JW601 JW601 JW602 CUP12623Z-6 CUP12623Z-6 FRONT HDMI BOTTOM SMPS (A SIDE) SMPS (B SIDE) C9028 R9017 C9031 J9014 PC123 C9017 ZD920 J9013 J9017 D9008...

  • Page 124: Schematic Diagrams (1/33 )

    TO 8A C1051 C1052 OPEN C1053 R1051 OPEN R1052 OPEN R1053 OPEN L1001 A+5V A+7V A-7V BN24A CJP27HJ282Z BN24A C125Z2-27 DAGND A-7V A+7V BN27A DAFL DAFL CJP15HJ282Z DAGND OPEN C125Z2-15 DAFR DAFR DAGND C1003.C1004.C1019,C1021 TO 6A CPUPOWER DAGND M3.3V DASW DGND DASW DAGND...

  • Page 125: Sch02_Digital Power

    L1211 BLM21PG221SN1 L1212 DGND C1113 C1305 BLM21PG221SN1 C1193 D5.2V BN111 L1213 OPEN OPEN 1/10V BLM21PG221SN1 D5.2V TO CN915 CEC1.2V-2 DGND BN111 1.62A R1113 TST0 R1193 TST0 CWB1C004120LC DGND R1111 OPEN R1191 100K ENABLE TST1 ENABLE TST1 CEC_POWER DV_POWER2 PVIN TST2 PVIN TST2 OPEN...

  • Page 126: Sch03_Main Cpu

    TO 0C TO A3 TO A5 R1571 4.7K 4.7K R1572 R1573 4.7K OPEN R1574 R1575 OPEN R1576 OPEN OPEN R1577 R1578 OPEN R1579 OPEN M3.3V SWM3.3V DGND MAINPOWER MAINPOWER M_RESET M_RESET BDOWN BDOWN REMOTEPOWER REMOTEPOWER C1510 R1546 33 CPUPOWER ACK_SIMO CPUPOWER SCPUPOWER TO B7...

  • Page 127: Sch04_Sub Cpu

    TO 1D TO 2D TO 3D TO 4D TO F6 TO 5D SCPU5V DGND R1781 OPEN SCPU3.3V R1782 OPEN SUBBDOWN R1783 4.7K SUBBDOWN TO B8 R1784 4.7K CEC_POWER CEC_POWER R1785 4.7K DV_POWER2 DV_POWER2 R1786 4.7K DV_POWER1 DV_POWER1 DA_POWER R1787 4.7K DA_POWER SCPU Z2PLDAERR...

  • Page 128: Sch05_Cpu Level Chg

    TO A4 TO B9 DETECT R1901 4.7K DGND T186 T185 T187 Q1952 Q1901 Q1955 2SC3052 2SC3052 RT1N141C T246 Q1911 Q1931 Q1941 Q1951 Q1961 Q1971 Q1981 Q1921 Q1956 2SC3052 T247 T188 T189 2SC3052 OPEN OPEN ISA1530AC1 2SC3052 2SC3052 2SC3052 2SC3052 Q1954 ISA1530AC1 : TOP SIDE SCPUTXD...

  • Page 129: Sch06_Dir

    DIRMCK DIRBCK DIRLRCK DIRDATA TO 8D ZONE1 Z2HDMISPDIF Z2HDMISPDIF Z2DIRSPDIF BCOSPDIF BCOSPDIF R2008 3.3K TO 9D R2009 DIRDOUT DIRDIN MPIO_B1 R2004 4.7K DIRCLK MPIO_B0 R2003 4.7K DIRCE R2010 MPIO_C3 MODE DIRAUXDATA 4.7K MPIO_C2 Z2HDMISPDIF RXIN7 DIRAUXLRCK IC201 MPIO_C1 RXIN6 DIRAUXBCK MPIO_C0 RXIN5 HDMISPDIF...

  • Page 130: Sch07_Audio Pld

    TO C5 TO 6E MCU_SUB A+5V A+5V DGND DGND DA3.3V DA3.3V DACMCK TO 1E Z2DACMCK DATASB Z2DACBCK DATAS Z2DACDATA DATACSW Z2DACLRCK DATAF Z2DACMUTE DACBCK DACLRCK Z2DIRMCK Z2DIRBCK Z2DIRLRCK Z2DIRDATA TO E0 Z2DIRNPCM BCOMCK Z2DIRPERR BCOLRCK TO 2E BCOBCK_SCK BCODSDR BCODATA_DSDL R2210 DIRAUXDATA VCCIO2...

  • Page 131: Sch08_Dsp

    TO E3 TO C7 MP:open CN253 10022H-07C CJP07GA193ZY DSP_ICS DSP_MISO DSP_MOSI DSPI_CLK DGND DA3.3V IC252 C2543 CVIA3V64S40GTP-60 64M BIT SDRAM 1000P 132 131 130 129 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105 104 103 102 101 100 99 98 97 96 95 94 93 92 91 90 89 C2534 R2519 C2544...

  • Page 132: Sch09_Main Dac

    TO E1 TO C9 D_AUDIO A+5V A-7V A+7V DAGND C3079 100/16V C3080 C3001 100/16V C3002 C3003 1000P C3004 1000P C3005 OPEN R3015 150K C3006 OPEN R3016 C3007 1000P C3008 1000P R3021 C3035 C3009 1000P R3005 R3017 C3010 1000P 270pF R3013 C3011 OPEN R3006...

  • Page 133: Sch10_Cy920

    CN501 CN502 TO BN501 TO BN502 BASIC CONNECTOR EXTENDED CONNECTOR JW501 JW502 STYLE PIN CWE5202080A OPEN JW503 JW504 For CY920 ANTENNA CWE5202080A CWE5202080A UART JW505 JW506 JW507 MP:OPEN OPEN OPEN OPEN CN511 CJP07GA193ZY 10022H-07C R5081 OPEN DGND DEBUG_RX R5020 DEBUG_TX NET3.3V OPEN 3.3V...

  • Page 134: Sch11_Video Decoder

    TO B1 L3501 L3506 L3509 BLM21PG221SN1 BLM21PG221SN1 BLM21PG221SN1 L3507 L3502 L3510 BLM21PG221SN1 BLM21PG221SN1 BLM21PG221SN1 L3503 L3511 BLM21PG221SN1 BLM21PG221SN1 L3508 BLM21PG221SN1 L3504 BLM21PG221SN1 L3512 BLM21PG221SN1 L3513 L3505 BLM21PG221SN1 BLM21PG221SN1 C3502 OPEN C3503 OPEN C3504 REFP REFN XTALN RN351 XTALP C3505 4.7KX4 R3502 RXA_2- RXA_2+...

  • Page 135: Sch12_Hdmi Sw2

    CEC5V CEC3.3V L3801 TO B5 VDD33 BLM21PG221SN1 CEC1.2V-2 Q3841 HDMI_SW2 Q3842 DGND RT1N141C HPD1 RX1_C- L3802 JK381 RX1_C+ AVDD33 BLM21PG221SN1 R3845 A0D7ABAR1990 RX1_5V RX1_0- RT1N141C RX1_0+ 19.HP DET RX1_1- 18.+5V RX1_1+ 17.GND RX1_2- L3803 16.DDC DATA R3847 RX1_DDCDA AVDDH33 BLM21PG221SN1 RX1_2+ 15.DDC CLK R3848...

  • Page 136: Sch13_Hdmi Sw1

    SCPU5V HDMI_SW1 P2_C- CEC5V P2_C+ P2_D0- CEC3.3V TO B4 L3901 P2_D0+ VDD33 BLM21PG221SN1 P2_D1- CEC1.2V-1 P2_C- P2_C- P2_D1+ P2_C+ P2_C+ P2_D2- DGND P2_D0- P2_D0- P2_D2+ P2_D0+ P2_D0+ L3902 P2_D1- AVDD33 P2_D1- RX5_C- BLM21PG221SN1 P2_D1+ P2_D1+ TO F1 RX5_C+ P2_D2- P2_D2- RX5_0- P2_D2+ P2_D2+...

  • Page 137: Sch14_Vsp & Ip & Osd

    TO B2 L4001 CB03YTYH600 L4002 CB03YTYH600 L4008 L4013 CB03YTYH600 L4003 CB03YTYH600 CB03YTYH600 L4009 OPEN L4010 L4004 CB03YTYH600 CB03YTYH600 L4016 L4011 CB03YTYH600 OPEN L4005 L4012 L4014 CB03YTYH600 CB03YTYH600 CB03YTYH600 IC403 IC402 A3R12E40CBF-8E L4006 A3R12E40CBF-8E 512Mbit DDR2 SDRAM L4015 512Mbit DDR2 SDRAM CB03YTYH600 CB03YTYH600 C4023...

  • Page 138: Sch15_Video Pld

    TO B3 TO E6 TO C6 R4248 IC422 OPEN MCU&CY920 VPLD_TRANS2 VPLD_TRANS2 VPLD_TRANS1 TO C4 VPLD_TRANS1 ADV8003 VPLD_TRANS0 VPLD_TRANS0 RGB/YC RGB/YC PO8KI_C9/G1_PLD PO8KI_Y4/R0_PLD IO-001 IO-081 NET/HDMI NET/HDMI PO8KI_C5/B5_PLD PO8KI_C5/B5 TO D7 PO8KI_HSYNC_PLD IO-002 IO-082 RN422 SD/HD SD/HD PO8KI_C4/B4_PLD PO8KI_C4/B4 8KOPI_PCK_PLD IO-003 IO-083 THR/UPSCL...

  • Page 139: Sch16_Hdmi Tx & Scaler

    TO B6 CEC5V CEC3.3V L4308 CEC1.2V-3 L4301 VDD33 BLM21PG221SN1 L4305 DGND BLM21PG221SN1 VDD11 BLM21PG221SN1 BLM21PG221SN1 AVDDH33 L4306 L4302 AVDD11 BLM21PG221SN1 AUDIO_PLD1 L4303 AVDD33 BLM21PG221SN1 L4307 PVDD33 BLM21PG221SN1 HDMISW&7850&8195 L4304 VDD33IO BLM21PG221SN1 R4359 PTX1_HPD TO 6F HPD8 TXEN POHI_DE POHI_HSYNC POHI_VSYNC CN431 CJP23GA193ZY 10022H-23C...

  • Page 140: Sch17_Adapter

    ADAPTER WITHOUT BUFFER CN915 CN914 FROM USB B'D TO BN111 CJP05GJ288ZY CN915 CJP04GB220ZY 20022WR-05 BN501 CJP64GA310ZP CN911 C9106 10/6.3V CJP120GA277ZP C9107 1.NET(1.2V) 14-5046-120-145 829+ 0.1uF R9102 2.NET(2.5V) R9103 3.NET(1.2V) 1.DGND C9108 10/6.3V 4.NET(2.5V) 2.DGND R9104 OPEN 5.DGND 3.3.3V R9105 OPEN 6.DGND 4.3.3V 7.NET(1.8V)

  • Page 141: Sch18_Bluetooth

    BLUETOOTH PART BLUETOOTH MODULE IC921 CNVIBT-06-02 BT_ACTIVE BT/PRIORITY LDO_ON R9204 WLAN_ACTIVE I2C_SCL R9203 BT_EINT I2C_SDA BN921 UART_TX CLK_32K 1.BT_ACTIVE 2.BT_EINT 3.WLAN_ACTIVE 4.BT_LDO_ON 5.BT_PRIORITY L9201 6.3.3V CB03YTYH600 7.RXD0 C9201 8.DGND 9.TXD0 L9203 L9202 10.D5V OPEN CB03YTYH600 11.DGND C9205 0.1uF GND3 IC922 CVITC7SGU04FE C9211 IN A...

  • Page 142: Sch19_Input1

    BN64C BN24C BN23C TO CN64C TO CN24C TO CN23C BN24C BN64C BN23C C125Z2 C125Z2 C125Z2 INPUT PART OPEN CUP12634Z-1 R4761 R4765 R4773 100K R4762 R4766 R4774 100K JK461 R4763 R4767 R4775 100K CJJ4P048U R4601 R4764 R4768 R4776 100K CBL/SAT_L L CH CBL/SAT R CH R4602...

  • Page 143: Sch20_Input2

    (OPEN) PREGND AMP_FL PREGND P_PREFL PREGND AMP_FR P_PREFR BN801 AGND AGND R8105 Q8121 R8155 Q8171 R8127 R8177 Q8105 Q8113 Q8135 Q8155 Q8163 Q8185 KTA1504S Q8127 KTA1504S Q8177 KTA1504S KTC3875S KTC3875S KTA1504S KTC3875S KTC3875S KTA1504S KTA1504S AGND R8135 R8117 R8167 R8185 PREFL PREC C8101...

  • Page 144: Sch21_Preout

    PREOUT JACK INFORMATION PREOUT PART D8831 1N4007SR CUP12634Z-1 R8833 D8832 1N4007SR JK851 JK852 JK853 JK854 R8835 D8833 1N4007SR C8831 AVRX3100 CJJ4N034U CJJ4P077Z CJJ4P048U CJJ4M046U 10/50V (RCA-107B-04) (SILVER PLATE, 7.2CH) (RCA-207AE-02) (RCA-405B-55) (RCA-405B-00-04) JK851 CJJ4N034U C8742 C8733 R8735 R8733 R8741 R8711 22/50V C8737 0.01uF...

  • Page 145: Sch22_F-Hdmi

    FRONT HDMI PART CUP12634Z-3 Q1101 TRT1P141C Q1102 RT1N241C R1103 C1101 R1104 0.1uf JK111 A0D7ABAR19N0 19.HP DET 18.+5V 17.GND 16.DDC DATA 15.DDC CLK 14.NC 13.CEC CEC5V L1101 12.CK- CLZ9R005V 11.D1 SHIELD CN111 10.CK+ CJP23GA193ZY 9.D0- 10022H-23C 8.D1 SHIELD 7.D0+ CEC3.3V 6.D1- L1102 DDCD_SDA 5.D2 SHIELD...

  • Page 146: Sch23_Video

    ANALOG VDIEO PART AVRX3100 BLU-RAY CBL/SAT IC511 NJM2595MTE1 MONITOR_OUT VIDEO+5V R5113 75(1%) TO 0G VGND R5114 JK511 BLU-RAY_CVBS_IN OPEN C5111 VIDEO-5V CBL/SAT 10/50V C5112 DVD_CVBS_IN 10/50V R5119 Q5117 75(1%) R5116 OPEN MONITOR OUT CVTRT1N141C CBL/SAT_CVBS_IN OPEN R5117 75(1%) R5115 AUX_CVBS_IN C5121 V.AUX_V_IN R5121...

  • Page 147: Sch24_Rc-5 & Mx-Port

    RC-5 / MX-PORT RC-5/MX-PORT (OPEN) R5311 R5312 Q5313 RT1P141C SWM5V Q5312 M3.3V RT1N141C DGND D5311 A+7V A-7V OPEN RC_IN R5313 BN27B KILLIR_MZ RC_OUT_MZ TO CN27B BTLINK_MZ FRONT_IRIN JK531 FLASHER_IN_MZ RCA-207AE-07 REMOTE3.3V 232O_MI R5314 232I_MO TRIGGER_1 TRIGGER_2 Q5315 B/P_IRIN_DE 2SC3052 +5VL Q5316 OPEN RC5_GND...

  • Page 148: Sch25_Rs232C & Trigger

    IR / FLASHER RS232C/TRIGGER # Model Options IC521 AVRX3100 C5237 C5236 ILX3232D MOUNT 0.1uF 10/50V PJ-308-02 C5231 C5235 OPEN 0.1uF 0.1uF REMOTE IN(AVR ONLY) DGND D5231 OPEN T1_O R5234 Q5251 RT1P141C RS-232C R1_I R5233 PJ-308-02 C5233 R1_O D5232 OPEN "F" OPTION Q5252 0.1uF JK521...

  • Page 149: Sch26_Connect_A

    SIDE CNT_CUP12630Z(CONNECT A) CN23A CN27A TO BN23A TO BN27A CN23A CN27A C125Z1-27 C125Z1-15 TU_RXMO/SCL TU_TXMI/SDA TU_SEN TU_RST TU_INT CN28B TO BN28B CN27B CN28B C125Z1-19 C125Z1-13 CN27B TO BN27B CN64C TO BN64C CN64C CN23C C125Z1-13 C125Z1-21 CN23C TO BN23C BN77D C125Z2-19 BN77D TO CN77D SCHEMATIC DIAGRAMS (26/33)

  • Page 150: Sch27_Connect_B

    FRT CNT_CUP12630Z(CONNECT B) CN21A CN25A CN26A CN24A TO BN21A TO BN25A TO BN26A TO BN24A FROM/TO DIGITAL CON. PART CN26A CN21A CN25A CN24A C125Z1-9 C125Z1-19 C125Z1-23 C125Z1-27 OPTION C9701/C9702 C9701 100/16V AVRX3100 16V/100uF, KR3 C9702 100/16V CN21B C125Z1-19 FROM/TO A-VIDEO PART P_MUTE+7V P_RL+B P_RLGND...

  • Page 151: Sch28_Spk

    BN701 WIRE/04P/2.5mm R9211 2W 10 JK921 BN701 SJ2003S +HIGHB TO CN701 L9201 0.5uH +HIGHB C9531 0.01uF/100V C9511 OPEN -HIGHB R9201 JK922 BN702 SJ2003S WIRE/05P/2.5mm 1W 10 R9212 2W 10 R9202 C9532 0.01uF/100V C9512 OPEN BN702 HIGH_GND 1W 10 C9212 F_RLY TO CN702 0.047uF(M) +HIGHB...

  • Page 152: Sch29_Regulator & Tuner

    R9821 TUNER PART C9827 R9825 OPEN OPEN C9821 C9825 OPEN L9821 OPEN OPEN R9823 R9827 OPEN C9809 OPEN C9810 OPEN CHASSIS C9828 R9826 OPTION A OPEN OPEN C9826 C9811 L9822 OPEN OPEN 0.1uF R9824 CHASSIS R9828 OPEN C9822 OPEN TU901 TUNER_L L-OUT R9822...

  • Page 153: Sch30_7Ch Amp 1

    R7138 R7118 C7103 ZD714 R7115 R7116 1W 270 PTC 115'C 470 ohm 5.1V 100/10V(OPEN) OPEN R7119 1.2K(1608) 1W 270 CN715 R7137 Q7138 Q7114 MMBT5401 D7118 MMBT5401 680K 1SS133M Q7118 R7143 C7108 KTA1024Y OPEN(1608) D7139 R7139 Q7001 C7111 R7144 22k(3216) R7129 C7104 MMBT5401 OPEN(1608)

  • Page 154: Sch31_7Ch Amp 2

    R7438 TO G3 C7403 ZD744 R7415 R7418 TO G4 R7416 5.1V OPEN 1W 270 PTC 115'C 470 ohm 100/10V(OPEN) R7419 1.2K(1608) 1W 270 CN745 R7437 Q7414 Q7438 D7418 MMBT5401 680K MMBT5401 1SS133M R7443 Q7418 C7408 D7439 R7439 OPEN(1608) KTA1024Y R7444 22k(3216) C7411 R7429...

  • Page 155: Sch32_Front

    CN69A TO CN69B AVR-X3100W FRONT PART FL601 CFL18BT021GINK CN69A CUP12623Z-4 FPC 1.0-11S-40PW LUG11 OPEN WIRE 53 52 51 50 49 48 47 46 45 44 43 CHASSIS C6101 OPEN C6102 OPEN R6104 R6102 C6103 OPEN GND ISLAND C6104 OPEN J6101 SWM3.3V...

  • Page 156: Sch33_Smps

    SMPS PART OPTION AC100 ~ 120V CCQF2E104KZE-T AC220 ~ 240V OPEN BK902 C9002 0.01uF 250V AC100 ~ 120V : T 2A L 250V CMD1A834 OPTION AC220 ~ 240V : T 1.6A L 250V OPTION HEATSINK (16*16*30) F9001 D9001 1N4007 or CHASSIS LF901 D9002 1N4007 D9012...

  • Page 157: Exploded View

    EXPLODED VIEW Please see the last chapter for the part list. C20a S14 X2 E1C ONLY S1 X2 E3, E2 ONLY P22 X2 C20b S15 x3 E1C ONLY E3, E2 ONLY S10 x2 S8 x2 S5 x21 Assemble the P8a and P8. HEAT SEAL POINT(13) E3 ONLY S2 X2...

  • Page 158: Packing View

    PACKING VIEW Please see the last chapter for the part list. UK plug (UK Only) 'H' TAPPING 17-3 17-1 19-1 19-2 'I' TAPPING 17-2...

  • Page 159: Semiconductors

    SEMICONDUCTORS Only major semiconductors are shown, general semiconductors etc. are omitted to list. The semiconductor which described a detailed drawing in a schematic diagram are omitted to list. 1. IC's R5F56108VNFP (HDMI : IC151) PE0/D8 PC4/A20 PD7/D7 PC5/A21/SCK5/CS5#-D PD6/D6 PC6/A22/RxD5/CS6#-D PD5/D5 PC7/A23/TxD5/CS4#-D/CS7#-D PD4/D4...
  • Page 160 Pull up/ Pin Name Symbol LvCnv STBY STOP Function down STBY 17 P86 (CEC POWER2) Reserve (CEC POWER2 control) R E M O T E 232C POWER SUPPLY (REMOTE 18 P85 POWER(232C) 3.3V) control pin.(ON: H) 19 RES# RESET Reset input (reset: L) 20 XTAL XTAL Clock input...
  • Page 161 Pull up/ Pin Name Symbol LvCnv STBY STOP Function down STBY ETHERNET communication control pin 55 P54/TRDATA0 E SPI MIEO N3VPu (DM860) ETHERNET communication control pin 56 P83 E SPI CLK N3VPu (DM860) 57 VSS 58 P82/TRCLK FL CE VFD control pin 59 VCC +3.3V 60 P81/TRSYNC...
  • Page 162 Pull up/ Pin Name Symbol LvCnv STBY STOP Function down STBY P A 3 / A 3 / P O 1 9 / D A C ( E T H E R ) DAC (ETHER) MUTE control pin T I O C C 6 / T I O C D 6 / MUTE (PCM5100 for DM860) TCLKF...
  • Page 163 Pull up/ Pin Name Symbol LvCnv STBY STOP Function down STBY HDMI INPUT 5V (for EDID / HOT 139 P41/IRQ9-B/AN1 HDMI IN 5V SET PLUG) detection pin 140 AVSS AVSS 141 P40/IRQ8-B/AN0 CEC_IN SW3VPu CEC-D signal input pin Reference voltage (+3.3V) input pin for 142 VREF VREF A/D port...
  • Page 164 RX210 Group 1. Overview R5F5210ABDFP (HDMI : IC171) RX210 Group PLQP0100KB-A (100-pin LQFP) (Top view) VREFL0 VREFH0 AVCC0 AVSS0 R5F5210ABDFP Terminal Functions Note: • This figure indicates the power supply pins and I/O port pins. For the pin configuration, see the table “List of Pins and Pin Functions (100-Pin LQFP)”.
  • Page 165 Symbol Pin Name Pu/Pd STBY Function LvCnv STBY 34 P12/SCL/IRQ2 778_1_RST HDMI MN8647781(TX) RESET control pin ※ 35 PH3 HSDA HDMI I2C- MN8647781 3VPu 36 PH2/IRQ1 HSCL HDMI I2C- MN8647781 3VPu 37 PH1/IRQ0 778_1_HINT HDMI MN8647781(TX) HDMI INT input pin 38 PH0 778_2_RST HDMI MN8647781(RX) RESET control pin...
  • Page 166 Symbol Pin Name Pu/Pd STBY Function LvCnv STBY 85 PD1/IRQ1 DSP1CS DSP control pin (ADSP21487KSWZ-3B) 3VPu 86 PD0/IRQ0 DSP1FLAG0 DSP control pin (ADSP21487KSWZ-3B) 87 P47/AN007 88 P46/AN006 VIN A COMPOSITE VIDEO SELECT IC(NJM2595) 89 P45/AN005 VIN B COMPOSITE VIDEO SELECT IC(NJM2595) 90 P44/AN004 VIN C COMPOSITE VIDEO SELECT IC(NJM2595)
  • Page 167 www.ti.com SBAS495 – JUNE 2010 PIN CONFIGURATIONS PT PACKAGE PCM9211 (HDMI : IC201) LQFP-48 (TOP VIEW) ERROR/INT0 VDDRX NPCM/INT1 RXIN1 MPIO_A0 MPIO_A1 RXIN2 MPIO_A2 RXIN3 MPIO_A3 RXIN4/ASCKIO PCM9211 MPIO_C0 RXIN5/ABCKIO MPIO_C1 RXIN6/ALRCKIO MPIO_C2 RXIN7/ADIN0 MPIO_C3 MODE MPIO_B0 MS/ADR1 MPIO_B1 MC/SCL PIN FUNCTIONS PIN Functions DESCRIPTION...
  • Page 168 DESCRIPTION NAME TOLERANT Reset Input, active low(2) (4) RXIN1 Biphase signal, input 1, built-in coaxial amplifier VDDRX – – Power supply, 3.3 V (typ.), for RXIN0 and RXIN1. RXIN0 Biphase signal, input 0, built-in coaxial amplifier GNDRX Ground, for RXIN Oscillation circuit input for crystal resonator or external XTI clock source input(5) Oscillation circuit output for crystal resonator AGND...
  • Page 169 LC89091JA (DIGITAL : IC202) LC89091JA SDIN XOUT...
  • Page 170 済 ADSP21487KSWZ4B (DIGITAL:IC251) PIN 1 GND PAD (PIN 177) at BOTTOM TOP VIEW (PINS DOWN) ADSP21487KSWZ3B Terminal Function Pin Name Pin No. Pin Name Pin No. Pin Name Pin No. Pin Name Pin No. SDDQM DAI_P10 DPI_P08 FLAG0 SDCKE DPI_P07 FLAG1 DAI_P20 FLAG2...
  • Page 171 A3V64S40GTP-60(DIGITAL:IC252) PIN CONFIGURATION (TOP VIEW) PIN CONFIGURATION (TOP VIEW) DQ15 VddQ VddQ VssQ VssQ DQ14 DQ13 VssQ VssQ VddQ VddQ DQ12 DQ11 VddQ VddQ VssQ VssQ DQ10 VssQ VssQ VddQ VddQ DQML DQMU /CAS /CAS /RAS /RAS A10(AP) A10(AP)
  • Page 172 A3V56S30FTP A3V56S40FTP 256M Single Data Rate Synchronous DRAM A3V64S40GTP-60 Pin Function Pin Descriptions SYMBOL TYPE DESCRIPTION Clock: CLK is driven by the system clock. All SDRAM input signals are sampled on the positive edge of CLK. CLK also increments the internal burst counter and controls the output registers. Input Clock Enable: CKE activates (HIGH) and deactivates (LOW) the CLK signal.
  • Page 173 A3V56S30FTP A3V56S40FTP 256M Single Data Rate Synchronous DRAM A3V64S40GTP-60 Block Diagram Note:This figure shows the A3V56S30FTP The A3V56S40FTP configuration is 8192x512x16 of cell array and DQ0-15 Type Designation Code A 3Ｖ 56 Ｓ４０F ＴＰ－G6 Speed Grade 75： 133MHz@CL=3 7： 143MHz@CL=3 6：...
  • Page 174 MX25L1606EM2I-12G(DIGITAL:IC253) MX25L1606EM2I-12G Block Diagram...
  • Page 175 SLAS764 – MAY 2011 www.ti.com DEVICE INFORMATION TERMINAL FUNCTIONS, PCM510x PCM5100 (DIGITAL:IC203) PCM510X (top view) Table 2. TERMINAL FUNCTIONS, PCM510x TERMINAL DESCRIPTION NAME CPVDD Charge pump power supply, 3.3V CAPP Charge pump flying capacitor terminal for positive rail CPGND Charge pump ground CAPM Charge pump flying capacitor terminal for negative rail VNEG...
  • Page 176 PCM1690(DIGITAL:IC301) PCM1690 Pin Function TERMINAL PULL- DESCRIPTION NAME DOWN TOLERANT RSV2 — — — Reserved, tied to analog ground RSV1 — — — Reserved, left open RSV2 — — — Reserved, tied to analog ground RSV1 — — — Reserved, left open RSV2 —...

  • Page 177: Functional Block Diagram

    TERMINAL PULL- DESCRIPTION DOWN TOLERANT NAME VOUT1+ Positive analog output from DAC1 VOUT1- Negative analog output from DAC1 PCM1690 RSV2 — — — Reserved, tied to analog ground AGND2 — — — Analog ground 2 VCC2 — — — Analog power supply 2, +5 V RSV2 —...
  • Page 178 CONFIDENTIAL 8-CHANNEL ELECTRONIC VOLUME With 11-Input selector And Tone control BLOCK DIAGRAM AND PIN CONFIGURATION (TOP VIEW) R2A15218FP (INPUT : IC471) AVCC MUTE AVCC N.C. AVEE AVEE N.C. TREL 0/-6/-12/-18dB ADCL BASSL2 BASSL1 ADCR N.C. AGND Bass/ Treble 0~-95dB, -14~+14dB -∞...
  • Page 179 R2A15218FP R2A15218FP CONFIDENTIAL 8-CHANNEL ELECTRONIC VOLUME With 11-Input selector And Tone control PIN DESCRIPTION R2A15218FP Pin Function PIN No. Function Name 23,21, FROUT,FLOUT, 17,15, COUT,SWOUT, Output pin of FL/FR/C/SW/SL/SR/SBL/SBR channel 11,9, SROUT, SLOUT, SBROUT,SBLOUT 24,20, FRC,FLC, 18,14, CC,SWC, Connects capacitor for reducing click noise of 12,8, SRC,SLC, L/R/C/SW/SL/SR/SBL/SBR channel volume...
  • Page 180 G   G    I I I I BLOCK DIAGRAM NJW1194A (INPUT : IC484)                        ...

  • Page 181: Fl Display

    2. FL DISPLAY FLD (018BT021GINK) (FRONT : FL601) PIN CONNECTION GRID ASSIGNMENT...
  • Page 182 ANODE CONNECTION...
  • Page 183 FRONT FRONT PCB ASS'Y ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions. NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A.
  • Page 184 FRONT REF No. Part No. Part Name Remarks Q'ty New OTHER PARTS GROUP BK601,602 BRACKET,FIP CMD1A572-V1 BK603 BRACKET,PCB CMD1A569-V1 BN321 WIREASS'Y(5P,2.0MM,600MM,UL2725#24/#28,1P+2C)USB CWB8A005600HC EXPLODE_C2 CN602 WAFER/ANGLE/2.5mm/07P CJP07GB03ZY CN69A WAFER,FFC(40P-1mm,ANGLE) CJP40GB284ZN ! F6001 943652500540D FUSE(372Series/200mA/TR5) CBA2D0200A3EYT FL601 943172100150S V.F.D(FUTABA,18-BT-02GINK) CFL18BT021GINK JK608 943643101590S JACK,USBSTRAIGHT(BLACK1.5A) CJJ9X010Z JK631...
  • Page 185 VIDEO VIDEO PCB ASS'Y ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions. NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A.
  • Page 186 AMP PCB ASS'Y ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions. NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A.
  • Page 187 REF No. Part No. Part Name Remarks Q'ty New R7017 RES,CARBON(1/5W,10Kohm,J) CRD20TJ103T R7018 RES,CHIP(1608/5%/10Kohm) CRJ10DJ103T R7101 RES,CARBON(1/5W,1.2Kohm,J) CRD20TJ122T R7102 RES,CARBON(1/5W,470Kohm,J) CRD20TJ474T R7103 RES,CARBON(1/5W,33Kohm,J) CRD20TJ333T R7104 WIRE,COPPER(D0.6) C3A206 0.02 R7105 RES,M-OXIDEFILM(1W/1Kohm) CRG1SANJ102RT R7106 RES,CHIP(1608/5%/470ohm) CRJ10DJ471T R7107 RES,CHIP(1608/5%/0ohm) CRJ10DJ0R0T R7108 RES,M-OXIDEFILM(1W/1Kohm) CRG1SANJ102RT R7110 RES,CARBON(1/5W,110ohm,J) CRD20TJ111T...
  • Page 188 REF No. Part No. Part Name Remarks Q'ty New R7420 RES,M-OXIDEFILM(2W/12Kohm) CRG2SANJ123RT R7421 RES,M-OXIDEFILM(1W/270ohm) CRG1SANJ271RT R7424 RES,CHIP(1608/5%/2.7Kohm) CRJ10DJ272T R7425 RES,CHIP(1608/5%/470ohm) CRJ10DJ471T R7426 00MNN05561610 RES,CHIP(1608/5%/560ohm) CRJ10DJ561T R7429,7430 943124500240S RES,M-OXIDEFILM(1W/22ohm) CRG1SANJ220RT R7431-7434 943124500050S RES,M-OXIDEFILM(2W/0.47ohm) CRG2SANJR47RT R7435,7436 RES,CHIP(1608/5%/10Kohm) CRJ10DJ103T R7437 RES,CARBON(1/5W,680Kohm,J) CRD20TJ684T ! R7438 252310006506S PTCTHEMISTORS,CHIP(115'C) CRTPRF18BB471QB...
  • Page 189 REF No. Part No. Part Name Remarks Q'ty New R7745 RES,CARBON(1/5W,22Kohm,J) CRD20TJ223T CAPACIITORS GROUP C7001 CAP,CHIP(1608,50V/0.01uF,X7R)_SAMSUNG CCUS1H103KCS C7011,7012 943134501570S CAP,ELECT(10V/330uF) CCEA1AH331T C7013 CAP,ELECT(10V/47uF) CCEA1AH470T C7101 00D2544583971 CAP,ELEC(ELNAROBSERIES,47uF/50V) CCEA1HROB470T C7102 CAP,PE-FILM(100V/470pF/J) CCME2A471JR11T C7104 CAP,PE-FILM(100V/220pF/J) CCME2A221JR11T C7106 00MOA47702520 CAP,ELECT(25V/470uF) CCEA1EH471T C7107 CAP,MYLAR(50V/2200pF/J) HCQI1H222JZT C7112 CAP,PE-FILM(100V/220pF/J)
  • Page 190 SPK PCB ASS'Y ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions. NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A.
  • Page 191 REF No. Part No. Part Name Remarks Q'ty New BN932 WIREASS'YLOCKING(9P,2.0MM,220MM,UL1007#26) CWB1B009220HC EXPLODE_C41 C9705,9706 963134010180S CAP,ELECT(71V/12000uF),35*58L,NICHICON CCET71VLKS123N EXPLODE_C34, CN25D PINHEADER(25P,1.25mm,STRAIGHT,B-TO-B) CJP25GI281Z CN77D PINHEADER(19P,1.25mm,STRAIGHT,B-TO-B) CJP19GI281Z CN932 LOCK-WAFER/STRAIGHT/2MMPITCH/9PIN CJP09GI288ZY CN940 LOCK-WAFER/STRAIGHT/2.5MMPITCH/5PIN CJP05GI289ZY CN941 LOCK-WAFER/STRAIGHT/2.5MMPITCH/3PIN CJP03GI289ZY CN971 WAFER,7P(DIP,3.96PITCH) CJP07GA90ZY ! F9331 963652010510S FUSE(S506Series,250V,2A) CBA2C2000TLEC F9331-9335 HOLDER,FUSE...
  • Page 192 CNT PCB ASS'Y ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions. NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A.
  • Page 193 INPUT INPUT PCB ASS'Y ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions. NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A.
  • Page 194 INPUT REF No. Part No. Part Name Remarks Q'ty New R8573-8576 RES,CHIP(1608/5%/470ohm) CRJ10DJ471T R8577-8580 RES,CHIP(1608/5%/100Kohm) CRJ10DJ104T R8581,8582 RES,CHIP(1608/5%/220ohm) CRJ10DJ221T R8583 RES,CHIP(1608/5%/10Kohm) CRJ10DJ103T R8587,8588 RES,CHIP(1608/5%/10Kohm) CRJ10DJ103T R8589 RES,CHIP(1608/5%/470Kohm) CRJ10DJ474T R8590 RES,CHIP(1608/5%/1Kohm) CRJ10DJ102T R8601 RES,CHIP(1608/5%/470Kohm) CRJ10DJ474T R8603 RES,CHIP(1608/5%/470ohm) CRJ10DJ471T R8605 RES,CHIP(1608/5%/470ohm) CRJ10DJ471T R8607 RES,CHIP(1608/5%/100Kohm) CRJ10DJ104T...
  • Page 195 INPUT REF No. Part No. Part Name Remarks Q'ty New JK853 943643101570S JACK,4P(W/R,W/R),SEPA-GND CJJ4P048U JK854 943643010160S JACK,1P(BK),SEPA-GND,SILVER CJJ4M046U JW601 WIREASS'Y(1P,80MM,BLK,#22) CWE5202080A L1101,1102 FERRITECHIPBEAD(1608/60R,CB03YTYH600) CLZ9R005V LUG11 WIREASS'Y CWE8202150RV LUG12 WIREASS'Y CWE8202120RV...
  • Page 196 DIGITAL DIGITAL PCB ASS'Y ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions. NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A.
  • Page 197 DIGITAL REF No. Part No. Part Name Remarks Q'ty New R1145 RES,CHIP(1608/1%/169Kohm) CRJ10DF1693T R1146 RES,CHIP(1608/1%/2Kohm) CRJ10DF2001T R1147 RES,CHIP(1608/5%/10Kohm) CRJ10DJ103T R1151 RES,CHIP(1608/5%/1Kohm) CRJ10DJ102T R1153 RES,CHIP(1608/5%/100Kohm) CRJ10DJ104T R1154,1155 RES,CHIP(1608/1%/348Kohm) CRJ10DF3483T R1161 RES,CHIP(1608/5%/1Kohm) CRJ10DJ102T R1163 RES,CHIP(1608/5%/100Kohm) CRJ10DJ104T R1164 RES,CHIP(1608/1%/348Kohm) CRJ10DF3483T R1165 RES,CHIP(1608/1%/160Kohm) CRJ10DF1603T R1166 RES,CHIP(1608/5%/0ohm) CRJ10DJ0R0T...
  • Page 198 DIGITAL REF No. Part No. Part Name Remarks Q'ty New R1759 RES,CHIP(1005/5%/220Kohm) CRJ06IJ224T R1760 RES,CHIP(1005/5%/100Kohm) CRJ06IJ104T R1761 RES,CHIP(1005/5%/10Kohm) CRJ06IJ103T R1762,1763 RES,CHIP(1005/5%/4.7Kohm) CRJ06IJ472T R1765 RES,CHIP(1005/5%/10Kohm) CRJ06IJ103T R1766 RES,CHIP(1005/5%/470Kohm) CRJ06IJ474T R1768 RES,CHIP(1005/5%/33ohm) CRJ06IJ330T R1769 RES,CHIP(1005/5%/4.7Kohm) CRJ06IJ472T R1783-1787 RES,CHIP(1005/5%/4.7Kohm) CRJ06IJ472T R1788-1790 RES,CHIP(1005/5%/33ohm) CRJ06IJ330T R1901 RES,CHIP(1005/5%/4.7Kohm) CRJ06IJ472T...
  • Page 199 DIGITAL REF No. Part No. Part Name Remarks Q'ty New R3001 RES,CHIP(1608/5%/33ohm) CRJ10DJ330T R3002 RES,CHIP(1005/5%/1Kohm) CRJ06IJ102T R3003,3004 RES,CHIP(1608/5%/4.7Kohm) CRJ10DJ472T R3005-3008 RES,CHIP(1608/5%/15Kohm) CRJ10DJ153T R3009,3010 RES,CHIP(1608/5%/150Kohm) CRJ10DJ154T R3011,3012 RES,CHIP(1608/5%/12Kohm) CRJ10DJ123T R3013,3014 RES,CHIP(1608/5%/470ohm) CRJ10DJ471T R3015 RES,CHIP(1608/5%/150Kohm) CRJ10DJ154T R3016 RES,CHIP(1608/5%/12Kohm) CRJ10DJ123T R3017,3018 RES,CHIP(1608/5%/470ohm) CRJ10DJ471T R3019 RES,CHIP(1608/5%/12Kohm) CRJ10DJ123T...
  • Page 200 DIGITAL REF No. Part No. Part Name Remarks Q'ty New R3875 RES,CHIP(1608/5%/0ohm) CRJ10DJ0R0T R3876 RES,CHIP(1005/5%/47Kohm) CRJ06IJ473T R3877,3878 RES,CHIP(1005/5%/0ohm) CRJ06IJ0R0T R3901,3902 RES,CHIP(1608/1%/510ohm) CRJ10DF5100T R3903-3906 RES,CHIP(1005/5%/10Kohm) CRJ06IJ103T R3907 RES,CHIP(1005/5%/47Kohm) CRJ06IJ473T R3908 RES,CHIP(1005/5%/0ohm) CRJ06IJ0R0T R3909 RES,CHIP(1005/5%/47ohm) CRJ06IJ470T R3910-3912 RES,CHIP(1005/5%/10Kohm) CRJ06IJ103T R3913-3915 RES,CHIP(1005/5%/47Kohm) CRJ06IJ473T R3916 RES,CHIP(1608/5%/1Kohm) CRJ10DJ102T...
  • Page 201 DIGITAL REF No. Part No. Part Name Remarks Q'ty New R5027 RES,CHIP(1005/5%/47ohm) CRJ06IJ470T R5029 RES,CHIP(1005/5%/47ohm) CRJ06IJ470T R5031 RES,CHIP(1005/5%/47ohm) CRJ06IJ470T R5033 RES,CHIP(1005/5%/47ohm) CRJ06IJ470T R5035 RES,CHIP(1005/5%/47ohm) CRJ06IJ470T R5037 RES,CHIP(1005/5%/47ohm) CRJ06IJ470T R5039 RES,CHIP(1005/5%/47ohm) CRJ06IJ470T R5051-5053 RES,CHIP(1005/5%/33ohm) CRJ06IJ330T R5055 RES,CHIP(1005/5%/33ohm) CRJ06IJ330T R5056 RES,CHIP(1005/5%/0ohm) CRJ06IJ0R0T R5063 RES,CHIP(1005/5%/10Kohm) CRJ06IJ103T...
  • Page 202 DIGITAL REF No. Part No. Part Name Remarks Q'ty New C1213 CAP,CHIP(1005,16V/0.1uF,X7R)_SAMSUNG CCUI1C104KCS C1214-1218 CAP,CHIP(1005,50V/1000pF,X7R)_SAMSUNG CCUI1H102KCS C1219-1221 CAP,CHIP(1005,16V/0.1uF,X7R)_SAMSUNG CCUI1C104KCS C1222 CAP,CHIP(1005,25V/0.047uF,X7R)_SAMSUNG CCUI1E473KCS C1223,1224 CAP,CHIP(1005,16V/0.1uF,X7R)_SAMSUNG CCUI1C104KCS C1225 CAP,CHIP(1005,50V/1000pF,X7R)_SAMSUNG CCUI1H102KCS C1226,1227 CAP,CHIP(1005,16V/0.1uF,X7R)_SAMSUNG CCUI1C104KCS C1228 CAP,CHIP(1608,10V/1uF,X7R,X7S)_SAMSUNG CCUS1A105KCS C1229 CAP,CHIP(2012,6.3V/10uF,X5R)_SAMSUNG CCUC0J106KCS C1230 CAP,ALUMINUMELECTROLYTIC(16V/10uF) CCEC1CMVG100T C1231 CAP,CHIP(1608,10V/1uF,X7R,X7S)_SAMSUNG CCUS1A105KCS...
  • Page 203 DIGITAL REF No. Part No. Part Name Remarks Q'ty New C3025 CAP,CHIP(1005,16V/0.1uF,X7R)_SAMSUNG CCUI1C104KCS C3026 CAP,SMDELECT(50V/100uF) CCEC1HMVG101T C3027 CAP,SMDELECT(63V/47uF) CCEC1JMVG470T C3028,3029 CAP,CHIP(1608,10V/1uF,X7R,X7S)_SAMSUNG CCUS1A105KCS C3031,3032 CAP,CHIP(2012,50V/1800pF,MURATAGRM21) CCUMUC1H182JAM C3033-3036 CAP,CHIP(2012,50V/270pF,MURATAGRM21) CCUMUC1H271JAM C3039,3040 CAP,ELECT(16V/100uF) CCEA1CH101T C3041 CAP,CHIP(2012,50V/1800pF,MURATAGRM21) CCUMUC1H182JAM C3042 CAP,CHIP(2012,50V/820pF,MURATAGRM21) CCUMUC1H821JAM C3043-3046 CAP,CHIP(2012,50V/270pF,MURATAGRM21) CCUMUC1H271JAM C3051,3052 CAP,CHIP(2012,50V/1000pF,MURATAGRM21) CCUMUC1H102JAM...
  • Page 204 DIGITAL REF No. Part No. Part Name Remarks Q'ty New C3632 CAP,CHIP(1005,25V/0.01uF,X7R)_SAMSUNG CCUI1E103KCS C3633 CAP,CHIP(1005,16V/0.1uF,X7R)_SAMSUNG CCUI1C104KCS C3634,3635 CAP,CHIP(1005,25V/0.01uF,X7R)_SAMSUNG CCUI1E103KCS C3636 CAP,CHIP(1005,16V/0.1uF,X7R)_SAMSUNG CCUI1C104KCS C3637 CAP,CHIP(1005,25V/0.01uF,X7R)_SAMSUNG CCUI1E103KCS C3638 CAP,CHIP(1005,16V/0.1uF,X7R)_SAMSUNG CCUI1C104KCS C3639 CAP,CHIP(1005,25V/0.01uF,X7R)_SAMSUNG CCUI1E103KCS C3640 CAP,CHIP(1005,16V/0.1uF,X7R)_SAMSUNG CCUI1C104KCS C3641 CAP,CHIP(1005,25V/0.01uF,X7R)_SAMSUNG CCUI1E103KCS C3642 CAP,CHIP(1005,16V/0.1uF,X7R)_SAMSUNG CCUI1C104KCS C3643 CAP,CHIP(1005,25V/0.01uF,X7R)_SAMSUNG CCUI1E103KCS...
  • Page 205 DIGITAL REF No. Part No. Part Name Remarks Q'ty New C3851-3854 CAP,CHIP(1608,6.3V/4.7uF,X5R)_SAMSUNG CCUS0J475KCS C3859,3860 CAP,CHIP(1608,6.3V/4.7uF,X5R)_SAMSUNG CCUS0J475KCS C3865,3866 CAP,CHIP(1608,6.3V/4.7uF,X5R)_SAMSUNG CCUS0J475KCS C3868,3869 CAP,CHIP(1608,6.3V/4.7uF,X5R)_SAMSUNG CCUS0J475KCS C3871,3872 CAP,CHIP(1608,6.3V/4.7uF,X5R)_SAMSUNG CCUS0J475KCS C3881,3882 CAP,CHIP(1608,6.3V/4.7uF,X5R)_SAMSUNG CCUS0J475KCS C3887,3888 CAP,CHIP(1608,6.3V/4.7uF,X5R)_SAMSUNG CCUS0J475KCS C3901-3903 CAP,CHIP(1005,16V/0.1uF,X7R)_SAMSUNG CCUI1C104KCS C3904 CAP,CHIP(1608,10V/1uF,X7R,X7S)_SAMSUNG CCUS1A105KCS C3905 CAP,CHIP(1005,16V/0.1uF,X7R)_SAMSUNG CCUI1C104KCS C3906 CAP,CHIP(1608,10V/1uF,X7R,X7S)_SAMSUNG CCUS1A105KCS...
  • Page 206 DIGITAL REF No. Part No. Part Name Remarks Q'ty New C4139 CAP,CHIP(1608,6.3V/4.7uF,X5R)_SAMSUNG CCUS0J475KCS C4141,4142 CAP,CHIP(1005,16V/0.1uF,X7R)_SAMSUNG CCUI1C104KCS C4143 CAP,CHIP(1005,25V/0.01uF,X7R)_SAMSUNG CCUI1E103KCS C4144 CAP,CHIP(1005,16V/0.1uF,X7R)_SAMSUNG CCUI1C104KCS C4145 CAP,CHIP(1005,25V/0.01uF,X7R)_SAMSUNG CCUI1E103KCS C4147 CAP,CHIP(1608,6.3V/4.7uF,X5R)_SAMSUNG CCUS0J475KCS C4149 CAP,CHIP(1005,16V/0.1uF,X7R)_SAMSUNG CCUI1C104KCS C4150 CAP,CHIP(1005,25V/0.01uF,X7R)_SAMSUNG CCUI1E103KCS C4151 CAP,CHIP(1005,16V/0.1uF,X7R)_SAMSUNG CCUI1C104KCS C4152 CAP,CHIP(1005,25V/0.01uF,X7R)_SAMSUNG CCUI1E103KCS C4153 CAP,CHIP(1005,16V/0.1uF,X7R)_SAMSUNG CCUI1C104KCS...
  • Page 207 DIGITAL REF No. Part No. Part Name Remarks Q'ty New L1009 FERRITECHIPBEAD(1608/60R,CB03YTYH600) CLZ9R005V L1012 RES,CHIP(1608/5%/0ohm) CRJ10DJ0R0T L1013,1014 FERRITECHIPBEAD(1608/60R,CB03YTYH600) CLZ9R005V L1015-1019 RES,CHIP(1608/5%/0ohm) CRJ10DJ0R0T L1021-1024 RES,CHIP(1608/5%/0ohm) CRJ10DJ0R0T L1027-1033 RES,CHIP(1608/5%/0ohm) CRJ10DJ0R0T L1121 FERRITECHIPBEAD(1608/60R,CB03YTYH600) CLZ9R005V L1124 FERRITECHIPBEAD(1608/60R,CB03YTYH600) CLZ9R005V L1131 FERRITECHIPBEAD(1608/60R,CB03YTYH600) CLZ9R005V L1134 FERRITECHIPBEAD(1608/60R,CB03YTYH600) CLZ9R005V L1141 FERRITECHIPBEAD(1608/60R,CB03YTYH600) CLZ9R005V...
  • Page 208 SMPS SMPS PCB ASS'Y ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions. NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A.
  • Page 209 CX870 CX870 PCB ASS'Y ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions. NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A.
  • Page 210 WIFI ANT(R) : wire 300mm E600505600010S ! C21 943101102520D POWER TRANS (E3) CLT5V068ZU ! C21 943101102530D POWER TRANS (E2) CLT5V068ZE ! C21 943101102540D POWER TRANS (E1C) CLT5V068ZH 42141003400AD BADGE,DENON CGB1A275Z 42141002400AD BADGE,DENON CGB1A254Z-V1 42141002401AD BADGE,DENON CGB1A254Y-V1 42131003300AD BADGE,INCOMEND CGB1A276Z EARTH,PHONE CMC1A476 EARTH,USB CMD1A843...
  • Page 211 EXPLODE REF No. Part No. Part Name Remarks Q'ty New SCREW CTW3+12JR SCREW CTB3+6JR SCREW CTB3+6FR SCREW CTBD3+8JFZR SCREW CTBD3+6FFZR SCREW E3,E2 CTBD4+8JFZR SCREW CTBD4+8JFN SCREW,TRANS CHDR1A023R SCREW,SPECIAL CHD1A109JFN CTB3+8JFZR CTB3+8JFZR DOTSCREW CTBD3+8JFN ★BK701 BRACKET,PCB CMD1A569-V1 ★ WASHER CNW2A028 ★ TAPE,HIMELON CHS1A216 ★...
  • Page 212 PACKING PACKING ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions. NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A.

Table of Contents

Save PDF
