WOK Overlander PEV Customer's Manual

Power wheelchair
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

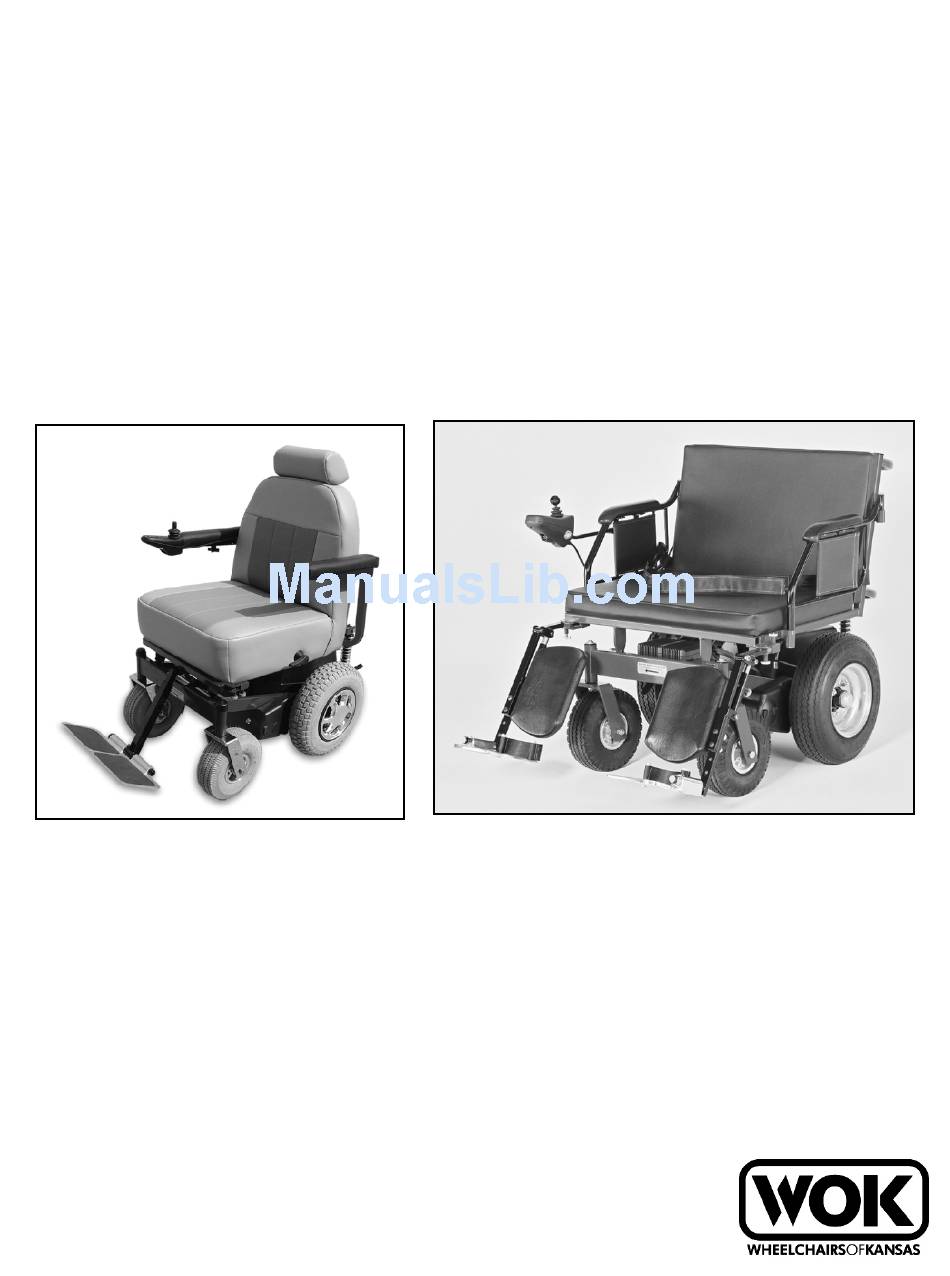

Overlander PEV
Power Wheelchair
Customer Manual
#8011
Uncontrolled Copy
Rev 7.0 Current 07/15/09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Overlander PEV and is the answer not in the manual?

Questions and answers

Related Manuals for WOK Overlander PEV

Summary of Contents for WOK Overlander PEV

  • Page 1 Overlander PEV Power Wheelchair Customer Manual #8011 Uncontrolled Copy Rev 7.0 Current 07/15/09...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS DEFINITIONS OF SYMBOLS ....... . 1 INTRODUCTION Description .
  • Page 4 TABLE OF CONTENTS SAFETY TIPS Cleaning ........25 Electromagnetic Interference (EMI) .

  • Page 5: Definitions Of Symbols

    A hazard or unsafe practice that may cause damage to this bed or to other property. Battery Model Specification Information Serial Number MODEL MODEL 25061000 Overlander PEV Solid Seat Date Manufactured MANUFACTURE DATE MANUFACTURE DATE SERIAL NO. SERIAL NO. XXXXXX ELECTRICAL RATING ELECTRICAL RATING...

  • Page 6: Introduction

    DESCRIPTION The Overlander PEV from Wheelchairs of Kansas offers dynamic performances for the bariatric individual. It meets the mobility needs of the individual with rugged tires, a durable steel frame for strength and the power of two 4-pole motors.
  • Page 7 INTRODUCTION Battery Box Right Motor Drive Power Module Main Frame Drive Belt Primary Drive Belt Sprocket Rear Shock Manual Wheel Lock...

  • Page 8: Specifications

    INTRODUCTION SPECIFICATIONS CUSTOMIZED SEATING SYSTEM Overall Width - 18” - 24” ......29.5” 24”.

  • Page 9: Pre-Use Inspection And Setup

    PRE-USE INSPECTION AND SETUP SAFETY CHECKLIST WARNING If you fail to heed these warnings, severe injury may occur to you or others. Before each use of your wheelchair you should: 1. Make sure all packing material is removed. 2. Check each connection to make sure all wires are secure after shipping. 3.
  • Page 10 PRE-USE INSPECTION AND SETUP 1. At the rear of the chair, there are two shocks. Remove the top bolts on both shocks, with a 5/8” wrench. 2. Undo velcro that is holding the top of the battery box on. 3. Lift seating system up. The front of the seating system will remain attached.
  • Page 11 PRE-USE INSPECTION AND SETUP 5. Remove battery box top. 6. With a 7/16“ wrench disconnect the black (negative) wire and the red (positive) wire from each of the batteries on the left side. WARNING Electric Shock Hazard. Do not let wires cross.

  • Page 12: Operation Of Mechanism

    OPERATION OF MECHANISM GENERAL WARNING If you fail to heed these warnings, a fall or tip over may occur and cause severe injury to you: 1. Start off slowly. If you are not familiar with the maneuverability of this wheelchair you may loose control and tip over.

  • Page 13: Doorways And Obstacles

    OPERATION OF MECHANISM DOORWAYS AND OBSTACLES 1. Make sure that the floor area where you use this chair is level and free of obstacles. You may need to: A. Remove or cover threshold strips between doors. B. Install a ramp at some doors. 2.

  • Page 14: Slopes

    OPERATION OF MECHANISM 1. Avoid reaching or leaning if you must shift your weight to do so. Ask for help or use a device to extend your reach. 2. Never try to reach an object if you must move forward in your seat to do so. This may cause the wheelchair to tip forward.

  • Page 15: Street And Roadways

    OPERATION OF MECHANISM STREETS AND ROADWAYS WARNINGS In most states, wheelchairs are not legal for use on public roads. Be alert to the dangers of motor vehicle traffic on roads or in parking lots. 1. At night, or when lighting is poor, use reflective tape on your wheelchair and clothing to make it easier for drivers to see you.

  • Page 16: Transporting A Chair And Rider Up Or Down Stairs

    OPERATION OF MECHANISM TRANSPORTING A CHAIR AND RIDER UP OR DOWN STAIRS WARNING Wheelchairs of Kansas does not endorse or recommend the lifting of the chair, with a person in it. Other means of transport must be used to carry a person over stairs or obstructions in the pathway if no ramp or other means is provided to properly roll the chair around or over the stairs or obstructions.

  • Page 17: Features

    FEATURES ANTI-TIP DEVICE WARNING The anti-tip devices are not designed to bear the weight of the wheelchair and rider. Failure to heed this warning when climbing or descending stairs, curbs, steps or other objects could result in damage to the wheelchair and cause the wheelchair to tip or fall causing severe injury to you or others.

  • Page 18: Control System

    FEATURES CHARGING THE BATTERY: Connect the charger to the bottom side of the joystick, then connect to the wall outlet. Always connect the charger to the powerchair first, then connect to the wall outlet. Always keep your powerchair fully charged. Connect the batteries to a charger every night and then disconnect them in the morning.
  • Page 19 FEATURES and the charger must be fitted with a Neutrik NC3MX plug. This socket must not be used as a power supply for any other electrical device. Power Module and Joystick Cable: The Power Module contains most of the electronics for controlling the wheelchair.
  • Page 20 FEATURES Weekly Checks Electrical Brakes: This test should be carried out on a level floor with at least one meter clear space around the wheelchair. Check that after 1 second the battery gauge remains on or flashes slowly. Push the joystick slowly forwards until you hear the electrical brakes operate.

  • Page 21: Drive Motors

    FEATURES B. In places or on surfaces where a loss of wheel grip could be hazardous, for example on wet grassy slopes. C. If the controller of other crucial components are known to require repair. In the event of the wheelchair moving in an unexpected way RELEASE THE JOYSTICK. This action will stop the wheelchair under any circumstances.

  • Page 22: Electrical Components

    FEATURES ELECTRICAL COMPONENTS Never allow the electrical components to become wet. WARNING The electrical components of this wheelchair are not designed to be moisture proof. If you allow these components to become wet, you could suffer an electrical shock and/or cause severe damage to the components.

  • Page 23: Manual Wheel Locks

    FEATURES To Adjust Height: Remove the two bolts located near the bottom of the footrest. Slide the footrest up or down to the desired height, then replace the two bolts in the correct aligning holes. MANUAL WHEEL LOCKS WARNING The chair will not operate with manual wheel locks engaged. The manual wheel locks are independent of the electric wheel locks, the Overlander also has on each wheel an additional manual locking mechanism.

  • Page 24: Pneumatic Tires

    FEATURES PNEUMATIC TIRES Proper inflation extends the life of your tires and makes your wheelchair easier to operate. 1. Do not use this wheelchair if any of the tires are under or over inflated. Check weekly for proper inflation level, as listed on the tire sidewall. 2.

  • Page 25: Options

    OPTIONS ARMREST The armrests are detachable. They are not designed to bear the weight of the wheelchair. WARNING Never try to lift the wheelchair by its armrest. They may come loose or break. If this occurs, the wheelchair may fall and cause severe injury to you or others.
  • Page 26 OPTIONS 2. Using your other hand, swing the legrest outward. Pull down pin and continue to pull out the legrest. To Adjust Height: Remove the two bolts located near the bottom of the footrest. Slide the footrest up or down to the desired height, then replace the two bolts in the correct aligning holes.

  • Page 27: Headrest

    OPTIONS HEADREST Adjustable Headrest Height Adjustment: 1. Loosen bottom knob on back of headrest and slide the headrest to the desired position. 2. Tighten the knob. Depth Adjustment: 1. Loosen top knob on back of headrest and slide the headrest to the desired position. 2.

  • Page 28: Safety Tips

    SAFETY TIPS CLEANING Periodic cleaning of the frame and upholstery is recommended. Hand wash with a non- abrasive cleaner and drip dry or wipe dry with a soft cloth. Do not put upholstery in a dryer. The frame may be polished with a non-abrasive automotive wax. Do not get electrical components wet.
  • Page 29 SAFETY TIPS Important Information The EMI value of this device was tested to 20 volts per meter (V/m), although if any accessories are added the immunity level is unknown. (EUT tested February 2001) CAUTION IT IS VERY IMPORTANT THAT YOU READ THIS INFORMATION REGARDING THE POSSIBLE EFFECTS OF ELECTROMAGNETIC INTERFERENCE ON YOUR POWERED WHEELCHAIR.

  • Page 30: Fasteners

    SAFETY TIPS FASTENERS WARNINGS Many of the screws and bolts used in your wheelchair are special high-strength fasteners. If you fail to heed these warnings, a fall may occur and cause severe injury to you: 1. Improper fasteners may fail. Use only screws and bolts provided by an authorized Wheelchairs of Kansas dealer.

  • Page 31: Storage

    SAFETY TIPS The battery may require recycling in accordance with local laws. Contact you local recycling center for proper battery disposal or local regulatory authorities for more information. WARNING Never dispose of batteries in a fire because they may explode. TIRE PRESSURE Check weekly for proper inflation level, as listed on the tire side wall.

  • Page 32: Warranty Information

    WARRANTY INFORMATION WEIGHT PRODUCT CAPACITY WARRANTY Overlander/PEV 750 lbs. Five year warranty on frame; One year on all other components. LIMITATIONS AND EXCLUSIONS 1. Products which have been used for purposes other than the intended uses; or which have been subject to negligence, abuse, improper storage or handling, improper operation, unauthorized modifications or damages beyond normal wear and tear as determined by Wheelchairs of Kansas are not covered by this warranty.

  • Page 33: Warranty Services Procedures

    WARRANTY INFORMATION WARRANTY SERVICES PROCEDURES 1. The product/part should be returned to the original selling dealer. To return the product/part to the factory the dealer must call to request authorization. At this time a return authorization number (RA#) will be issued. This RA# will be valid for 21 days from date issued.

  • Page 34: Manufacturer Disclaimer

    MANUFACTURER DISCLAIMER GENERAL INFORMATION All specifications, equipment and prices are subject to change without notice. Wheelchairs of Kansas reserves the right to make improvements from time to time. Photos and drawings are representative of the products and may vary slightly from actual production models. Some items photographed in this brochure may include optional equipment.
  • Page 36 800-537-6454 785-726-4885 www.wheelchairsofkansas.com...
