Knife Stroke - Pfaff 1491E1 Instruction Manual

Adjustment
13.

Knife stroke

06.06
13 - 33
Requirement
The knife stroke can be set within a range of 1.0 to 3.5 mm for the ideal adaptation to all
materials used.

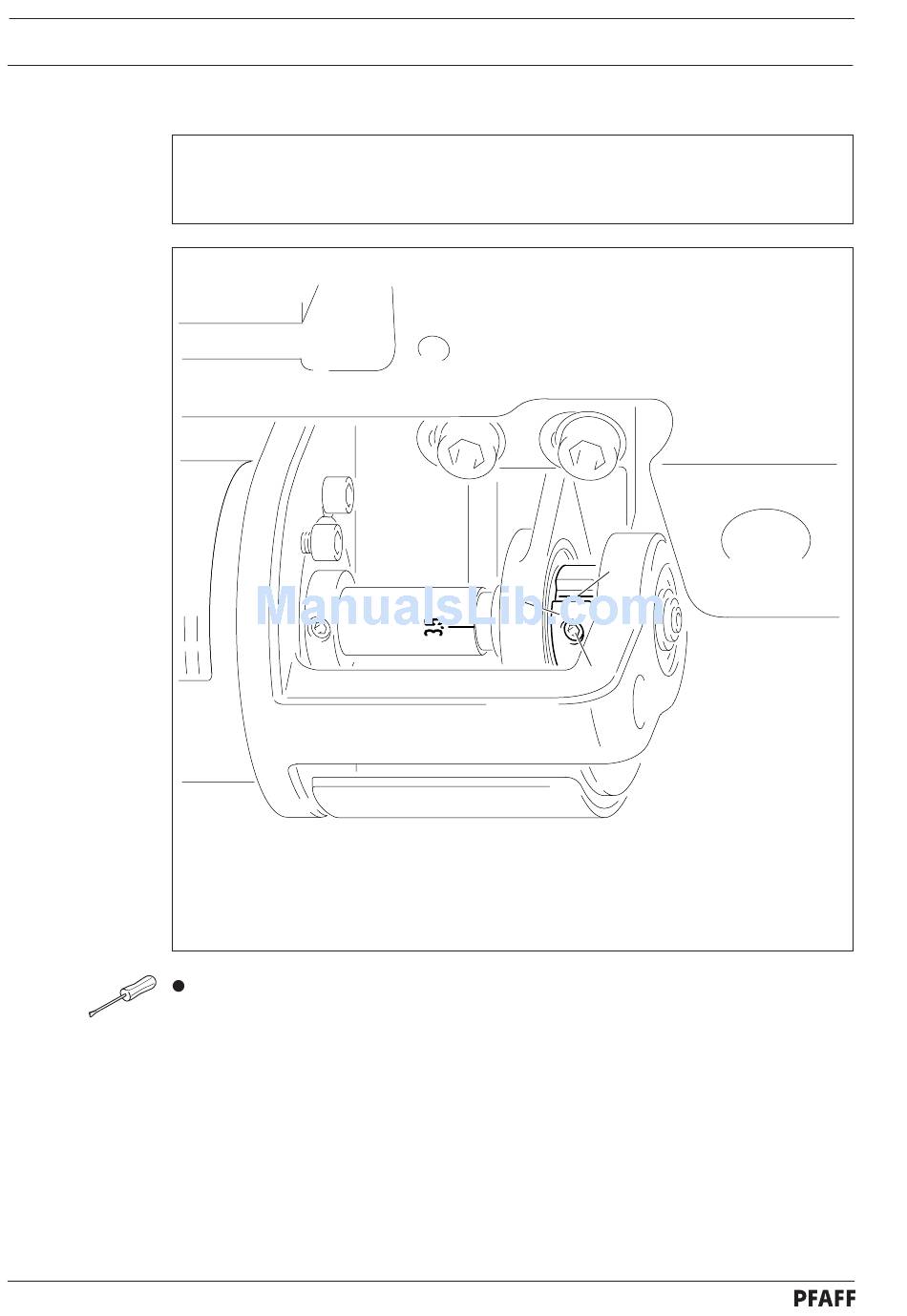

Fig. 13 - 29
Turn eccentric 1 ( screws 2 ) on the rear machine head so that the marking of the desired
cutting stroke is opposite marking 3.
3
1
2
