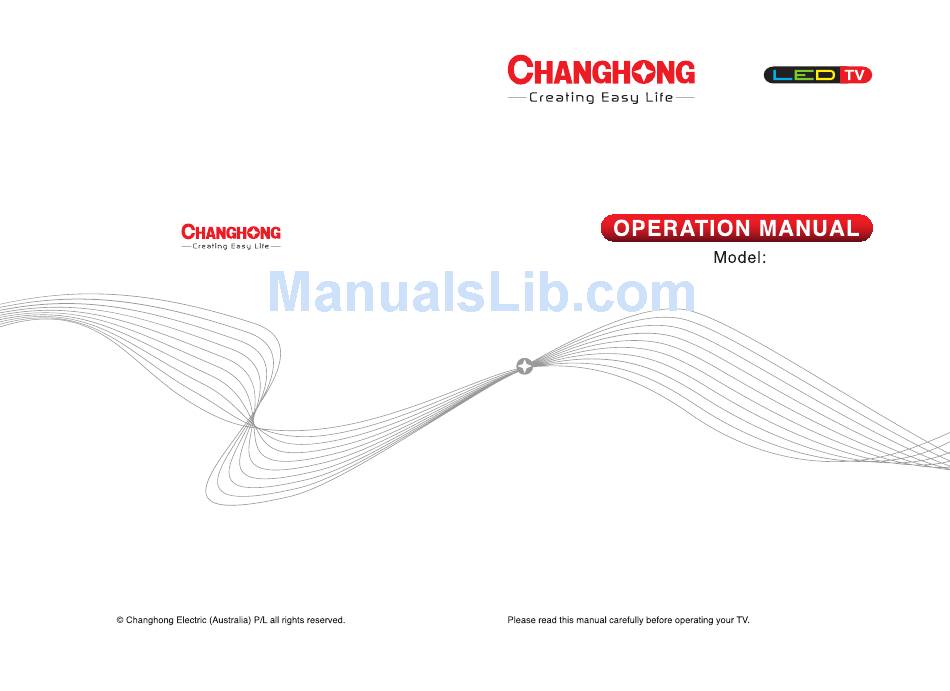

- Page 1 LED28C2000...
-
Page 2: Table Of Contents
Contents Warning……………………………………………………………………..…..……… 1 Safety instructions……………………………………………………..…………… 3 Main Unit Control……………………………………………………………...……… 5 Front & Sides Panel………………………………………………………...………..5 Rear Panel…………………………………………………………………...……….6 Getting Started…………………………...………………………..……..…………… 7 Using the remote control…………………………………………………….……... 7 Installing Batteries in the Remote Control……………………………..………… 7 Battery replacement……………………………..……………………….………… 7 Connection and setup…………………...…………………………………………... 8 Cable Installation……………………………………………………………………. 8 Remote Control…………………………..……………………………………………... -
Page 3: Warning
Warning CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"... - Page 4 Warning WARNING To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Apparatus To Rain Or Moisture. The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc. The Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
-
Page 5: Safety Instructions
Safety instructions IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 7. Do not block any of the ventilation 2. Keep these instructions. openings. Install in accordance with 3. Heed all warnings. the manufacturer's instructions. 4. Follow all instructions. 5. Do not use this apparatus near water. 8. Do not install near any heat source such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. - Page 6 Safety instructions 10. Protect the power cord from being 13. Unplug this apparatus during walked on or pinched particularly at lightning storms or when unused for plugs, convenience receptacles, long periods of time. and the point where they exit from the apparatus.
-
Page 7: Main Unit Control
Main Unit Control Front & Sides Panel Name Description Press to change the TV channels CH+/CH- VOL+/VOL- Adjust the volume level MENU Open the menu To switch the signal source Turns the unit on and off Power Indicator and Infrared sensor Power&Sensor... -
Page 8: Rear Panel
Main Unit Control Rear Panel Rear Panel PC/DVI VIDEO L AUDIO AUDIO HDMI2 HDMI1 AV OUT Name Description HDMI HDMI input AV audio/video signal output AV OUT PC/DVI AUDIO/ PC input Antenna input USB port. Connector for USB Play. You can connect to network wirelessly using the Wireless LAN Adapter. -
Page 9: Getting Started
Getting Started Using the remote control When using the remote control, aim it at remote sensor on the television. If there is an object between the remote control and the remote sensor on the unit, the unit may not operate. Point the remote control at the REMOTE SENSOR located on the television. -
Page 10: Connection And Setup
Connection and setup Cable Installation Before the installation and use, please read carefully the relevant content in “Warning and Safety instructions”. 1. Take out the TV from the wrapping package and put it in a drafty and flat place. NOTE: When you plug or unplug the TV, computer or other equipments, you must make sure that the AC power has been already shut down;... -
Page 11: Remote Control
Remote Control The buttons of the original remote control are as following: : Power, switch on or off TV set. 2. INFO: Press to display the current program information on the screen. : Go to the index page. : Press to mute or restore sound. 4. - Page 12 Remote Control 19. COLOR BUTTONS: Red/ green/ yellow/ blue key navigation link. : Fast reverse (in USB mode). : Fast forward (in USB mode). : Previous (in USB mode). : Next (in USB mode). 20. STILL: Press to hold the picture. : Hold the teletext page on display, press again to release.
-
Page 13: Basic Operation
Basic Operation QUICK START GUIDE • Connection 1. Connecting the mains and antenna. 2. If TV has a power switch, turn it on firstly. Then press Power button on the remote to turn on the TV. • Initial Setup When the TV is initially powered on (Or Default), a sequence of on-screen prompts will assist in configuring basic settings. -
Page 14: Menu Operation
Menu Operation How to Navigate Menus Before using the TV follow the steps below to learn how to navigate the menu in order to select and adjust different functions. The access step may differ depending on the selected menu. 1. Press the MENU button to display the main menu. CHANNEL OPTION PICTURE... - Page 15 Menu Operation • DTV Manual Tuning Manual store for digital channels. Press the ◄/►button to select channel. Press the ENTER button to search. stop, the channel will be saved When a channel is found, the searching process will with current channel number.
-
Page 16: Picture Menu
Menu Operation Configuring the Picture Menu • Picture mode You can select the type of pict ure which best corresponds to your viewing requirements. C ontrast, Brightness, Saturation Sharpness and Tint (NTSC) can be adjusted when the picture mode is set to User. -
Page 17: Timer Menu
Menu Operation Configuring the Timer Menu • Clock You can display either the DTV Sign stream Time or set the System Time. • Off Time Set the t ime for the TV to switch off. • On Time Set the time for your T V to turn on. - Page 18 Menu Operation • PVR File System (In DTV mode) Select Disk: Select the disk used for PVR. Check PVR File System: Check the disk and test the speed of the system. USB Disk: USB activated or not. Format: Format USB disk. Time Shift Size: Select th e time to do Time Shift.
-
Page 19: Lock Menu
Menu Operation • E-POP Switch the E-POP on or off. E-POP mode is the optimal setting for store environments. If a user modifies image quality d ata Store Demo mode initializes the product to the image quality set by us after a certai n period of time. -
Page 20: Using Usb Mode
Menu Operation Using USB mode To Access/Quit USB mode • 1. Connect an USB device.When USB is connected to the TV,popup window appears. 2. Press SOURCE button to display the input source menu, press the ▲/▼ button to select the USB. UBS mode. - Page 21 Menu Operation 1. Use the ◄ ► button to select PHOTO, M USIC, MOVIE or TEXT. Press ENTER button enter into sub-menu. 2. Use the arrow b uttons and ENTER button to enter the desired disk. Press ENTER to open the fold 3.
-
Page 22: Hotel Mode
Menu Operation Hotel Mode to enter Press the SOURCE button to display the Source Menu, then press "2012" adjust the relative settings. into the Hotel Mode to • Hotel Mode ◄/► Set the hotel mode ON/OFF by pressing the buttons When it is On,switch off at the AC power supply and the hotel mode will be enabled. -
Page 23: Important Unique Buttons
Important Unique Buttons PROGRAMME GUIDE (In DTV mode) Press EPG button to display the PROGRAMME GUIDE menu. This function let you know the detailed information of the channel, indicating the time of the program playing. From the PROGRAMME GUIDE it is possible to check the program information for the next eight days (If the information is available from the broadcaster). -
Page 24: Teletext
Teletext Using the teletext feature • Display teletext 1. Select a TV station with a teletext signal. 2. Press the button to enter teletext mode. 3. Press the button 2nd to enter Mix mode, this function enables you to superimpose the teletext page over the TV program. 4. -
Page 25: Troubleshooting Guide
Troubleshooting Guide Troubleshooting Before contact the service technician, perform the following simple checks. If any program still persists, unplug the TV and calling for serving. PROBLEM POSSIBLE SOLUTION - Check whether the main plug has been connected to a wall let. No sound and picture - Check whether you have pressed the POWER button on the front of TV set. -
Page 26: Maintenance
Troubleshooting Guide NOTE: There is a problem in VGA mode (Only VGA mode applied). PROBLEM POSSIBLE SOLUTION - Adjust resolution, horizontal frequency, or vertical frequency. The signal is out of range. - Check it whether the signal cable is connected or loose. - Page 27 AUSTRALIAN DTV CHANNEL TABLE City Station Channel Number Middle Frequency(MHz) Transmitter Location Adelaide Digital 7 VHF 6 177.5 Mt Lofty Digital 9 VHF 8 191.625 Mt Lofty Digital 10 VHF 11 219.5 Mt Lofty Digital ABC VHF 12 226.5 Mt Lofty Digital SBS UHF 33 564.5...
