GE zet1smss Dimension Manual

GE Monogram
®
SPECIFICATIONS
Overall Width 29 3/4" (75.6 cm)
Overall Height 28 5/16" (71.9 cm)
Overall Depth
26 5/16" (66.8 cm)
Including Handle
Oven Door Clearance 21" (53.3 cm) Min
Overall Oven
4.4 cu. ft. (124.6 l)
Interior Capacity
Oven Interior Dimensions 24" x 17 1/2" x 18 1/4"
(W x H x D) (61.0 cm x 44.5 cm x 46.4 cm)
Minimum Cabinet Width* 30" (76.2 cm)
Minimum Cabinet Depth* 24" (61.0 cm)
Minimum Base Support 200 lbs (90 kg)
Cutout Width* 28 1/2" (72.4 cm) Min
28 5/8" (72.7 cm) Max
Cutout Height* 27 1/4" (69.2 cm) Min
27 5/16" (69.4 cm) Max
Cutout Depth* 23 1/2" (59.7 cm) Min
Volts/Hertz/Amps 240/208 V AC, 60 Hz, 20A
Conduit Length 48", 72" available special
order: WB18T10398
Electrical Rating 3.9 kW at 208V
4.3 kW at 240V
Shipping Weight 195 lbs (89.5 kg)
* Additional space will be needed for flush installation.
ATTENTION ELECTRICIAN:
A 240/208V, 60Hz, 20 Amp circuit is required. An
inidividual properly grounded branch circuit or
circuit breaker is required. Hardware junction box
is required for built-in product.
30" Built-In Single Oven

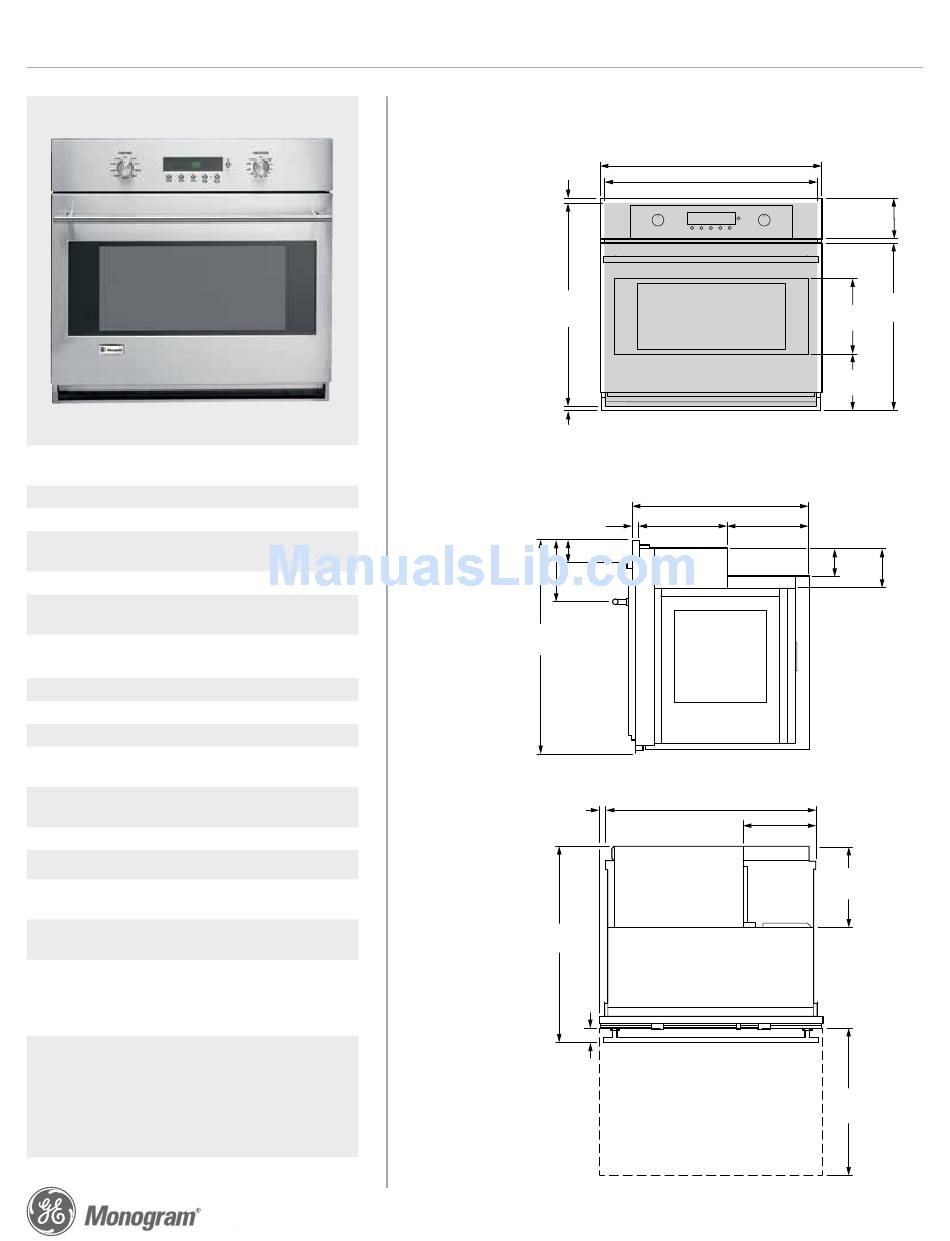

OVERALL DIMENSIONS
5/8"
(1.6)
27 1/4"
(69.2) min
cutout height
7/16"
(1.1)
FRONT VIEW (SHOWING CUTOUT OVERLAP)
1"
2 7/8"
8 1/8"
28 5/16"
(71.9)
5/8"
(1.6)
26 5/16"
(66.8)
2"
(5.1)
Dimensions in parentheses
are in centimeters unless
otherwise noted. Actual
product dimensions may
vary due to manufacturing
tolerances.
ZET1SM
29 3/4"
(75.6)
28 1/2"
(72.4)
min cutout width
24 5/16"
(61.8)
12 1/2" 10 13/16"
(2.5)
(31.8) (27.5)
(7.3)
(20.6)
SIDE VIEW
28 1/2"
(72.4)
9 7/8"
TOP VIEW
OPEN OVEN DOOR
SHOWING DOOR CLEARANCE
Product Specification Created 6/14
ZET1SMSS
5 1/2"
(14.0)
22 9/16"
9 7/8"
(57.3)
(25.1)
7 9/16"
(19.2)
3 7/8"
5 3/8"
(9.8)
(13.7)
(25.1)
10 13/16"
(27.5)
21"
(53.3)
min
