  • Page 1 Owner's Manual Technical Audio for the 21 Century Classroom...

  • Page 2: Table Of Contents

    Index System No.: ENS-903 | ENS-903-ORB INTRODUCTION Welcome Contact Info Online Resources Group Listening Technology GETTING STARTED CETACEA SOUND CORP Shipping Kit Contents NEWS CENTER 2003 East Center Circle Announcements Ensémble Up Close Plymouth, Minnesota 55441 U.S.A. & Events Optional Equipment...

  • Page 3: Introduction

    Introduction INTRODUCTION TO THE ENSÉMBLE Welcome Group Listening Technology™ The Ensémble is a portable speaker used by professional presenters. This includes sales people, health care professionals, fi re and rescue, Using patented “Group Listening Technology”, the Ensémble is a high teachers, personal development, law enforcement, the military technology device that is specifi cally engineered to make business and many other professionals in the presentation, training, and...

  • Page 4: Getting Started

    SHIPPING KIT CONTENTS Please check that you have all of the following Universal Carry Case items. If any items are missing, please contact Cetacea Sound directly at (800) 556-1922. Ensémble Speaker Cables 12 Volt Wall Mount Power Supply 3.5 mm M-M, 1 M RCA to 3.5 mm Female Stereo VCR/DVD...

  • Page 5: Ensémble Up Close

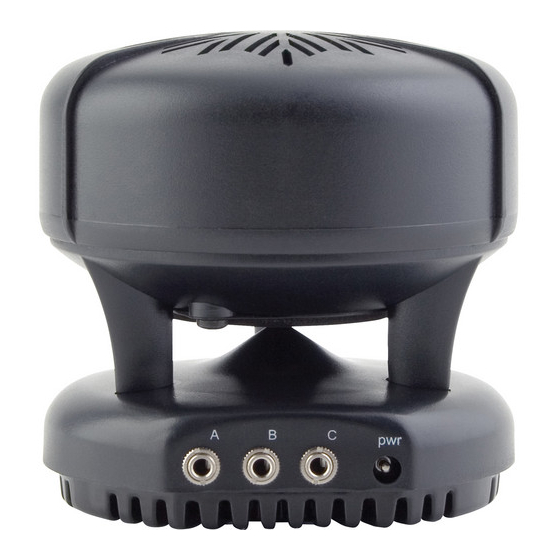

    Getting Started ENSÉMBLE UP CLOSE PATENTED OMNI-DIRECTIONAL ACOUSTICS 3 LINE INPUTS – A, B, & C DC POWER Stereo/mono, 3.5 mm mini-jack External power supply connector PLEASE READ ALL INSTRUCTIONS CAREFULLY AND KEEP A COPY OF THIS GUIDE IN A SAFE PLACE...

  • Page 6: Optional Equipment

    Getting Started OPTIONAL EQUIPMENT Ensémble & Orbiter Microphone System # ENS-903-ORB Orbiter ORBITER TRANSMITTER (sold separately) Ensémble™ Orbiter™ ENSÉMBLE Includes: Ensémble Speaker 12V Wall Mount Power Supply ORBITER RECEIVER In-line Volume Control (sold separately) Stereo Cable, 3.5 mm Male-to-Male Stereo Cable, RCA to 3.5 mm Female Carrying Case Orbiter™...

  • Page 7: Operation

    (A, B, or C). Use microphones that off er a mono or stereo line output one month or longer, disconnect the power supply. instead of microphone level output. Cetacea Sound microphones Never force anything into the openings or source inputs of the are compatible with the Ensémble.

  • Page 8: Ensémble Instructions

    Operation ENSÉMBLE INSTRUCTIONS Connect Multimedia Devices Source Inputs Diagram There are three (3) source-input jacks on the Ensémble speaker base that can use either mono or stereo inputs depending on your “source”, i.e., computer, VCR, DVD, projectors, microphones, etc. Volume Control The Ensémble does not have an internal volume control.
  • Page 9 ENSÉMBLE INSTRUCTIONS Connect Power Diagram The Ensémble speaker requires power from the Cetacea Sound approved “Power Adapter / Conditioner”. Plug the power adapter into a suitable source of 110-220v power and the opposite small end into the base of the Ensémble speaker. (It will only fi t in one location.)

  • Page 10: Room Arrangements

    Room Arrangements CLASSROOMS & AUDITORIUMS Classroom seating Normal classrooms of up to 90 people can use one speaker as long as all listeners are within 40 feet of the Ensémble Speaker. Auditorium Seating Wide seating arrangements can use one Ensémble if all listeners are within forty feet of the Ensémble.

  • Page 11: Conference Rooms

    Room Arrangements CONFERENCE ROOMS Conference Rooms & Translations The clarity of the Ensémble makes it easy for small groups to collectively listen to soft or poorly recorded sound tracks. When used with a microphone it also makes it easy to understand people with language diffi culties or assist listeners with hearing diffi culties.

  • Page 12: Remote Rooms & Courtrooms

    Room Arrangements REMOTE ROOMS & COURTROOMS Isolated Rooms & Distance Learning VIDEO SCREEN A) Presenter in same room as audience. B,C,D) Audience in overfl ow rooms or listening to video stream from Room A. VIDEO SCREEN VIDEO SCREEN Courtrooms, Dispositions & Grand Juries The Ensémble is shown placed close to the jury listening to recordings made by undercover agents.

  • Page 13: Hookup Diagrams

    Hookup Diagrams COMPUTER & PROJECTOR Computer Connections Computer Ensémble Speaker FOR PC STEREO FOR APPLE S/PDIF 3.5mm SPEAKER CABLE POWER SUPPLY Portable Projector Connections Projector Ensémble Speaker Audio-Out 3.5 MM SPEAKER CABLE POWER SUPPLY PLEASE READ ALL INSTRUCTIONS CAREFULLY AND KEEP A COPY OF THIS GUIDE IN A SAFE PLACE...

  • Page 14: Dvd, Ipod® & Orbiter

    Hookup Diagrams DVD, IPOD® & ORBITER™ DVD & VCR Connections Orbiter™ Wireless Microphone Connections DVD/ Blu-ray ™ /VCR Ensémble Speaker Ensémble Speaker EXT. ANT. AUDIO INPUTS OUTPUTS SPEAKER CABLE 3.5 MM 3.5 MM POWER LINE SPEAKER SUPPLY Orbiter™ Wireless CABLE Microphone RCA ADAPTER (sold separately)

  • Page 15: Limited Warranty

    LONG AN IMPLIED WARRANTY LASTS, SO THIS LIMITATION MAY NOT APPLY TO YOU. from an authorized Cetacea Sound Dealer fails in normal use due to defect in materials or UNDER NO CIRCUMSTANCES SHALL CETACEA SOUND CORP. BE LIABLE TO PURCHASER workmanship within one year of the date of the original purchase, Cetacea Sound Corp.
  • Page 16 © 2013 Cetacea Sound Corp. All rights reserved. Covered by multiple international patents. All audio products are proudly made in the U.S.A. (7/13) 201302-012_EN...
