Summary of Contents for Cetacea Sound Ensemble

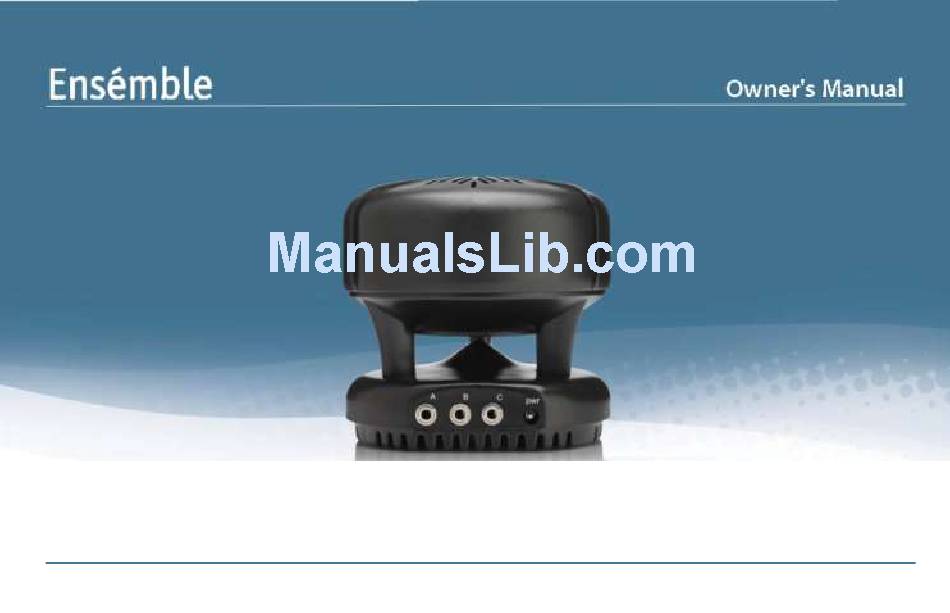

- Page 1 Cetacea Sound Technical Audio for The Century Classroom 21st...
-
Page 2: Table Of Contents
OWNER'S MANUAL For use with the following Ensémble system. Index System No.: ENS-903 | ENS-903-ORB INTRODUCTION Welcome Contact Online Group Listening Technology Info Resources GKP Global Solutions Inc. GETTING STARTED 3 - 5 108, rue Lamarche Shipping Kit Contents NEWS CENTER Ensémble Up Close Saint Bruno, QC... -
Page 3: Welcome
Introduction INTRODUCTION TO THE ENSÉMBLE Welcome Group Listening Technology™ The Ensémble is a portable speaker used by professional presenters. Using patented“Group Listening Technology”, the Ensémble is This includes sales people, health care professionals, fire a high technology device that is specifically engineered to rescue, teachers, personal... -
Page 4: Getting Started
Getting Started SHIPPING KIT CONTENTS Please check that you have all of the Universal Carry following items. If any items are missing, Case please contact us immediately. Ensémble Speaker Cable 12 Volt Wall Mount Power Supply 3.5 mm M- RCA to 3.5 mm Female M, 1 M Stereo VCR/DVD In-line Volume... -
Page 5: Ensémble Up Close
Getting Started ENSÉMBLE UP CLOSE PATENTED OMNI-DIRECTIONAL ACOUSTICS 3 LINE INPUTS DC POWER – A, B, & C External power supply connector Stereo/mono, 3.5 mm mini-jack PLEASE READ ALL INSTRUCTIONS CAREFULLY AND KEEP A COPY OF THIS GUIDE IN A SAFE PLACE... -
Page 6: Optional Equipment
Getting Started OPTIONAL EQUIPMENT Ensémble & Orbiter Microphone System # ENS-903-ORB Orbiter ORBITER TRANSMITTER (sold separately) Ensém Orbit ENSÉ ble™ er™ MBLE Includes: Ensémble Speaker 12V Wall Mount Power Supply In-line Volume ORBITER RECEIVER Control (sold separately) Stereo Cable, 3.5 mm Male-to- Male Stereo Cable, RCA to 3.5 mm Female Carrying Case Orbiter™... -
Page 7: Operation
Operation SAFET Y PRECAUTIONS & SPECIFICATIONS Follow these instructions & use precautions Input source specifications Stereo Sources Safeguard this equipment from high humidity conditions. Maximum input voltage should not exceed 300 mV per input Take special care to not drop the equipment, place on a channel (A, B, or C). -
Page 8: Ensémble Instructions
Operation ENSÉMBLE INSTRUCTIONS Connect Multimedia Devices Source Inputs Diagram There are three (3) source-input jacks on the Ensémble speaker base that can use either mono or stereo inputs depending on your “source”, i.e., computer, VCR, DVD, projectors, microphones, etc. Volume Control The Ensémble does not have an internal volume control. - Page 9 Operation ENSÉMBLE INSTRUCTIONS Connect Power The Ensémble speaker requires power from the Cetacea Diagram Sound approved “Power Adapter / Conditioner”. Plug the power adapter into a suitable source of 110-220v power and the opposite small end into the base of the Ensémble speaker.
-
Page 10: Room Arrangements
Room Arrangements CLASSROOMS & AUDITORIUMS Classroom seating Normal classrooms of up to 90 people can use one speaker as long as all listeners are within 40 feet of the Ensémble Speaker. Auditorium Seating Wide seating arrangements can use one Ensémble if all listeners are within forty feet of the Ensémble. -
Page 11: Conference Rooms
Room Arrangements CONFERENCE ROOMS Conference Rooms & Translations The clarity of the Ensémble makes it easy for small groups to collectively listen to soft or poorly recorded sound tracks. When used with a microphone it also makes it easy to understand people with language difficulties or assist listeners with hearing difficulties. -
Page 12: Remote Rooms & Courtrooms
Room Arrangements REMOTE ROOMS & COURTROOMS Isolated Rooms & Distance Learning VIDEO SCREEN A) Presenter in same room as audience. B,C,D) Audience in overflow rooms or listening to video stream from Room A. VIDEO SCREEN VIDEO SCREEN Courtrooms, Dispositions & Grand Juries The Ensémble is shown placed close to the jury listening to recordings made by undercover... -
Page 13: Hookup Diagrams
Hookup Diagrams COMPUTER & PROJECTO R Computer Connections Computer Ensémble Speaker FOR PC STEREO FOR APPLE S/PDIF 3.5mm SPEAKER CABLE POWER SUPPLY Portable Projector Connections Projector Ensémble Speaker Audio-Out 3.5 MM SPEAKER CABLE POWER SUPPLY PLEASE READ ALL INSTRUCTIONS CAREFULLY AND KEEP A COPY OF THIS GUIDE IN A SAFE PLACE... -
Page 14: Dvd, Ipod® & Orbiter
Hookup Diagrams DVD, IPOD® & ORBITER™ Orbiter™ Wireless Microphone Connections DVD & VCR Connections DVD/ Blu-ray / VCR ™ Ensé mble Ensémble Speaker Spea EXT. ANT. AUDIO INPUTS OUTPUTS SPEAKER CABLE 3.5 MM LINE Orbiter™ SPEA RCA ADAPTER Wireless CABL Microphon ORBI TER IN-LINE VOLUME CONTROL... -
Page 15: Limited Warranty
BREACH OF WARRANTY, BREACH OF CONTRACT OR other than Cetacea Sound Corp. or a designated authorized OTHERWISE. SOME STATES OR COUNTRIES DO NOT ALLOW partner; or poor sound quality or noise due to poor cable... - Page 16 To obtain Warranty Service, the customer must contact Cetacea Sound if purchased in the USA or a designated authorized partner if purchased outside the country. For customers within the USA, follow the instructions shown on our website, and return the product to us at the address shown below with the Return Material Authorization number issued by Customer Service.
- Page 17 © 2013 Cetacea Sound Corp. All rights reserved. Covered by multiple international patents. (7/13) 201302- All audio products are proudly made in the U.S.A. 012_EN...
