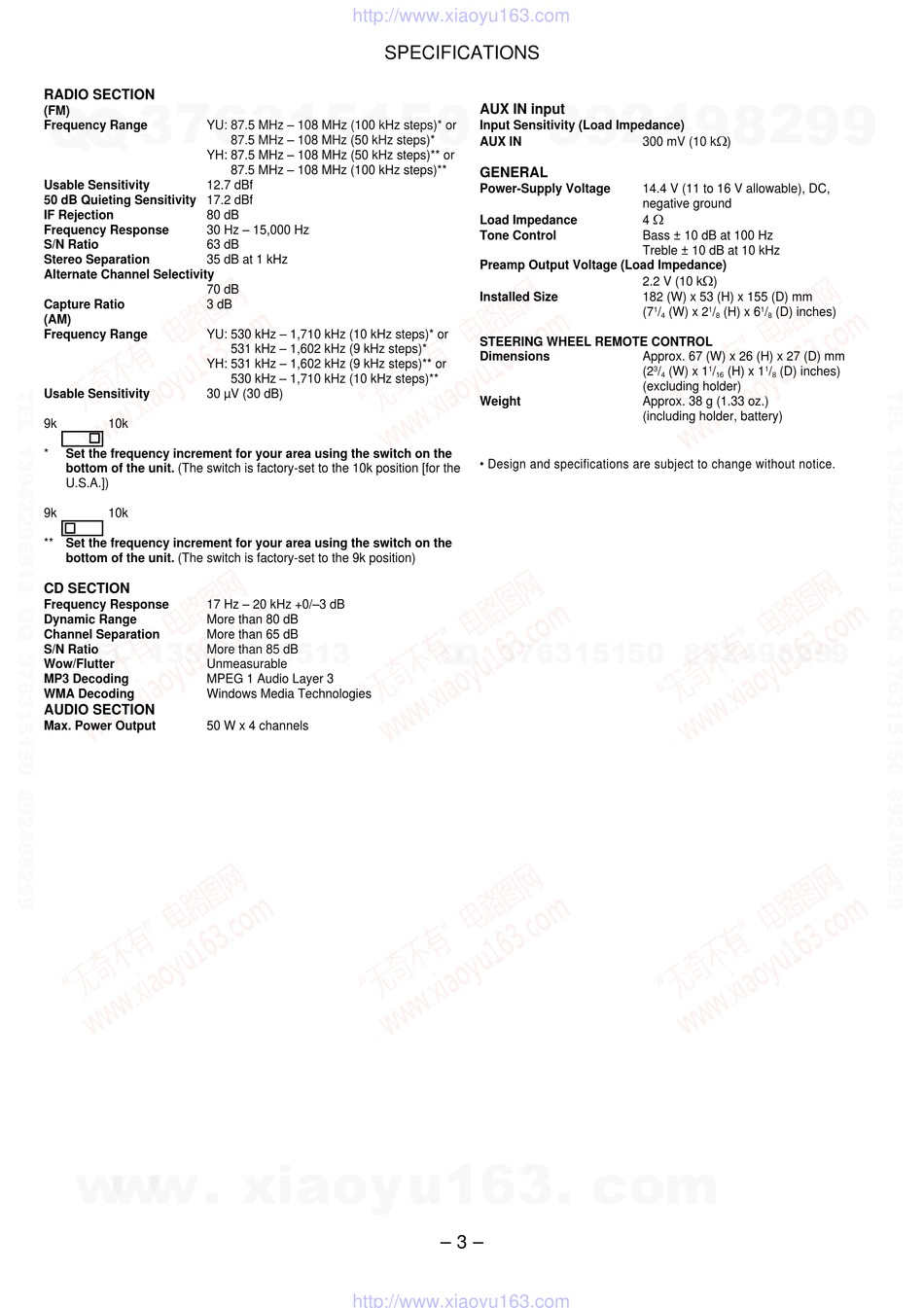

Specifications - Aiwa CDC-MA01 Service Manual

Stereo car cd receiver.
Hide thumbs

Advertisement

QQ
3 7 63 1515 0
RADIO SECTION
(FM)
Frequency Range
YU: 87.5 MHz – 108 MHz (100 kHz steps)* or
YH: 87.5 MHz – 108 MHz (50 kHz steps)** or
Usable Sensitivity
12.7 dBf
50 dB Quieting Sensitivity 17.2 dBf
IF Rejection
80 dB
Frequency Response
30 Hz – 15,000 Hz
S/N Ratio
63 dB
Stereo Separation
35 dB at 1 kHz
Alternate Channel Selectivity
70 dB
Capture Ratio
3 dB
(AM)
Frequency Range
YU: 530 kHz – 1,710 kHz (10 kHz steps)* or
YH: 531 kHz – 1,602 kHz (9 kHz steps)** or
Usable Sensitivity
30 µV (30 dB)
9k
10k
*
Set the frequency increment for your area using the switch on the
bottom of the unit. (The switch is factory-set to the 10k position [for the
U.S.A.])
9k
10k
** Set the frequency increment for your area using the switch on the
bottom of the unit. (The switch is factory-set to the 9k position)
CD SECTION
Frequency Response
17 Hz – 20 kHz +0/–3 dB
Dynamic Range
More than 80 dB
TE
L 13942296513
Channel Separation
More than 65 dB
S/N Ratio
More than 85 dB
Wow/Flutter
Unmeasurable
MP3 Decoding
MPEG 1 Audio Layer 3
WMA Decoding
Windows Media Technologies
AUDIO SECTION
Max. Power Output
50 W x 4 channels
www
.
http://www.xiaoyu163.com

SPECIFICATIONS

87.5 MHz – 108 MHz (50 kHz steps)*
87.5 MHz – 108 MHz (100 kHz steps)**
531 kHz – 1,602 kHz (9 kHz steps)*
530 kHz – 1,710 kHz (10 kHz steps)**
x
ao
y
i
http://www.xiaoyu163.com
8
AUX IN input
Input Sensitivity (Load Impedance)
AUX IN
GENERAL
Power-Supply Voltage
Load Impedance
Tone Control
Preamp Output Voltage (Load Impedance)
Installed Size
STEERING WHEEL REMOTE CONTROL
Dimensions
Weight
• Design and specifications are subject to change without notice.
Q Q
3
6 7
1 3
u163
.
– 3 –
2 9
9 4
2 8
W
300 mV (10 k
)
14.4 V (11 to 16 V allowable), DC,
negative ground
W
4
Bass ± 10 dB at 100 Hz
Treble ± 10 dB at 10 kHz
W
2.2 V (10 k
)
182 (W) x 53 (H) x 155 (D) mm
(7
1
/
(W) x 2
1
/
(H) x 6
4
8
Approx. 67 (W) x 26 (H) x 27 (D) mm
3
1
(2
/
(W) x 1
/
(H) x 1
4
16
(excluding holder)
Approx. 38 g (1.33 oz.)
(including holder, battery)
1 5
0 5
8
2 9
9 4
m
co
9 9
1
/
(D) inches)
8
1
/
(D) inches)
8
2 8
9 9
