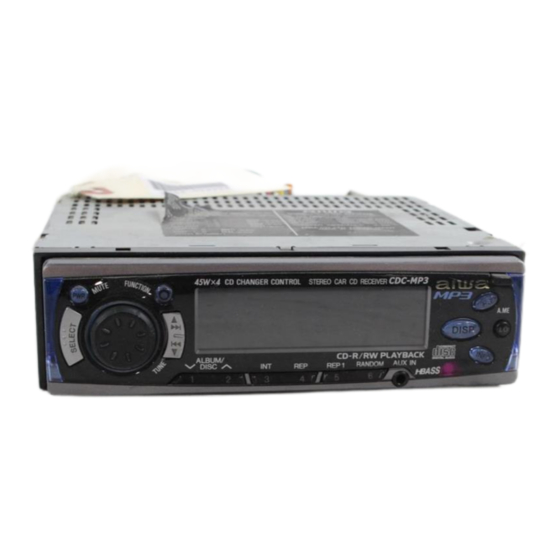

Aiwa CDC-MP3 Service Manual

Stereo car cd receiver
Hide thumbs Also See for CDC-MP3:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual
SERVICE MANUAL
STEREO CAR CD RECEIVER
• This Service Manual is the "Supplement" and replaces "Simple Manual"
CDC-MP3(Y), (S/M Code No. 09-00B-436-6T2).
• This Service Manual contains information about the difference between
CDC-MP3(Y) and CDC-MP3(YU). If requiring other information,
see Service Manual of CDC-MP3(YU), (S/M Code No. 09-008-436-6R1).
CDC-MP3
BASIC CD MECHANISM : CDC02AW1
S/M Code No. 09-00B-436-6S1
Y

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDC-MP3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aiwa CDC-MP3

Summary of Contents for Aiwa CDC-MP3

  • Page 1 • This Service Manual is the "Supplement" and replaces "Simple Manual" CDC-MP3(Y), (S/M Code No. 09-00B-436-6T2). • This Service Manual contains information about the difference between CDC-MP3(Y) and CDC-MP3(YU). If requiring other information, see Service Manual of CDC-MP3(YU), (S/M Code No. 09-008-436-6R1). S/M Code No. 09-00B-436-6S1...

  • Page 2: Specifications

    SPECIFICATIONS RADIO SECTION AUDIO SECTION (FM) Max. Power Output 45 W x 4 channels Frequency Range 87.5 MHz –108 MHz (100 kHz steps)* 87.5 MHz –108 MHz (50 kHz steps)* AUX IN input Usable Sensitivity 12.7 dBf Input Sensitivity (load impedance) 50 dB Quieting Sensitivity 17.2 dBf AUX IN 300 mV (10 kΩ)

  • Page 3: Electrical Main Parts List

    ELECTRICAL MAIN PARTS LIST REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION C106 87-010-322-080 C-CAP,S 100P-50 CH C107 87-010-498-040 CAP,E 10-16 GAS 87-A21-562-010 IC,LA4743B C109 87-010-555-040 CAP,E 100-10 GAS 87-A21-875-030 C-IC,UPD78F4216AYGC-101-8EU C110 87-010-185-080 C-CAP,S 3900P-50 B 87-A21-600-080 C-IC,LC36W1000CTLL-10X C111...
  • Page 4 REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION C437 87-A11-177-080 C-CAP,S 0.15-16 K B L404 87-003-102-080 COIL, 10UH J LAL02 C438 87-A11-177-080 C-CAP,S 0.15-16 K B L901 87-A50-079-080 COIL,22UH (CECS) C439 87-010-196-080 CHIP CAPACITOR,0.1-25 PL901 8Z-KT1-641-010 LAMP,T-3 C440 87-012-141-080...
  • Page 5 REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION C631 87-010-880-080 C-CAP,E 47-6.3 MF C858 87-A10-263-080 C-CAP,U 0.1-16ZF C651 87-016-287-080 C-CAP,TN 3.3-6.3 F93 C861 87-A10-263-080 C-CAP,U 0.1-16ZF C652 87-012-286-080 CAP, U 0.01-25 C862 87-A10-711-080 C-CAP,E 100-6.3 M MF C653 87-010-880-080 C-CAP,E 47-6.3 MF...

  • Page 6: Transistor Illustration

    TRANSISTOR ILLUSTRATION DTA144EKA DTC114EKA – 6 –...
  • Page 7 WIRING – 1 (MAIN) <1 / 2> – 7 –...
  • Page 8 WIRING – 1 (MAIN) <2 / 2> – 8 –...
  • Page 9 SCHEMATIC DIAGRAM – 1 (MAIN / EJECT) – 9 –...
  • Page 10 WIRING – 2 (FRONT / CONN / AUX / EJECT) <1 / 2> P6 / P5 / P4 / P3 / P2 / P1 / RANDOM REP* ALBUM/DISC REP1 ALBUM/DISC V * NOTE: * USASBLE ONLY WHEN MP3 PLAY OR AN OPTIONAL CHANGER IS CONNECTED.
  • Page 11 WIRING – 2 (FRONT / CONN / AUX / EJECT) <2 / 2> – 11 –...
  • Page 12 SCHEMATIC DIAGRAM – 2 (FRONT / CONN / AUX) – 12 –...
  • Page 13 WIRING – 3 (MP3) <1 / 2> – 13 –...
  • Page 14 WIRING – 3 (MP3) <2 / 2> – 14 –...
  • Page 15 SCHEMATIC DIAGRAM – 3 (MP3 1/2 / SENSOR) (LOAD SW) – 15 –...
  • Page 16 SCHEMATIC DIAGRAM – 4 (MP3 2/2) – 16 –...
  • Page 17 MECHANICAL EXPLODED VIEW 1 / 1 LCD-AC7 16 CDC02AW1 PANEL, HT-SINK-AC HOLDER,STTIC SA – 17 –...

  • Page 18: Mechanical Parts List

    MECHANICAL PARTS LIST 1 / 1 REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION 1 8A-KC7-010-010 KNOB,RTRY-RUBBER 41 8Z-KC1-230-010 HLDR,DFP ASS’Y F-C 2 8A-KC7-020-010 RING,RTRY -AC 42 8Z-KC1-260-010 SPR-T,F.LOCK-C 3 8A-KC7-220-010 SPR-C,ROTARY -AC 43 8Z-KC1-201-310 ARM,F-LOCK -C1 4 8A-KC6-001-010 WINDOW,LCD MP3 44 8Z-KC1-243-010...

  • Page 19: Accessories / Package List

    ACCESSORIES / PACKAGE LIST REF. NO. PART NO. KANRI DESCRIPTION 1 8Z-KC1-030-010 CASE,DFP -C 2 8Z-KT1-616-010 CONN ASSY,16P B52 3 8Z-KC1-231-110 HLDR,HALF -C 4 8Z-KC1-235-010 HLDR,REAR MTG 5 8A-KCG-908-010 IB,INST,YH(E CK CH)-I 6 8A-KC6-905-010 IB,Y(E CH A) MP3 7 8Z-KC1-232-010 KEY,REMOVE -C 8 87-B10-141-010 NUT,5 TYPE-2...
  • Page 20 2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:03 (3827) 3111 9620450 0251431 Printed in Singapore...
