Pioneer X-HM50-K Operating Instructions Manual

Cd receiver system

Hide thumbs Also See for X-HM50-K:

Operating instructions manual (76 pages)

Table Of Contents

Table of Contents

Quick Links

Need help?

Do you have a question about the X-HM50-K and is the answer not in the manual?

Questions and answers

JOSE MIGUEL BUENO ORTIZ

March 23, 2025

the cd is not ejected when the eject bottom is pressed

1 comments:

Mr. Anderson

March 23, 2025

The CD may not be ejecting from the Pioneer X-HM50-K due to several possible reasons:
1. Power Failure: If the power failed while the disc tray was open, the system may need to be restarted before it operates normally.
2. Obstruction or Damage: If a disc is jammed, multiple discs were inserted, or a specially shaped disc was used, the tray may be stuck.
3. Mechanical Issue: If the eject button is pressed while the tray is moving or obstructed, it may not function properly.
4. Internal Malfunction: A system error or mechanical failure may prevent the tray from opening.

To resolve the issue, try turning the unit off and on, ensuring only one standard-shaped disc is inside, and avoiding forceful pushing of the tray. If the problem persists, service may be required.

This answer is automatically generated

Summary of Contents for Pioneer X-HM50-K

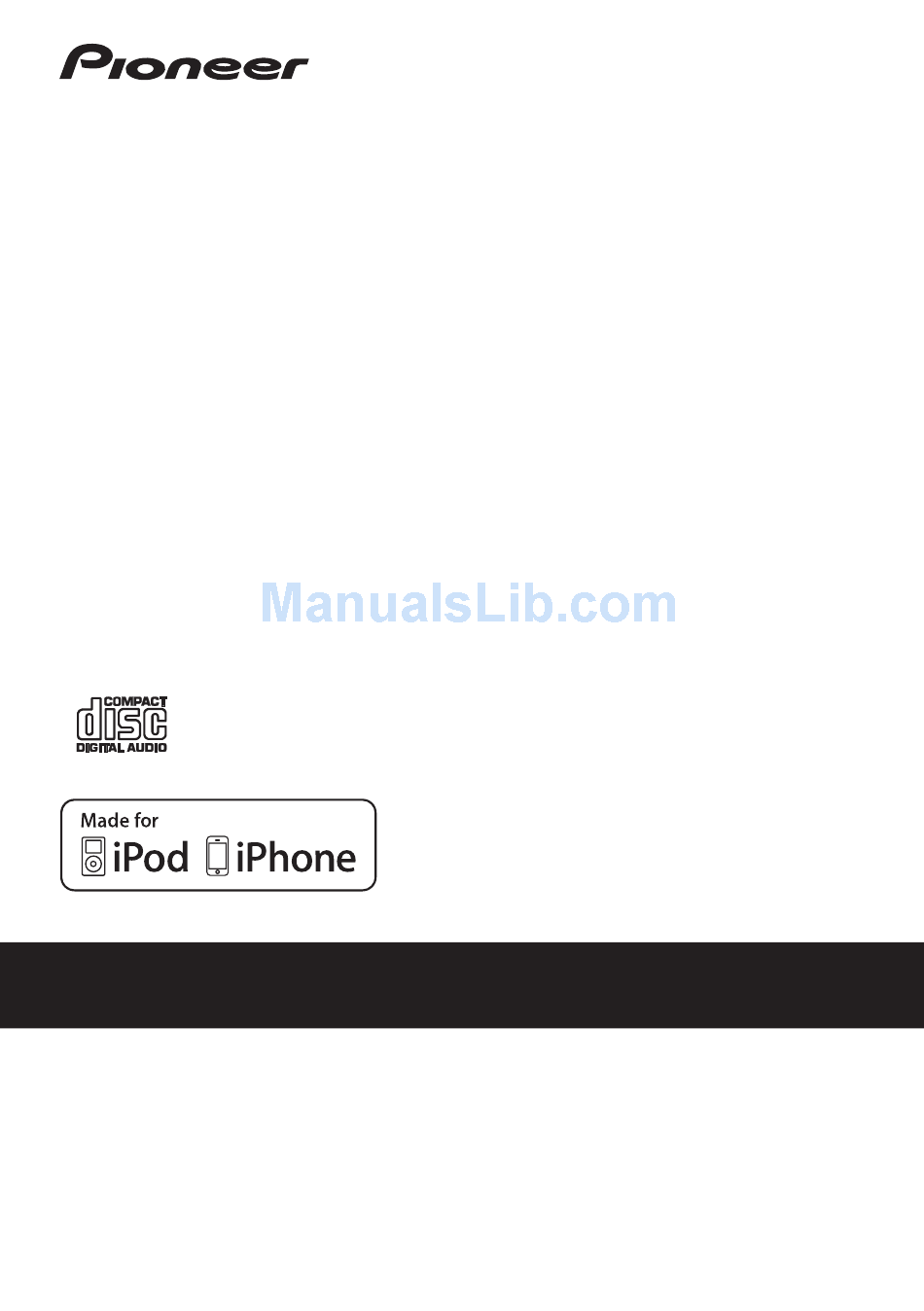

Page 1 X-HM50 CD Receiver System Discover the benefits of registering your product online at http://www.pioneer.co.uk (or http://www.pioneer.eu). Operating Instructions...
Page 2: Operating Environment
IMPORTANT CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: The lightning flash with arrowhead symbol, The exclamation point within an equilateral within an equilateral triangle, is intended to TO PREVENT THE RISK OF ELECTRIC triangle is intended to alert the user to the alert the user to the presence of uninsulated SHOCK, DO NOT REMOVE COVER (OR presence of important operating and...
Page 3 Information for users on collection and disposal of old equipment and used batteries Symbol for These symbols on the products, packaging, and/or accompanying documents mean equipment that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.
Page 4: Table Of Contents
• X-HM50 CD Receiver System consisting of main unit and speaker system. Introduction Thank you for purchasing this PIONEER product. To obtain the best performance from this product, please read this manual carefully. It will guide you in operating your PIONEER product.
Page 5: Precautions
• Do not expose the unit to moisture, to temperatures result in a fire or other type of accident causing higher than 60°C (140°F) or to extremely low damage. PIONEER will not be held responsible for any temperatures. damage resulting from use of this unit with a voltage •...
Page 6 Controls and indicators (continued) Remote control Page 1. Remote Control Transmitter ....8 2. STANDBY/ON Button ... . . 9, 11, 12, 22 3.
Page 7: System Connections
Check the power cord once in a while. If the bass reflex ducts. you find it damaged, ask your nearest Pioneer authorized • Do not stand or sit on the speakers. You may be injured. independent service company for a replacement.
Page 8: Remote Control
System connections (continued) Remote control Using other subwoofer Battery installation You can connect a subwoofer with an amplifier to the Open the battery cover. SUBWOOFER PRE OUT socket. Insert the supplied batteries according to the Commercially available subwoofer direction indicated in the battery compartment. Audio cable (amplifier built in) When inserting or removing the batteries, push them...
Page 9: General Control
General control Bass control Press the BASS/TREBLE button to select “Bass”. Within 5 seconds, press the VOL (+ / –) button to adjust the bass. INPUT Treble control Press the BASS/TREBLE button to select “Treble”. Within 5 seconds, press the VOL (+ / –) button to VOLUME STANDBY/ON adjust the treble.
Page 10: Ipod And Iphone
Setting the clock (Remote control iPod and iPhone adaptor connection only) (continued) Notes • Please use the adaptor supplied with your iPod or To adjust the hour, press the button and iPhone unit. then press the ENTER button. Press the •...
Page 11: Ipod/Iphone Display Tv Out Button
Listening to the iPod or iPhone (continued) STANDBY/ON Watching videos on a TV connected to VOLUME STANDBY/ON iPod or iPhone TIMER INPUT Press the DISPLAY TV OUT button for more than 2 PHONES AUDIO IN X-HM50 seconds. “TV Display” will appear on display. INPUT Press the ENTER button to start playback.
Page 12: Listening To A Cd Or Mp3/Wma Disc
Listening to a CD or MP3/WMA disc Disc playback STANDBY/ON VOLUME STANDBY/ON Press the STANDBY/ON button to turn the power on. TIMER INPUT Press the CD button on the remote control or INPUT PHONES AUDIO IN X-HM50 INPUT button repeatedly on the main unit to select CD function.
Page 13: Advanced Cd Or Mp3/Wma Disc Playback
Advanced CD or MP3/WMA disc playback Random play The tracks on the disc can be played in random order automatically. To random play all tracks: Whilst in the stop mode, press and hold down PLAY button on the remote control until “ ”...
Page 14: Mp3/Wma Folder Mode
Advanced CD or MP3/WMA disc MP3/WMA folder mode (only for playback (continued) MP3/WMA files) To play back MP3/WMA (Windows Media Audio) file Programmed play (MP3/WMA) There are many music sites on the internet that you can download MP3/WMA (Windows Media Audio) music Whilst in the stop mode, press the MEMORY files.
Page 15: Listening To Usb Mass Storage Device/Mp3 Player
MP3/WMA folder mode (only for Listening to USB mass storage MP3/WMA files) (continued) device/MP3 player VOLUME INPUT STANDBY/ON TIMER INPUT PHONES AUDIO IN X-HM50 Procedure to playback MP3/WMA disc with folder mode on To play back CD-R/RW. Press the CD button, and load an MP3/WMA disc. •...
Page 16: Advanced Usb Playback
Notes • For MP3/WMA files, please put “.MP3” “.WMA” • PIONEER will not be held liable for the loss of data extension. Files cannot be played back if there is no whilst the USB memory device is connected to the MP3/WMA extension.
Page 17: Listening To The Fm Radio
Listening to the FM radio Memorising a station STANDBY/ON VOLUME STANDBY/ON You can store 40 FM stations in memory and recall TIMER INPUT them at the push of a button. (Preset tuning) PHONES AUDIO IN X-HM50 INPUT Perform steps 1 - 3 in “Tuning”. Press the MEMORY button.
Page 18: Using The Radio Data System (Rds)
Using the Radio Data System (RDS) RDS is a broadcasting service which a growing Notes for RDS operation number of FM stations provide. These FM stations send additional signals along with their regular If any of the following events occur, it does not programme signals.
Page 19: Using The Radio Data System (Rds)
Using the Radio Data System (RDS) (continued) Descriptions of the PTY (Programme Type) codes CHILDREN For programmes targeted at a young audience, primarily for entertainment NEWS Short accounts of facts, events and and interest, rather than where the publicly expressed views, reportage objective is to educate.
Page 20: Listening To The Dab
Listening to the DAB DAB (Digital Audio Broadcasting) is a digital Using the auto scan function manually transmission system where audio signals are converted to digital signals for broadcasting. If a new DAB station is introduced, or you move to a DAB is broadcast as a group of data called multiplex new area, you can run the Auto Scan function again.
Page 21 Listening to the DAB (continued) Auto Scan? Displaying DAB radio information This setting determines which DAB frequency range of Band III is scanned by the Auto Scan function (see page Press the button repeatedly to DAB/RDS DISPLAY 20). display more information about the selected DAB (default) station.
Page 22: Timer And Sleep Operation
Timer and sleep operation (Remote control only) To select the timer playback source (CD, TUNER, USB, iPod, AUDIO IN, LINE IN), press the button. Press the ENTER button. When you select the tuner, select a station by pressing the button, and then press the ENTER button.
Page 23: Sleep Button
Timer and sleep operation (Remote control only) (continued) Checking the timer setting: Sleep operation Turn the power on and press and hold down the The radio, compact disc, iPod, USB, Audio In and Line CLOCK/TIMER button. In can all be turned off automatically. Within 10 seconds, press the button to Play back the desired sound source.
Page 24: (Remote Control Only)
Many potential problems can be resolved by the owner commercially available lead as shown below. without calling a service technician. If something is wrong with this product, check the following before calling your authorized PIONEER VOLUME STANDBY/ON dealer or service centre.
Page 25 Troubleshooting chart (continued) iPod and iPhone Tuner Symptom Possible cause Symptom Possible cause • No sound is • The iPod or iPhone is not • The radio makes • Is the unit placed near produced. playing. unusual noises the TV or computer? No image continuously.
Page 26: Maintenance
Specifications As part of our policy of continuous improvement, Factory reset, clearing all memory PIONEER reserves the right to make design and specification changes for product improvement Press the STANDBY/ON button to enter the power without prior notice. The performance specification stand-by mode.
Page 27 Specifications (continued) USB host • Complies with USB 1.1 (Full Speed)/2.0 Mass Storage Class. interface • Support Bulk only and CBI protocol. Support file • MPEG 1 Layer 3 • WMA (Non DRM) Bitrate • MP3 (32 kbps to 320 kbps) support •...
Page 28 253 Alexandra Road, #04-01, Singapore 159936 TEL: 65-6472-7555 PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 5 Arco Lane, Heatherton, Victoria, 3202, Australia, TEL: (03) 9586-6300 PIONEER ELECTRONICS DE MEXICO S.A. DE C.V. Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico, D.F. 11000 TEL: 55-9178-4270 K002_B2_En Printed in Malaysia <TINSEA333AWZZ>...
