From program mode, press the comp/limiter button to move to eithter the Compressor or Limiter module. Once you have reached the Crossover module,
successive presses of COMP/LIMITER button will move through each channel that utilizes either a Compressor (pre Crossover) or Limiter (post-crossover) module.
Navigate through the Pages of the selected compressor or Limiter module by pressing the "Next Page" or "Prev Page" buttons successively until you arrive at the desired Page.
The Comp/Limiter button
toggles through
the Compressor or
Limiter modules used in
each channel of
the selected
program.
From program mode, press the Delay button. Pressing the Data Wheel will select the effect parameter to be edited.
<PREV PG NEXT PG>
The NEXT and PREV
buttons scroll through
the pages of selected module.
®
™
PA
COMP/LIMITER
COMP
LIMITER
Successive presses of the Data wheel will select
effect parameters within the currently selected page.
DELAY
Delay - On/Off
Length - Delay Time - Course, Fine
Units - Seconds,Feet,Meters
Successive presses of the Data wheel will select
effect parameters within the currently selected page.
Editing Functions

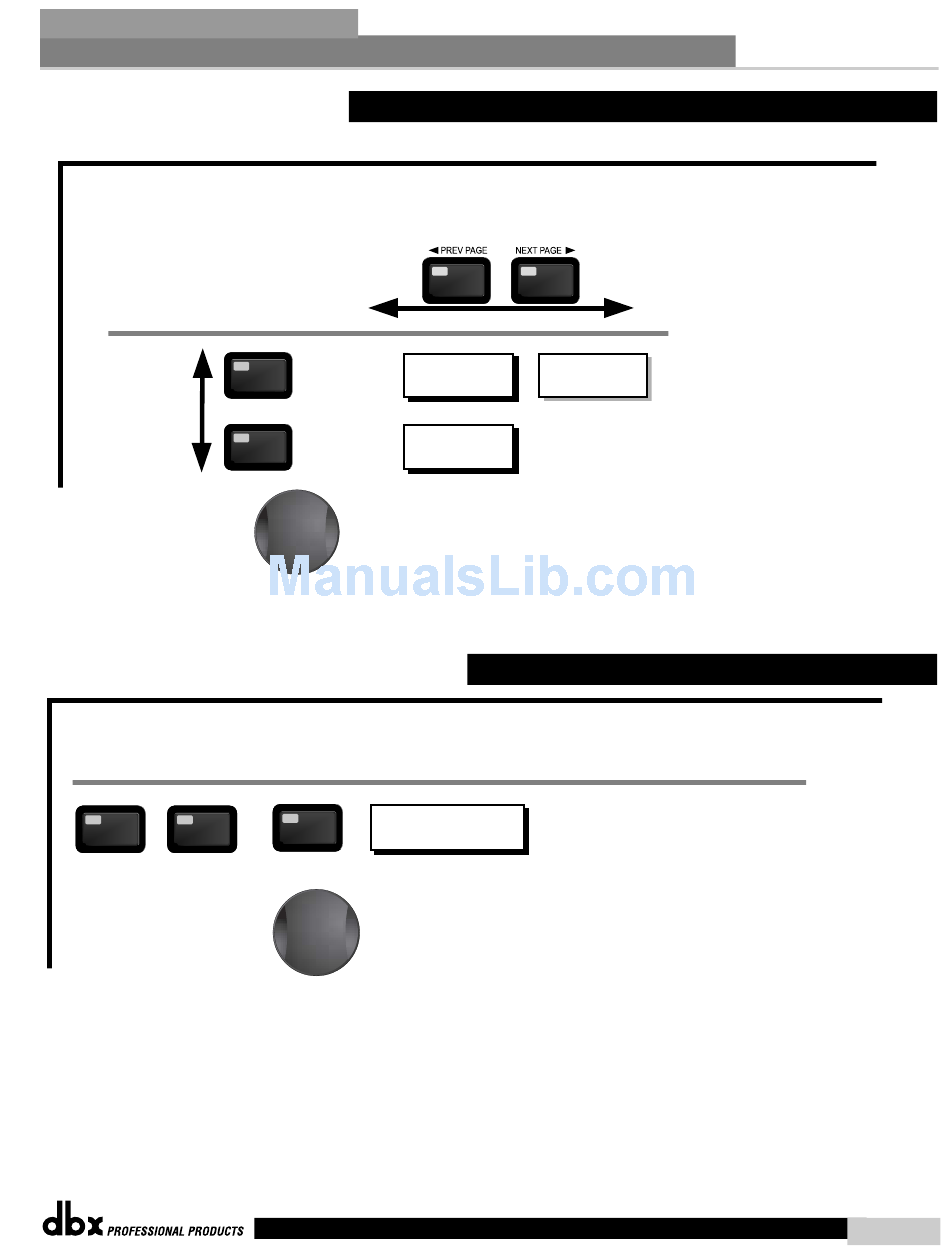

2.7 Navigating the Comp/Limiter Section

Comp On/Off Threshold -40-20dB
Over Easy Off, 1-10 Ratio 1:1 to ∞Inf:1
Gain -20 to 20dB
Limiter On/Off
Over Easy Off, 1-10
Threshold -40-20dB
2.8 Navigating the Delay Section
