Specifications

Screen Size
36.1"(H) 20.4"(V) inches
918(H) 518(V) mm
diagonal 42"
Aspect Ratio
16 : 9
Resolution
1024(H) 768(V) pixels
Pixel Pitch
0.036"(H) 0.027"(V) inches
0.897(H) 0.675(V) mm
Color Reproduction
256 levels, 16,770,000 colors
Signals
Synchronization Range
Horizontal : 15.5 to 110 kHz
(automatic : step scan)
Vertical : 50.0 to 120.0 Hz
(automatic : step scan)
Input Signals
RGB, NTSC (3.58/4.43), PAL (B,G,M,N),
PAL60, SECAM, HD*
Input Terminals
(VIDEO1 and RGB1 can also be used as OUTPUT terminals)
RGB
Visual 1 (Analog)
mini D-sub 15-pin 1
Visual 2 (Analog)
BNC (R, G, B, H/CS, V) 1*
Visual 3 (Digital)
DVI-D 24-pin 1*
Video
Visual 1
BNC 1*
Visual 2
RCA-pin 1
Visual 3
S-Video: DIN 4-pin 1
DVD/HD/DTV
Visual 1
RCA-pin (Y, PB[CB], PR[CR]) 1*
Visual 2
BNC (Y, PB[CB], PR[CR]) 1*
Audio
Stereo RCA 3(Selectable)
External Control
D-sub 9-pin 1(RS-232C)
Sound output
8W+8W at 6 ohm
Power Supply
AC120V 50/60Hz
Current Rating
4.6A (maximum)
Power Consumption
360W (typical)
Dimensions
40 (W) 24 (H) 3.5 (D) inches
1018 (W) 610 (H) 89(D) mm
Weight
65.0 lbs / 29.5 kg (without stand)
Environmental Considerations
Operating Temperature 0°C to 40°C / 32°F to 104°F
Humidity
20 to 80% (no condensation)
Altitude
0 to 9180 feet / 0 to 2800 m
Storage Temperature -10°C to 50°C / 14°F to 122°F
Humidity
10 to 90% (no condensation)
Altitude
0 to 9840 feet / 0 to 3000 m
Front Panel User Controls Power on/off, Input source select,
Volume up/down, OSM control
Remote Control Functions Power on/off, Input source select, OSM
control,Volume up/down, Cursor (UP,
DOWN,LEFT, RIGHT), Pointer, Zoom up/
down, Off timer, Wireless/ Wired remote
control
OSM Functions
Picture (Contrast/Brightness/Sharpness/ Color/Tint/
Picture mode/Noise reduction/Color temperature/
White balance/Gamma/Low tone/Color tune), Audio
(Bass/Treble/Balance/Audio input), Image Adjust
(Aspect mode/V-Position /H-Position/V-Height /H-
Width/Auto Picture/Fine picture/Picture adjustment),
Option1 (OSM/BNC Input/D-Sub Input/RGB Select/
HD Select/Input Skip/All Reset), Option2 (Power
management/Cinema mode/Long life [PLE, Orbiter,
Inverse, White, Screen wiper, Soft focus]/Gray level/
S1/S2/DVI Set up), Option3 (Timer/Power on mode/
Control lock/IR Remote/Loop out/ID number/Video
wall [Divider, Position, Disp. mode, Auto ID, Image
adjust, Power on delay, PLE link, Timer]), Advanced
OSM, Language*, Color system, Source information
*English, German, French, Italian, Spanish, Swedish,
Chinese
1
1
1
, DVD*
, DTV*
2
3
2
1
1,
*
2

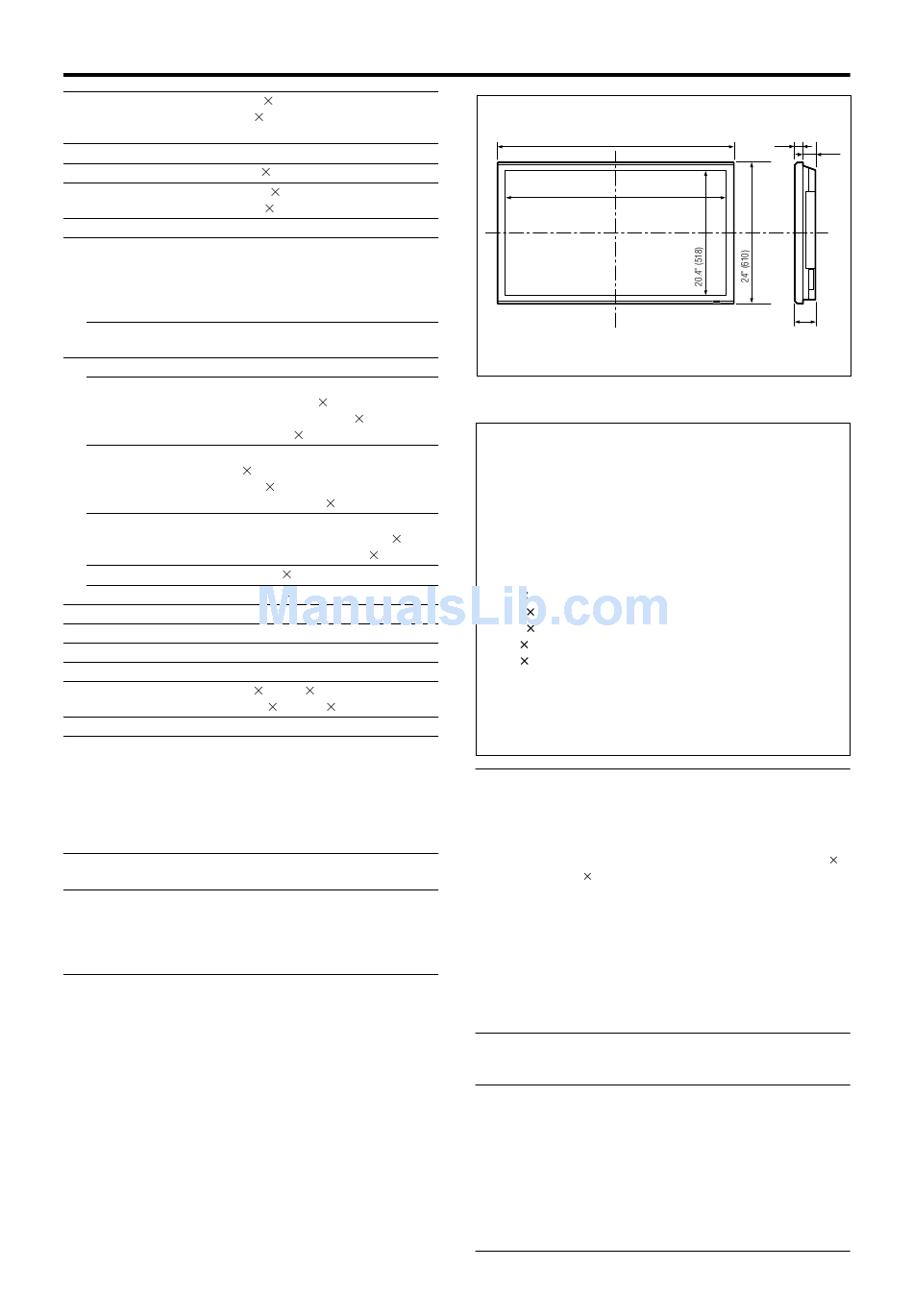

40" (1018)
36.1" (918)
42XM2A: Bezel color is gray.
42XM2A/S: Bezel color is silver.
The features and specifications may be subject to change without
notice.
*
1
HD/DVD/DTV input signals supported on this system
480P (60 Hz)
480I (60 Hz)
525I (60 Hz)
576P (50 Hz)
625P (50 Hz)
625I (50 Hz)
1035I (60 Hz)
1080I (50 Hz)
*
2
The 5-BNC connectors are used as RGB/PC2 and HD/DVD2 input.
Select one of them under "BNC INPUT".
*
3
42XM2A is not compatible with HDCP.
42XM2A/S is compatible with HDCP.
Supported Signals
• 640 480P @ 59.94/60Hz
• 1280 720P @ 59.94/60Hz
• 1920 1080I @ 59.94/60Hz
• 720 480P @ 59.94/60Hz
• 720 480I @ 59.94/60Hz
Note: In some cases a signal on the plasma monitor may not be displayed
properly. The proglem may be an inconsistency with standards from
the source equipment (DVD, Set-top box, etc...). If you do experience
such a problem please contact NEC Solutions (America), Inc. and also
the manufacturer of the source equipment.
Other Features
Motion compensated 3D Scan Converter (NTSC,
PAL, 480I, 576I, 525I, 625I, 1035I, 1080I), 2-3
pull down Converter (NTSC, 480I, 525I, 1035I,
1080I (60Hz)), 2-2 pull down Converter (PAL,
576I, 625I, NTSC, 480I, 525I), Digital Zoom
Function (100-900% Selectable), Video Wall 2 2/
3 3 multi screen, Self Diagnosis, Anti Image
Burn (PLE LOCK1~3, INVERSE, WHITE,
ORBITER (Auto1,2/Manual), SCREEN WIPER),
Color Temperature select (high/mid/mid low/low,
user has 4 memories), Control lock (Except power
SW), Auto Picture, Input Skip, Color Tune, Low
Tone (3 mode), Auto ID, Programmable Timer,
Gamma Correction (4 mode), Loop through
interface, Plug and play (DDC1, DDC2b, RGB3:
DDC2b only)
Accessories
Remote control with two AAA batteries, Power
cord, Manuals, Safety metal fitting parts, Ferrite
cores, Bands
Regulations
42XM2A:
UL Approved (UL 60950/CSA C22.2
No.60950-00)
DOC Canada requirements
Meets FCC Class A requirements
42XM2A/S:
UL Approved (UL 60950 and UL65000/CSA
C22.2 No.60950-00/ CAN/CSA-E60065-00)
DOC Canada requirements
Meets FCC Class B requirements
6
1.38"
2.13"
(35)
(54)
3.5"
(89)
Units are in inch
(mm)
525P (60 Hz)
576I (50 Hz)
720P (60 Hz)
1080I (60 Hz)
