Quick Start

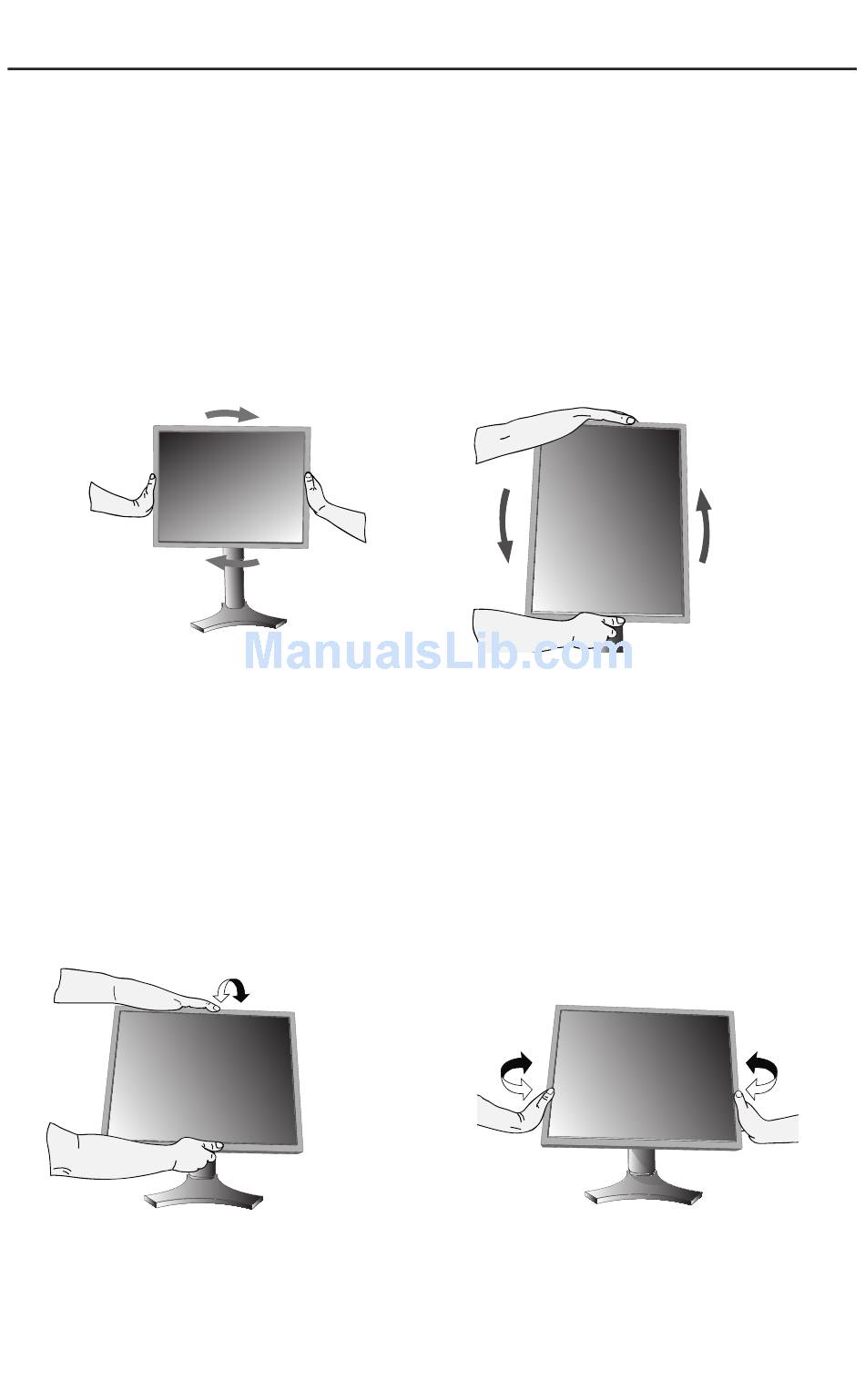

Screen Rotation

Before rotating, the screen must be raised to the highest level to avoid accidentally
damaging the screen and to avoid pinching fi ngers. With one hand, grip the top of
the display by the handle using the other hand to grip the bottom Lift up to the highest
position. (Figure RL.1).
To rotate screen, place hands on each side of the monitor screen and turn clockwise
from Landscape to Portrait or counter-clockwise from Portrait to Landscape (Figure R.1).
Note: To toggle the orientation of the OSM menu between Landscape and Portrait
modes, refer to the "Controls" section of this user's manual.
Tilt
With one hand, grip the top of the display by
the handle using the other hand to grip the
bottom. Tilt to desired angle (Figure TS.1).
Figure TS.1
NOTE: Handle with care when tilting and swiveling the monitor screen.
– continued
Figure R.1
6
Swivel
Grasp both sides of the monitor screen
with your hands and adjust the swivel
as desired (Figure TS.2).
Figure TS.2
