Danfoss TS715 Installation & User's Instructions

Single channel timeswitch
Hide thumbs Also See for TS715:

Advertisement

Quick Links

See also: Operating Instructions
TS715
single channel
timeswitch
Installation & User Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the TS715 and is the answer not in the manual?

Questions and answers

Related Manuals for Danfoss TS715

Summary of Contents for Danfoss TS715

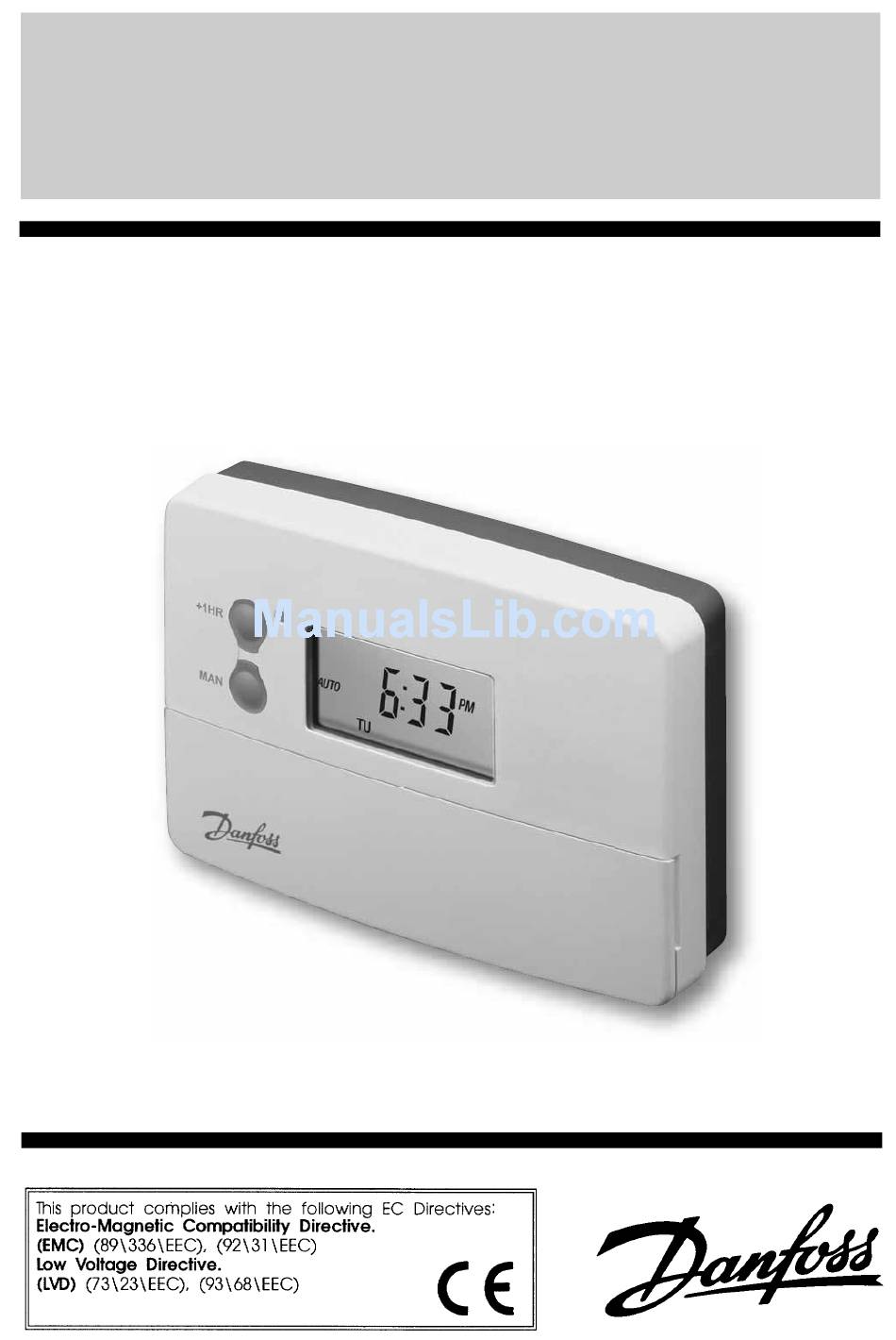

  • Page 1 TS715 single channel timeswitch Installation & User Instructions...

  • Page 2: Table Of Contents

    Index Installation Product specifi cation Installation Wiring DIL switch settings Wiring Conversion User Your timeswitch Preset programmes Before you start AM/PM or 24hr display Setting the Time and Day 11-12 Accepting the preset programmes Changing the preset programmes Programming system - 5/2 day 14-15 Programming system - 7 day 16-17...

  • Page 3: Product Specifi Cation

    Installation Instructions Please Note: This product should only be installed by a qualifi ed electrician or competent heating installer, and should be in accordance with the current edition of the IEEE wiring regulations. Product specifi cation Specifi cation Power supply 230 Vac, ±15%, 50/60 Hz Switching action 1 x SPDT voltage free, Type 1B...

  • Page 4: Installation

    J For wiring connections refer to diagram on page 5. TS715 models are double insulated and do not require an earth connection, however a parking terminal is provided on the wallplate. This is clearly marked with an Earth symbol.

  • Page 5: Wiring

    Wiring NOTE: Link terminals L and 1 for standard mains voltage operated COM OFF Mains systems fused Always switch off mains fi rst and never fi t programmer to a live wallplate. For Wiring Conversion tables see pages 6-9 DIL Switch Settings Before mounting the unit, ensure the 4 DIL switches on the rear of the unit have been moved to the...

  • Page 6: Wiring Conversion

    WIRING CONVERSIONS Wiring conversions for other timeswitches which can be replaced with the Danfoss TS715, refer to the second part of the table. If in any doubt, please contact our Technical Services Department before proceeding with the replacement. MAINS DANFOSS RANDALL...
  • Page 7 LOAD An additional terminal block may be required where these disconnected leadss (or pairs of SPARE leads) should be terminated ust be reconnected as shown below. In addition, in mains voltage systems, fi t acing the following timeswitches. Wiring details are shown below. In addition, in...
  • Page 8 MAINS DANFOSS RANDALL TS715 The TS75/TS15 wallplate must be used to replace the existing wallplate when repla mains voltage systems, fi t wire link between terminal 1 & L of wallplate. SANGAMO M6 SANGAMO 410 FORM 8 SANGAMO S254 FORM 2, S408 FORM 5,...
  • Page 9 LOAD An additional terminal block may be required where these disconnected leadss (or pairs of SPARE leads) should be terminated acing the following timeswitches. Wiring details are shown below. In addition, in LOAD SWITCH LOAD LIVE LINE LOAD...

  • Page 10: Your Timeswitch

    User Instructions Your timeswitch The TS715 allows you to switch your system on and off at times that suit you. You can programme up to 3 ON/OFF times per day, which will come on and go off at the same times.

  • Page 11: Before You Start

    Before you start Open the fl ap on the front of the clock. Press the RESET button using a non-metallic object (e.g. pencil/matchstick) until you hear a click and the red light on the front of the unit fl ashes once. This will reinstate the preset programmes and sets the time to 12.00pm on Monday (MO)

  • Page 12: Accepting The Preset Programmes

    SETTING THE DAY Press DAY repeatedly until the correct day of the week is displayed. MO is Monday, TU is Tuesday etc. Accepting the preset programmes If you are happy to use the preset programmes on page 10, you don’t need to do anything else.
  • Page 13 Before you change the preset programmes Your installer will have set your unit to operate in one of the following modes: ● 5/2 day - one set of programmes for weekdays and another for weekends (page 14-15) ● 7 day - different settings for each day of the week (page 16-17) ●...
  • Page 14 Programming the heating & hot water in 5/2 day mode 1. Press PROG until SET ON TIME appears at the top of the display and MOTUWETHFR appears at the bottom of the display. Use the + and - buttons to set the time you would like your system to fi...
  • Page 15 4. Press the DAY button once and SASU will appear at the bottom of the display. Either press COPY to keep the same settings for Saturday and Sunday as you have programmed for Monday to Friday. Alternatively, programme new ON/OFF times by pressing the NEXT ON/OFF button to move to the next setting and using the + and - buttons to...
  • Page 16 Programming the heating & hot water in 7 day mode 1. Press PROG until SET ON TIME appears at the top of the display and MO appears at the bottom of the display. Use the + and - buttons to set the time you want your system to fi...
  • Page 17 Continue programming the rest of the week by pressing: a) NEXT ON/OFF button to move to the next setting, b) + and - buttons to amend the time c) DAY to advance to the next day. Alternatively press COPY to keep the same settings as the day before 4.
  • Page 18 Programming the heating & hot water in 24 hour mode 1. Press PROG until SET ON TIME appears at the top of the display. Use the + and - buttons to set the time you want your system to fi rst come on in the morning (Event 1).
  • Page 19 Running your Programme To run the programme: press the SELECT button. As you press the SELECT button the display will change between ON, OFF, ALLDAY and AUTO. ALLDAY ● AUTO = the system will come on and go off at the programmed times ●...

  • Page 20: Temporary Overrides

    Temporary override buttons Sometimes you may need to change the way you use your heating temporarily, i.e. due to unusually cold weather. The TS715 has two convenient overrides which can be selected without affecting the set programme. +1HR +1HR +1HR = pressing this button when the unit is in AUTO or ALLDAY mode will cause the system to remain on for an extra hour.
  • Page 21 Changing clocks forward & back Open the fl ap on the front of the unit to reveal the programming buttons. To change from Summer to Winter (clocks back) - press and hold - button To change from Winter to Summer (clocks forward) - press and hold + button NOTE: After the fi...
  • Page 22 Fault Check List o Hot Water heck TS715 programmer. Make sure selector is set to ON. Is the red light on? heck fuse in fused spur heck cylinder thermostat Is the stat set to a temperature of 60° ? Turn knob to 60°...
  • Page 24 Call our technical department 0845 121 7505 (8.45-5.15 Mon-Thurs, 8.45-4.45 Fri) For a large print version of these instructions please contact the Marketing Services Department on 0845 121 7400. Danfoss Randall Ltd Ampthill Road Bedford MK42 9ER Tel: 01234 364621 Fax: 01234 219705...
