Danfoss TS715 Si User Instruction

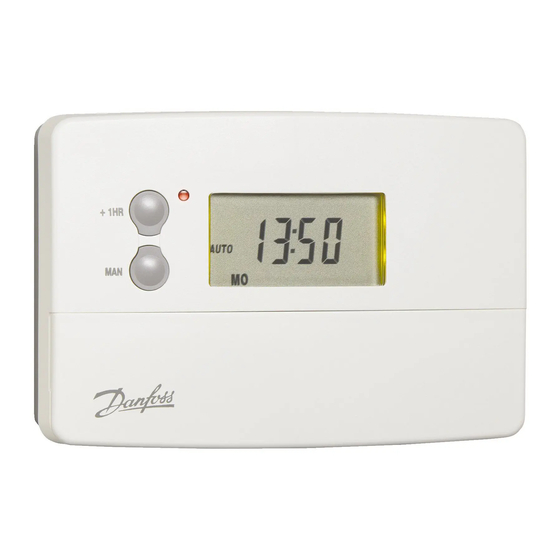

TS715 Si
User Instructions
Before beginning programming, you should reset the unit. Open the flap on the
front of the clock. Press the RESET button using a non-metallic object (e.g. end
of a bic biro pen top). This will clear all previous pre-set programmes. (Fig. 1)
A. Setting the correct Time and Day
The time and date are set in the factory and do not need to be set.
B. Accepting the Factory Settings
The TS715 Si comes ready programmed with a set of times to suit the average
household.
If you wish to alter these settings follow instructions below.
Your installer will have set your unit to operate in one of the following modes:
5/2 day - a set of programmes for weekdays and another for weekends (Section C)
7 day - different settings for each day of the week (Section D)
24 hour - one set of programmes for the whole week (Section E)
Please follow relevant instructions below.
C. Programming the System - 5/2 day mode
1. Press PROG (Fig. 2) until SET ON TIME appears at the top of the display and
MOTUWETHFR appears at the bottom of the display (Fig. 6). Use the + and - buttons
(Fig. 3) to set the time you would like your system to first come on in the morning
(Event 1).
2. Press NEXT ON/OFF once only (Fig. 7). Use the + and - buttons (Fig. 3) to set the
time you want your system to go off (Event 2). To move to the next setting, i.e. when
you would like your system to come on again (Event 3) press the NEXT ON/OFF
button once only.
3. Continue programming the system ON and OFF times for weekday Events 4,5 & 6
as in Step 2.
4. Press the DAY button once (Fig. 4) and SASU will appear at the bottom of the display
(Fig. 8). Programme new ON/OFF times by pressing the NEXT ON/OFF button (Fig.
7) once to move to the next setting and using the + and - buttons (Fig. 3) to set the
time you want.
5. Press the PROG button (Fig. 2) to return display to RUN mode (Fig. 5).
6. Proceed to Section F.
D. Programming the System - 7 day mode
1. Press PROG (Fig. 2) until SET ON TIME appears at the top of the display and day of
week (e.g. MO) appears at the bottom of the display (Fig. 9). Use the + and - buttons
(Fig. 3) to set the time you want your system to first come on in the morning (Event
1).
2. Press NEXT ON/OFF (Fig. 7) to move to Event 2. Continue programming the system
ON and OFF times in this way by using the + and - buttons to set the time you want
and pressing the NEXT ON/OFF button to move to the next setting (Figs. 3 & 7).
3. Press DAY button once only (Fig. 4), the next day (e.g. TU) will appear at the bottom
of the display. Continue programming for the rest of the week by pressing the NEXT
ON/OFF button (Fig. 7) to move to the next setting, using the + and - buttons to
amend the time, and by pressing DAY to advance to the next day (Figs. 7, 3 & 4).
4. Press the PROG button (Fig. 2) to return display to RUN mode (Fig. 5).
5. Proceed to Section F.
E. Programming the System - 24 hour mode
1. Press PROG (Fig. 2) until SET ON TIME appears at the top of the display. Use the +
and - buttons (Fig. 3) to set the time you want your system to first come on in the
morning (Event 1).
2. Press NEXT ON/OFF (Fig. 7) to move to Event 2. Continue programming the
system ON and OFF times in this way by using the + and - buttons to set the time
and pressing the NEXT ON/OFF button to move to the next setting (Figs. 3 & 7).
3. Press the PROG button (Fig. 2) to return display to RUN mode (Fig. 5).
4. Proceed to Section F.
N.B. Depending how your installer has set the clock you will be able to programme either 2
or 3 ON/OFFs per day. If your clock has been installed to allow 3 ON/OFFs and you do not
wish to use one of the ON/OFF settings, simply programme the ON time to be the same as
the OFF time and the setting will not operate.

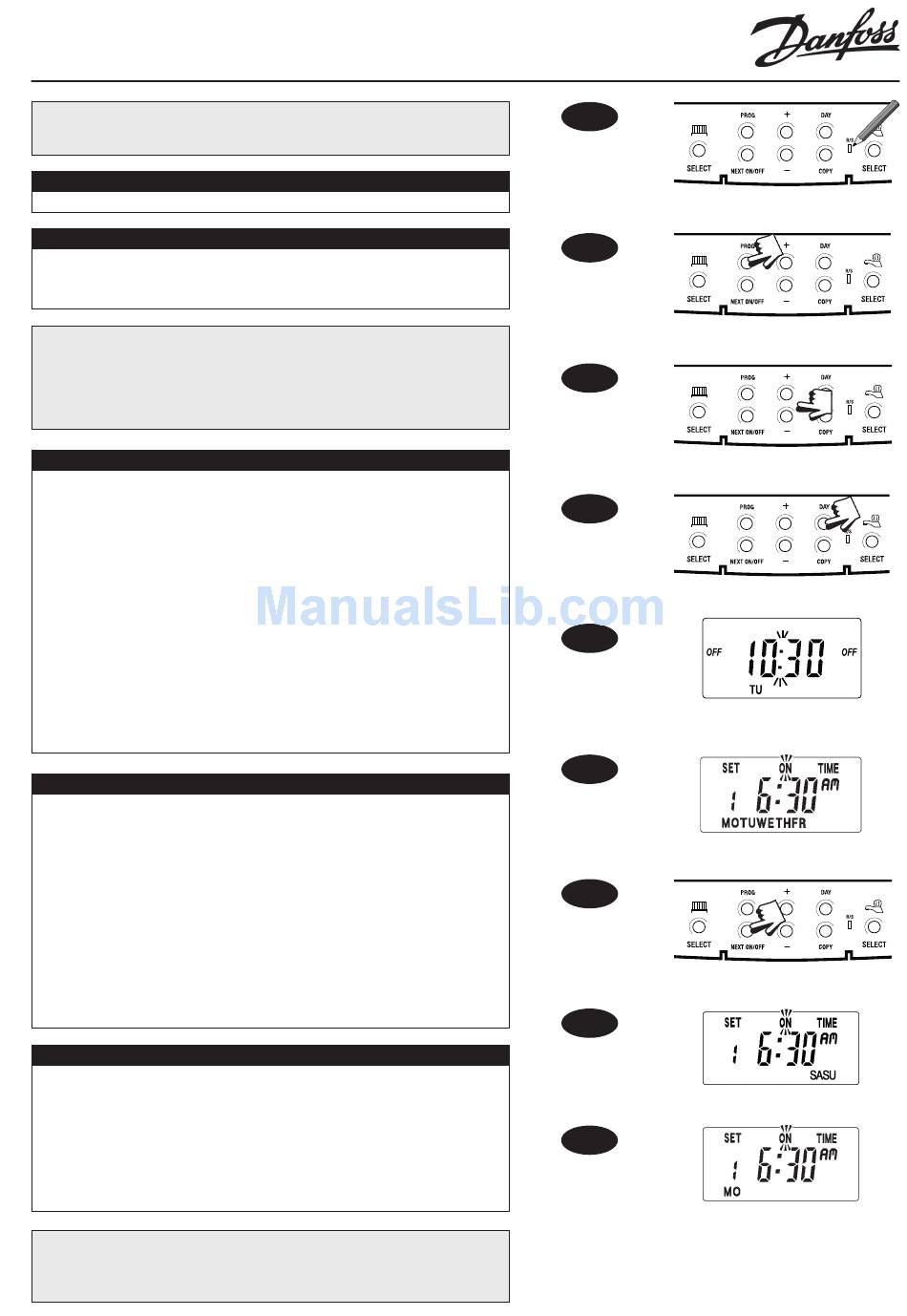

Fig. 1
