NEC MultiSync EA191M-BK User Manual

Nec multisync user's manual
Hide thumbs Also See for MultiSync EA191M-BK:


Quick Links

MultiSync EA191M
User's Manual


Table of Contents

Related Manuals for NEC MultiSync EA191M-BK

Summary of Contents for NEC MultiSync EA191M-BK

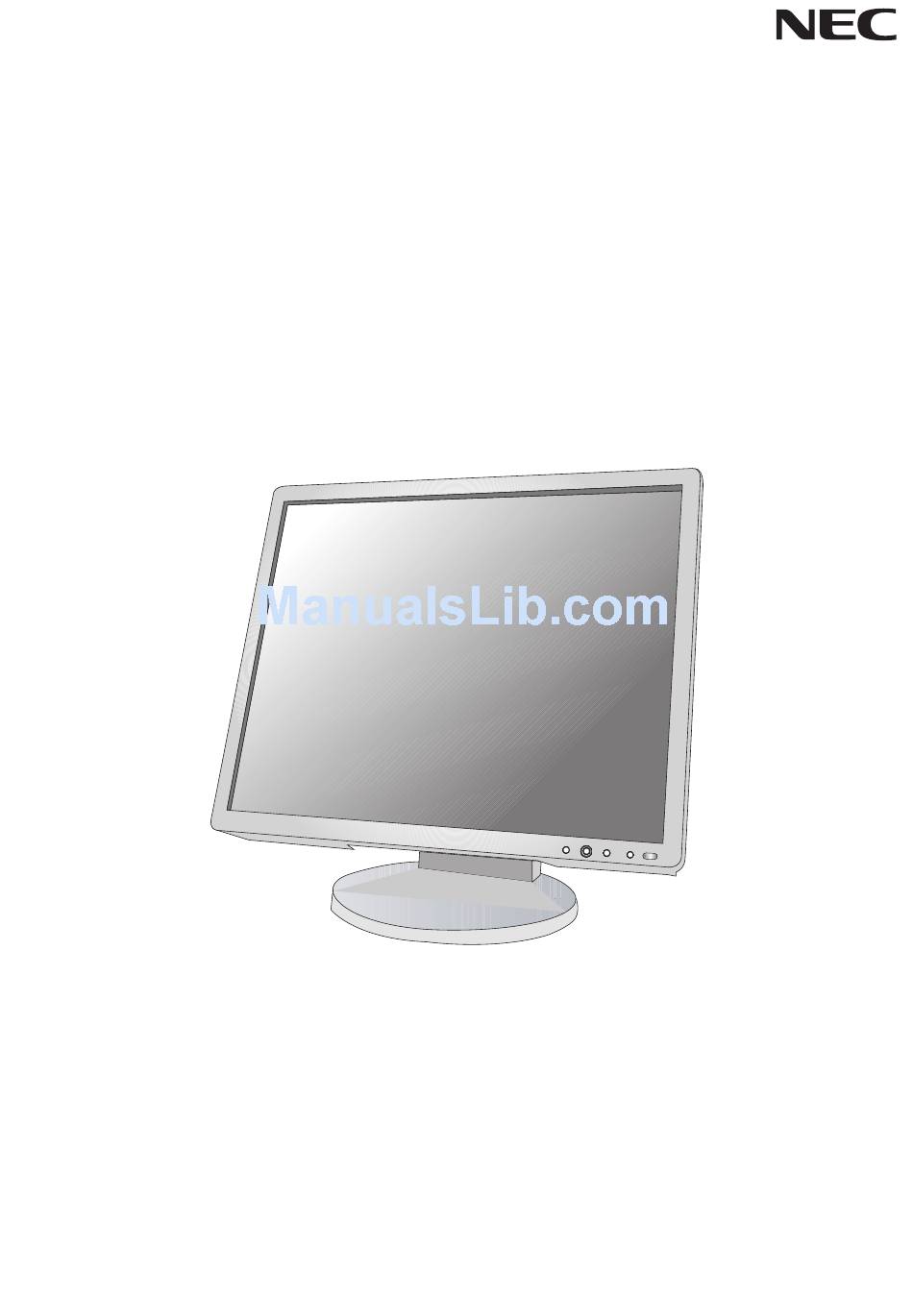

  • Page 1 MultiSync EA191M User’s Manual...
  • Page 2: Table Of Contents

    Index Warning, Caution ... English-1 Registration information ... English-1 Recommended use ... English-3 Contents ... English-5 Quick Start ... English-6 Controls ... English-11 Specifications ...English-14 Features ... English-15 Troubleshooting ... English-16 TCO’03 ... English-17 Manufacturer’s Recycling and Energy Information ... English-18...
  • Page 3: Warning, Caution

    – EN 61000-3-2 – EN 61000-3-3 – EN 55024 WARNING CAUTION European U.K. Continental EU (except U.K.) U.K. Declaration of the Manufacturer and marked with NEC Display Solutions, Ltd. English-1 Chinese Japanese China Japan 4-13-23, Shibaura, Minato-Ku Tokyo 108-0023, Japan...
  • Page 4: Canadian Department Of Communications Compliance Statement

    NaViSet is a trademark of NEC Display Solutions Europe GmbH in the countries of EU and Switzerland. MultiSync is a registered trademark of NEC Display Solutions, Ltd. in the countries of U.K., Italy, Austria, Netherlands, Switzerland, Sweden, Spain, Denmark, Germany, Norway and Finland.
  • Page 5: Recommended Use

    NOTE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommends displaying moving images and using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.
  • Page 6 CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE • For optimum performance, allow 20 minutes for warm-up. • Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.
  • Page 7: Contents

    Contents Your new NEC MultiSync LCD monitor box* should contain the following: • MultiSync LCD monitor with tilt/swivel/pivot/height adjust stand • Power Cord • Cable cover • Video Signal Cable (15-pin mini D-SUB male to 15-pin mini D-SUB male) •...
  • Page 8: Quick Start

    Quick Start To attach the MultiSync LCD monitor to your system, follow these instructions: 1. Turn off the power to your computer. 2. For the PC or MAC with DVI digital output: Connect the DVI signal cable to the connector of the display card in your system (Figure A.1).
  • Page 9 5. To keep the cables neatly organized, place them into the cable management system that is built into the stand. Place the Power cord into the specific hooks, as indicated in Figure C.2/Figure C.3. Place the D-Sub and the DVI cables into the specific hooks, as indicated in Figure C.2/Figure C.3. 6.
  • Page 10: Raise And Lower Monitor Screen

    8. Connect the power cord to the power outlet (Figure E.1). NOTE: If you have difficulty removing the cable cover, please push the lower opening upward to remove it, as show in Figure E.2. NOTE: Please refer to Caution section of this manual for proper selection of AC power cord. 9.
  • Page 11: Screen Rotation

    Screen Rotation Before rotating, the screen must be raised to the highest level to avoid knocking the screen on the desk or pinching with your fingers. To raise the screen, with one hand, grip the top of the display by the handle using the other hand to grip the bottom. Lift up to the highest position (Figure RL.1).
  • Page 12: Flexible Arm Installation

    Flexible Arm Installation This LCD monitor is designed for use with a flexible arm. To mount the monitor to a flexible arm: 1. Follow the instructions on how Remove Monitor Stand for Mounting to remove the stand. 2. Using the 4 screws from the stand removal, attach the arm to the monitor (Figure F.1). NOTE: The LCD monitor should only be used with an approved arm (e.g.
  • Page 13: Controls

    Controls OSD (On-Screen Display) control buttons on the front of the monitor function as follows: To access OSD menu, press any of the control buttons (MENU, Left, Right, Down, Up). To change signal input, press the SELECT button. To change DV MODE, press the RESET/DV MODE button. NOTE: OSD must be closed in order to change signal input.
  • Page 14: Menu Tools

    Image Controls (Analog input only) LEFT / RIGHT Controls Horizontal Image Position within the display area of the LCD. DOWN / UP Controls Vertical Image Position within the display area of the LCD. H.SIZE Adjusts the horizontal size by increasing or decreasing this setting. FINE Improves focus, clarity and image stability by increasing or decreasing this setting.
  • Page 15 Information The Information menu indicates the current input, display resolution, horizontal and vertical frequency, and polarity settings of the monitor. The model and serial numbers of your monitor are also indicated. CARBON SAVINGS: Display the estimated carbon saving information in kg. The carbon footprint factor in the carbon saving calculation is based on the OECD (2006 Edition).
  • Page 16: Specifications

    Active matrix; thin film transistor (TFT) liquid crystal display (LCD); 0.294 mm dot pitch; white luminence; 1500:1 contrast ratio, typical. Digital Input: DVI-D with HDCP Automatically Automatically Automatically Some systems may not support all modes listed. NEC DISPLAY SOLUTIONS cites recommended...
  • Page 17: Features

    Carbon conversion factor - conversion factor is based on OECD publication of global CO2 emissions 2006 Edition). This monitor has a manufacturing carbon footprint of approximately 20.8 kg. Note: The manufacturing and operating carbon footprints are calculated by a unique algorithm developed exclusively by NEC for its monitors.
  • Page 18: Troubleshooting

    NOTE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommends displaying moving images and using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.
  • Page 19: Tco'03

    TCO’03 Some of the features of the TCO’03 Display requirements: Ergonomics • Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability. Energy •...
  • Page 20: Manufacturer's Recycling And Energy Information

    Manufacturer’s Recycling and Energy Information NEC DISPLAY SOLUTIONS is strongly committed to environmental protection and sees recycling as one of the company’s top priorities in trying to minimize the burden placed on the environment. We are engaged in developing environmentally- friendly products, and always strive to help define and comply with the latest independent standards from agencies such as ISO (International Organisation for Standardization) and TCO (Swedish Trades Union).
