Instruction Manual

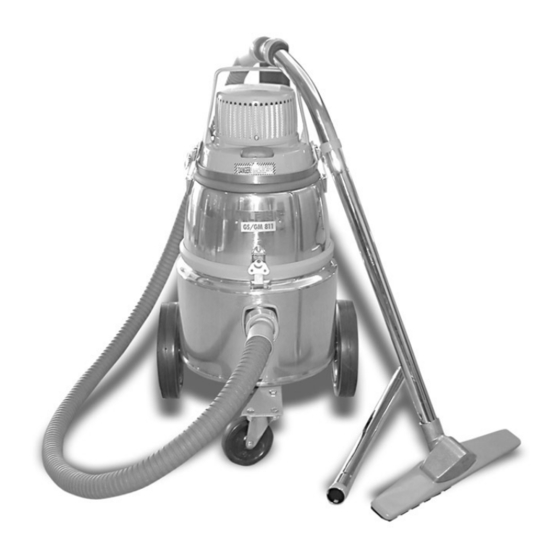

Nilfisk GM 810-811
INSTRUCTIONS FOR USE &
PARTS LIST
For Instructions for Use on HEPA/ULPA filter installation, please refer to
the addendum titled, "ABSOLUTE FILTERS - End User Information."
Table of Contents
2
2
3
4
4
5
5
6
7
10
15
15
Advertisement
Table of Contents
Related Manuals for Nilfisk-Advance GM 810
Summary of Contents for Nilfisk-Advance GM 810
-
Page 1: Table Of Contents
Nilfisk GM 810-811 INSTRUCTIONS FOR USE & PARTS LIST Table of Contents Important Safety Instructions Warranty Machine Setup Using the Machine Emptying Disposal Maintenance/Filter Replacement Troubleshooting Loss of Power Loss of Suction Parts Explosions Accessories Technical Specifications Contact Information For Instructions for Use on HEPA/ULPA filter installation, please refer to... -
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS PLEASE READ THESE INSTRUCTIONS COMPLETELY BEFORE USING THE MACHINE. DEPENDING ON LOCAL REGULATIONS AND THE COMPOSITION OF THE MATERIALS YOU HAVE COLLECTED, THERE MAY BE REQUIRMENTS FOR SPECIAL HANDLING AND DISPOSAL OF THE COLLECTED DEBRIS. CONSULT YOUR LOCAL OCCUPATIONAL SAFETY AND HEALTH ADMINISTRATION (OSHA) AND ENVIRONMENTAL PROTECTION AGENCY (EPA) OFFICIALS FOR DETAILS. -
Page 3: Machine Setup
EXCEPT AS SPECIFICALLY SET FORTH HEREIN, THE NILFISK COMPANIES MAKE NO WARRANTIES, EITHER EXPRESSED OR IMPLIED AS TO ANY MATTER WHATSOEVER, INCLUDING WITHOUT LIMITATION ANY AND ALL WARRANTIES OF MERCHANTABILITY, FITNESS FOR PURPOSE, OR OTHER WARRANTIES, ALL OF WHICH ARE EXPRESSLY DISCLAIMED AND EXCLUDED. -
Page 4: Using The Machine
Photo 4 4. The GM 810 and GM 811 offer a wide variety of hoses and accessories. Consult your local District Sales Managers or Customer Service Department at (800)-NILFISK for a list of optional hoses and accessories. No matter what hose option you have chosen, it can be connected in the following manner. -
Page 5: Disposal
To empty the container and its contents, first turn off the motor. Allow the cleaner to sit undisturbed for at least thirty (30) seconds. Then twist and release the container clips. Once the seal is broken, turn on the motor again. This will prevent ultrafine particles which are still suspended in the air inside the container from escaping into the work place. -
Page 6: Troubleshooting
equipped with a Gore-Tex microfilter, the same rules for periodic inspection and disposal apply. The Gore-Tex microfilter has a clamp that holds it in place. The Gore- Tex filter must be changed when any abrasions, damage or heavy discoloration is noticed on the surface of the filter (refer to photo 1). -
Page 7: Parts Explosions
GM 810 Item No. Description Qty. 115448-11 UPPER CONTAINER W/ COTTON FILTER 121103-29 MOTOR COMPLETE 120 V 115447-10 LOWER CONTAINER 017091-00 MOTOR HOLD DOWN RING 017092-11 LATCH 805521-00 WASHER 815406-00 SCREW, 4MM X 5MM 705265-10 NUT, 4MM ESN 712386-00 SPRING CUP... - Page 8 GM 811 No. Item No. Description Qty. 1 115448-11 UPPER CONTAINER W/ COTTON FILTER 2 121103-29 MOTOR COMPLETE 120 V 3 017020-00 LOWER CONTAINER 4 017091-00 MOTOR HOLD DOWN RING 5 017092-11 LATCH 6 805521-00 WASHER 7 815406-00 SCREW, 4MM X 5MM 8 705265-10 NUT, 4MM ESN 9 712386-00 SPRING CUP 10 017093-16 KEEPER...
-
Page 9: Screw
HEPA Filter Kit (017104XX) ULPA Filter Kit (017204XX) Item No. Description 217377-01 HANDLE 717376-00 FILTER COVER 017247-01 HOLD DOWN PAD 017009-01 SEAL, FOAM, HEPA 813950-00 SCREW 821070-00 FILTER BASE 017010-05 SEAL,FOAM, BOTTOM 017276-31 HEPA FILTER (includes item numbers 3, 4, 7) 017376-31 ULPA FILTER (includes item numbers 3, 4, 7) -
Page 10: Accessories
Filter, Filter Bag and Trolley Item No. Description EXHAUST WITH DIFFUSER 21573001 22394900 EXHAUST FILTER WITH MICRO STATIC DIFFUSER 11693700 DIFFUSER FILTERS 2 PCS MICRO-STATIC FILTER 11641000 MICROFILTER 11730410 HANDLE COMPLETE 22132000 81585000 DUST BAG... -
Page 11: Ring
Motors Item No. Description 12108129 MOTOR GSP 110-120V.UL 12108329 MOTOR GSPJ 110-120V.UL 12108353 MOTOR GSP 220-240V.UL 12108529 MOTOR GSPJ 110-120V.UL 12110129 MOTOR GMP 110-120V.UL 12112353 MOTOR GMPJ, 220-240V, UL 12110329 MOTOR GMPJ 110-120V.UL 22232301 TOP HOUSING FOR GS/GM MOTORS UL APPROVED 22410300 SUPPORT RING FOR UL APPROVED GS/GM MOTOR 22231201 BOTTOM HOUSING WITH VALVE... - Page 12 Internal Motor Components Item No. Description 12125001 MOTOR GSP/GSPJ 100-120V 12125002 MOTOR GSP/GSPJ 200-240V 12125003 MOTOR GMP/GMPJ 110-120V 12125005 MOTOR GMP/GMPJ 220-240V 22130500 WIRE KIT/THERMO SWITCH FOR UL APPROVED MOTOR 22130501 INTERNAL WIRE AND CAPACITOR 22131100 ON/OFF SWITCH 1-POLE 22131200 ON/OFF SWITCH 2-POLE 22231100 MOTOR SUSPENSION- PHILLIPS 22365300 SOUND ABSORBER AND...
- Page 13 Power Cords Item No. Description 21827400 9.3M CORD AWG18/3 21952200 9.3M CORD AWG18/2 22361000 BRACKET W/ SCREWS FOR CORD 22131600 BRACKET WITH SCREWS...
-
Page 14: Wheel
Accessories Item No. Description 11574100 HOSE 10' W/ INLET 38MM 11574000 HOSE 6'6" W/ INLET 38MM 11343900 HOSE EXTENSION 10' 11343700 HOSE EXTENSION 6'6" 11027200 STRAIGHT STEEL WAND 22" 10944000 CURVED STEEL TUBE 1403816020 WHEELED FLOOR NOZZLE 16" 11476000 16" CARPET NOZZLE 11476101 16"... -
Page 15: Technical Specifications
30 feet Air performance 250 air watts *With pressure relief valve inactive ** Filter area included paper bag, main filter, microfilter, HEPA CONTACT INFORMATION Nilfisk-Advance America, Inc. 300 Technology Drive Malvern, PA 19355 Phone: (610) 647-6420 Fax: (610) 647-6427 questions@nilfisk-advance.com...
