Omega VRT400 Instruction Manual

Vertical juicer
Hide thumbs Also See for VRT400:
Table of Contents

Advertisement

Quick Links

See also: User Manual , Manual

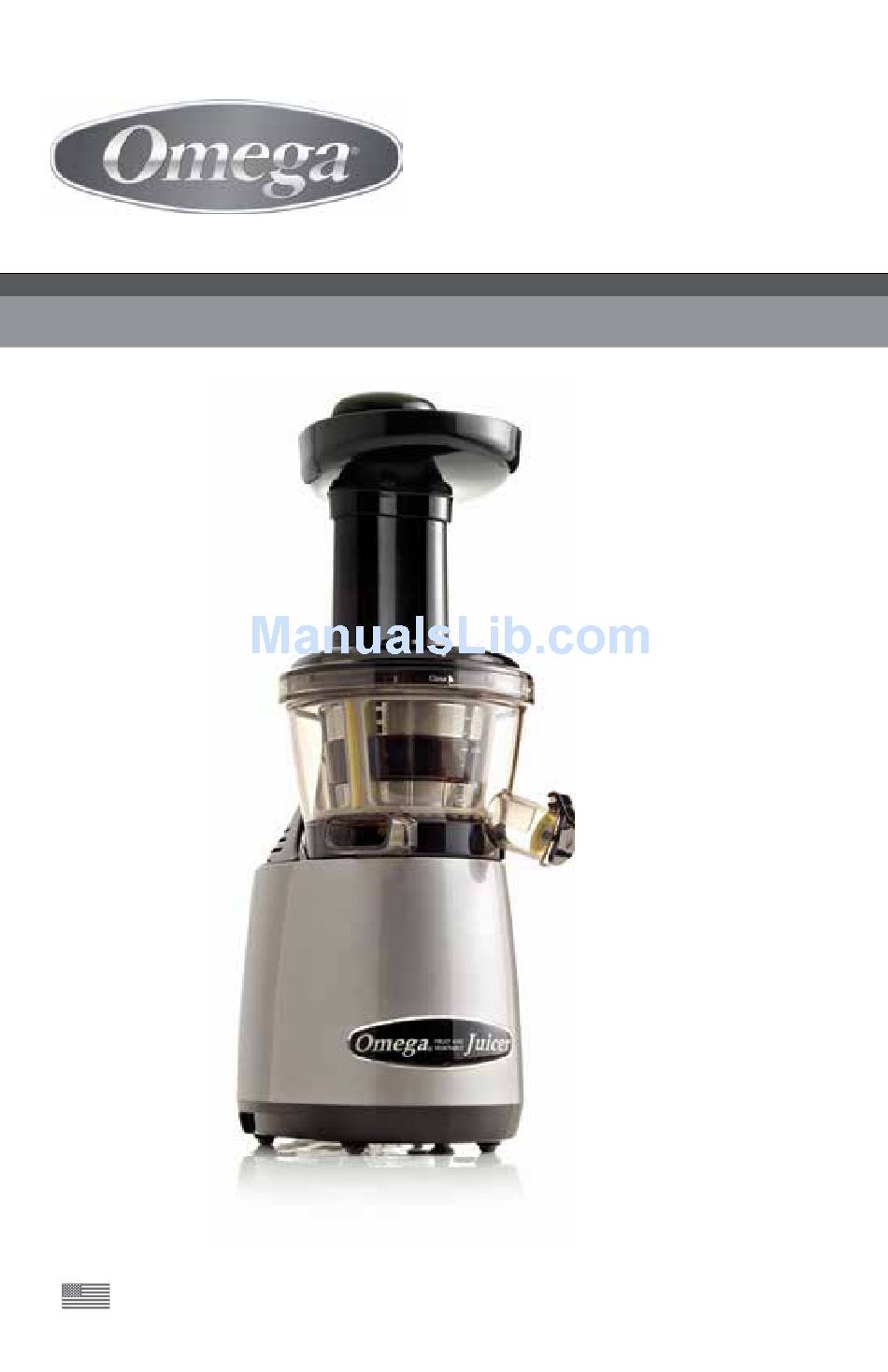

InstructIon
Manual
Eat well, drink well and livewell with omega.
www.omegaJuicers.com
VRT400
Vertical Juicer
English, Jan 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VRT400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Omega VRT400

Summary of Contents for Omega VRT400

  • Page 1 InstructIon Manual Eat well, drink well and livewell with omega. www.omegaJuicers.com VRT400 Vertical Juicer English, Jan 2014...

  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS Please read carefully before using. Follow instructions to avoid injury. • To protect against risk of electrical shock or fire, do not put motor base, cord, or plug in water and keep them dry at all times. • Do not disassemble the base. All repairs should be made only by authorized personnel.
  • Page 3 IMPORTANT SAFEGUARDS Additional usage precautions: • Do not pre-operate before inputting food. Doing so may cause a normal squeaking noise. • Do not attempt to juice any hard materials, large seeds (seeds which can not be swallowed or chewed), pits, ice, or frozen foods. •...

  • Page 4: Table Of Contents

    Dear Omega Customers ........

  • Page 5: Dear Omega Customers

    With the Omega Slow Squeezing System and Juice Cap mixing feauture, you can easily make personalized juice rich in taste, flavor and full of valuable nutrients. 1. More Nutrients and Taste: Your own personalized juice Mixed Juice Enjoy single ingredient juice or mixed juice.

  • Page 6: General Description And Parts Names

    GENERAL DESCRIPTION AND PARTS NAMES GENERAL DESCRIPTION AND PARTS NAMES Hopper Pulp Container Squeezing Screw Juice Container Coarse Strainer (Optional) Fine Strainer Cleaning Brush Spinning Brush Bowl Pusher Base...

  • Page 7: Specific Terms Or Parts

    SPECIFIC TERMS FOR PARTS SPECIFIC TERMS FOR PARTS <FRONT> <BACK> 4. Hopper 1. Hopper Front Rear Part Triangle 2. Bowl Triangle 5. Operating Switch 6. Juice Outlet 3. Pulp Outlet 7. Juice Cap 8. Power Cord 9. Grip STRAINER* COARSE STRAINER (Optional) The bigger holes in the strainer produce thicker juice when tender and soft fruits are extracted such as strawberries, kiwis and tomatoes.

  • Page 8: Precautions For Safe Use

    PRECAUTIONS FOR SAFE USE All users of this appliance must read and understand this safety precaution before operating. WARNING Hazards or unsafe practices which could result in serious personal injury or death. CAUTION Hazards or unsafe practices which could result in minor personal injury or appliance damage.

  • Page 9: Warnings And Cautions

    WARNINGS AND CAUTIONS WARNING Hazards or unsafe practices which could result in serious personal injury or death. DO NOT PLUG IN OR UNPLUG WITH WET HANDS. It may cause an electric shock or an injury. DO NOT USE WITH OTHER THAN RATED VOLTAGE. It may cause an electric shock, a fire or abnormal performance.
  • Page 10 WARNINGS AND CAUTIONS NEVER DISASSEMBLE BOWL SET DURING OPERATION OR INSERT FINGERS, FOREIGN OBJECTS SUCH AS FORKS, SPOONS ETC. INTO FEEDING TUBE OR JUICE OUTLET. It may cause an injury, an accident or a failure. THIS APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR...
  • Page 11 WARNINGS AND CAUTIONS WHEN USING THE APPLIANCE, BE CAREFUL FOR A NECKTIE, LONG NECKLACE, SCARF ETC. NOT TO BE ENTANGLED INTO FEEDING TUBE. It may cause an injury, a failure or a breakage. PLACE THE APPLIANCE ON A FLAT AND STABLE SURFACE. It may cause an injury or a failure.

  • Page 12: Slow Juicer Assembly

    SLOW JUICER ASSEMBLY SLOW JUICER ASSEMBLY Align hopper front triangle [ t ] with bowl STEP triangle [ OPEN ] first and turn it to clockwise until it clicks so that the hopper triangle [ t ] aligned with bowl triangle [ CLOSE Make sure to press the screw down into the strainer as in STEP 2.

  • Page 13: Slow Juicer Assembly In Detail

    SLOW JUICER ASSEMBLY IN DETAIL Align the hopper rear part with base completely as in below. The hopper will not close properly when the parts are not assembled correctly. Hopper Rear Part Assemble the parts in the order of bowl> spinning brush> strainer> squeezing screw> hopper (or assemble the spinning brush into the bowl then fit strainer bump in the bowl inner groove.).

  • Page 14: How To Use The Appliance

    HOW TO USE THE APPLIANCE BACK VIEW Wash the fruits and/or vegetables and cut them into pieces that fit into the feeding tube. Place the suitable pieces into feeding tube slowly and press with a pusher. Use fresh fruits and vegetables for juicing as they contain more juice.

  • Page 15: Juice Cap And Extraction Packing

    JUICE CAP AND EXTRACTION PACKING JUICE CAP AND EXTRACTION PACKING JUICE CAP This is the cap of juice outlet in the bowl. Close the juice cap and fill up with juice in the bowl and various ingredients. You can easily make mixed juices. Juice Cap Close juice cap and press [ON] button to start When juice starts filling up the bowl, you can...

  • Page 16: When The Screw Is Stopped During Operation (How To Use [Reverse/Rev] Button)

    WHEN THE SCREW IS STOPPED DURING OPERATION WHEN THE SCREW IS STOPPED DURING OPER ATION (REVERSE/REV BUTTON) (REVERSE/REV BUTTON) Click [Reverse/REV] button and stop the appliance. Stop Press [Reverse/REV] button in operating switches for 3~5 seconds and release it. Repeat this process 2~3 times.

  • Page 17: Important Safeguards In Use

    IMPORTANT SAFEGUARDS IN USE • Fruits with pits, hard seeds such as nectarines, peaches, mangos, apricots, plums and cherries must be pitted before juicing. • Cut fibrous ingredients (water, parsleys, etc.) in small size like 3~4cm (1.5 inch) and place to the feeding chute •...

  • Page 18: Disassembly, Cleaning And Care

    DISASSEMBLY, CLEANING AND CARE FIGURE IN ORDER Juice Outlet...
  • Page 19 DISASSEMBLY, CLEANING AND CARE 1. Ensure the motor stops completely and unplug the power cord. When unplugging the power cord, hold the head part of the power cord and unplug it. Do not touch the power cord with wet hands. 2.

  • Page 20: Bowl Disassembly And Wash

    BOWL DISASSEMBLY AND WASH Juice Cap Packing Bowl Packing Remove Juice Cap packing and bowl packing. Open juice cap first. Hold the bowl and juice cap with one hand and remove juice cap pcaking with the other hand. When removing it, be careful not to drop the juice cap and bowl. It may cause damage to the juice cap. Remove the bowl packing by pinching and twisting it with two fingers.

  • Page 21: Sterilization And Easy Cleaning System

    STERILIZATION AND EASY CLEANING SYSTEM STERILIZATION For sterilization use baking soda or natural wash-up liquids only. You can thoroughly wash parts by immersing in water diluted with one or two drops of baking soda or natural wash-up liquids for about 30 minutes. EASY CLEANING SYSTEM Open After closing the juice cap, pour the water...

  • Page 22: Spinning Brush Disassembly And Wash

    SPINNING BRUSH DISASSEMBLY AND WASH Remove the spinning brush from strainer. Detach the silicone brush from spinning brush. SPINNING BRUSH SILICONE BRUSH As shown to the left, hold the outer part of silicone brush with your fingers an pull it out to the arrow direction .

  • Page 23: Spinning Brush Assembly

    SPINNING BRUSH ASSEMBLY SPINNING BRUSH Check the groove of the spinning brush and SILICONE BRUSH the direction of silicone brush. Inner Wing There are grooves to insert silicone brush in (longer part) the spinning brush. Silicone brush has inner wing and outer wing.

  • Page 24: Bowl Packing Assembly

    BOWL PACKING ASSEMBLY Hold the bowl packing like pinching. As shown to the left in a dotted circle, let the protrusion part on the bowl packing face upward and hold it like pinching with your thumb and index finger. Bowl Packing Insert the bowl packing into the bowl hole.

  • Page 25: Juice Cap Packing Assembly

    JUICE CAP PACKING ASSEMBLY Hold juice cap packing as shown to the left. As shown to the left in a dotted circle, the hole must be visible when you hold. Juice Cap Packing Open the juice cap and insert the juice cap packing in.

  • Page 26: Troubleshooting

    TROUBLESHOOTING Check the details below before contacting Technical Support for repair or service. If you need information or if you have a problem, please contact the local Customer Care Center. When applying for after sales service, check the manufacturer’s serial number or bar code. THE APPLIANCE DOES NOT WORK.

  • Page 27: Appliance Specifications

    APPLIANCE SPECIFICATIONS APPLIANCE STANDARDS PRODUCT NAME Omega Slow Squeeze Juicer MODEL NAME VRT400 Series RATED VOLTAGE 120V RATED FREQUENCY 60 Hz RATED POWER CONSUMPTION 150 W RPM (REVOLUTIONS PER MINUTE) 80 RPM CORD LENGTH MOTOR 1.4 m MOTOR Single-Phase Induction Motor...
  • Page 28 ProDucts, Inc. 3355 EntErPrIsE aVEnuE, suItE160 Fort lauDErDalE, Fl 33331 PHonE: 877.368.2797 FaX: 954.202.7337...
