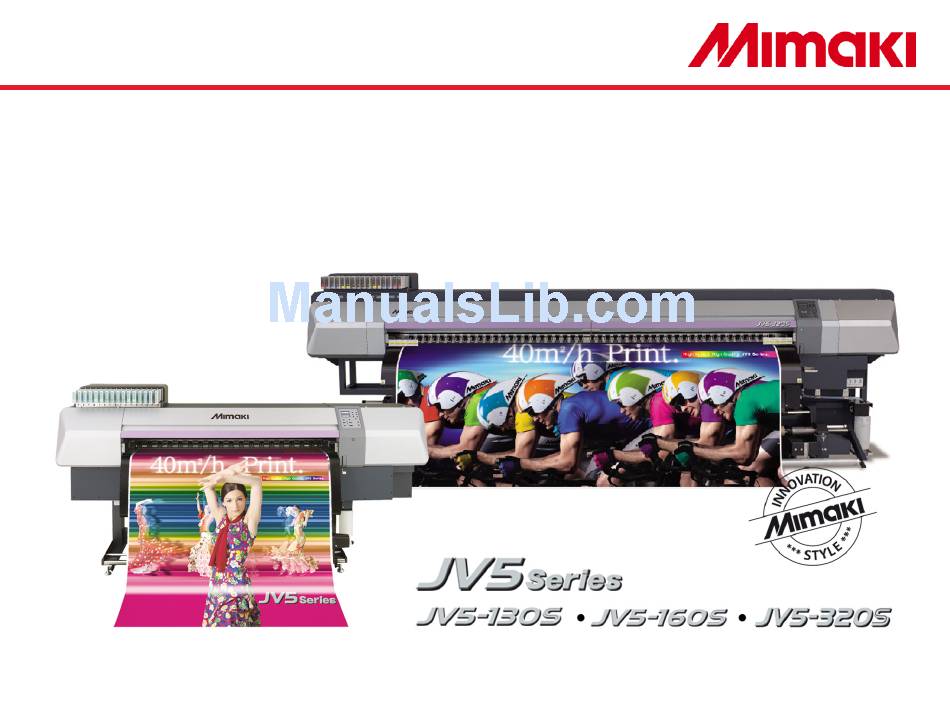

- Page 1 PRODUCT GUIDE JV5 series inkjet printers Ultra high-speed performance...
- Page 2 Mimaki Europe B.V. Contents and technical explanations in this presentation are based on the test results achieved at Mimaki at the time of testing and are not a guarantee for performance. Substrates should be tested beforehand.
-
Page 3: Table Of Contents
Print head Details and system, arrangement New innovative functions for JV5-320S comparison Rasterlink Pro RIP Software Mimaki exclusive inks Specifications Ink settings JV5 sublimation transfer inkjet printers Printing speed Variable head number control Comparison: JV5-130S/160S, JV5-320S JV5 SERIES SOLVENT INKJET PRINTERS... -
Page 4: Product Description
Mimaki’s JV5 series are equipped with unique features that eliminate time-consuming and costly processes. These features include the Uninterrupted Ink Supply System (UISS), automatic nozzle drop-out detection and recovery, and three-way intelligent heater. -
Page 5: Media & Applications
PRODUCT GUIDE Media and applications JV5-130S, JV5-160S Printable substrates Blueback paper, canvas, mesh, (transfer) paper, vinyl Applications Backlit signs, floor graphics, high quality stickers, labels, posters, vehicle wrap, window signage JV5-320S Printable substrates Blueback paper, mesh, vinyl, canvas, banner, (transfer) paper, truck-side tarpaulin Applications Large banners for signage that requires both closer viewing (walls, ceilings, etc.) and signage that... -
Page 6: Shared Features
Automatic nozzle out detection system • Three-way intelligent heater, including large after heater supporting high-speed print • Stable media feeding • Two take-up devices available for the JV5-320S and the new automatic media feeder for JV5-130S/160S JV5 SERIES SOLVENT INKJET PRINTERS... -
Page 7: Print Head
PRODUCT GUIDE Print head Details and system Print head • 180 nozzles x 8 lines • Resolutions up to 1440 dpi • 4 print heads placed staggered Outward scan • Symmetric ink arrangement • Two possible ink sets: - 2 x 4 colours (CMYK) Homeward scan - 6 colours (BMYKLbLm) Piezo inkjet system... - Page 8 PRODUCT GUIDE Print head In comparison with JV3-SP print head arrangement JV3-SP 180 nozzles x 8 lines 180 nozzles x 8 lines 1,440 nozzles Using 4 heads Using 4 heads Total : 5,760 nozzles Total : 1,440 nozzles JV5 SERIES SOLVENT INKJET PRINTERS...
-
Page 9: Mimaki Exclusive Inks
PRODUCT GUIDE Mimaki exclusive inks Two types of solvent inks are available for JV5 series • HS Ink A solvent ink meeting the needs for high scratch resistance and high-speed high density printing required for outdoor signboard printing. Since HS ink has a strong odor, an air purifying system is recommended. -
Page 10: Ink Settings
PRODUCT GUIDE Ink Settings 4 color setting 6 color setting JV5 staggered head arrangement CM ink volume per colour 1.760 cc. CMYK ink volume per colour 1.760 cc. YKLcLm 880 cc, total 7.040 cc Total of 7.040 cc JV5 SERIES SOLVENT INKJET PRINTERS... -
Page 11: Printing Speed
PRODUCT GUIDE Printing speed JV5-320S JV5-160S JV5-130S 4 colours, bi-directional, variable dot Output 62.1 540 x 720 dpi 4 pass 44.4 540 x 1080 dpi 6 pass 15.8 720 x 1440 dpi 16 pass 6 colours, bi-directional, variable dot Output 35.9... -
Page 12: Variable Head Number Control
PRODUCT GUIDE Variable head number control In the event of failures on a head or heads, the JV5 series still can print with the rest of the heads specified by operator. (Printing can be performed with min. 1 head) The JV5 prints with the remaining 3 print heads Defective head (inability to fire) -
Page 13: The Uninterrupted Ink Supply System (Uiss)
PRODUCT GUIDE The Uninterrupted Ink Supply System Automatic workflow Long uninterrupted printing (1760 cc per color) in 4-color mode is possible with the UISS function. When one of the two ink cartridges is empty, the ink supply is switched to the other cartridge automatically. With this feature, it is possible to print a whole roll of media (approx. -
Page 14: Automatic Nozzle Failure Detection
PRODUCT GUIDE Automatic nozzle failure detection • The ink discharged from the print head is monitored by the automatic nozzle failure detection and recovery system, which results in quick detection and recovery of clogged nozzles. • This feature saves time and money. It lowers the chance of print failure caused by head clogging and reduces the waste of ink and media. -
Page 15: Automatic Head Height Adjustment
PRODUCT GUIDE Automatic head height adjustment • The thickness of the media is automatically detected and the head height can be automatically adjusted to get the designated head gap. • Even when the thickness of the media changes, printing can be done with a constant head gap. -
Page 16: Media Feeding And Take-Up Devices
The multi point grid roller system ensures A new automatic media feeder is now stable feeding of media. available for JV5-130S and JV5-160S. With this feature, the printers will be able to handle up to 130 kg roll weight, instead of 38 kg. -
Page 17: Three-Way Intelligent Heater
PRODUCT GUIDE Three-way intelligent heater The triple stage intelligent heater Pre-heater and print-heater automatically heats up the media to the The pre-heater and print-heater reduce appropriate temperature, improving the ink bleeding and contributes to high performance of the ink. quality printing results. Post-heater The large post-heater quickens the drying time of the ink and thus enables... -
Page 18: New Innovative Functions For Jv5-320S
PRODUCT GUIDE New innovative functions for JV5-320S • Mesh printing innovation Automatic drainage system to remove excess ink An ink tray receives excess ink which passes through a mesh so avoiding the requirement for a liner. Ink in tray automatically raked out to enable longer printing without worrying about ink overflow (option). -
Page 19: Rasterlink Pro Rip Software
PRODUCT GUIDE Rasterlink Pro RIP software High quality printing by VD and 16 bit rendering The included RasterLink Pro III is equipped 8 bits with 16 bit rendering which features • The elimination of tone jump and fine color reproduction •... -
Page 20: Specifications
PRODUCT GUIDE Specifications JV5-130S JV5-160S JV5-320S Print head On-demand piezo head (180 nozzles x 8 lines) Number of print heads Maximum printing width 1365 mm (53.7”) 1635 mm (63.7”) 3250 mm (128”) Printing resolutions (dpi) 540, 720, 1440 Printing modes... -
Page 21: Jv5 Sublimation Transfer Inkjet Printers
PRODUCT GUIDE JV5 sublimation transfer inkjet printers The JV5 series are also available in dye sublimation models • Extensive range of applications for the growing sublimation transfer market, including sportswear, ceramic tile, flags, wall murals, mugs, et cetera. • Higher speed compared to the JV4 series, which saves printing time up to 12 hours 20 minutes.
