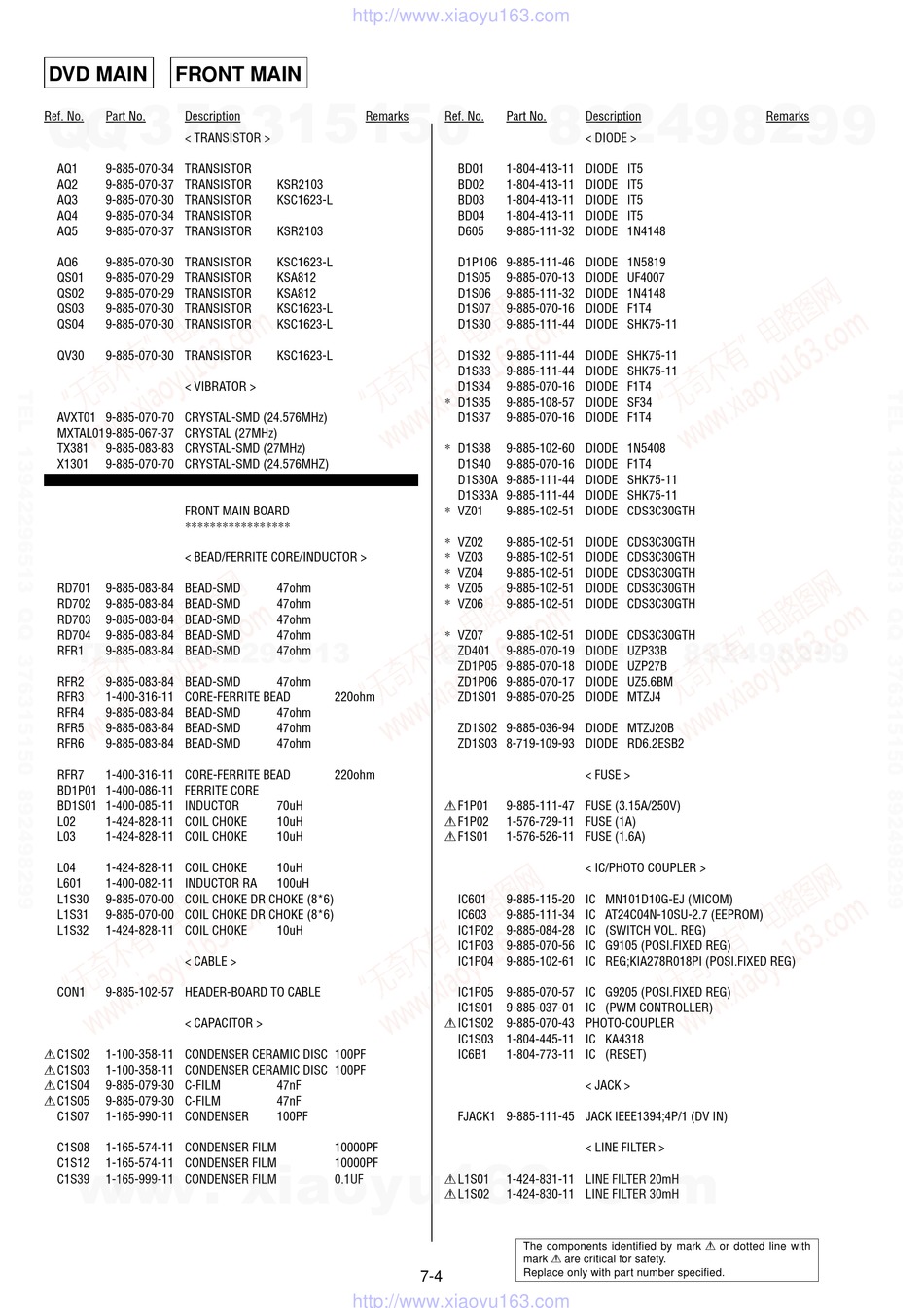

Sony rdr-gxd455 Service Manual page 80

QQ
DVD MAIN FRONT MAIN
3 7 63 1515 0
Ref. No. Part No. Description
< TRANSISTOR >
AQ1 9-885-070-34 TRANSISTOR
AQ2 9-885-070-37 TRANSISTOR
AQ3 9-885-070-30 TRANSISTOR
AQ4 9-885-070-34 TRANSISTOR
AQ5 9-885-070-37 TRANSISTOR
AQ6 9-885-070-30 TRANSISTOR
QS01 9-885-070-29 TRANSISTOR
QS02 9-885-070-29 TRANSISTOR
QS03 9-885-070-30 TRANSISTOR
QS04 9-885-070-30 TRANSISTOR
QV30 9-885-070-30 TRANSISTOR
< VIBRATOR >
AVXT01 9-885-070-70 CRYSTAL-SMD (24.576MHz)
MXTAL019-885-067-37 CRYSTAL (27MHz)
TX381 9-885-083-83 CRYSTAL-SMD (27MHz)
X1301 9-885-070-70 CRYSTAL-SMD (24.576MHZ)
FRONT MAIN BOARD
*****************
< BEAD/FERRITE CORE/INDUCTOR >
RD701 9-885-083-84 BEAD-SMD
RD702 9-885-083-84 BEAD-SMD
RD703 9-885-083-84 BEAD-SMD
TE
L 13942296513
RD704 9-885-083-84 BEAD-SMD
RFR1 9-885-083-84 BEAD-SMD
RFR2 9-885-083-84 BEAD-SMD
RFR3 1-400-316-11 CORE-FERRITE BEAD
RFR4 9-885-083-84 BEAD-SMD
RFR5 9-885-083-84 BEAD-SMD
RFR6 9-885-083-84 BEAD-SMD
RFR7 1-400-316-11 CORE-FERRITE BEAD
BD1P01 1-400-086-11 FERRITE CORE
BD1S01 1-400-085-11 INDUCTOR
L02 1-424-828-11 COIL CHOKE
L03 1-424-828-11 COIL CHOKE
L04 1-424-828-11 COIL CHOKE
L601 1-400-082-11 INDUCTOR RA
L1S30 9-885-070-00 COIL CHOKE DR CHOKE (8*6)
L1S31 9-885-070-00 COIL CHOKE DR CHOKE (8*6)
L1S32 1-424-828-11 COIL CHOKE
< CABLE >
CON1 9-885-102-57 HEADER-BOARD TO CABLE
< CAPACITOR >
0 C1S02
1-100-358-11 CONDENSER CERAMIC DISC 100PF
0 C1S03 1-100-358-11 CONDENSER CERAMIC DISC 100PF
0 C1S04
9-885-079-30 C-FILM
0 C1S05 9-885-079-30 C-FILM
www
C1S07 1-165-990-11 CONDENSER
C1S08 1-165-574-11 CONDENSER FILM
C1S12 1-165-574-11 CONDENSER FILM
.
C1S39 1-165-999-11 CONDENSER FILM
http://www.xiaoyu163.com
Remarks
KSR2103
KSC1623-L
KSR2103
KSC1623-L
KSA812
KSA812
KSC1623-L
KSC1623-L
KSC1623-L
47ohm
47ohm
47ohm
47ohm
47ohm
47ohm
220ohm
47ohm
47ohm
47ohm
220ohm
70uH
10uH
10uH
10uH
100uH
10uH
47nF
47nF
100PF
x ao u163
y
10000PF
10000PF
i
0.1UF
http://www.xiaoyu163.com
2 9
8
Ref. No. Part No. Description
< DIODE >
BD01 1-804-413-11 DIODE IT5
BD02 1-804-413-11 DIODE IT5
BD03 1-804-413-11 DIODE IT5
BD04 1-804-413-11 DIODE IT5
D605 9-885-111-32 DIODE 1N4148
D1P106 9-885-111-46 DIODE 1N5819
D1S05 9-885-070-13 DIODE UF4007
D1S06 9-885-111-32 DIODE 1N4148
D1S07 9-885-070-16 DIODE F1T4
D1S30 9-885-111-44 DIODE SHK75-11
D1S32 9-885-111-44 DIODE SHK75-11
D1S33 9-885-111-44 DIODE SHK75-11
D1S34 9-885-070-16 DIODE F1T4
* D1S35 9-885-108-57 DIODE SF34
D1S37 9-885-070-16 DIODE F1T4
* D1S38 9-885-102-60 DIODE 1N5408
D1S40 9-885-070-16 DIODE F1T4
D1S30A 9-885-111-44 DIODE SHK75-11
D1S33A 9-885-111-44 DIODE SHK75-11
* VZ01 9-885-102-51 DIODE CDS3C30GTH
* VZ02 9-885-102-51 DIODE CDS3C30GTH
* VZ03 9-885-102-51 DIODE CDS3C30GTH
* VZ04 9-885-102-51 DIODE CDS3C30GTH
* VZ05 9-885-102-51 DIODE CDS3C30GTH
* VZ06 9-885-102-51 DIODE CDS3C30GTH
Q Q
3 6 7 1 3 1 5
* VZ07 9-885-102-51 DIODE CDS3C30GTH
ZD401 9-885-070-19 DIODE UZP33B
ZD1P05 9-885-070-18 DIODE UZP27B
ZD1P06 9-885-070-17 DIODE UZ5.6BM
ZD1S01 9-885-070-25 DIODE MTZJ4
ZD1S02 9-885-036-94 DIODE MTZJ20B
ZD1S03 8-719-109-93 DIODE RD6.2ESB2
< FUSE >
0 F1P01 9-885-111-47 FUSE (3.15A/250V)
0 F1P02
1-576-729-11 FUSE (1A)
0 F1S01
1-576-526-11 FUSE (1.6A)
< IC/PHOTO COUPLER >
IC601 9-885-115-20 IC MN101D10G-EJ (MICOM)
IC603 9-885-111-34 IC AT24C04N-10SU-2.7 (EEPROM)
IC1P02 9-885-084-28 IC (SWITCH VOL. REG)
IC1P03 9-885-070-56 IC G9105 (POSI.FIXED REG)
IC1P04 9-885-102-61 IC REG;KIA278R018PI (POSI.FIXED REG)
IC1P05 9-885-070-57 IC G9205 (POSI.FIXED REG)
IC1S01 9-885-037-01 IC (PWM CONTROLLER)
0 IC1S02 9-885-070-43 PHOTO-COUPLER
IC1S03 1-804-445-11 IC KA4318
IC6B1 1-804-773-11 IC (RESET)
< JACK >
FJACK1 9-885-111-45 JACK IEEE1394;4P/1 (DV IN)
co
< LINE FILTER >
.
0 L1S01 1-424-831-11 LINE FILTER 20mH
0 L1S02 1-424-830-11 LINE FILTER 30mH
The components identified by mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part number specified.
7-4
