About i.LINK
The DV IN jack on this recorder is an i.LINK-
compliant DV IN jack. This section describes the
i.LINK standard and its features.
What is i.LINK?
i.LINK is a digital serial interface for handling
digital video, digital audio and other data in two
directions between equipment having the i.LINK
jack, and for controlling other equipment.
i.LINK-compatible pieces of equipment can be
connected by a single i.LINK cable. Possible
applications are operations and data transactions
with various digital AV equipment. When two or
more i.LINK-compatible equipment are
connected to this recorder in a daisy chain,
operations and data transactions are possible with
not only the equipment that this recorder is
connected to but also with other devices via the
directly connected equipment.
Note, however, that the method of operation
sometimes varies according to the characteristics
and specifications of the equipment to be
connected, and that operations and data
transactions are sometimes not possible on some
connected equipment.
Note
Normally, only one piece of equipment can be connected
to this recorder by the i.LINK cable (DV connecting
cable). When connecting this recorder to i.LINK-
compatible equipment having two or more i.LINK jacks
(DV jacks), see the instruction manual of the equipment
to be connected.
About the name "i.LINK"
i.LINK is a more familiar term for IEEE 1394 data
transport bus proposed by SONY, and is a
trademark approved by many corporations.
IEEE 1394 is an international standard
standardized by the Institute of Electrical and
Electronics Engineers.
TE
L 13942296513
96
Remote
1
1
2
2
4
4
5
5
7
7
8
8
0
0
A Z OPEN/CLOSE button (36, 49, 72)
B Number buttons* (34, 37)
SET button (34)
· (dot) button (34)
www
C TOP MENU button (36)
MENU button (36)
D DISPLAY button (46)
.
98
http://www.xiaoyu163.com
i.LINK baud rate
i.LINK's maximum baud rate varies according to
the equipment. Three maximum baud rates are
defined:
S100 (approx. 100 Mbps*)
S200 (approx. 200 Mbps)
S400 (approx. 400 Mbps)
The baud rate is listed under "Specifications" in
the instruction manual of each equipment. It is
also indicated near the i.LINK jack on some
equipment.
The maximum baud rate of equipment on which it
is not indicated such as this unit is "S100."
When units are connected to equipment having a
different maximum baud rate, the baud rate
sometimes differs from the indicated baud rate.
* What is Mbps?
Mbps stands for megabits per second, or the amount of
data that can be sent or received in one second. For
example, a baud rate of 100 Mbps means that 100
megabits of data can be sent in one second.
i.LINK functions on this recorder
For details on how to dub when this recorder is
connected to other video equipment having DV
jacks, see page 71.
The DV jack on this recorder can only input DVC-
SD signals. It cannot output signals. The DV jack
will not accept MICROMV signals from
equipment such as a MICROMV digital video
camera with an i.LINK jack.
For further precautions, see the notes on page 71.
For details on precautions when connecting this
recorder, also see the instruction manuals for the
equipment to be connected.
Required i.LINK cable
Use the Sony i.LINK 4-pin-to-4-pin cable (during
DV/D8 dubbing).
i.LINK and
are trademarks.
E M/m/</,/ENTER button (29)
F O RETURN button (29)
G . PREV (previous)/> NEXT buttons
3
3
(37)
6
6
H
REPLAY/
ADVANCE buttons
9
9
(37)
I CLEAR button (85)
J X PAUSE button (49)
K z REC (record) button (49)
L ?/1 (on/standby) switch (29)
M CH (channel) +/– button* (49)
N INPUT button (49, 72)
O DIGITAL/ANALOG button (34)
P AUDIO button* (37)
SUBTITLE button (37)
Q SYSTEM MENU button (10)
TITLE LIST button (40, 58)
TIMER button (51)
R ORIGINAL/PLAYLIST button (40, 58)
S OPTIONS button (42)
T H PLAY button* (36)
U
(search) buttons (37)
V x STOP button (36, 49)
W REC MODE button (49, 72)
X SYNCHRO REC button (53)
Y TV buttons
• ?/1 (on/standby) switch (
• INPUT button (
27
)
• CH (channel) +/– button* (
• VOL (volume) +/– button (
• DIGITAL/ANALOG button (
x
ao
* Number 5, AUDIO, CH +, and H PLAY buttons have
y
a tactile dot. Use the tactile dot as a reference.
i
http://www.xiaoyu163.com
8

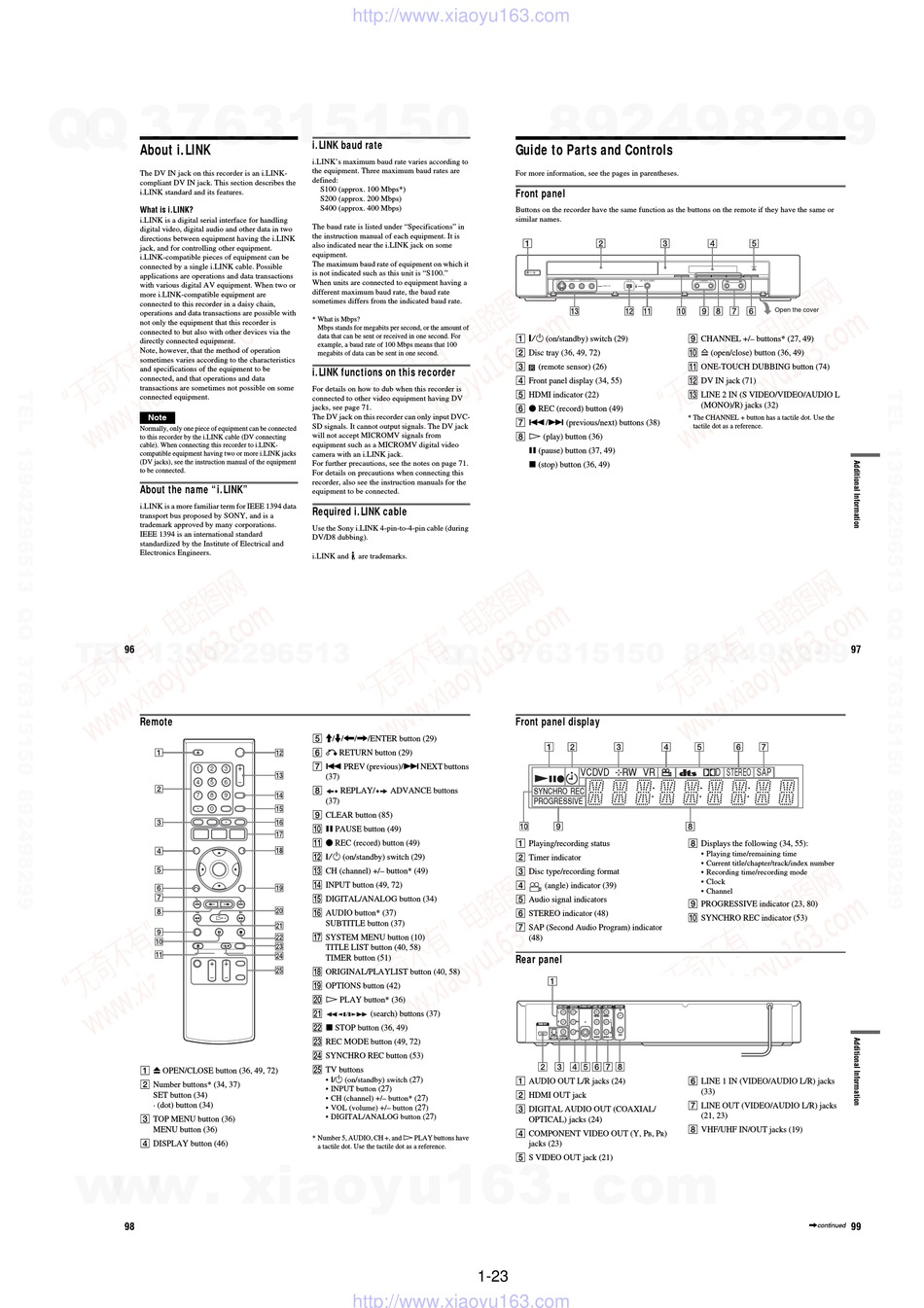

Guide to Parts and Controls

For more information, see the pages in parentheses.
Front panel
Buttons on the recorder have the same function as the buttons on the remote if they have the same or
similar names.
S VIDEO
VIDEO
L(MONO) AUDIO R
A "/1 (on/standby) switch (29)
B Disc tray (36, 49, 72)
C
(remote sensor) (26)
D Front panel display (34, 55)
E HDMI indicator (22)
F z REC (record) button (49)
G ./> (previous/next) buttons (38)
H H (play) button (36)
X (pause) button (37, 49)
x (stop) button (36, 49)
Q Q
3
6 7
1 3
Front panel display
VCDVD
SYNCHRO
REC
PROGRESSIVE
A Playing/recording status
B Timer indicator
C Disc type/recording format
D
(angle) indicator (39)
E Audio signal indicators
F STEREO indicator (48)
G SAP (Second Audio Program) indicator
(48)
Rear panel
COMPONENT
AUDIO OUT
S VIDEO OUT
VIDEO OUT
L
Y
R
P
B
HDMI OUT
P
R
OPTICAL COAXIAL
DIGITAL AUDIO OUT
27
A AUDIO OUT L/R jacks (24)
)
B HDMI OUT jack
27
)
27
C DIGITAL AUDIO OUT (COAXIAL/
)
27
)
OPTICAL) jacks (24)
D COMPONENT VIDEO OUT (Y, P
u163
jacks (23)
E S VIDEO OUT jack (21)
.
1-23
2 9
9 4
2 8
HDMI
-
+
DV IN
ONE-TOUCH DUBBING
CHANNEL
LINE-2 IN
I CHANNEL +/– buttons* (27, 49)
J A (open/close) button (36, 49)
K ONE-TOUCH DUBBING button (74)
L DV IN jack (71)
M LINE 2 IN (S VIDEO/VIDEO/AUDIO L
(MONO)/R) jacks (32)
* The CHANNEL + button has a tactile dot. Use the
tactile dot as a reference.
1 5
0 5
8
2 9
9 4
RW VR
D
STEREO
SAP
H Displays the following (34, 55):
• Playing time/remaining time
• Current title/chapter/track/index number
• Recording time/recording mode
• Clock
• Channel
I PROGRESSIVE indicator (23, 80)
J SYNCHRO REC indicator (53)
LINE 1 IN
LINE OUT
VHF/UHF
IN
VIDEO
VIDEO
L
R
OUT
AUDIO
AUDIO
F LINE 1 IN (VIDEO/AUDIO L/R) jacks
(33)
m
G LINE OUT (VIDEO/AUDIO L/R) jacks
(21, 23)
H VHF/UHF IN/OUT jacks (19)
, P
)
B
R
co
9 9
Open the cover
2 8
9 9
97
99
,continued
