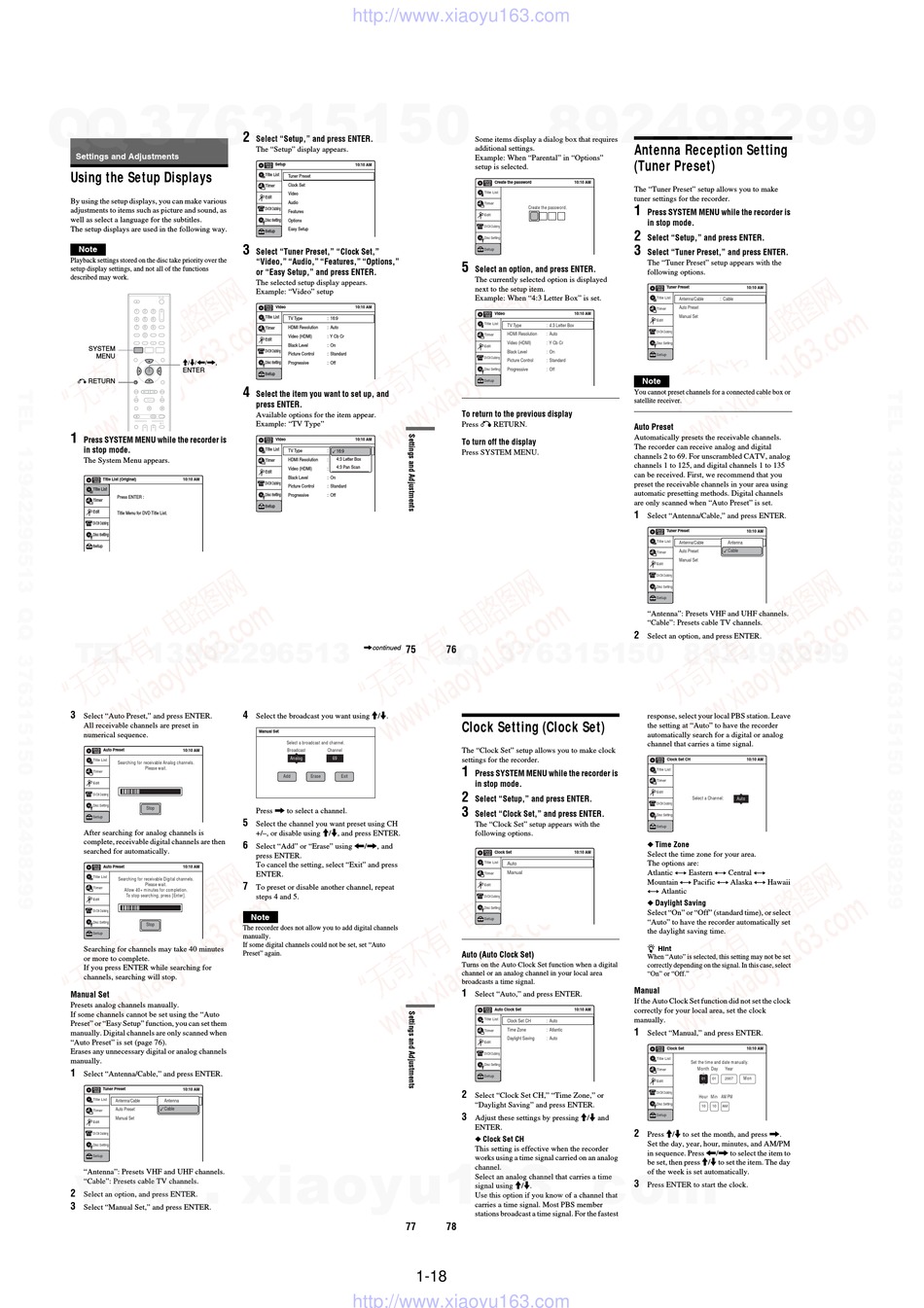

Settings and Adjustments

Using the Setup Displays

By using the setup displays, you can make various
adjustments to items such as picture and sound, as
well as select a language for the subtitles.
The setup displays are used in the following way.
Note
Playback settings stored on the disc take priority over the
setup display settings, and not all of the functions
described may work.
1 1 2 2 3 3
4 4 5 5 6 6
7 7 8 8 9 9
0 0
SYSTEM
MENU
M/m/</,,
ENTER
O RETURN
1
Press SYSTEM MENU while the recorder is
in stop mode.
The System Menu appears.
Title List (Original) 10:10 AM
Title List
Press ENTER :
Timer
Edit
Title Menu for DVD Title List.
DV/D8 Dubbing
Disc Setting
Setup
TE
L 13942296513
3
Select "Auto Preset," and press ENTER.
All receivable channels are preset in
numerical sequence.
Auto Preset 10:10 AM
Title List
Searching for receivable Analog channels.
Please wait.
Timer
Edit
DV/D8 Dubbing
Disc Setting
Stop
Setup
After searching for analog channels is
complete, receivable digital channels are then
searched for automatically.
Auto Preset 10:10 AM
Title List
Searching for receivable Digital channels.
Please wait.
Timer
Allow 40+ minutes for completion.
To stop searching, press [Enter].
Edit
DV/D8 Dubbing
Disc Setting
Stop
Setup
Searching for channels may take 40 minutes
or more to complete.
If you press ENTER while searching for
channels, searching will stop.
Manual Set
Presets analog channels manually.
If some channels cannot be set using the "Auto
Preset" or "Easy Setup" function, you can set them
manually. Digital channels are only scanned when
"Auto Preset" is set (page 76).
Erases any unnecessary digital or analog channels
manually.
1
Select "Antenna/Cable," and press ENTER.

Tuner Preset

10:10 AM
Title List
Antenna/Cable : Antenna
Antenna
www
Auto Preset Cable
Timer
Manual Set
Edit
DV/D8 Dubbing
Disc Setting
Setup
"Antenna": Presets VHF and UHF channels.
.
"Cable": Presets cable TV channels.
2
Select an option, and press ENTER.
3
Select "Manual Set," and press ENTER.
http://www.xiaoyu163.com
2
Select "Setup," and press ENTER.
The "Setup" display appears.
Setup 10:10 AM
Title List
Tuner Preset
Clock Set
Timer
Video
Edit
Audio
DV/D8 Dubbing
Features
Disc Setting Options
Easy Setup
Setup
3
Select "Tuner Preset," "Clock Set,"
"Video," "Audio," "Features," "Options,"
or "Easy Setup," and press ENTER.
The selected setup display appears.
Example: "Video" setup
Video 10:10 AM
Title List
TV Type : 16:9
HDMI Resolution : Auto
Timer
Video (HDMI) : Y Cb Cr
Edit
Black Level : On
DV/D8 Dubbing
Picture Control : Standard
Disc Setting Progressive : Off
Setup
4
Select the item you want to set up, and
press ENTER.
Available options for the item appear.
Example: "TV Type"
Video 10:10 AM
Title List
TV Type : 4:3 Letter Box
16:9
HDMI Resolution : Auto 4:3 Letter Box
Timer
4:3 Pan Scan
Video (HDMI) : Y Cb Cr
Edit
Black Level : On
DV/D8 Dubbing
Picture Control : Standard
Disc Setting Progressive : Off
Setup
,continued 75
4
Select the broadcast you want using M/m.
Manual Set
Select a broadcast and channel.
Broadcast Channel
Analog 69
Add Erase Exit
Press , to select a channel.
5
Select the channel you want preset using CH
+/–, or disable using M/m, and press ENTER.
6
Select "Add" or "Erase" using </,, and
press ENTER.
To cancel the setting, select "Exit" and press
ENTER.
7
To preset or disable another channel, repeat
steps 4 and 5.
Note
The recorder does not allow you to add digital channels
manually.
If some digital channels could not be set, set "Auto
Preset" again.
x ao u163
y
i
77
http://www.xiaoyu163.com
2 9
8
Some items display a dialog box that requires
additional settings.
Example: When "Parental" in "Options"
setup is selected.
Create the password 10:10 AM
Title List
Timer
Create the password.
Edit
DV/D8 Dubbing
Disc Setting
Setup
5
Select an option, and press ENTER.
The currently selected option is displayed
next to the setup item.
Example: When "4:3 Letter Box" is set.
Video 10:10 AM
Title List
TV Type : 4:3 Letter Box
HDMI Resolution : Auto
Timer
Video (HDMI) : Y Cb Cr
Edit
Black Level : On
DV/D8 Dubbing
Picture Control : Standard
Disc Setting
Progressive : Off
Setup
To return to the previous display
Press O RETURN.
To turn off the display
Press SYSTEM MENU.
Q Q
3 6 7 1 3
76
Clock Setting (Clock Set)
The "Clock Set" setup allows you to make clock
settings for the recorder.
1
Press SYSTEM MENU while the recorder is
in stop mode.
2
Select "Setup," and press ENTER.
3
Select "Clock Set," and press ENTER.
The "Clock Set" setup appears with the
following options.
Clock Set 10:10 AM
Title List
Auto
Manual
Timer
Edit
DV/D8 Dubbing
Disc Setting
Setup
Auto (Auto Clock Set)
Turns on the Auto Clock Set function when a digital
channel or an analog channel in your local area
broadcasts a time signal.
1
Select "Auto," and press ENTER.
Auto Clock Set 10:10 AM
Title List
Clock Set CH : Auto
Time Zone : Atlantic
Timer
Daylight Saving : Auto
Edit
DV/D8 Dubbing
Disc Setting
Setup
2
Select "Clock Set CH," "Time Zone," or
"Daylight Saving" and press ENTER.
3
Adjust these settings by pressing M/m and
ENTER.
◆ Clock Set CH
This setting is effective when the recorder
works using a time signal carried on an analog
channel.
.
Select an analog channel that carries a time
signal using M/m.
Use this option if you know of a channel that
carries a time signal. Most PBS member
stations broadcast a time signal. For the fastest
78
1-18
9 4 2 8
Antenna Reception Setting
(Tuner Preset)
The "Tuner Preset" setup allows you to make
tuner settings for the recorder.
1
Press SYSTEM MENU while the recorder is
in stop mode.
2
Select "Setup," and press ENTER.
3
Select "Tuner Preset," and press ENTER.
The "Tuner Preset" setup appears with the
following options.
Tuner Preset
10:10 AM
Title List
Antenna/Cable : Cable
Auto Preset
Timer
Manual Set
Edit
DV/D8 Dubbing
Disc Setting
Setup
Note
You cannot preset channels for a connected cable box or
satellite receiver.
Auto Preset
Automatically presets the receivable channels.
The recorder can receive analog and digital
channels 2 to 69. For unscrambled CATV, analog
channels 1 to 125, and digital channels 1 to 135
can be received. First, we recommend that you
preset the receivable channels in your area using
automatic presetting methods. Digital channels
are only scanned when "Auto Preset" is set.
1
Select "Antenna/Cable," and press ENTER.
Tuner Preset 10:10 AM
Title List
Antenna/Cable : Antenna
Antenna
Cable
Auto Preset
Timer
Manual Set
Edit
DV/D8 Dubbing
Disc Setting
Setup
"Antenna": Presets VHF and UHF channels.
"Cable": Presets cable TV channels.
1 5 0 5 8 2 9 9 4
2
Select an option, and press ENTER.
response, select your local PBS station. Leave
the setting at "Auto" to have the recorder
automatically search for a digital or analog
channel that carries a time signal.
Clock Set CH 10:10 AM
Title List
Timer
Edit
Select a Channel:
Auto
DV/D8 Dubbing
Disc Setting
Setup
◆ Time Zone
Select the time zone for your area.
The options are:
Atlantic y Eastern y Central y
Mountain y Pacific y Alaska y Hawaii
y Atlantic
◆ Daylight Saving
Select "On" or "Off" (standard time), or select
"Auto" to have the recorder automatically set
the daylight saving time.
z Hint
When "Auto" is selected, this setting may not be set
correctly depending on the signal. In this case, select
"On" or "Off."
Manual
If the Auto Clock Set function did not set the clock
correctly for your local area, set the clock
manually.
1
Select "Manual," and press ENTER.
Clock Set 10:10 AM
Title List
Set the time and date manually.
Timer Month Day Year
Mon
01 01 2007
Edit
DV/D8 Dubbing
Hour Min AM/PM
m
Disc Setting
10 : 10 AM
Setup
2
Press M/m to set the month, and press ,.
co
Set the day, year, hour, minutes, and AM/PM
in sequence. Press </, to select the item to
be set, then press M/m to set the item. The day
of the week is set automatically.
3
Press ENTER to start the clock.
