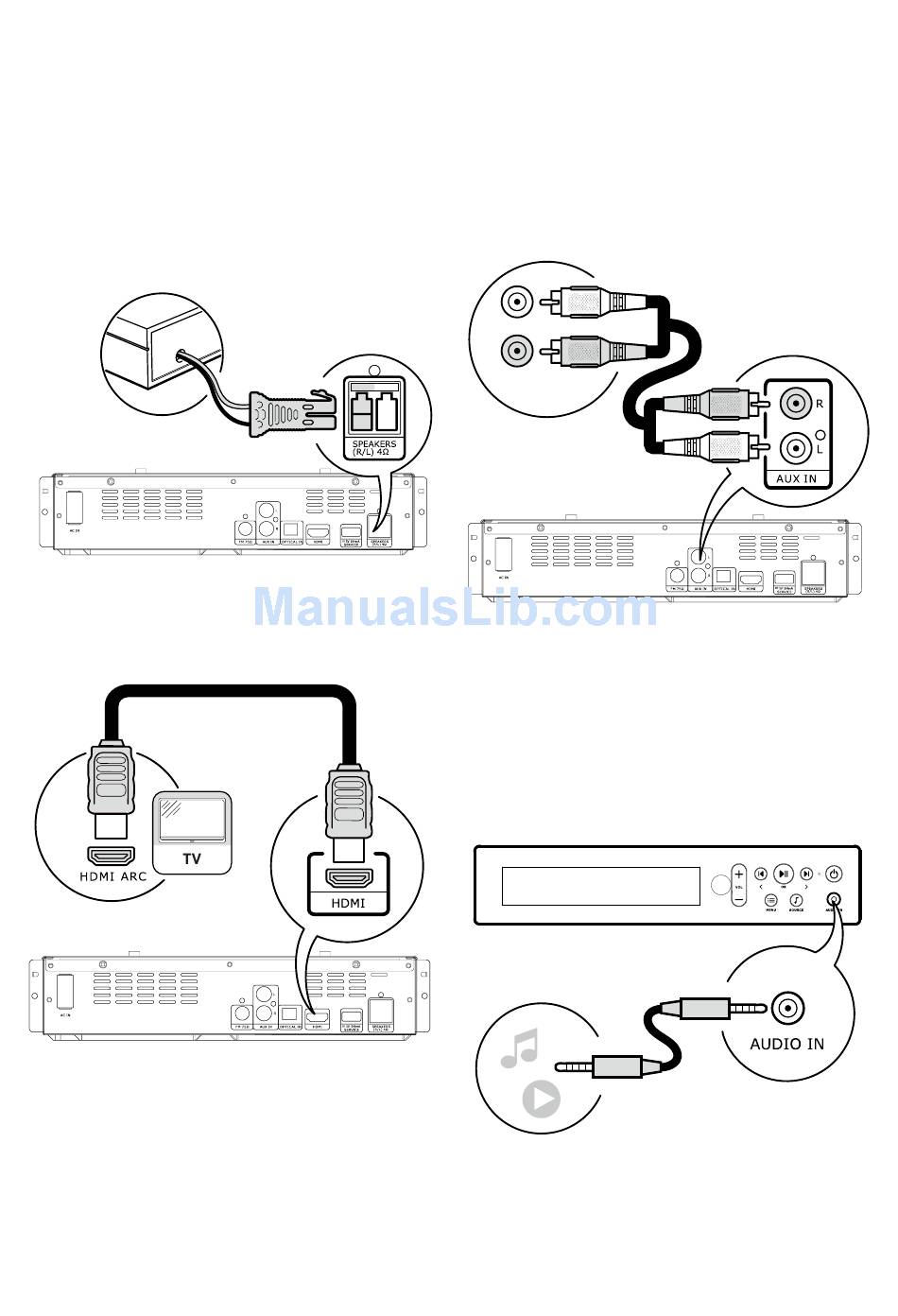

4 Connection

Connect your sound system in these ways.
Connecting the right speaker
Connect the red speaker cable from the
right speaker to the red SPEAKERS (R/L) 4Ω
socket on the back of the sound bar.
Connecting to a TV
Connect the sound system to an UPPLEVA
TV using an HDMI cable and the HDMI ARC
socket on the TV. If you want to connect the
sound system to another TV, we recommend
you use HDMI ARC or OPTICAL sockets.
After connecting, press the SOURCE button
on the remote control to switch to TV(HDMI
ARC) mode.
Connecting to an analogue output or
device
Connect to an analogue audio output on
the TV or other device, or to an analogue
device.
Connect the audio cable from the AUX IN
sockets on the sound system to the AUDIO
OUT sockets on the TV or other device. After
connecting, press the SOURCE button on the
remote control to switch to Aux In mode.
Connecting to a media device
Connect a portable audio device, for
example an MP3 player, mobile phone or
CD player, to the AUDIO IN socket. After
connecting, press the SOURCE button on the
remote control to switch to Audio In mode.
12
