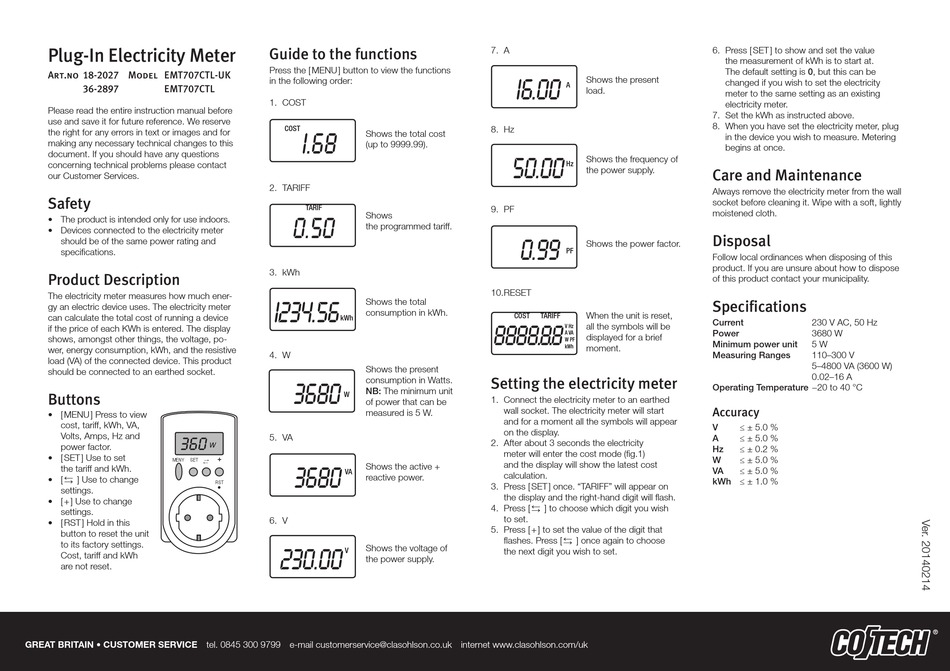

CO/Tech EMT707CTL-UK Instruction Manual

Plug-In Electricity Meter
Art.no 18-2027 Model EMT707CTL-UK
36-2897 EMT707CTL
Please read the entire instruction manual before
use and save it for future reference. We reserve
the right for any errors in text or images and for
making any necessary technical changes to this
document. If you should have any questions
concerning technical problems please contact
our Customer Services.
Safety
• The product is intended only for use indoors.
• Devices connected to the electricity meter
should be of the same power rating and
specifications.

Product Description

The electricity meter measures how much ener-
gy an electric device uses. The electricity meter
can calculate the total cost of running a device
if the price of each KWh is entered. The display
shows, amongst other things, the voltage, po-
wer, energy consumption, kWh, and the resistive
load (VA) of the connected device. This product
should be connected to an earthed socket.

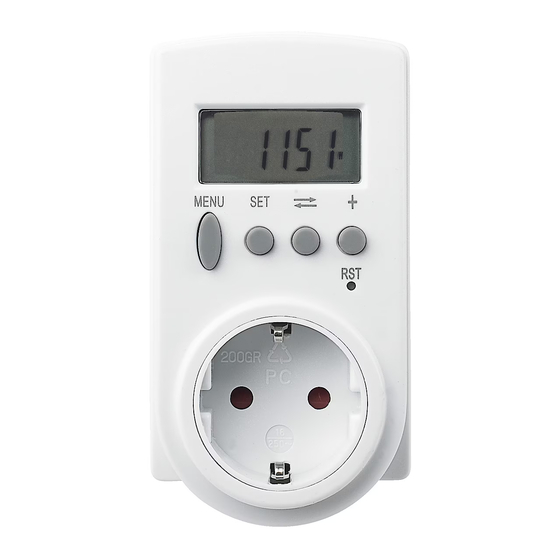

Buttons
• [ MENU ] Press to view
cost, tariff, kWh, VA,
Volts, Amps, Hz and
360
power factor.
• [ SET ] Use to set
MENY SET →
←
the tariff and kWh.
• [ ← → ] Use to change
settings.
• [ + ] Use to change
settings.
• [ RST ] Hold in this
button to reset the unit
to its factory settings.
Cost, tariff and kWh
are not reset.
GREAT BRITAIN • CUSTOMER SERVICE tel. 0845 300 9799 e-mail customerservice@clasohlson.co.uk internet www.clasohlson.com/uk
Guide to the functions
Press the [ MENU ] button to view the functions
in the following order:
1. COST
COST
I.68 Shows the total cost
(up to 9999.99).
2. TARIFF
TARIF
Shows
0.50
the programmed tariff.
3. kWh
I234.56 Shows the total
consumption in kWh.
kWh
4. W
Shows the present
consumption in Watts.
3680
NB: The minimum unit
W
of power that can be
measured is 5 W.
5. VA
W
+
Shows the active +
3680
VA
reactive power.
RST
6. V
Shows the voltage of
230.00
V
the power supply.
7. A
I6.00 Shows the present
A
load.
8. Hz
50.00 Shows the frequency of
Hz
the power supply.
9. PF
0.99
Shows the power factor.
PF
10. RESET
When the unit is reset,
COST TARIFF
8888. 8 . 8 all the symbols will be
V Hz
A VA
displayed for a brief
W PF
kWh moment.
Setting the electricity meter
1. Connect the electricity meter to an earthed
wall socket. The electricity meter will start
and for a moment all the symbols will appear
on the display.
2. After about 3 seconds the electricity
meter will enter the cost mode (fig.1)
and the display will show the latest cost
calculation.
3. Press [ SET ] once. "TARIFF" will appear on
the display and the right-hand digit will flash.
4. Press [ ← → ] to choose which digit you wish
to set.
5. Press [ + ] to set the value of the digit that
flashes. Press [ ← → ] once again to choose
the next digit you wish to set.
6. Press [ SET ] to show and set the value
the measurement of kWh is to start at.
The default setting is 0, but this can be
changed if you wish to set the electricity
meter to the same setting as an existing
electricity meter.
7. Set the kWh as instructed above.
8. When you have set the electricity meter, plug
in the device you wish to measure. Metering
begins at once.
Care and Maintenance
Always remove the electricity meter from the wall
socket before cleaning it. Wipe with a soft, lightly
moistened cloth.
Disposal
Follow local ordinances when disposing of this
product. If you are unsure about how to dispose
of this product contact your municipality.
Specifications
230 V AC, 50 Hz
Current
Power 3680 W
Minimum power unit 5 W
Measuring Ranges 110–300 V
5–4800 VA (3600 W)
0.02–16 A
Operating Temperature −20 to 40 °C
Accuracy
V ≤ ± 5.0 %
A ≤ ± 5.0 %
Hz ≤ ± 0.2 %
W ≤ ± 5.0 %
VA ≤ ± 5.0 %
kWh ≤ ± 1.0 %
