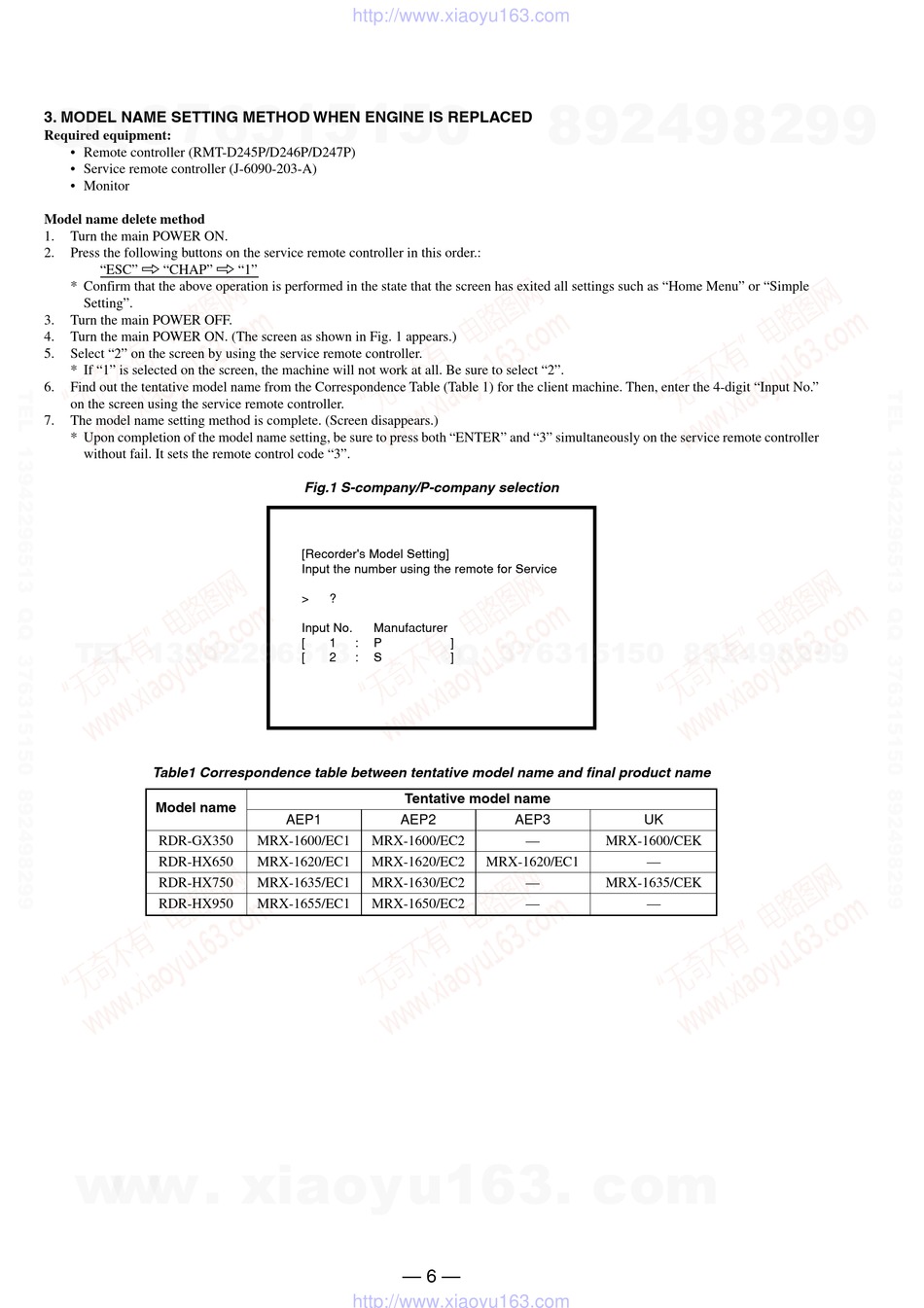

3. MODEL NAME SETTING METHOD WHEN ENGINE IS REPLACED
Required equipment:
• Remote controller (RMT-D245P/D246P/D247P)
• Service remote controller (J-6090-203-A)
• Monitor
Model name delete method
1. Turn the main POWER ON.
2. Press the following buttons on the service remote controller in this order.:
"ESC" k "CHAP" k "1"
* Confirm that the above operation is performed in the state that the screen has exited all settings such as "Home Menu" or "Simple
Setting".
3. Turn the main POWER OFF.
4. Turn the main POWER ON. (The screen as shown in Fig. 1 appears.)
5. Select "2" on the screen by using the service remote controller.
* If "1" is selected on the screen, the machine will not work at all. Be sure to select "2".
6. Find out the tentative model name from the Correspondence Table (Table 1) for the client machine. Then, enter the 4-digit "Input No."
on the screen using the service remote controller.
7. The model name setting method is complete. (Screen disappears.)
* Upon completion of the model name setting, be sure to press both "ENTER" and "3" simultaneously on the service remote controller
without fail. It sets the remote control code "3".
TE
L 13942296513
Table1 Correspondence table between tentative model name and final product name
Model name
RDR-GX350
RDR-HX650
RDR-HX750
RDR-HX950
www
.
http://www.xiaoyu163.com
Fig.1 S-company/P-company selection
[Recorder's Model Setting]
Input the number using the remote for Service
> ?
Input No. Manufacturer
[ 1 : P
[ 2 : S
Tentative model name
AEP1 AEP2
MRX-1600/EC1 MRX-1600/EC2
MRX-1620/EC1 MRX-1620/EC2
MRX-1635/EC1 MRX-1630/EC2
MRX-1655/EC1 MRX-1650/EC2
x ao u163
y
i
— 6 —
