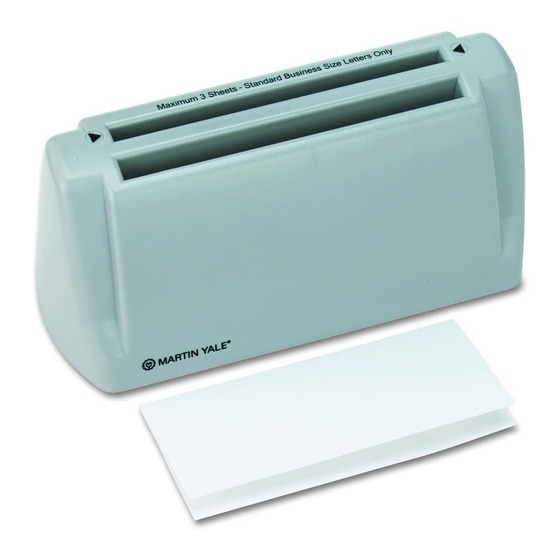

Model P6200 Desktop Letter Folder Operating Instructions
Model P6200 Desktop Letter Folder
Maintenance and Operating Instructions
W
ARNING
ARE READY TO USE THE LETTER FOLDER
THIS MACHINE MUST BE NEARBY AND MUST NOT BE BLOCKED
MACHINE CONTAINS MOVING PARTS THAT CAN CATCH HAIR
CLOTHING OR JEWELRY
KEEP HAIR
D
ISCONNECT THE POWER SUPPLY FROM THE WALL OUTLET BEFORE
ATTEMPTING ANY SERVICE TO THE UNIT
REMOVING THE COVER FOR ANY REASON
1.0 Specifications
Paper Sizes: Adjustable for 2 standard paper sizes; 8 1/2" x 11"
Capacity:
Power:
Size:
Weight:
: N
EVER CONNECT POWER TO THIS PRODUCT UNTIL YOU
. D
URING OPERATION AND MAINTENANCE
,
LOOSE CLOTHING AND JEWELRY CLEAR OF MOVING PARTS
Manual feed, automatic on/off, 1800 letter folds
per hour.
to fit a #10 envelope, and ISO A4 paper (210 x
297mm) to fit a DL envelope.
1-3 sheets of 16-24# bond paper. Sheets may be
stapled.
1.2 Amp 24 Volt wall pack power supply
12 3/4" W x 6" H x 5 1/2" D
(326mm W x 153mmH x 140mm D)
7.5 lbs. (3.4 kg)
Manufactured in Taiwan for:
Martin Yale Industries, Inc.
251 Wedcor Avenue • Wabash, IN 46992
email: info@martinyale.com
web-site: www.martinyale.com
Phone (260) 563-0641 • Fax (260) 563-4575
. T
AC
HE
OUTLET USED FOR
. T
,
LOOSE
,
AND BEFORE
.
HIS
,
.
Advertisement
Table of Contents
Related Manuals for Martin Yale P6200
Summary of Contents for Martin Yale P6200
- Page 1 Model P6200 Desktop Letter Folder Operating Instructions Model P6200 Desktop Letter Folder Desktop Maintenance and Operating Instructions LETTER ARNING EVER CONNECT POWER TO THIS PRODUCT UNTIL YOU ARE READY TO USE THE LETTER FOLDER OUTLET USED FOR THIS MACHINE MUST BE NEARBY AND MUST NOT BE BLOCKED...
- Page 2 Model P6200 Desktop Letter Folder Operating Instructions 2.0 Paper Stop Adjustment Before beginning to fold, make sure the paper stop (see Figure 1) is properly positioned for the paper you are using. When you view the bottom of the paper folder as shown in Fig. 1, the top pair of left and right slots is for 8 1/2"...
- Page 3 4. To clean the rubber rollers, spray Martin Yale Rubber Roller Cleaner and Rejuvenator on a clean, lint-free cloth and rub the rollers to wipe them clean. Rotate the rollers by turning the large pulley in either direction.
- Page 4 Model P6200 Desktop Letter Folder Operating Instructions WIRING SCHEMATIC P6200 Manufactured in Taiwan for: Martin Yale Industries, Inc. Designed in U.S.A. 251 Wedcor Avenue • Wabash, IN 46992 email: info@martinyale.com web-site: www.martinyale.com Phone (260) 563-0641 • Fax (260) 563-4575 12/10/07...
