1 Before Using the Product

This section provides detailed descriptions of the product and included
accessories.

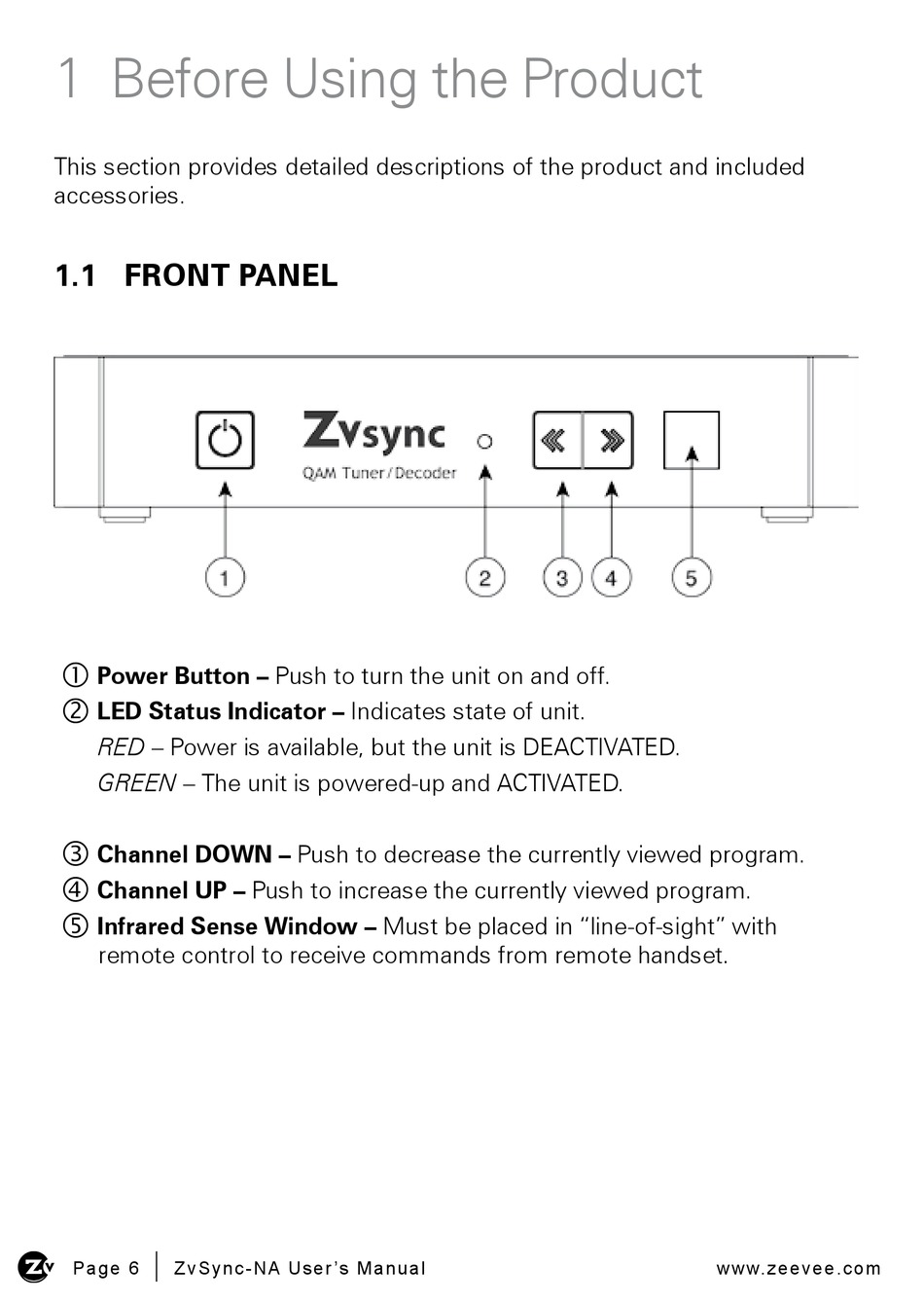

1.1 FRONT PANEL


Power Button – Push to turn the unit on and off.

LED Status Indicator – Indicates state of unit.
RED – Power is available, but the unit is DeACTIVATeD.
GREEN – The unit is powered-up and ACTIVATeD.

Channel DOWN – Push to decrease the currently viewed program.

Channel UP – Push to increase the currently viewed program.

Infrared Sense Window – Must be placed in "line-of-sight" with
remote control to receive commands from remote handset.
|
P a g e 6 Z v Sy nc - N A U s er 's M a nual w ww.z eevee.com
