User's manual
ZvSync - nA
hD Digital Tuner/Decoder
QAm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the zvsync and is the answer not in the manual?

Questions and answers

Related Manuals for ZeeVee zvsync

Summary of Contents for ZeeVee zvsync

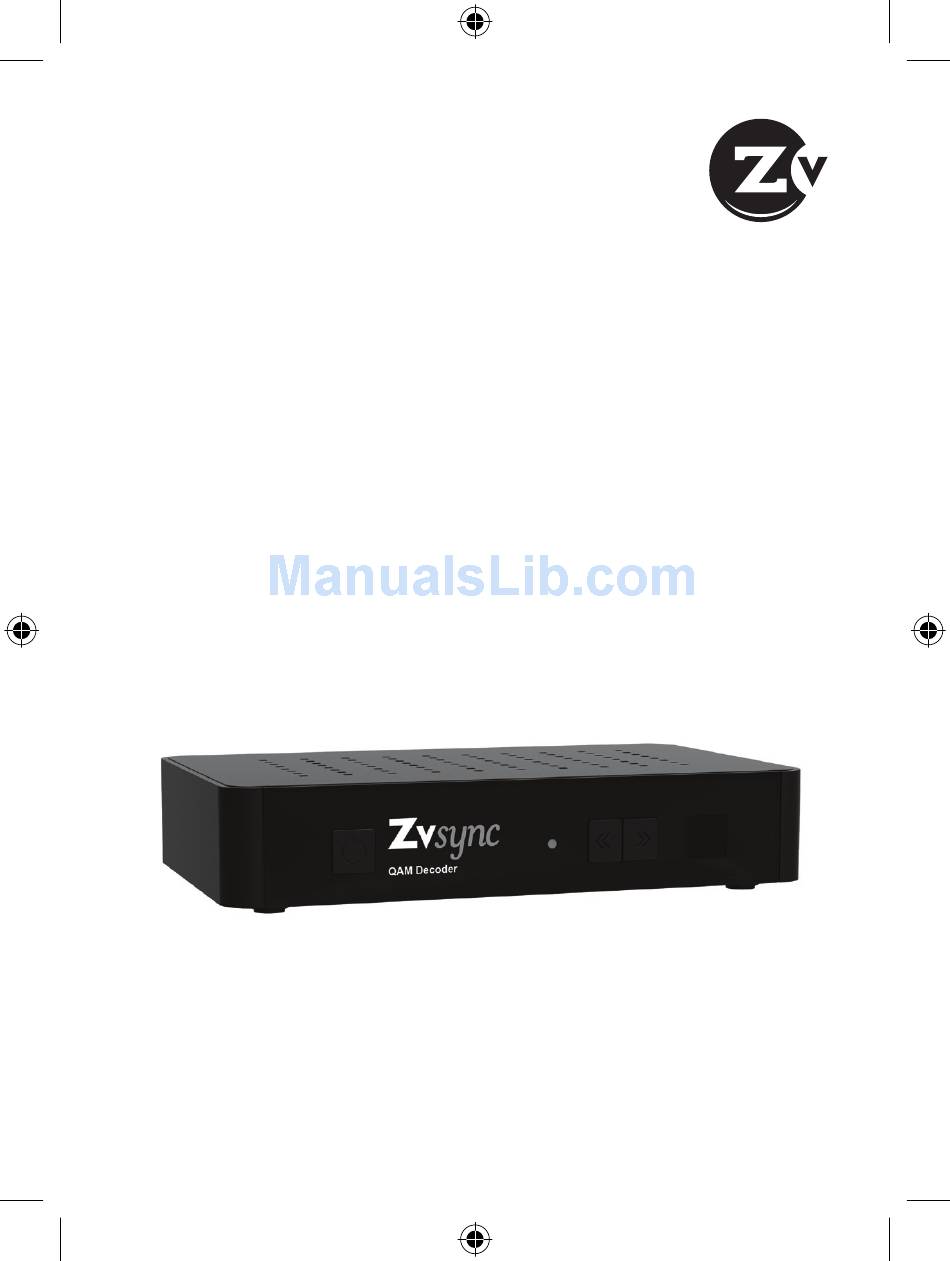

  • Page 1 User’s manual ZvSync - nA hD Digital Tuner/Decoder...
  • Page 2 Important Symbols To reduce risk of electric shock, do not open unit or breach power supply enclosure. There are no user serviceable parts inside. Contact ZeeVee support at +1.877.493.3833. DANGEROUS VOLTAGE This symbol indicates dangerous voltage inside the receiver that presents a risk of electric shock or personal injury.

  • Page 3: Safety Instructions

    Safety Instructions and Precautions This receiver has been manufactured to comply with international safety standards. Please read the safety precautions carefully. 1. Main Supply (100-240V ~50-60Hz AC) • Operate this product only from the type of power source indicated on the marking label.
  • Page 4 12. Replacement Parts • Replacement parts should be purchased through an authorized ZeeVee distributor and approved by the manufacturer. Unauthorized parts may result in damage to the units and will void any warranty. Page 4 Zv Syn c- NA Use r ’s Man ual...

  • Page 5: Table Of Contents

    Contents 1 Before Using the Product ......6 1.1 FROnT PAnel ........6 1.2 ReAR PAnel .

  • Page 6: Before Using The Product

    1 Before Using the Product This section provides detailed descriptions of the product and included accessories. 1.1 FRONT PANEL  Power Button – Push to turn the unit on and off.  LED Status Indicator – Indicates state of unit. RED –...

  • Page 7: Rear Panel

    1.2 REAR PANEL  Aerial/Cable/RF Input – Connect to the antenna for over-the-air reception or to a cable feed for Clear-QAm reception  RF Modulated Output – Connect to the antenna input of the television if receiver/decoder output is to be displayed on an older analog television.

  • Page 8: Remote Control

    As the design of the remote control device is used in multiple applications some buttons have multiple legends or marks. In general for the ZvSync application, the markings shown on the silkscreen (white marks above or beside buttons) are the active defi nitions of the key function.

  • Page 9: Button Definitions

    Button Definitions Definition Power. Pressing once turns on ZvSync. Again turns it off mute. Disables/enables audio Reverses playback while in PVR mode Fast Forwards playback while in PVR mode Starts Playback when using PVR mode Back up to division in PVR mode.

  • Page 10: Programmable Buttons

    P1-P5 key functions. Programming P1-P5 Buttons The ZvSync remote has been tested to be compatible with a large number of remotes. however, some manufacturers use infrared codes that are obscure and cannot be “copied” into the programmable keys of the ZvSync remote.
  • Page 11 To program a key the following sequence shall be executed: Step1: Press and hold the “SET” button for three seconds  The ReD leD lights immediately when the button is pressed  After 3 seconds the leD changes to a very bright state Step 2: Press the key you wish to program (P1-P5) ...

  • Page 12: Setup

    Select the method appropriate to your application. 2.1 CONNECTING TO AN AERIAL Connect your antenna to the ZvSync receiver’s ‘RF In’ jack for over-the-air reception, as follows: 2.2 CONNECTING TO A CABLE FEED To receive a cable signal (or a channel generated by ZeeVee’s encoder/ modulator products) connect to the ‘RF In’...

  • Page 13: Connecting To The Television

    Both visual content and audio content are carried over the single cable from the ZvSync to the television display. The digital connection presents the highest resolution, sharpest picture possible from the ZvSync receiver.

  • Page 14: Using Rca Cables

    RF channel 3 or RF channel 4 of the US standard broadcast spectrum. This is the least preferable way to output video from the ZvSync receiver as it is analog and subject to environmental interference, and it has the lowest possible picture quality.

  • Page 15: Connecting To Power Supply

    2.4 CONNECTING TO THE POWER SUPPLY The wall-mount power supply (included) shall provide the power for the ZvSync receiver. Any other method of powering the ZvSync may void the warranty. The DC input is rated at 5VDC at a maximum peak consumption of 10w, nominal consumption of 6w during operation, and a standby power draw of 0.8w.

  • Page 16: Installation Wizard

    (antenna) reception, use the arrow keys to navigate to the “Channel Search” option and press “OK” • The ZvSync unit will then begin searching for channels. Allow it to run to completion.  If the ZvSync Receiver/Decoder is being used for CABle reception (or channels generated by ZeeVee encoder/modulator products, Press the “eXIT/Cancel”...
  • Page 17 After exiting the “Installation guide” screen, the following screen will appear:  Use the RIGHT arrow key to navigate to the “Channel Search” page  Use the DOWN arrow key to navigate to “Signal Type”  Use the RIGHT arrow key bring up the “Cable” option Z v Sy n c - NA U s e r ’s Ma n u a l P a g e 1 7...
  • Page 18 A scanning status screen showing the progress of the initial channel scan will appear. Allow the scanning process to run to completion (several minutes). Once the initial scan is complete (OTA or Cable) the ZvSync may be used to start watching television programs. Page 1 8 ZvSyn c- NA User ’s Manu al...

  • Page 19: Basic Operation

    4 Basic Operation To access the general setup menu, press the “menu” button. The user will see with this top-level navigation screen. major categories may be selected by navigating left and right using the arrow keys. Once a category is selected, the options may be explored by navigating down into the page and selecting the appropriate page item.
  • Page 20 Set Favorite Channels you can create a short list of favorite programs/channels that you can easily access. Set Favorite TV Program: (1) Select your desired channel then press the FAV button. A symbol will appear and the channel is marked as a favorite. (2) Repeat the previous step to select more favorite channels.
  • Page 21 (3) Repeat the process if more channels need to be deleted (4) hit EXIT to complete Lock Program you can lock certain channels for restricted viewing using the ZvSync receiver/decoder. (1) Select a particular channel and then press the YELLOW button. A lock-shaped symbol is displayed.

  • Page 22: Picture Settings

    4.2 PICTURE SETTINGS The allowed output video settings can be adjusted at the “Picture” top-level settings page. when the hDTV port is connected via hDmI to the display television all the settings are honored. If component video (CVBS) or RF modulation are being used to send the video to the display device the only supported resolution is 480i regardless of the setting on the resolution item.

  • Page 23: Channel Search

    4.3 CHANNEL SEARCH The “Channel Search” top-level navigation page allows the ZvSync tuner/ decoder to rescan for channels and change settings relevant to the attached reception method. Auto Search Automatically searches for channels and saves them once the scan is complete.

  • Page 24: Time Setting

    Time Zone Time zone when Time Offset is set to manual. Sleep Allows setting of an interval after that the ZvSync will automatically shut off Power On/Off Allows setting a schedule for time-of-day activation and shutdown of the ZvSync device.

  • Page 25: World Option Settings

    4.5 WORLD OPTION SETTINGS The Option screen allows for setting the On Screen Display language and the audio language to be played if the incoming program allows for those options. Digital Audio Allows setting various types of audio to be output over the hDTV port. Z v Sy n c - NA U s e r ’s Ma n u a l P a g e 2 5...

  • Page 26: System Settings

    4.6 SYSTEM SETTINGS Various System Parameters Default user password is ‘000000’. Master unlock password is ‘888888’. Page 2 6 ZvSyn c- NA User ’s Manu al www.z ee ve e. co m...

  • Page 27: Usb & Multimedia

    4.7 USB & MULTIMEDIA The ZvSync device supports a rich set of features enabled through the use of a USB device. In order to support the PVR functions of time shifting and recording, a storage device (not provided) must be present.

  • Page 28: Troubleshooting

    Potential Reason Possible Action no Picture Power is not connected Connect power supply Check wall source The power is switched off Switch on Power to ZvSync Screen Cable feed is not Check/Connect power cable shows connected “no Signal” Aerial cable is faulty...

  • Page 29: Technical Specifications

    Unlimited Supported media mP3, wmA, JPeg, BmP , AVI Power Supply Voltage (wall) 100-240VAC 50-60hz Supply voltage 5VDC (ZvSync unit) maximum Power Consumption Standby Power <0.8w Consumption nominal Power Consumption Z v Sy n c - NA U s e r ’s Ma n u a l...

  • Page 30: Declaration Of Conformity

    7 Declaration of Conformity The Original equipment manufacturer herewith declares the conformity of the product with the following directives and standards: Low Voltage Directive 2006/95/EC en 60065:2002+A1:2006 EMC Directive 2004/108/EC en 55 013:2001+A1:2003+A2:2006 en 55 020:2007 en 61 000-3-2:2006 en 61 000-3-3:2008 FCC, Ce, C-Tick SK-903 This symbol on the product or in the...
  • Page 31 Contact ZeeVee Support Contact us for installation and technical support, repairs, and warranty service: +1 (877) 4ZeeVee (1.877.493.3833) support@zeevee.com Representatives are available from 9:00 Am to 6:00 Pm, monday through Friday (eastern Time). Sales north America: +1 (347) 851-7364 Phone sales@zeevee.com...
  • Page 32 ZvSync-nA_70-00041-00_RevB...
