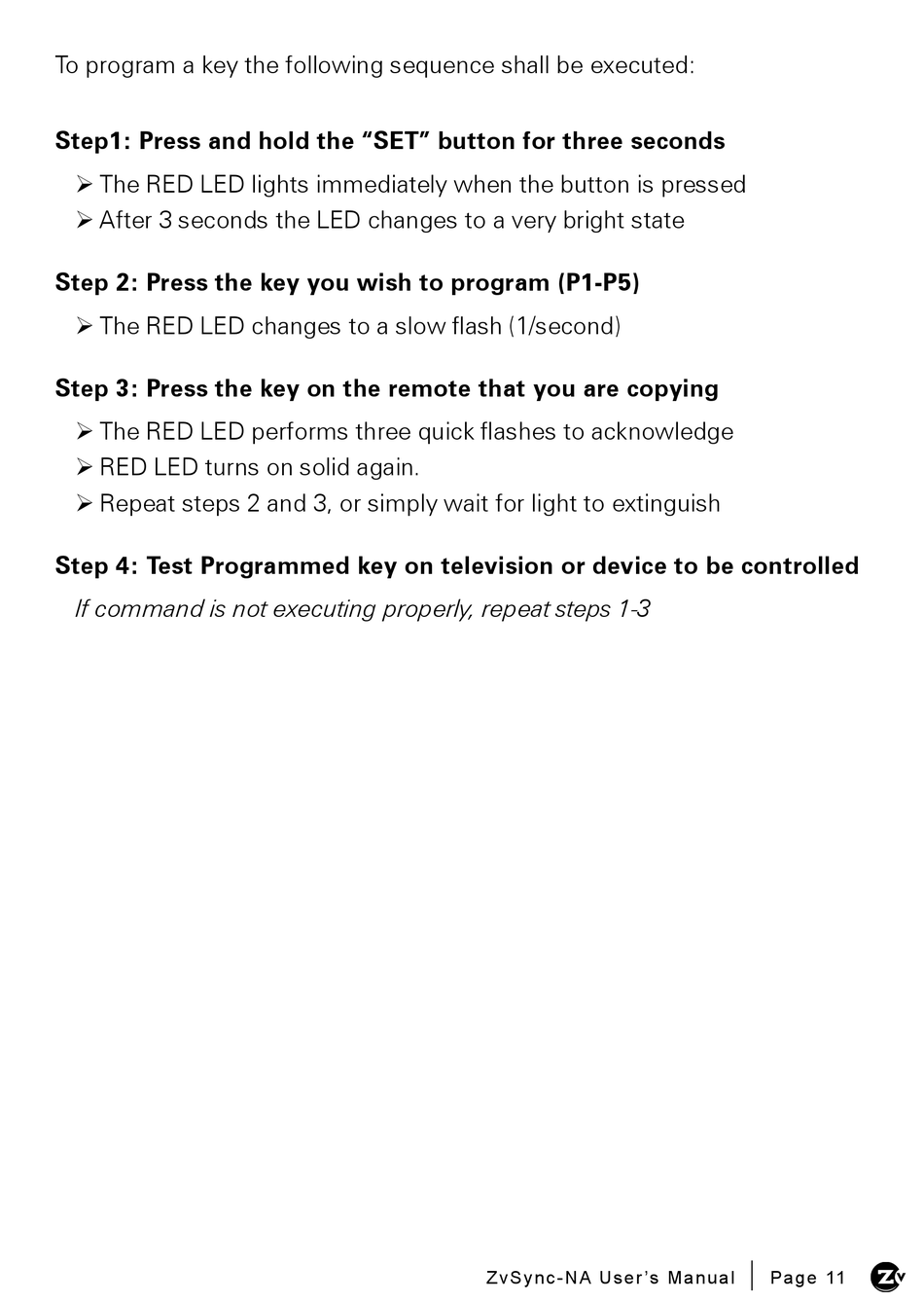

ZeeVee ZvSync-NA User Manual page 11

To program a key the following sequence shall be executed:
Step1: Press and hold the "SET" button for three seconds
 The ReD leD lights immediately when the button is pressed
 After 3 seconds the leD changes to a very bright state
Step 2: Press the key you wish to program (P1-P5)
 The RED LED changes to a slow flash (1/second)
Step 3: Press the key on the remote that you are copying
 The RED LED performs three quick flashes to acknowledge
 ReD leD turns on solid again.
 Repeat steps 2 and 3, or simply wait for light to extinguish
Step 4: Test Programmed key on television or device to be controlled
If command is not executing properly, repeat steps 1-3
