Summary of Contents for ZeeVee ZvSync-NA

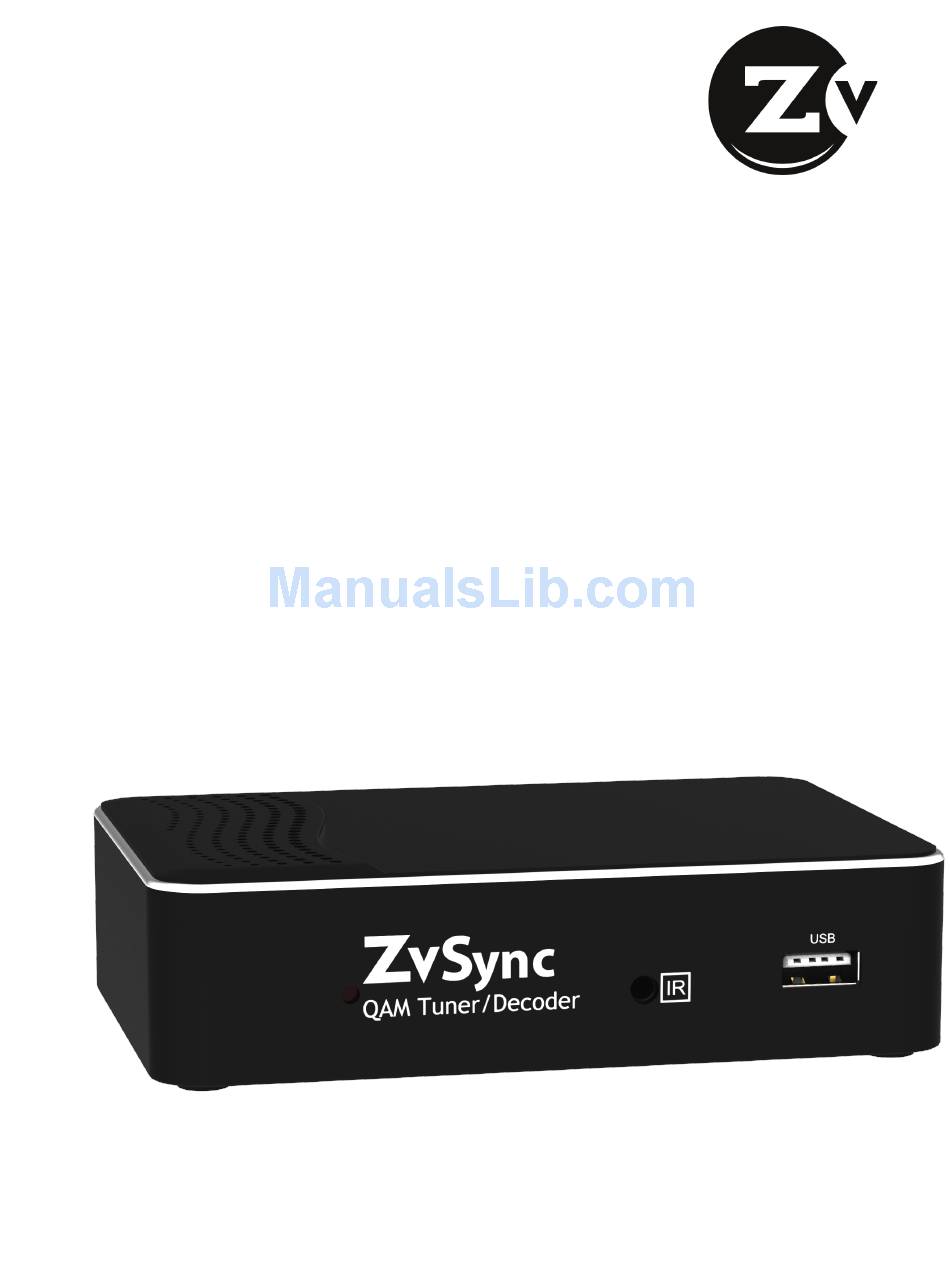

- Page 1 User’s Manual ZvSync - NA HD Digital Tuner/Decoder US QAM...
- Page 2 There are no user serviceable parts inside. Contact ZeeVee support at +1.877.493.3833 DANGEROUS VOLTAGE This symbol indicates dangerous voltage inside the unit that presents a risk of electric shock or personal injury.
- Page 3 Cleaning • Disconnect the product from the wall outlet prior to cleaning. • Use a light, damp cloth (no solvents) to dust or clean the product. Page 3 ZvSync-NA User’s Manual www.zeevee.com...
- Page 4 This will prevent damage due to lightning or power surges. Replacement Parts • Replacement parts should be purchased through an authorized ZeeVee distributor and approved by the manufacturer. Unauthorized parts may result in damage to the units and will void any warranty.
-
Page 5: Table Of Contents
4.6 System Settings ..................27 4.7 USB & Multimedia ................... 28 5 Troubleshooting ..................... 29 6 Technical Specifications ................30 7 Declaration of Conformity ................31 Page 5 ZvSync-NA User’s Manual www.zeevee.com... -
Page 6: Before Using The Product
Infrared Jack – Jack for the installation of the remote Infrared Sensor. USB – Jack for installation of USB storage device used for firmware upgrade or activation of the advanced media functions. Use is strictly optional. Page 6 ZvSync-NA User’s Manual www.zeevee.com... -
Page 7: Rear Panel
Left Audio Output – Should analog audio be desired, connect to the appropriate ‘Left’ analog audio input on the display device (typically a television or amplifier). Power Connector – Connect to the plug on the supplied wall-mount power supply. Page 7 ZvSync-NA User’s Manual www.zeevee.com... -
Page 8: Remote Control
The intention is that the TV viewing experience can be controlled from a single handset to include power and volume control of the television set and all other functions directed at controlling the ZvSync receiver/decoder. Page 8 ZvSync-NA User’s Manual www.zeevee.com... -
Page 9: Button Definitions
Dash button for entering digital channel numbers (ie: “23-1”) Recall last channel being played Numeric digits for entering channel numbers Arrow Navigation Buttons when driving configuration interface. During normal playback Up/Down sets channels, Left/Right sets volume and OK displays channel list. Page 9 ZvSync-NA User’s Manual www.zeevee.com... -
Page 10: Programmable Buttons
The ZvSync remote has been tested to be compatible with a large number of remotes. However, some manufacturers use infrared codes that are obscure and cannot be “copied” into the programmable keys of the ZvSync remote. Page 10 ZvSync-NA User’s Manual www.zeevee.com... - Page 11 Ø Repeat steps 2 and 3, or simply wait for light to extinguish Step 4: Test Programmed key on television or device to be controlled • If command is not executing properly, repeat steps 1-3 Page 11 ZvSync-NA User’s Manual www.zeevee.com...
-
Page 12: Setup
2.2 Connecting t o a C able F eed To receive a cable television signal or a channel generated by ZeeVee’s encoder/modulator products connect the cable feed to the ‘ANT’ jack on the rear face with a 75ohm F-Type cable. -
Page 13: Connecting To The Television
Both visual content and audio content are carried over the single cable from the ZvSync to the television display. The digital connection presents the highest resolution, sharpest picture possible from the ZvSync receiver. Page 13 ZvSync-NA User’s Manual www.zeevee.com... -
Page 14: Using Rca Cables
Both the CVBS output and the HDTV digital output are active simultaneously. All content will be scaled down to 480i resolution regardless of the incoming resolution prior to be sent out the CVBS port. Page 14 ZvSync-NA User’s Manual www.zeevee.com... -
Page 15: Infrared Remote Control Receiver
2.4 Infrared R emote C ontrol R eceiver The ZvSync-NA receiver/decoder is supplied with an external IR receiver. This is in the form of a cable with an IR receiver at the end. The pigtail MUST be installed for the ZvSync to receive commands from the remote control device and is required for proper operation. -
Page 16: Infrared Receiver Usable Angles
The included double-sided tape is commonly used to mount the IR sensor to bottom or side bezel of the attached television. At the user’s discretion the main body of the ZvSync-NA receiver/decoder may be placed out of sight, providing the proper ventilation considerations are observed. -
Page 17: Connecting To Power Supply
Other methods of powering the ZvSync may void the warranty. The DC input is rated at 5VDC at a maximum peak consumption of 10W, nominal consumption of 6W during operation, and a standby power draw of 0.8W. Page 17 ZvSync-NA User’s Manual www.zeevee.com... -
Page 18: Installation Wizard
Once the scan is complete, the ZvSync is ready for normal operation. Ø If the ZvSync-NA Receiver/Decoder is being used for Over-theAir (antenna) reception, Press the “Exit” button on the remote control. Page 18 ZvSync-NA User’s Manual... - Page 19 Ø Use the RIGHT arrow key (VOL+) to navigate to the “Channel Search” page Ø Use the DOWN arrow key to navigate to the “Signal Type” Ø Use the RIGHT arrow key (VOL+) to bring up the “AIR” option Page 19 ZvSync-NA User’s Manual www.zeevee.com...
- Page 20 A scanning status screen showing the progress of the initial channel scan will appear. Allow the scanning process to run to completion (may take several minutes). Once the initial scan is complete (OTA or Cable) the ZvSync may be used to start watching television programs. Page 20 ZvSync-NA User’s Manual www.zeevee.com...
-
Page 21: Basic Operation
To edit your program preferences (lock, skip, favorite, move, or delete), you will need to enter the Program Edit Menu item. This menu requires a password to access. The default password is ‘000000’, while the master unlock password is ‘888888’. Page 21 ZvSync-NA User’s Manual www.zeevee.com... - Page 22 Navigating up or down with the arrow keys allows for rapid selection of a program. Once highlighted, pressing the “OK” key selects the program for viewing. Alternately, the explicit channel number can be typed; “3-1”, for example. Page 22 ZvSync-NA User’s Manual www.zeevee.com...
-
Page 23: Picture Settings
When the HDTV port is connected via HDMI to the television display all the settings are honored. If composite video (CVBS) is being used to send the video to the display device the only supported resolution is 480i regardless of the setting on the Resolution item. Page 23 ZvSync-NA User’s Manual www.zeevee.com... -
Page 24: Channel Search
Allows for the addition of individual channels without deleting the previously saved channels and settings. User must know the channel number or center frequency of the channel of interest. Antenna Power Disabled normally unless an externally powered antenna is employed Page 24 ZvSync-NA User’s Manual www.zeevee.com... -
Page 25: Time Setting
Signal Type Select “AIR” if receiving from an Antenna. Select “Cable” if receiving from a Cable Provider or ZeeVee encoder/modulator product. Cable Sys Indicates the frequency plan active on the cable plant being scanned. Most commonly found is “STD”. “HRC” or “IRC” are still used in some instances, though not common. -
Page 26: World Option Settings
Navigating and selecting this option allows for configuration of the type and position of the Closed Caption data display when the “CC” button is pressed while watching a program. Digital Audio Allows setting various types of audio to be output over the HDTV port. Page 26 ZvSync-NA User’s Manual www.zeevee.com... -
Page 27: System Settings
4.6 System S ettings Various System Parameters Default user password is ‘000000’. Master unlock password is ‘888888’. Page 27 ZvSync-NA User’s Manual www.zeevee.com... -
Page 28: Usb & Multimedia
The format must be FAT32. NTFS is not supported. Use of the PVR and media storage functions is freely available and encouraged. This set of features is not actively supported by ZeeVee and customer support is not available for the time-shifting, media playing, or PVR functions. -
Page 29: Troubleshooting
Ensure ZvSync IR detector detector is properly plugged in to front of unit. The picture is The input signal is too Check aerial cable and breaking up weak. connections Page 29 ZvSync-NA User’s Manual www.zeevee.com... -
Page 30: Technical Specifications
Digital Audio over HDMI, RCAx2(L/R) USB2.0 Supported Capacity Unlimited Supported Media MP3, WMA, JPEG, BMP, AVI Power Supply Voltage (wall) 100-240VAC 50-60Hz Supply voltage 5VDC (ZvSync unit) Maximum Power Consumption Standby Power <0.8W Consumption Nominal Power Consumption Page 30 ZvSync-NA User’s Manual www.zeevee.com... -
Page 31: Declaration Of Conformity
There are separate collection systems for proper recycling of the constituent elements. For more information, please contact your local environmental authority or the retailer where you purchased the product. Page 31 ZvSync-NA User’s Manual www.zeevee.com... - Page 32 Contact us for installation and technical support, repairs, and warranty service: +1 (877) 4ZEEVEE (1-877-493-3833) support@zeevee.com Representatives are available from 9:00AM to 6:00PM, Monday through Friday (Eastern Time). Sales North America: +1 (347) 851-7364 sales@zeevee.com EMEA: +44 1494 956677 EMEAsales@zeevee.com Page 32 ZvSync-NA User’s Manual www.zeevee.com...
