Serialio HHP 4820 User Manual

Cordless scanner with scanreader flow / serialmagic

Configuration Doc for HHP Scanner (Model 4820 Cordless)

HHP 4820 Cordless Scanner with ScanReader Flow / SerialMagic

Follow this guide to setup an HHP 4820 Cordless Bluetooth Scanner with

ScanChamp ScanReader Flow software, or SerialMagic Professional software.

This document contains specific instructions for the HHP 4820 Bluetooth model,

to be configured for ScanChamp ScanReader Flow on Windows.

Other HHP models should also work, using similar configuration.

Note that although this document is directed to using the scanner on Windows,

You can use SerialMagic Professional on other platforms with the same result.

HHP Bluetooth scanners should also work with SerialMagic Pro on

Windows Mobile (Pocket-PC), BlackBerry, Windows, and Mac OSX.

Scanner Setup

The first step is to configure the HHP 4820 scanner to be in the proper mode,

with the correct parameters to work with ScanChamp ScanReader Flow (and SerialMagic).

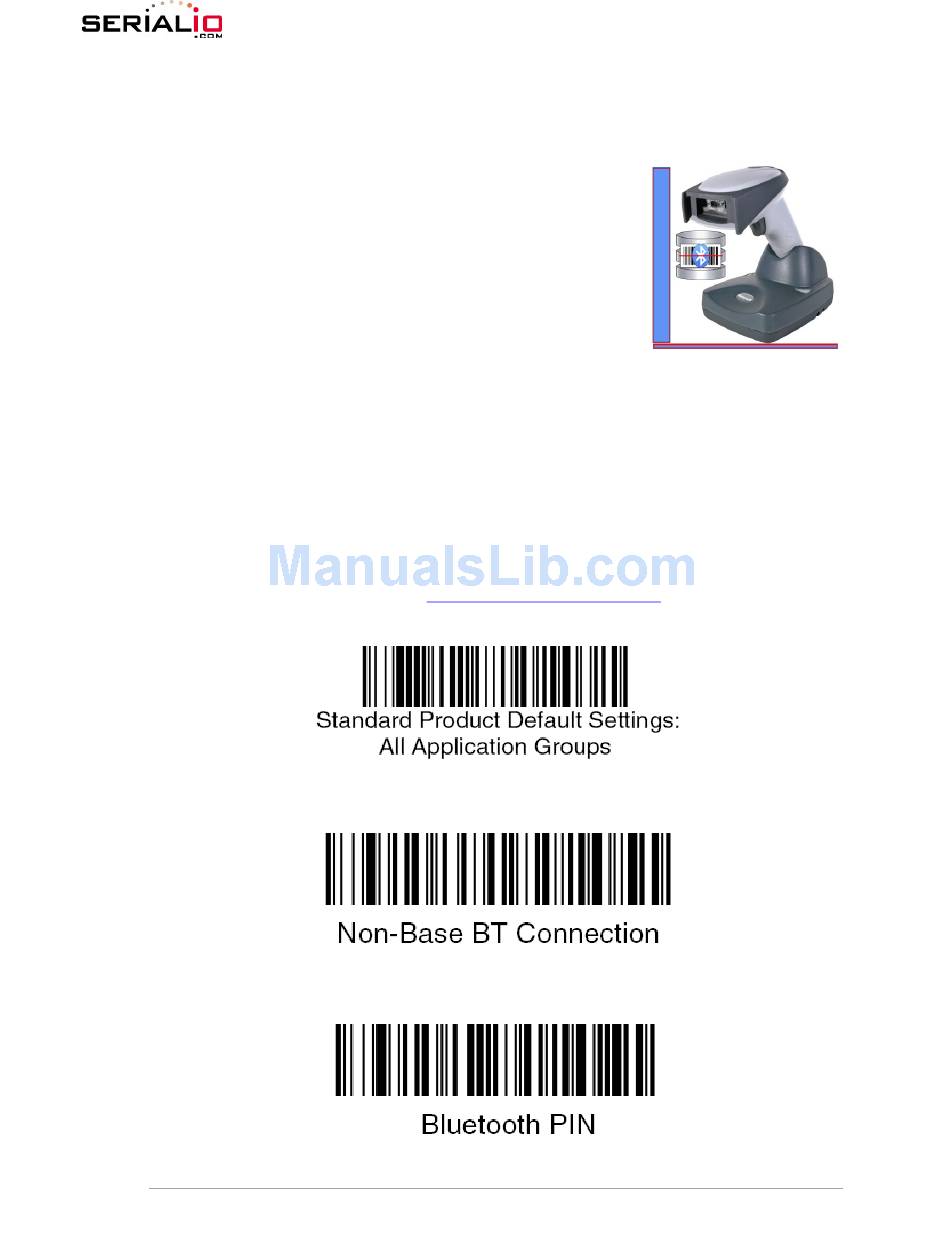

Print out the following barcodes (pgs. 1-2 of this document), and scan them in order.

Once the scanner has been configured, see the section on setting up ScanReader Flow.

These codes can also be found in the

HHP 4820 Configuration

Guide.

1/1

Table of Contents

Do you have a question about the HHP 4820 and is the answer not in the manual?

Page 1 Windows Mobile (Pocket-PC), BlackBerry, Windows, and Mac OSX. Scanner Setup The first step is to configure the HHP 4820 scanner to be in the proper mode, with the correct parameters to work with ScanChamp ScanReader Flow (and SerialMagic). Print out the following barcodes (pgs. 1-2 of this document), and scan them in order.
Page 2 Configuration Doc for HHP Scanner (Model 4820 Cordless) Scanner Configuration Complete!
Page 3 Configuration Doc for HHP Scanner (Model 4820 Cordless) ScanChamp ScanReader Flow Setup Once the scanner has been configured, then next step is to setup ScanReader Flow. Launch ScanChamp ScanReader Flow, and go to Settings. The following screen will appear: 1) Select COM port where BlueSnap USB is located 2) Select “Scanner 1”...
Page 4 Configuration Doc for HHP Scanner (Model 4820 Cordless) 9) Once the Discovery period has ended, the HHP scanner should appear in the list. 10) Select the HHP Scanner (IT5620 in this case) and click the Pair button. The HHP scanner and BlueSnap USB will connect. ScanReader Flow will bring you back to the “Settings”...
