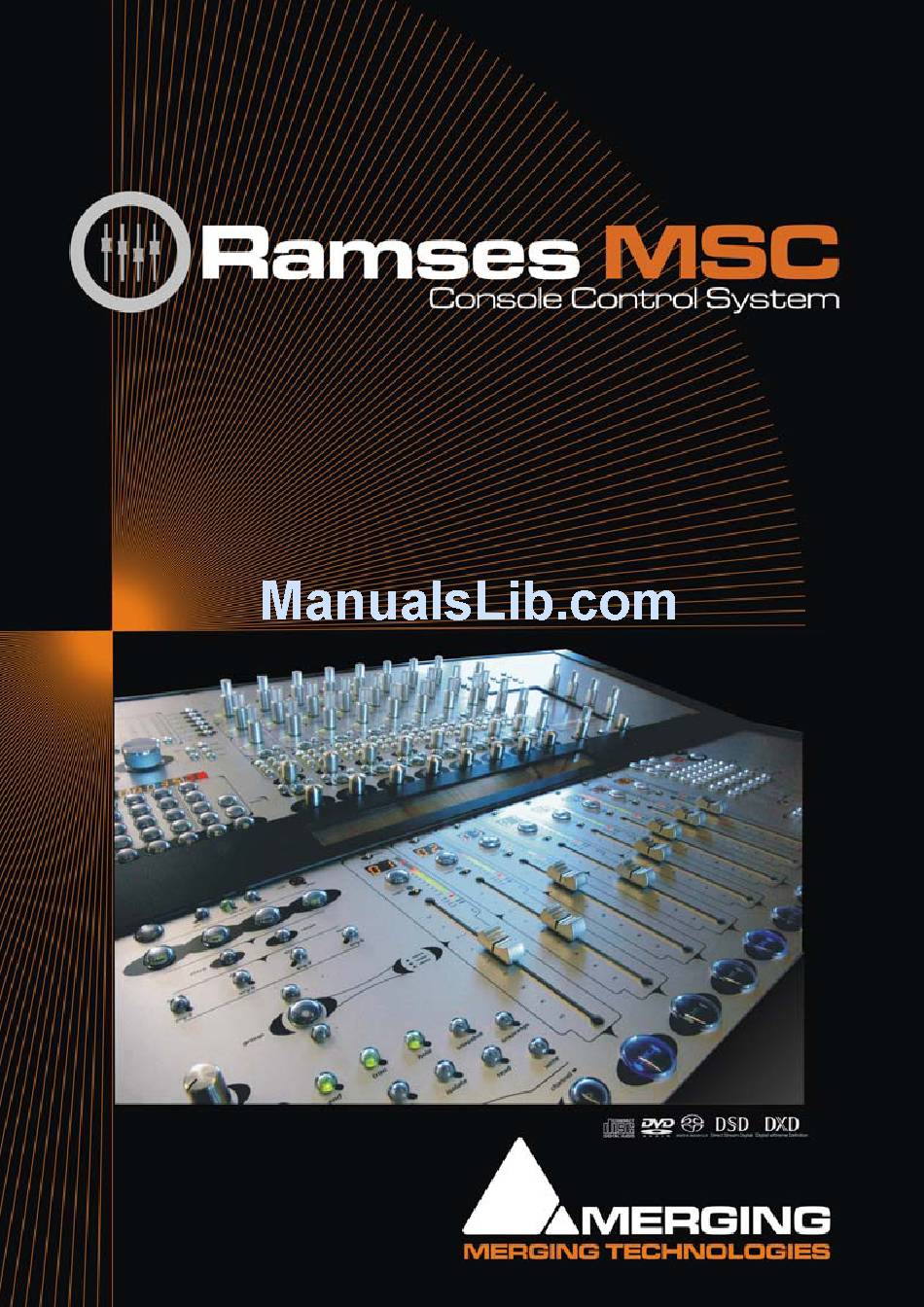

- Page 1 installation guide...
- Page 2 Merging Technologies hardware and or software or for any defect in the hardware software or documentation.
- Page 3 Ramses MSC Console ARC Installation Guide : Contents : Ramses MSC Console ARC Installation Guide : Contents Introduction 4 Scope 4 Important - Before You Begin 4 ARC Installation 5 Fitting The ARC 8 Attaching the ARC 8 Connect Cables 9 Fit the Rear ARC Support Covers 9 1 - 1 Ramses MSC Console ARC...
- Page 4 Ramses MSC Console ARC Installation Guide : Contents : 1 - 2 Ramses MSC Console ARC...
- Page 5 Ramses MSC Console ARC Installation Guide Ramses MSC Console ARC Installation Guide Ramses MSC Console MSC 8/16/24 PRELIMINARY Document number: 10-01 Date: 15-October-2007 Ramses MSC Console...
-
Page 6: Important - Before You Begin
This document contains instructions for the safe installation of an ARC to your Ramses MSC Console. If you experience any problems or need any assistance please contact your local distributor or you can contact Merging Technology technical support in Switzerland via telephone on: +41 21 946 04 44 or via email on: support@merging.com... - Page 7 Ramses MSC Console ARC Installation Guide : ARC Installation ARC Installation Note: Ensure the Ramses MSC is NOT powered on before installing the ARC. The ARC support pillars are supplied packed separately. Please attach them using the following procedure before fitting the ARC to the Ramses MSC. Place the ARC face down on a protective and secure surface.
- Page 8 Ramses MSC Console ARC Installation Guide : ARC Installation Note: The support brackets are handed. I.e. there is a left and a right version: There are several identifying features but perhaps the most obvious is to check that the sides with the long- est right-angle bracket with the “V”...
- Page 9 Ramses MSC Console ARC Installation Guide : ARC Installation Dress the cables so that they will run through the gap in the support. Attach each support using three M3 X 6mm screws, washers and star washers. Be careful to ensure that the cables are not pinched under the support.
- Page 10 Ramses MSC Console ARC Installation Guide : ARC Installation Fitting The ARC Note: IMPORTANT This step requires 2 people to ensure the ARC and Ramses MSC are not damaged during positioning. Grip each of the ARC supports (1 person each) and align the ARC with the console as shown in the image below.
-
Page 11: Connect Cables
Ramses MSC Console ARC Installation Guide : ARC Installation Connect Cables Locate the ARC cables housed within each side of the Ramses MSC and bring them through the ARC support. The connectors will only fit one way. Examine them and line them up accordingly. Carefully connect the cables (on both sides of the console) as shown in the image below.
