VOKERA RC05 Installation Instructions Manual

Hide thumbs Also See for RC05:

Table of Contents

Download this manual See also: Instructions for Using

RC05

Programmable room thermostat

Installation

Instructions

THESE INSTRUCTIONS

TO BE RETAINED

BY USER

Table of Contents

Need help?

Do you have a question about the RC05 and is the answer not in the manual?

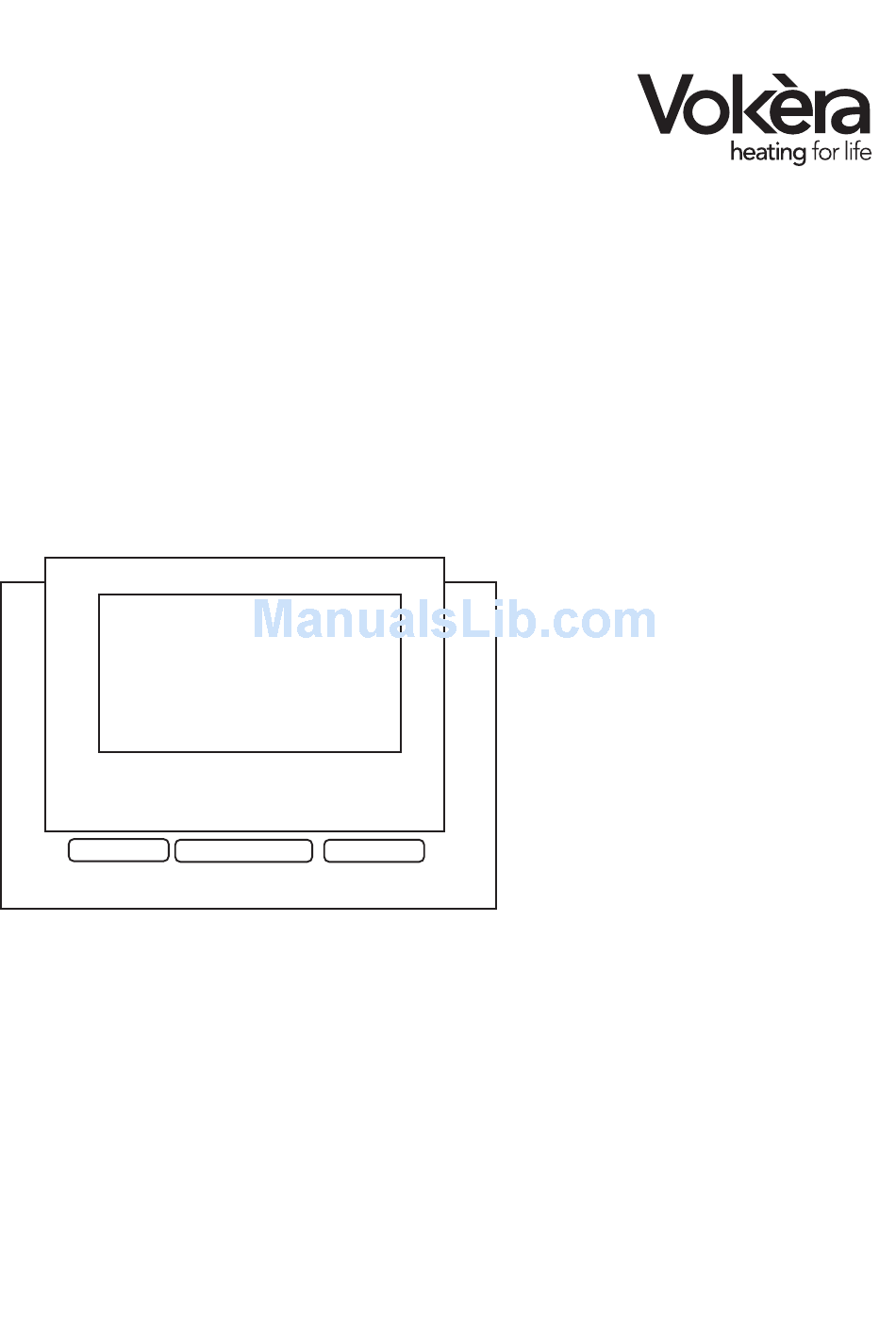

Page 1 RC05 Programmable room thermostat Installation Instructions THESE INSTRUCTIONS TO BE RETAINED BY USER...
Page 2 Linea, Compact and Hydra range of boilers. ensuring that the wiring does not become trapped. The RC05 can also be used as a programmable room Using the screws and wall plugs provided, secure thermostat and has a facility for the connection of an the mounting plate to the wall.
Page 3 Connect a suitable cable between te S & - instructions supplied. terminals of the RC05 and the S & - terminals of the Connect the RC05 to the remote control interface as control PCB (see fig. 5). Remove the link-wire (if fitted) shown in fig.
Page 4 To access the RC05 additional functions, set the set to suit the system and location (fig. 13). Connect control to the OFF position (see fig. 8). the sensor to the EXT terminals of the RC05 (see fig. 11). fig. 8 Press and hold the PROG button for 10-seconds, F? will now appear on the display (see fig.
Page 5 INSTALLATION INSTRUCTIONS FOR RC05 100,0 90,0 80,0 70,0 60,0 50,0 40,0 30,0 20,0 TEMPERATURA ESTERNA IN °C fig. 13...
Page 6 Registered address: Vokèra Ltd Borderlake House Unit 7 Riverside Industrial Estate London Colney Herts AL2 1HG enquiries@vokera.co.uk www.vokera.co.uk www.vokera.ie Sales, General Enquires T 0844 391 099 F 0844 391 0998 Vokèra Ireland West Court, Callan Co Kilkenny T 056 7755057 F 056 7755060 Vokèra Limited reserve the right to change...
