Saab 2003 9-3

Advertisement

Quick Links

900
SITdefault
Saab 9-3 M03-
Hands free kit, mobile phone
Accessories Part No.
12 787 155
MONTERINGSANVISNING · INSTALLATION INSTRUCTIONS
MONTAGEANLEITUNG · INSTRUCTIONS DE MONTAGE
Group
9:39-09
SCdefault
Installation instructions
Date
Instruction Part No.
Apr 03
12 788 465
Saab 9-3 M03-
Replaces
12 788 465 Jan 03
F980A183

Advertisement

loading
Need help?

Need help?

Do you have a question about the 12 787 155 and is the answer not in the manual?

Questions and answers

Summary of Contents for Saab 12 787 155

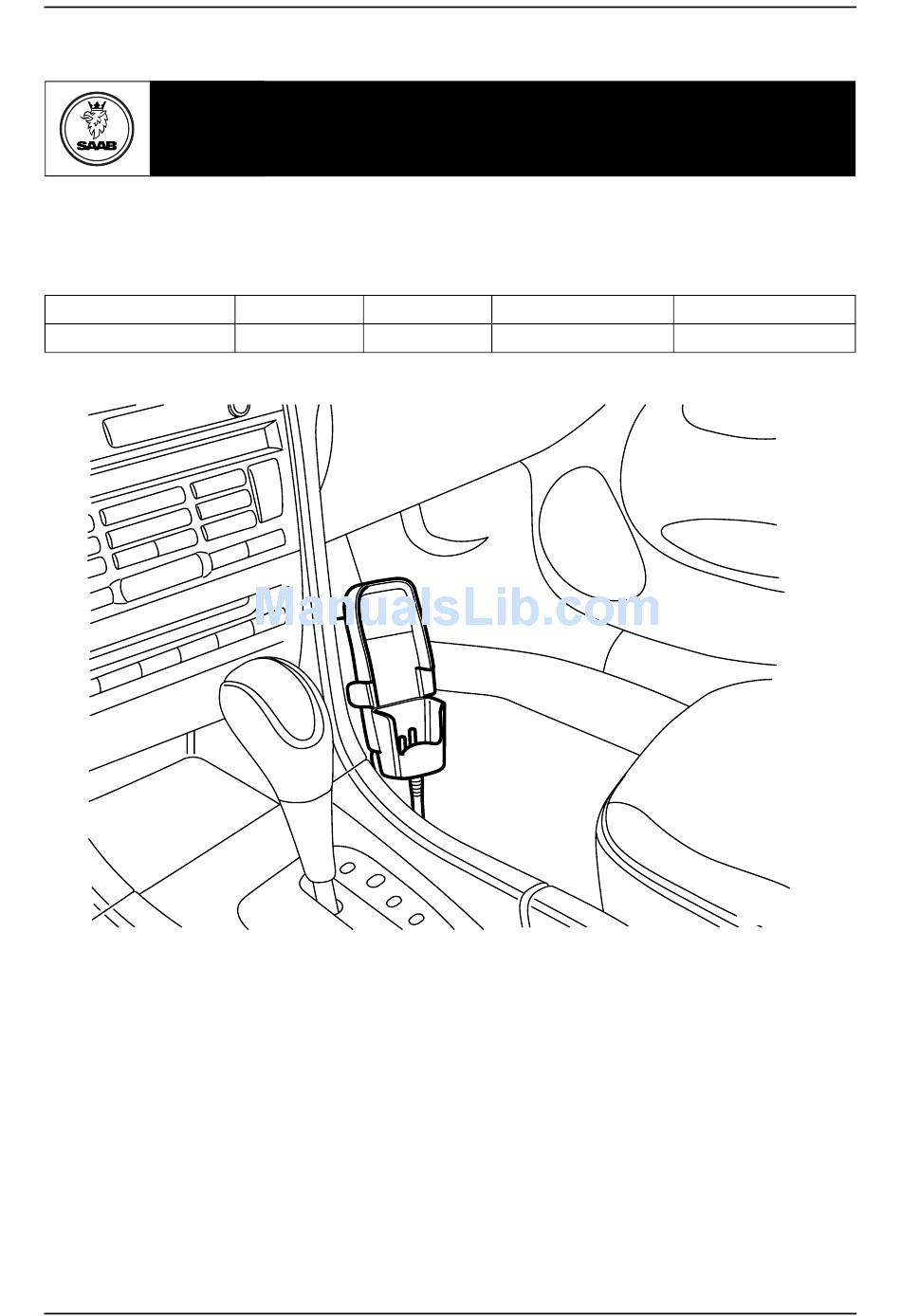

  • Page 1 MONTAGEANLEITUNG · INSTRUCTIONS DE MONTAGE SITdefault Saab 9-3 M03- Hands free kit, mobile phone Accessories Part No. Group Date Instruction Part No. Replaces 12 787 155 9:39-09 Apr 03 12 788 465 12 788 465 Jan 03 F980A183 Saab 9-3 M03-...
  • Page 2 9 Lock Important The kit can contain four screws which are not used. In addition, the following items are required (ordered separately) Connection kit for the telephone in question Telephone bracket Antenna cable (certain models) Microphone (certain cars) Saab 9-3 M03-...
  • Page 3 RHD: Remove the centre console left-hand side panel. 3 LHD: Remove the right-hand air duct bellows. RHD: Remove the left-hand air duct bellows. 4 Remove the M6 nut from the metal bracket securing the centre console side panels. Saab 9-3 M03-...
  • Page 4 5 Cut one protective tape in the centre and fit one of the parts on top of the electronic unit. Important The protective tape must be placed on the top of the electronic unit when the heads of the screws are pointed downwards. Saab 9-3 M03-...
  • Page 5 The large connection must point forwards. 7 Connect all contacts to the electronic unit. 8 Fit the lock between the angular contacts. Note The lock is shaped with the size of the angular contacts in mind. Saab 9-3 M03-...
  • Page 6 (LHD) or left-hand (RHD) support. 10 Remove the anti-rattling tape from the connec- tor and connect the kit's cable to the car's installed telephone connection. Saab 9-3 M03-...
  • Page 7 Connect the antenna cable and tight- en both nuts. 12 Wrap the other half of the split protective tape around the antenna connection on the tele- phone holder cable. Saab 9-3 M03-...
  • Page 8 M6 nuts (the previously-fitted nut and the nut from the kit). 15 Fit the air bellows. Important The telephone holder cable must be positioned outside the bellows. 16 Secure the cable behind the dashboard support using a cable tie. Saab 9-3 M03-...
  • Page 9 20 Fit the telephone holder bracket onto the tele- phone bracket, drill holes into the telephone bracket (3 mm) using the holder bracket as a template and fit it. 4D: Continue with step 21. CV: Continue with step 28. Saab 9-3 M03-...
  • Page 10 Cars equipped with navigation system: The previously connected cable must be connected to a new microphone which is placed to the right (LHD) or the left (RHD) in the roof console. Important Do not touch the black felt on the microphone. Saab 9-3 M03-...
  • Page 11 Repeat this procedure with all keys. Otherwise, the remote controls will not function. 32 Activate window lift pinch protection function by operating the side windows up and down twice. An audible confirmation will sound when activa- tion is complete. Saab 9-3 M03-...
