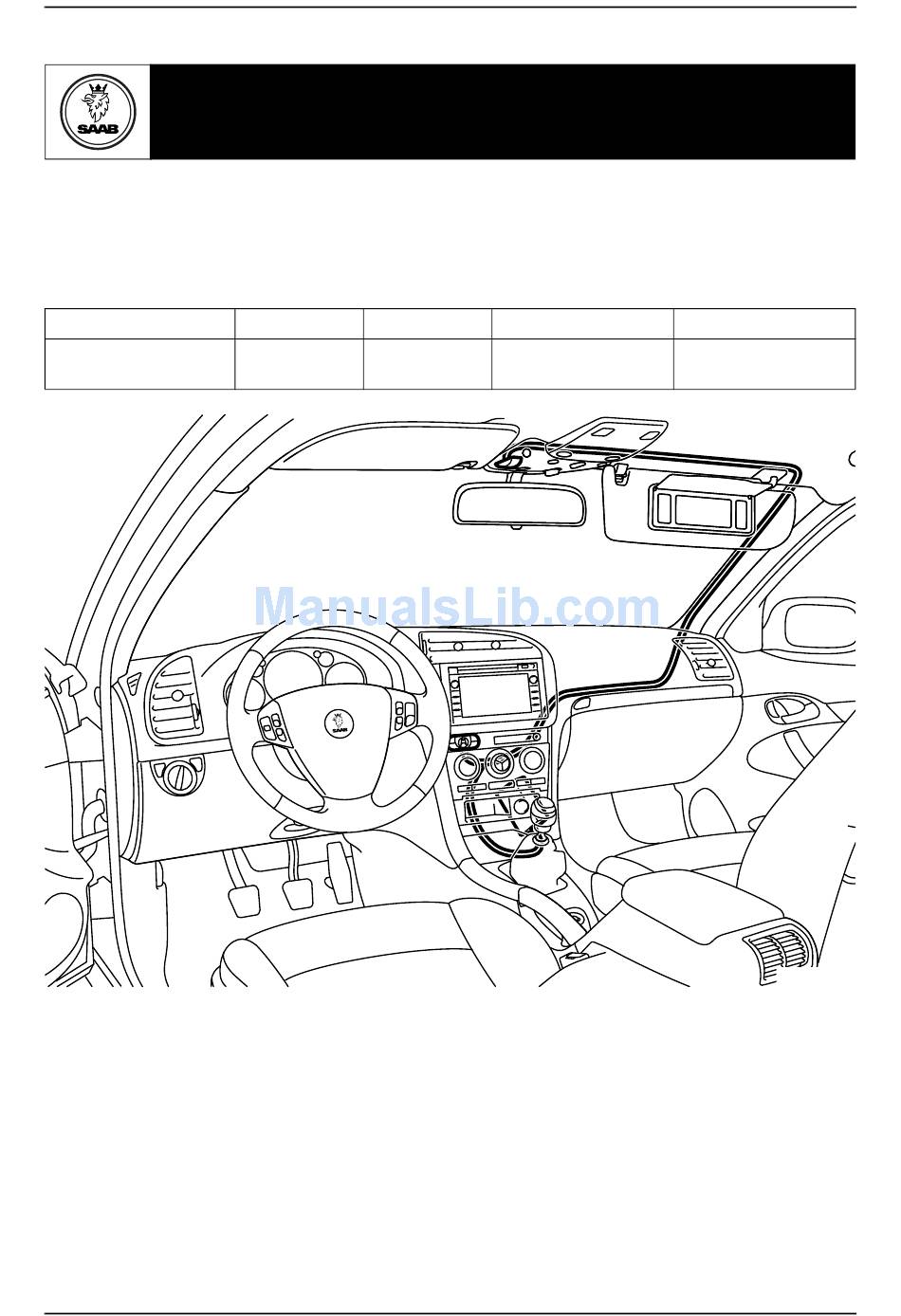

Installation instructions

900

SITdefault

Saab 9-3 4D/5D M03-. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3

Saab 9-5 M01- . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 17

Handsfree kit, mobile phone

Accessories Part No.

32 025 907

32 026 144

MONTERINGSANVISNING · INSTALLATION INSTRUCTIONS

MONTAGEANLEITUNG · INSTRUCTIONS DE MONTAGE

Group

9:89-31

Date

Instruction Part No.

May 07

32 025 872

Replaces

Nov 06

F930A592

Need help?

Do you have a question about the 32 025 907 and is the answer not in the manual?

Questions and answers

Summary of Contents for Saab 32 025 907

Page 1 Saab 9-5 M01- ........page 17...
Page 2 2 32 025 872 F930A488...
Page 3 32 025 872 3 Saab 9-3 4D/5D M03- F930A489 F930A490 F930A491 F930A492 1 Ignition in OFF position. 2 Remove the floor console’s right-hand side piece. 3 Remove the lower glove box screws. 4 Remove the inner glove box screws. Saab 9-3 4D/5D M03-...
Page 4 Cars with ACC: Remove the coolant hose from the glove box (B). 6 Remove the cover plate from the A-pillar trim. 7 Remove the retaining screw. 8 Grip the upper edge of the A-pillar trim and care- fully pull out and up. Saab 9-3 4D/5D M03-...
Page 5 32 025 872 5 F930A497 F930A498 F930A499 F930A500 9 Remove the rear cover. 10 Remove the front cover. 11 Remove the screws. 12 Remove the centre cover. Saab 9-3 4D/5D M03-...
Page 6 F930A504 13 Cars with rain sensor: Remove the cover. 14 Fit the adhesive tape onto the microphone. 15 Fit the microphone. 16 Insert the microphone cable through the hole in the headlining by the roof console. Saab 9-3 4D/5D M03-...
Page 7 19 Secure the microphone cable to the A-pillar. 20 Route the microphone cable under the panel, and on to the centre console and secure it. Important Secure the wiring harness firmly so that there is no risk of chafing and rattling. Saab 9-3 4D/5D M03-...
Page 8 8 32 025 872 22.1-22.5 21.1-21.7 F930A509 Fit the keypad in accordance with one of the alterna- tives. Saab 9-3 4D/5D M03-...
Page 9 21 Fitting the keypad, alternative 1: 21.1 Remove the ashtray/storage compart- ment. 21.2 Remove the ACC panel. 21.3 Fit the keypad to the console and mark out the cable route. 21.4 Cut out from the console for the cable. Saab 9-3 4D/5D M03-...
Page 10 Secure the wiring harness firmly so that there is no risk of chafing and rattling. 21.7 Fit the ACC panel (A). Check that the key- pad’s cable is located in the groove. Fit the ashtray/storage compartment (B). Saab 9-3 4D/5D M03-...
Page 11 F930A521 22 Fitting the keypad, alternative 2: 22.1 Remove the cover. 22.2 Route the cable along the right-hand side, down towards the air bellows. 22.3 Route the cable in the dashboard’s groove. 22.4 Fit the cover. Saab 9-3 4D/5D M03-...
Page 12 25 Release the Tele1 connection from the car’s cable harness by cutting the tape. The Tele1 connection is located adjacent to the lower edge of the centre console on the right-hand side. Saab 9-3 4D/5D M03-...
Page 13 27 Secure the wiring to the panel member. Important Secure the wiring harness firmly so that there is no risk of chafing and rattling. 28 Cars with rain sensor: Fit the cover. 29 Fit the screws to the cover. Saab 9-3 4D/5D M03-...
Page 14 Take care not to damage the inflatable curtain. Damage could result in the inflatable curtain not providing the intended protection to the occupants in the event of a collision. 33 Fit the retaining screw. Tightening torque: 5 Nm (4 lbf ft). Saab 9-3 4D/5D M03-...
Page 15 35 Plug in the connector for the glove box lighting (A). Cars with ACC: Fit the coolant hose for the glove box (B). 36 Fit the inner glove box screws. 37 Fit the lower glove box screws. Saab 9-3 4D/5D M03-...
Page 16 16 32 025 872 F930A539 38 Fit the floor console’s right-hand side piece. Saab 9-3 4D/5D M03-...
Page 17 32 025 872 17 Saab 9-5 M01- M01-05 CLICK E930A427 E930A428 M01-05 M01-05 E930A429 E930A430 1 Ignition in OFF position. 2 Remove the radio/navigation unit, M01-05: 2.1 Insert the special tools into the intended holes until the tools engage and pull out the unit.
Page 18 M06- E930A431 E930A432 E930A433 3 Remove the radio/navigation unit, M06- 3.1 Remove the plugs and remove the screws. 3.2 Pull the unit out and unplug the connectors and disconnect the antenna connection. 4 Remove the ACC panel. Saab 9-5 M01-...
Page 19 E930A434 5 Remove the lower section of the dashboard on the driver’s side: 5.1 Remove the data link connector (A) 5.2 Remove the lower panel (B). 5.3 Remove the clip (C). 5.4 Remove the floor lighting (D). Saab 9-5 M01-...
Page 20 8 Remove the sun visor’s screws and allow the sun visor to hang down. 9 Remove the glass cover (A), the retaining screw (B) and lower the cover. Saab 9-5 M01-...
Page 21 11 Press the microphone in on the outside of the cover, beside the car’s original microphone. 12 Route the microphone cable up, under the headlining and on, down around the A-pillar. 13 Secure the microphone cable up against the existing cable ties. Saab 9-5 M01-...
Page 22 22 32 025 872 E930A443 14 Press the cover in, fit the retaining screw (B) and the glass cover (A). Saab 9-5 M01-...
Page 23 Route the cable under the panel, towards the centre console and in behind the radio/naviga- tion unit Secure the cable under the panel. Important Secure the wiring harness firmly so that there is no risk of chafing and rattling. Saab 9-5 M01-...
Page 24 18.2 E930A448 E930A445 16 Remove the cover for the heating and ventila- tion unit. 17 Fold aside the floor carpet. 18 Cars with diesel engine: 18.1 Remove the sound absorber. 18.2 Cut out the top insulation layer. Saab 9-5 M01-...
Page 25 20 Connect the control module to the adapter har- ness. 21 Align the control module and secure the wiring. Important Secure the wiring harness firmly so that there is no risk of chafing and rattling. 22 Cars with diesel engine: Fit the sound absorber. Saab 9-5 M01-...
Page 26 23 Refit the floor carpet. 24 Fit the cover for the heating and ventilation unit. 25 Cut the tape around the Tele1 connection on the car’s wiring harness. 26 Connect the adapter harness to the car’s Tele1 connection. Saab 9-5 M01-...
Page 27 32 025 872 27 E930A457 27 Connect the adapter harnesses. Saab 9-5 M01-...
Page 28 28 32 025 872 29.1-29.4 28.1-28.14 E930A458 Fit the keypad in accordance with one of the alterna- tives. Saab 9-5 M01-...
Page 29 28.1 Remove the storage compartment (A). 28.2 Automatic transmission: Remove the surround (B). 28.3 Manual gearbox: Lift up the gear lever gaiter (C). 28.4 Remove the cover’s screws (D) and unplug the connector (E). Saab 9-5 M01-...
Page 30 E930A461 E930A462 28.7 28.8 E930A463 E930A459 28.5 Measure out the keypad location and drill a 3 mm hole. 28.6 Cut/drill a groove straight out. 28.7 Connect the keypad to the adapter har- ness. 28.8 Secure the wiring. Saab 9-5 M01-...
Page 31 32 025 872 31 28.9-28.12 E930A464 28.9 Plug in the connector (E) and fit the cover’s screws (D). 28.10Manual gearbox: Fit the gear lever gaiter (C). 28.11 28.12Fit the storage compartment (A). Saab 9-5 M01-...
Page 32 32 32 025 872 28.13 28.14 E930A465 E930A466 28.13Secure the keypad’s wiring harness. Important Secure the wiring harness firmly so that there is no risk of chafing and rattling. 28.14Fit the keypad. Saab 9-5 M01-...
Page 33 29 Fitting the keypad, alternative 2: 29.1 Carefully prize out the switch panel and route the keypad cable between the switch panel and the dashboard. 29.2 Fit the keypad. 29.3 Connect the keypad to the adapter har- ness. 29.4 Secure the wiring. Saab 9-5 M01-...
Page 34 In appropriate cases, the whole of the headlining must be replaced. A dam- aged energy absorber could provide reduced pro- tection to the head in the event of impact. 33 Fit the cover to the fuses. Saab 9-5 M01-...
Page 35 32 025 872 35 E930A475 34 Fit the lower section of the dashboard: 34.1 Connect the floor lighting (D). 34.2 Fit the clip (C). 34.3 Fit the lower panel (B). 34.4 Fit the data link connector (A) Saab 9-5 M01-...
Page 36 36 32 025 872 M01-05 36.1 E930A476 E930A477 M01-05 M01-05 36.2 36.3 E930A478 E930A479 35 Fit the ACC panel. 36 Fit the radio/navigation unit, M01-05: 36.1 Plug in the connectors. 36.2 Fit the compartment. 36.3 Insert the unit. Saab 9-5 M01-...
Page 37 32 025 872 37 M06- M06- 37.1 37.2 E930A480 E930A481 37 Fit the radio/navigation unit, M06- 37.1 Plug in the connectors. 37.2 Insert the unit, fit the screws and the plugs. Saab 9-5 M01-...
