Lectrosonics DR Receiver/DB Transmitter Instruction Manual page 18

DSW Digital Wireless System

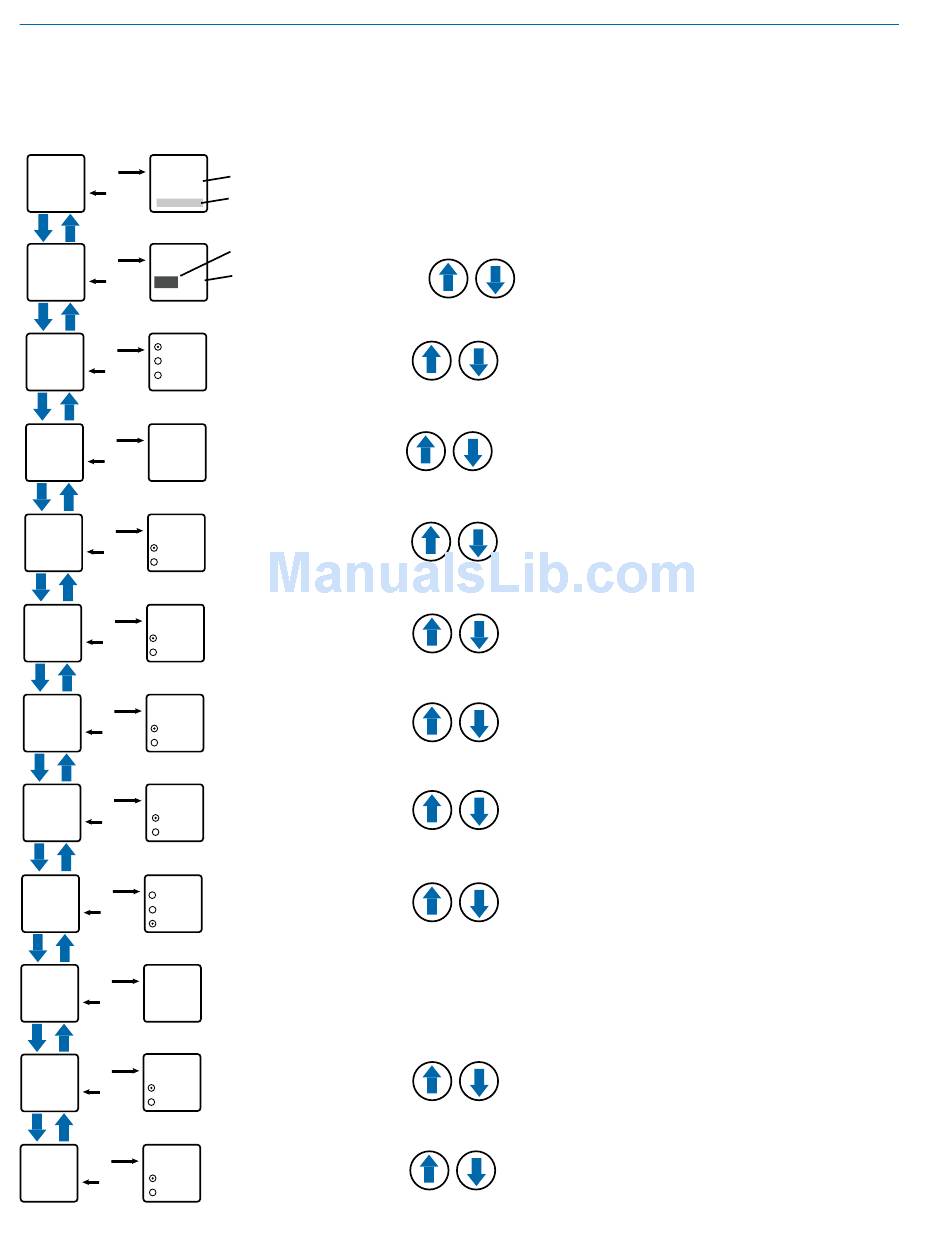

DB Transmitter Menu Map
From the main window, navigate with the arrow buttons
to the desired menu item and press MENU/SEL to
enter the setup screen.
Gain
SEL
Gain
22
BACK
Freq.
SEL
Freq.
BACK
470.675
(none)
SEL
ProgSw
Mute
BACK
Power
Rolloff
SEL
Rolloff
50 Hz
BACK
Phase
SEL
Phase
Normal
BACK
Invert
BatType
SEL
BatType
Alk.
BACK
Lith.
Bat 5:41
SEL
Reset?
BatTime
Yes
BACK
No
Locked?
SEL
Locked?
Yes
BACK
No
Backlit
SEL
On
Backlit
30 sec
BACK
5 min
About
SEL
About
DB
BACK
V1.01
Default
SEL
Settings
Default
No
BACK
Yes
WipeKey?
SEL
WipeKey
No
BACK
Yes
18
Use arrow buttons
to select value
Level meter at bottom of screen
Press MENU/SEL to highlight MHz or kHz
Select value with arrow buttons
Select option with arrow buttons
Select value with arrow buttons
Select option with arrow buttons
Select option with arrow buttons
Select option with arrow buttons
Select option with arrow buttons
Select option with arrow buttons
Displays model number and firmware revision
Select option with arrow buttons
Select option with arrow buttons
After the desired selection if made, press BACK to
return to the menu.
Gain - This setting determines the signal to
noise ratio and dynamic range that the system
will deliver. Review the setup procedure care-
fully for optimal performance.
Freq. - Frequency can be set manually.
ProgSw - The programmable switch on the
top panel of the transmitter can be configured
for different functions with this setup menu.
Rolloff - The low frequency audio rolloff is
adjustable to optimize performance for envi-
ronmental conditions or personal preference.
Phase - The polarity of the audio signal can
be reversed to match other microphones in
the system. Differences in polarity are due to
microphone designs and connector wiring.
BatType - This setting makes the battery sta-
tus display more accurate, since alkaline and
lithium batteries behave differently as they are
discharged.
BatTime - A built-in timer can be used with
any battery type, but it is especially valuable
with rechargeable batteries such as NiMH
types. The voltage remains fairly constant
across the discharge time of a rechargeable
battery, then drops quickly near the end of
the operating time. The most accurate way to
determine runtime status is by testing the time
provided by a particular battery brand and
type, then using a timer to determine remain-
ing runtime.
Locked? - The keypad can be locked out to
prevent inadvertent changes to be made.
Backlit - The brightness and appearance of
the LCD can be adjusted for better viewing in
different lighting conditions.
About - Displays the firmware revision.
Default - The factory default settings can be
restored with this single setup screen.
WipeKey - The encryption key can be erased
with this setup screen.
