Lectrosonics DR Receiver/DB Transmitter Instruction Manual page 11

The TX MENU (transmitter menu) is used to config-
ure and store the settings for all transmitters that will
be used in the system. These settings, stored in the
receiver memory, can be transferred from the receiver
to the transmitter during setup with the key cable. A
link back to the Top Menu is located at the leftmost
position.
BACK LIGHT
LOCK PANEL
PROG SWITCH AUTO ON
AUDIO MODULE
OUTPUT POWER
NETWORK SETUP configures the IP address
and other credentials for network connections
through the ethernet port.
RS232 SETUP sets the baud rate of the
RS232 port.
COMMAND VIEW is used to send hand typed
commands from a computer directly to a
connected receiver, and display the response
that comes back on the computer screen. It is helpful
for testing commands during development of programs
for 3rd party controllers, and to send a batch of
commands from a file to configure or test the receiver.
SYSTEM INFO displays the receiver serial
number, firmware version and hardware
version. Active Alerts will also appear on the
list, if there are any.
Rio Rancho, NM

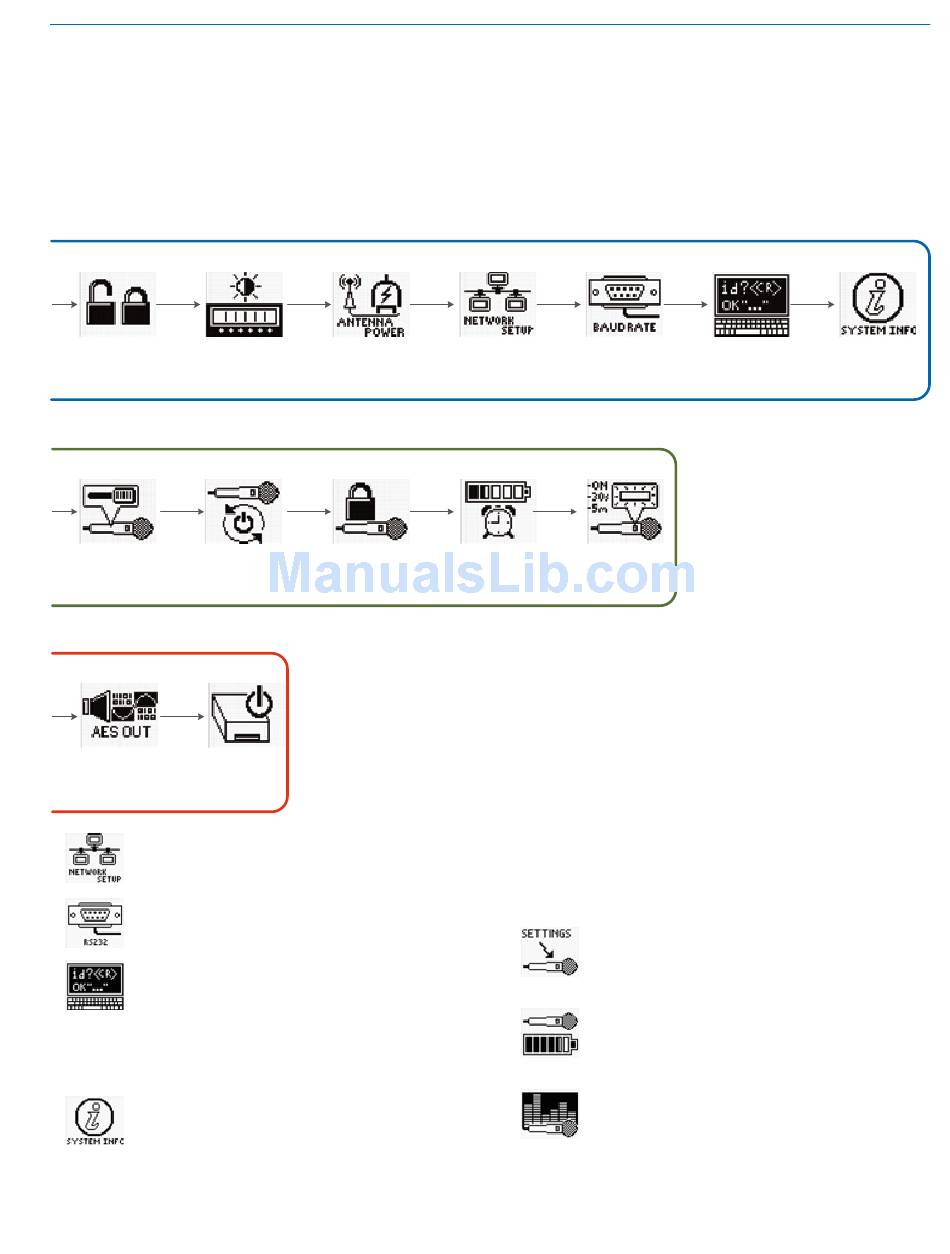

RX MENU (receiver menu) includes menu items for
each receiver module to set up operating parameters
and options. A link back to the Top Menu is located at
the leftmost position.
ANTENNA NETWORK
POWER SETUP
TX PANEL BATT TIMER
LOCK
TX MENU
Transmitters can be configured in the receiver and
the settings can then be sent to the transmitter via the
USB cable.
transfer is made via the key cable.
different across their life during use.
signal sources, different microphones and microphone
positions.
DSW Digital Wireless System
RS232 SETUP
COMMAND
VIEW
TX BACKLIGHT
SEND SETTINGS transfers the settings for
the transmitter configuration that are stored in
the receiver to the attached transmitter. The
TX BATTERY is used to make the battery
status monitor more accurate, since the
behavior of alkaline and lithium batteries is
TX AUDIO GAIN adjusts the transmitter input
gain to optimize the signal to noise ratio and
dynamic range of the system with voices or
SYSTEM INFO
