Db Transmitter - Lectrosonics DR Receiver/DB Transmitter Instruction Manual

DB Transmitter

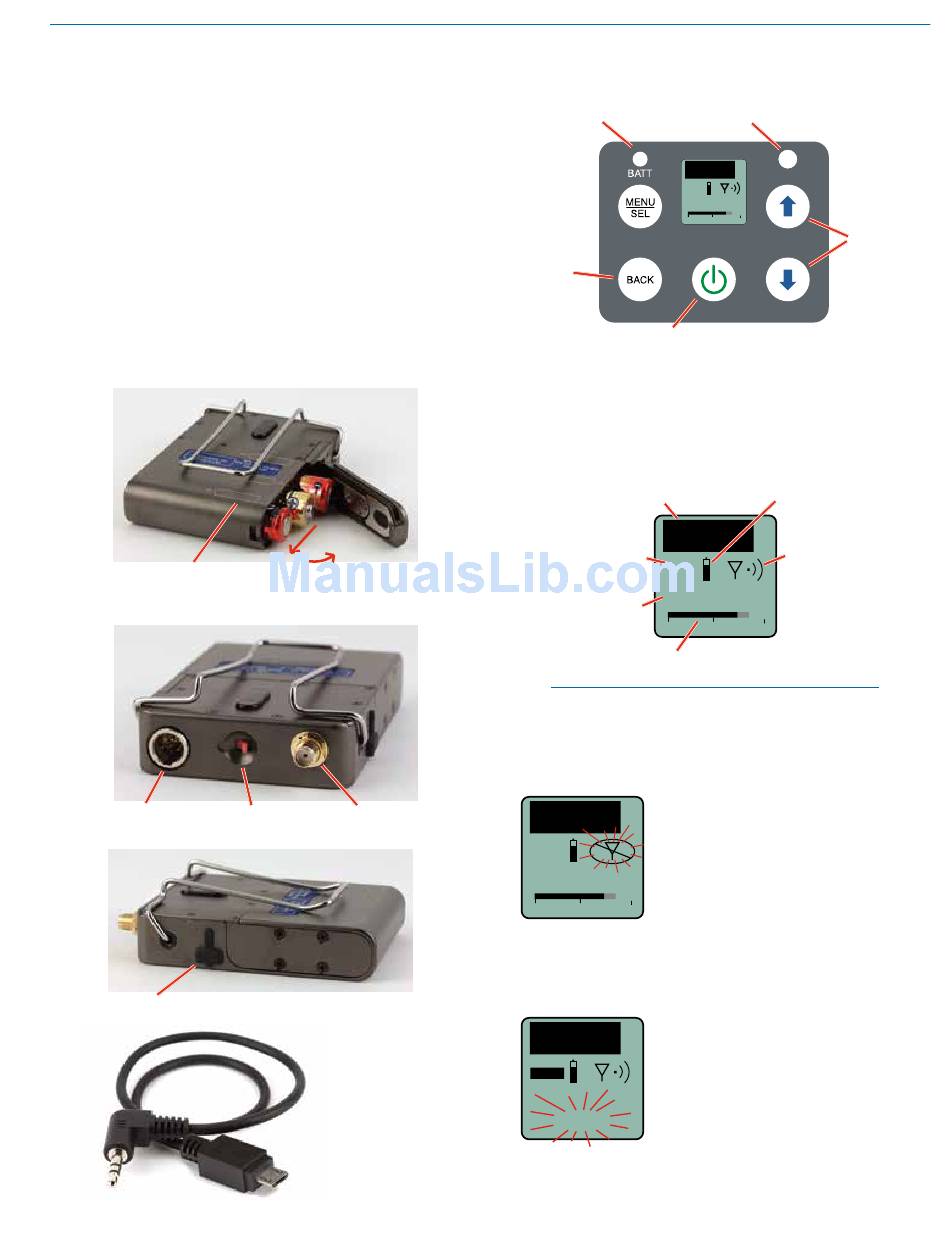

Features and Functions
The keypad and LCD interface provides access to
settings and adjustments. A toggle switch on the top
panel is programmable to operate as an audio mute
switch, a power switch or be inoperative. This allows
the transmitter to be configured with full access to all
settings, or as a simple one-button device with settings
locked.
The transmitter is powered by three AA batteries in
series. To open the battery compartment, slide the
door outward in the direction indicated by the engraved
arrows on the door, and swing it open. The correct ori-
entation of the batteries is illustrated on the rear panel
of the transmitter.
Battery
orientation
engraved on
back panel
Microphone/Line
input jack
USB port for firmware updates
3.5mm
TRS plug
Rio Rancho, NM
Slide door out
and swing open
Programmable Antenna
function switch port
P/N: DRKEYCABLE
Micro USB
connector
DSW Digital Wireless System
Battery status
LED
Return to
previous
screen
Power button
DB Transmitter LCD Interface
The Main Window displays the transmitter name, block
number, Standby or Operating mode, transmitting fre-
quency, audio level, battery status and programmable
switch function.
Transmitter name
Steve
Programmable
switch function
MUTE
494.500
Frequency (MHz)
-40
Audio level
NOTE: The transmitter name that appears on the
LCD is created with the software and downloaded
to the transmitter with the USB cable connected.
In the Standby Mode the RF indicator icon will blink to
indicate that the RF output is turned off.
Steve
MUTE
494.500
-40 -20 0
When the programmable switch is set to Mute and is
turned on, the mute icon appearance will change and
the word MUTE will blink at the bottom of the display,
and the power/function LED will blink blue.
Steve
MUTE
494.500
<–MUTE–>
Key verification
LED
Steve
MUTE
494.500
-40 -20 0
navigation
buttons
Battery status
RF indicator
-20
0
Menu
