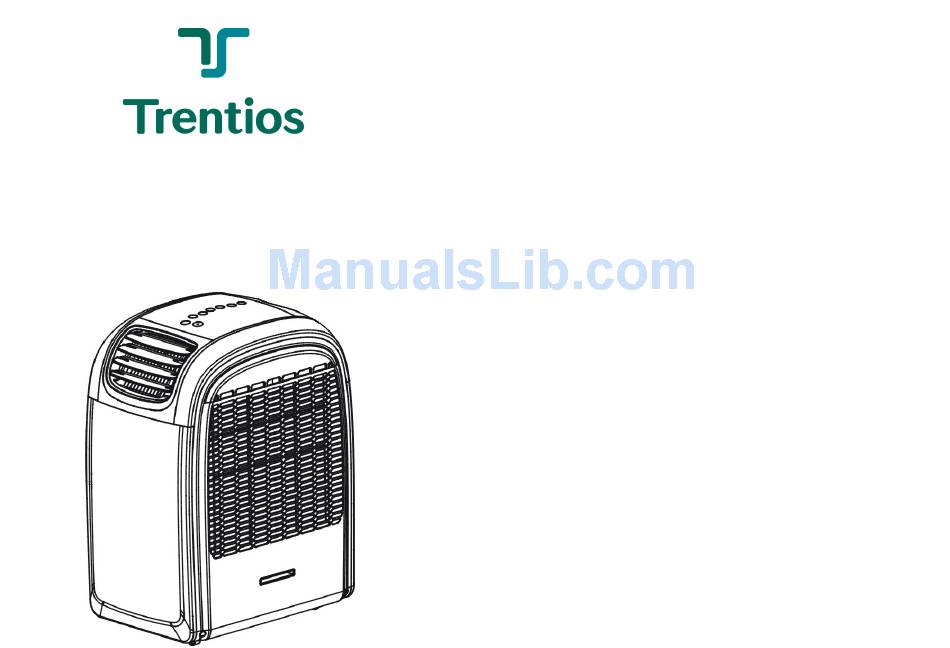

MOBILE AIR CONDITIONER

USER MANUAL

TPS-G5 / TPS-G55 / TPS-G555
TPS-G7 / TPS-G777
VERY IMPORTANT
Please read this instruction guide before install and using your
portable type air conditioner unit.
This instruction manual is the universal-purpose version for the units
that you purchase, it might be slightly different from the ones
described in the manual, but it does not affect your proper
operations and usage.

CAUTION
1. " PLEASE MAKE SURE THE PRODUCT VENTILATES ALL THE TIME "!
Please make sure the inlet and outlet ventilation is not blocked at all times.
2. Operate this unit on a horizontal surface to avoid water leakage.
3. Do not operate this unit in an explosive or corrosive atmosphere.
4. Operate this unit in an ambient of 35 degree centigrade or less.
5. The heating function of the unit should
temperature between 7℃ and 23℃
6. Clean air filter periodically to enjoy the most efficient cooling.
7. When the unit is shut off, please wait at least 3.5 minutes before restarting
this is to prevent the compressor from being damaged.
8. This unit needs at least 7 Amps of electricity to have its compressor
operational. To avoid the household electricity block out, please do not use
any extension cord for this unit.
9. This unit is for indoor cooling, heating and dehumidifying.
10. When turning on the unit, the fan will operate but the compressor will
start up after the cooling alarm flashes for three minutes
In heating function, the heating alarm will flash for 3.5 minutes before
the compressor and fan start up.
be operated in an indoor ambient
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TPS-G5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for trentios TPS-G5

  • Page 1: User Manual

      USER MANUAL CAUTION TPS-G5 / TPS-G55 / TPS-G555 1. " PLEASE MAKE SURE THE PRODUCT VENTILATES ALL THE TIME "! TPS-G7 / TPS-G777 Please make sure the inlet and outlet ventilation is not blocked at all times.
  • Page 2: Remote Control

    CONGRATULATIONS ON YOUR 11. When the supply cord is damaged, it must be replaced by the SELECTION OF A QUALITY manufacturer, its service agent or similarly qualified persons in order to PORTABLE AIR CONDITIONER avoid hazard. 12. In order to dispose the appliance safely, please remove the batteries from the remote control before scrapping it.
  • Page 3 UNPACKING INSTRUCTIONS     NAME OF THE PARTS   Place the unit in the correct upright position before Control panel unpacking. Remote control receiver Cut the two packing straps. Cool air outlet Slide the carton in an upwards motion and it will Joint tube release from the base.
  • Page 4: Control Panel

    CONTROL PANEL & DESCRIPTION OF FUNCTION L.E.D. DISPLAY     The display indicates the current setting temperature or the timer setting. When the set   temperature or the timer is adjusted, the new setting is shown then the display returns the current set temperature.
  • Page 5 REMOTE CONTROL FUNCTION 3. Press the "POWER" key before the time out, the setting time will be canceled and the unit will turn off. SLEEP CONTROL FUNCTION      1. While in cooling mode, press the SLEEP key to set the temperature. It increases1 ℃ after an hour and at most increases 2 ℃...
  • Page 6: Exhaust Hose

    NOTICE This unit can evaporate the condensation and distribute through the exhaust hose automatically. When the unit is in the cooling function, it does not need the drain pipe installed. Please make sure that the rubber cap“①” is locked on drain hole, when the unit is running. ...
  • Page 7: Window Kit Installation

        WINDOW KIT INSTALLATION PLACE FOR USE   Install the Exhaust Hose and the Adjustable Window Slider Kit as depicted Because the machine distributes hot air, please don’t place or in Fig.1 & Fig.1a.   operate in a narrow place. In case of dangerous leak, don’t work the machine in a humid place.
  • Page 8: Hot Air Outlet

    SPECIFICATION     Model No. TPS-G5 / TPS-G55 / TPS-G555 TPS-G7 / TPS-G777 Power Source 220-240V~50Hz Rated Power(EN60335) Cooling 1346W 1153W Heating 967W 1129W Cooling Capacity 10000BTU 12000BTU Heating Capacity 10000BTU 12000BTU Moisture Removed 50liters/day 60liters/day When operating heating function:...

This manual is also suitable for:

Tps-g55Tps-g555Tps-g7Tps-g777
