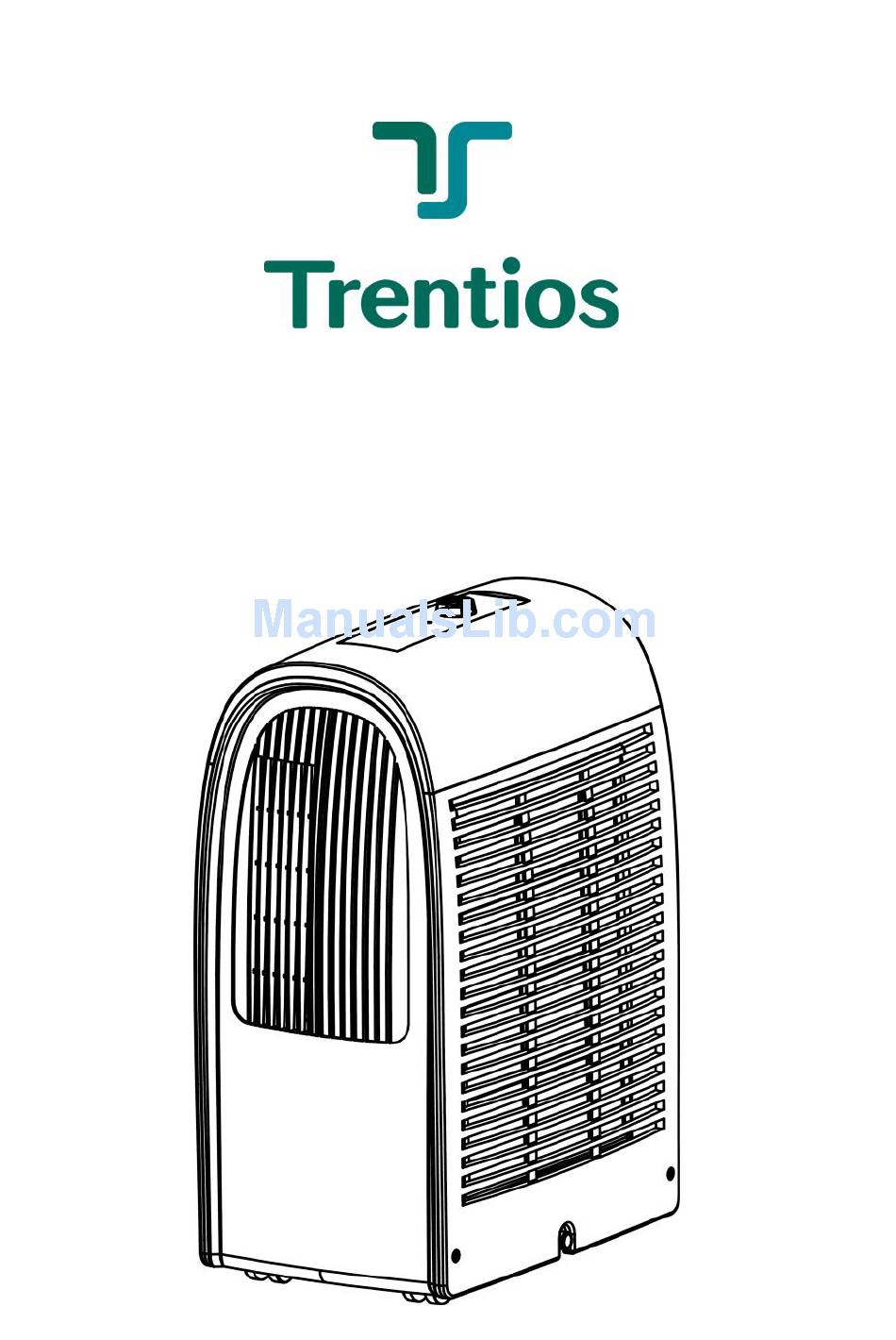

Page 1: User Manual
MOBILE AIR CONDITIONER User Manual PC15/20/26-BCA... -
Page 2: Very Important
VERY IMPORTANT Please read this instruction guide before install and using your mini portable type air conditioner unit. This instruction manual is the universal-purpose version for the units that you purchase, it might be slightly different from the ones described in the manual, but it does not affect your proper operations and usage. - Page 3 11. The air-conditioner can be connected only to a supply with system impedance no more than 0.219Ω.In case necessary, please consult your supply authority for system impedance information. 12. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Page 4: Portable Air Conditioner
PORTABLE AIR CONDITIONER This Air Conditioner has been designed and manufactured to the highest standards of modern engineering. - Moves easily from room to room on easy glide castors - No installation required-just plug into any household power outlet. -Dehumidified and filtered air cycle improve breathing environments effectively. -
Page 5: Name Of The Parts
NAME OF THE PARTS 1. Control knob 2. Hot air-outlet 3. Evaporator’s filter 4. Cool air-inlet 5. Cool air-outlet 6. Condenser’ s filter 7. Hot air-inlet 8. Drain hole... -
Page 6: Control Panel & Description Of Function
CONTROL PANEL & DESCRIPTION OF FUNCTION Starting the unit 1. Turn the control knob to the “OFF” position. 2. Plug the unit into an appropriate power supply. 3. Turn the control knob to “COOL”, the power light is on while the unit is in operation. Turning off the unit 1. -
Page 7: Maintenance
Self Evaporative System. Self evaporative system – no drip tray or hose required. Condensation is recycled into the system creating increased cooling efficiency. Excess moisture is evaporated on the condenser turning into steam this steam is then pushed out the exhaust hose creating a cooler dryer room. Please make sure that the rubber cap is stocked on drain hose, when the unit is running. - Page 8 CONDENSER/EVAPORATOR Use a brush attachment with a vacuum cleaner. CABINET Wipe with a damp cloth and polish with a soft cloth. To remove the air filter, please follows the arrow direction and pull the filter lightly, and then take out the filter for cleaning.
-
Page 9: Power Supply
POWER SUPPLY (1) Confirm the correct power supply before use. (2) Insert the plug into the outlet firmly. (3) Do not disconnect the power plug by pulling on the cord. PLACE FOR USE Because the machine distributes hot air, please don’t place or operate in a narrow place. -
Page 10: Exhaust Tube Installation
EXHAUST TUBE INSTALLATION Follow the instruction of arrow head ① to Install the air-outlet’s joint part Follow the arrow head ② to circumrotate the exhaust hose, and then the exhaust hose can be installed firmly on the unit. WINDOW KIT INSTALL ... -
Page 11: Specifications
SPECIFICATIONS Model No. PC15-BCA PC20-BCA PC26-BCA Power Source 220-240V~ 50Hz Rated Power (EN60335) Cooling 650W 900W 1100W Cooling Capacity 1500W 2000W 2600W 25 L/DAY 30 L/DAY 50 L/DAY Moisture Removed Refrigerant R410A 288Wx428Dx640H Dimensions (mm) (CE) N 842/2006: R410A is a kind of fluorinated greenhouse gases covered by...
