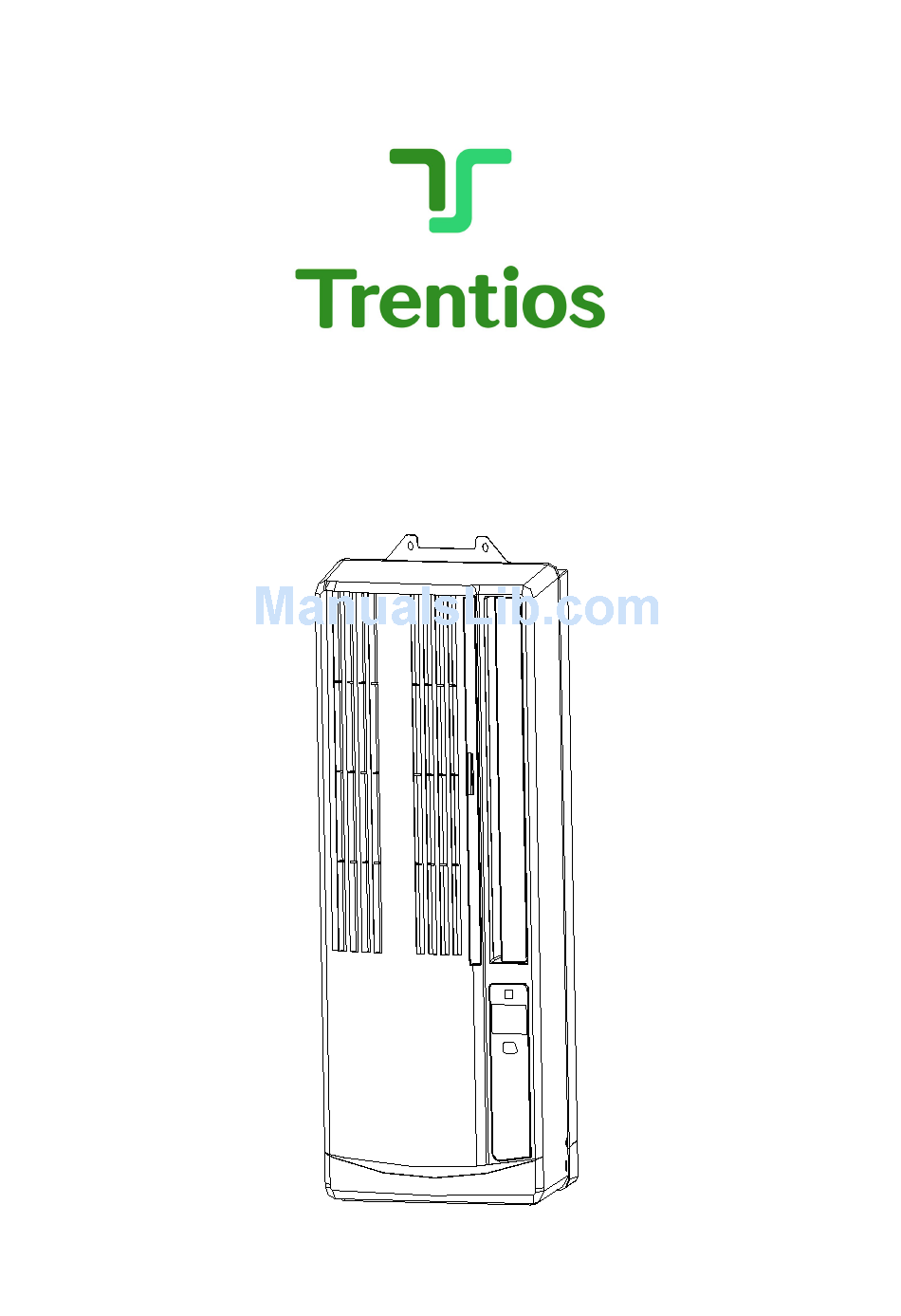

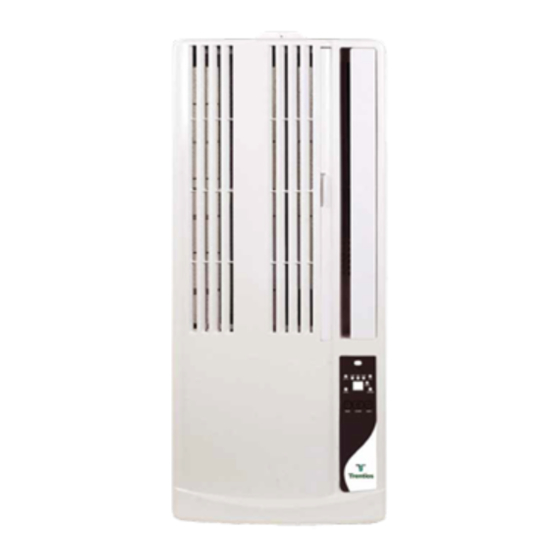

- Page 1 CASEMENT AIR CONDITIONER USER’S MANUAL MODEL: SIN-TC1...
- Page 2 FOREWORD Casement air-conditioners are pieces of high value. In order to ensure your lawful rights and interests, please have the professional technicians to do the installation for you. This instruction manual is the universal-purpose version for the units that you purchase might be slightly different from the ones described in the manual, but it does not affect your proper operations and usage.
- Page 3 CASEMENT AIR-CONDITIONER This casement air-conditioner is a small size appliance, which can adjust the temperature and humidity in a room. Its flexibility characteristics make it easily used on different occasions in different rooms. It also has multiple functions, including cooling, dehumidifying and fanning ventilation.
- Page 4 PRECAUTION ON INSTALLATIONS The intake and discharge vents unit Please install the unit 75-150cm above the ground. should not be obstructed. The unit be plugged into its own The unit should not be directly individual outlet that has a voltage exposed to sunlight or rain.
-
Page 5: Parts Identification
PARTS IDENTIFICATION OPERATION... - Page 6 INSTRUCTION AIR CONDITIONER CONTROLS 1、POWER Press this button for three seconds ，the unit will be turned on，and press this button for three seconds again ，the unit will be turned off. When the unit running, press this button, you can choose one of the operation modes: AUTO, COOL, DEHUMIDIFYING and FAN.
- Page 7 The default display on control panel is setting temperature. When “+” or “-“key is pressed, the set temperature is displayed and may be adjusted. OPERATION AND INDICTION SECTIONS OF REMOTE CONTROLLER On/Off switch 1. POWER MODE selector 2. MODE Hourly programming 3.
-
Page 8: Use Of Control Panel
USE OF CONTROL PANEL POWER SOURCE The AC socket must be firm and reliable. Don’t connect the casement air-conditioner to a multiply socket outlet which is also being used for other electrical appliances. Inset the AC power plug securely into the AC socket using the unit, when it beeps after two seconds, press ”ON/OFF” button, the unit begins to run. -
Page 9: Installtion Instructions
OPERATION PROCEDURES ELECTRICAL CIRCUIT OPERATION FO DEHUMIDIFICATION ■ 1．Press the “ON/OFF” button. 2．Press the “Function” button to select the “DRY” for dehumidification function 3．Press the “ON/OFF” key again if you wish to stop. 1℃ DBT line RH 90% DBT lin e RH 80% RH li ne RH 70%... - Page 10 1. Fix the mounting Kit securely 2.Insert the unit on the bottom of kit. in the window. the mounting...
- Page 11 3. Push the unit forward and screw the Body-Angle (upper) with the mounting Kit.
- Page 12 LIST O F THE INSTAL LING COMPO NENTS Piece Name of components Mounting kit Insulating material (hard) Insulating material (soft) Sub fixture stopper Seal Screw E4 20 × E4 10 × E4 12 ×...
- Page 13 Attaching the Window Panel Material: Fill the gaps between the installing frame and the window post to prevent water leaking indoors Fixing the Mounting Kit: ● A. To be fixed on the Aluminum Door & Window. 3.fix the mounting kit 1.
- Page 14 B. Fixing on the wooden window. 1. Put the sub fixtures on the wooden 2. Place the mounting kit on the sub window frame (up and down), and fix fixtures. them tightly with screws. The up and down fixtures should be at the same vertical position.
-
Page 15: Special Attention
SPECIAL ATTENTION Must turn “OFF” the air conditioner Must insert the plug properly into first before unplugging. the wall outlet. DO NOT OPERATE IN THE FOLLOWING STATES Room temperature is below21℃. Outside temperature is up to 43℃.(The protective device will stop the air conditioner.) Wait 3 minutes for restarting the air conditioner. - Page 16 *Remove the filter by pulling it out as *Wash the filter once every 1-2weeks to shown below. maximize the performance of the air conditioner and to keep the air flowing freely. *Use water (under 40 ℃ ) or soft cleaning *Do not use volatile substances such as agents to soft the filter (Let it dry first gasoline, toluene or diluents to clean the...
-
Page 17: Before Calling For Service
BEFORE CALLING FOR SERVICE 1. Air conditioner does not start Whether the power supply Is the fuse blown or circuit Is the power source plug loosened breaker tripped? correct? disconnected? 2．Air conditioner does not cool as it should. -
Page 18: Important Warnings
3. The following conditions are not normal for the product: When the surrounding humidity is at 80% or above, condensation may occur after prolonged ● operation. In addition, some dripping may occur. Slight of fluid flowing is normal, it is due to coolant flowing in the system. ●...
