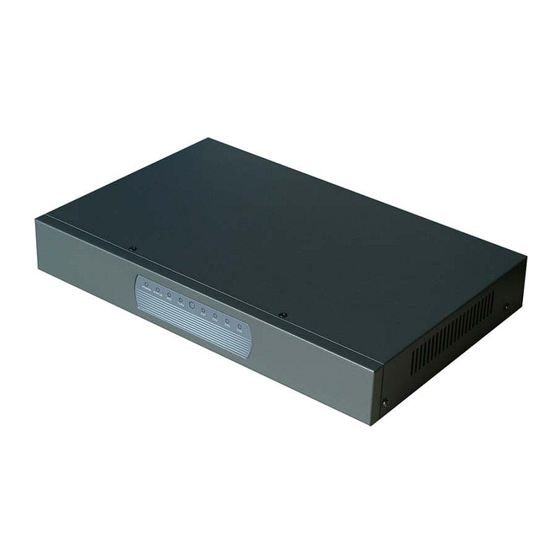

- Page 1 DS-7204HVI-S/M Series Net DVR Technical Manual...
- Page 2 HIKVISION and then only on the condition that this notice is included in any such reproduction. No information as to the contents or subject...
- Page 3 Contents Overview Model Description Features Specifications...
- Page 4 1. Overview DS-7204HVI-S/M series network digital video recorder is a digital surveillance product applies an embedded MCU and Linux OS, along with the most advanced technology in the information industry, such as video and audio encoding/decoding hard disk recording and TCP/IP. The firmware is burned into the flash, making the product more stable and reliable.
-
Page 5: Model Description
1. Model Description DS-7204HVI-S/M: 4-ch video input and 1-ch audio input. One VGA output. SATA HDD supported. 1-ch composited video output and 1-ch spot video output. Note: The default DVRs are without HDD. - Page 6 1. Features 3.1 Compression H.264 video compression algorithm and each channel can be CIF real-time, 4CIF, DCIF, and 2CIF can be selected as well. One channel audio input and output. Each channel is independent with OggVorbis compression at a bit rate of 16Kbps. Multi-area motion detection.
- Page 7 Support one playback channel, and playback by files or by time Display local recording status 3.2.3 PTZ Several PTZ protocols supported Preset, sequence and cruise 3.2.4 Alarms Exception alarm, motion detection alarm, external alarm, etc. 3.3 Network Support RTP, TCP, UTP, Multicast, DHCP, etc PPPoE for ADSL dialup Remote parameters setup Remote download and playback the recorded files in DVR...
-
Page 8: Specifications
1. Specifications Model DS-7204HVI-S/M Video compression H.264 Preview resolution PAL: 704×576 ; NTSC: VGA: 1024*768 704×480 Playback resolution QCIF/CIF/2CIF/DCIF/4CIF Video input 4 channels, BNC (1.0Vp-p, 75Ω) Video output 1 channel, BNC (1.0Vp-p, 75Ω) Video spot output 1 channel, BNC (1.0Vp-p, 75Ω) Frame rate (per 4CIF: 6fps channel) - Page 9 PAL: 176×144(QCIF), 352×288(CIF), 704×288(2CIF), 528×384(DCIF), 704×576(4CIF); NTSC: 176×120(QCIF), 352×240(CIF), 704×240(2CIF), 528×320(DCIF), 704×480(4CIF).
