INSTALLATION GUIDE
HARD DISK EXPANSION
Table of Contents:
Contents of the iS35/iS40/iS50 HD Kit
1. General
2. Data Back-up
3. Upload new Hard Disk Operating System
4. Opening the iS40/iS50 Keyboard
5. Installing the iS40/iS50 Hard Disk host adapter board
6. Installing the iS40/iS50 Hard Disk board
7. Testing and formatting the Hard Disk
© 1998 Musitronics GmbH

Advertising

   Also See for Korg IS40

   Related Manuals for Korg IS40

   Summary of Contents for Korg IS40

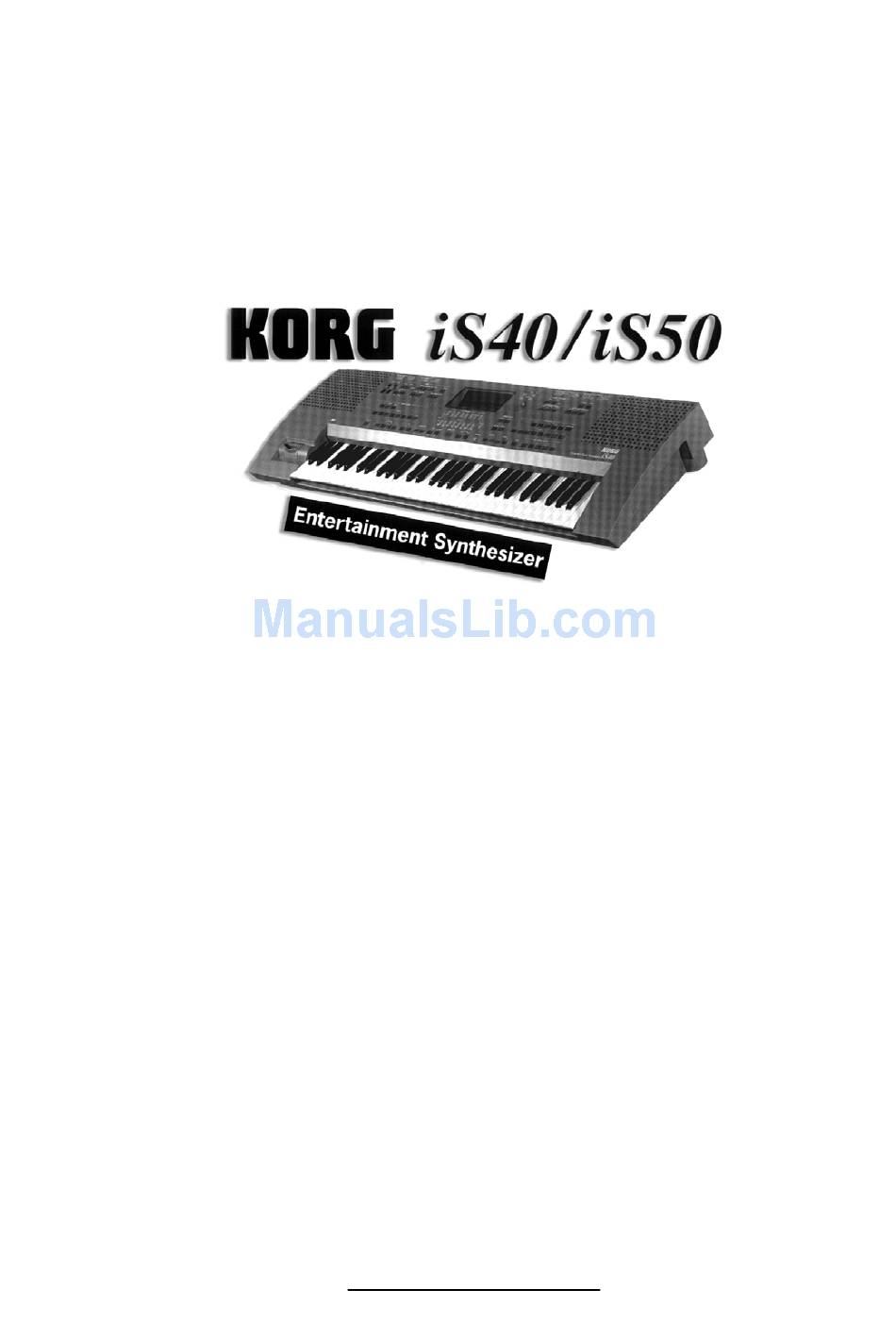

  • Page 1

    2. Data Back-up 3. Upload new Hard Disk Operating System 4. Opening the iS40/iS50 Keyboard 5. Installing the iS40/iS50 Hard Disk host adapter board 6. Installing the iS40/iS50 Hard Disk board 7. Testing and formatting the Hard Disk © 1998 Musitronics GmbH...

  • Page 2

    3. Upload new Hard Disk operating system Put the iS40/iS50 HD operating system Floppy Disk into the Floppy Disk Drive. While pressing the REC/WRITE and the EXIT/NO key switch the iS40/iS50 keyboard ON. The keyboard automatically start to upload the new operating system.

  • Page 3

    Turn the keyboard over again and fold up the complete front panel. The "Main Board" (main control board) of the iS40/iS50 will become visible. Host Adapter Position Ground Cn2 Mother board connector Mother board 5. Installing of the iS35/iS40/iS50 Hard Disk host adapter board Page 3...

  • Page 4

    Hard disk expansion for Korg iS40-iS50 keyboards _________________________________________________________________________________ The location of the iS40/iS50 host adapter is on the right side between the iS40/iS50 main board and the keys of the keyboard in the upper case (see illustration above). It´s located next to the floppy disk drive.

  • Page 5

    Format operation: press the DISK key and use the CURSOR > key to select the UTILITY page, press YES, select FORMAT option and press YES again. While pressing DISK (or Trk.Select) key select the desired partition (C,D,E,F,G,..) using UP/DOWN (or the dial in iS40) keys, then press the YES/ENTER to confirm format operation.
