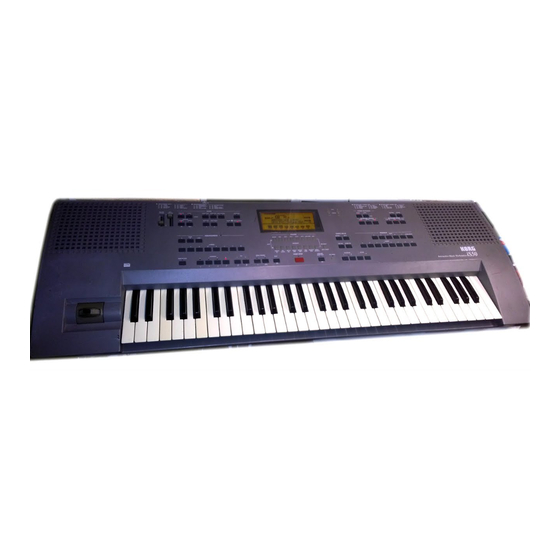

Korg iS40 User Manual

Operating system release 3.0.
Hide thumbs


Advertisement

Introduction
The KORG iS40 and iS50 Workstations can be constantly
improved and updated with new functions. The new version of
the operating system may already be included in your instru-
ment. If not, you can load it from a 2DD (double density) or 2HD
(high density) disk.
To check the version of the operating system contained in your
instrument turn on the instrument while holding the DISK/GLO-
BAL button pressed. The display shows the version number of
the operating system (6-digit number). Check that the number
corresponds with the current version (970956) or with a previous
one.
If your instrument includes an older version, you can contact
your dealer to request the disks of the new version, or download
it from the Internet site www.korg.it.
Once you have downloaded the operating system follow the
instructions contained in the "Loading the operating system"
section to prepare the iS40/iS50 system disks and load the sys-
tem into the instrument.
Functions of the 3.0 version not included in the
Owner's Manual
In Arrangement Play mode:
Arrangement and Program Preview
Recall Arrangement
Drum Mapping
Kick&Snare Designation
Master Transpose can be memorized in the arrangements
and Keyboard Sets
Programmable status of the Upper 1, Upper 2 and Lower
tracks; can be memorized in the arrangements and Key-
board Sets
Manual Bass
In Song Play mode:
Lyrics
Program Preview
Arabic scale recognition
Mute Keyboard
In Disk/Global mode:
Loading arrangements in A and B banks
Compatibility with KORG i30 data
iS40/iS50 Operating System
Release 3.0 (970956)
New page numbering
Due to the insertion of new functions in Rel. 3.0 of the operating
system, two new pages of parameters are inserted in the
Arrangement Play mode (the page number is shown on the dis-
play on the right). The numbering of the parameter pages differs
in part from the Owner's Manual. In the Owner's Manual:
Page
Drum Mapping
Kick & Snare Designation
Keyboard scale
Effect selection
Effect modulation
Effect configuration
Effect 1 parameters
Effect 2 parameters
Rename Arrangement
Write Arrangement
1
Improved compatibility with data from the other i-Series
instruments
Erase All Style
Speaker Off
Global Protect
Midi Setup
Echo Back
MIDI IN Octave
Separated MIDI channels for Upper 2 and Lower tracks
Master Transpose Lock
New pedal assignable functions
Trigger Note On/Off
14 USER scales
Separate joystick programming for the Upper 2 and Lower
tracks
Number
Number
-
6
-
7
6
8
7
9
8
10
beco-
mes
9
11
10
12
11
13
12
14
13
15

Advertisement

   Also See for Korg iS40

   Related Manuals for Korg iS40

   Summary of Contents for Korg iS40

  • Page 1

    Separate joystick programming for the Upper 2 and Lower instructions contained in the “Loading the operating system” tracks section to prepare the iS40/iS50 system disks and load the sys- tem into the instrument. New page numbering Due to the insertion of new functions in Rel. 3.0 of the operating Functions of the 3.0 version not included in the...

  • Page 2

    Separate MIDI channels for the Upper 2 and Lower tracks The evolution of the operating system • Master Transpose Lock The iS40/iS50 operating system has been constantly updated • New pedal-assignable functions since the instrument was first launched on the market. The fol- •...

  • Page 3

    Play mode Preparing an iS40/iS50 operating system disk Arrangement Preview An iS40/iS50 operating system disk must be prepared if you have downloaded the operating system from www.korg.it. The The Arrangement Preview function allows for viewing the name operating system is contained in a compressed directory named of the arrangement before selecting it.

  • Page 4

    (Kick) and the Snare Drum (Snare) with a different Bass Drum or Lyrics Function Snare Drum, belonging to the same drum kit, with only one The iS40/iS50 can read the lyrics of the SMF (Standard Midi action. File) in M-live (MidiSoft), Solton, Tune1000 and compatible for- The new function is on Page 7 of the Arrangement Play mode.

  • Page 5

    Following is the procedure used to load all the programs (Load instrument. All Program) from a Korg i30 disk. You can use the same proce- Warning: Do not load arrangements using USER styles in the A dure to load other types of data (arrangements, styles), selecting and B banks.

  • Page 6

    Compatibility with i3, i4S, iX300, and i5S/M data The iS40/iS50 can load data from KORG i3, i4S, i5S, i5M, and iX300 disks and use the styles and arrangements of these instruments. Data is read in the same way as any other disk in the iS40/iS50 native format.

  • Page 7

    Global, Chord 1, and Chord 2 special channels. If the iS40/iS50 is controlled by an external MIDI device, the communication between the MIDI device and the iS40/iS50 may be interrupted by the Load All > All or Load Glo- bal operation. Echo Back...

  • Page 8

    Trigger Mode Lower track transposition. U1/U2 Upper 1 and Upper 2 track transposition. The “Trigger Mode” function has been inserted on Page 14. Separated MIDI channels for the Upper 2 and Lower tracks You can assign a different MIDI channel for each keyboard track (Upper 1, Upper 2 and Lower) on page 6 (“Programming the MIDI channels (1)”).

  • Page 9

    Note: All mentioned trademarks belong to their manufacturers. The Owner’s Manual contains a list of Drum Programs that is © 1999 KORG Italy partially incorrect (some numbers of Program Change are wrong). The correct list is shown on the bottom of this page.
