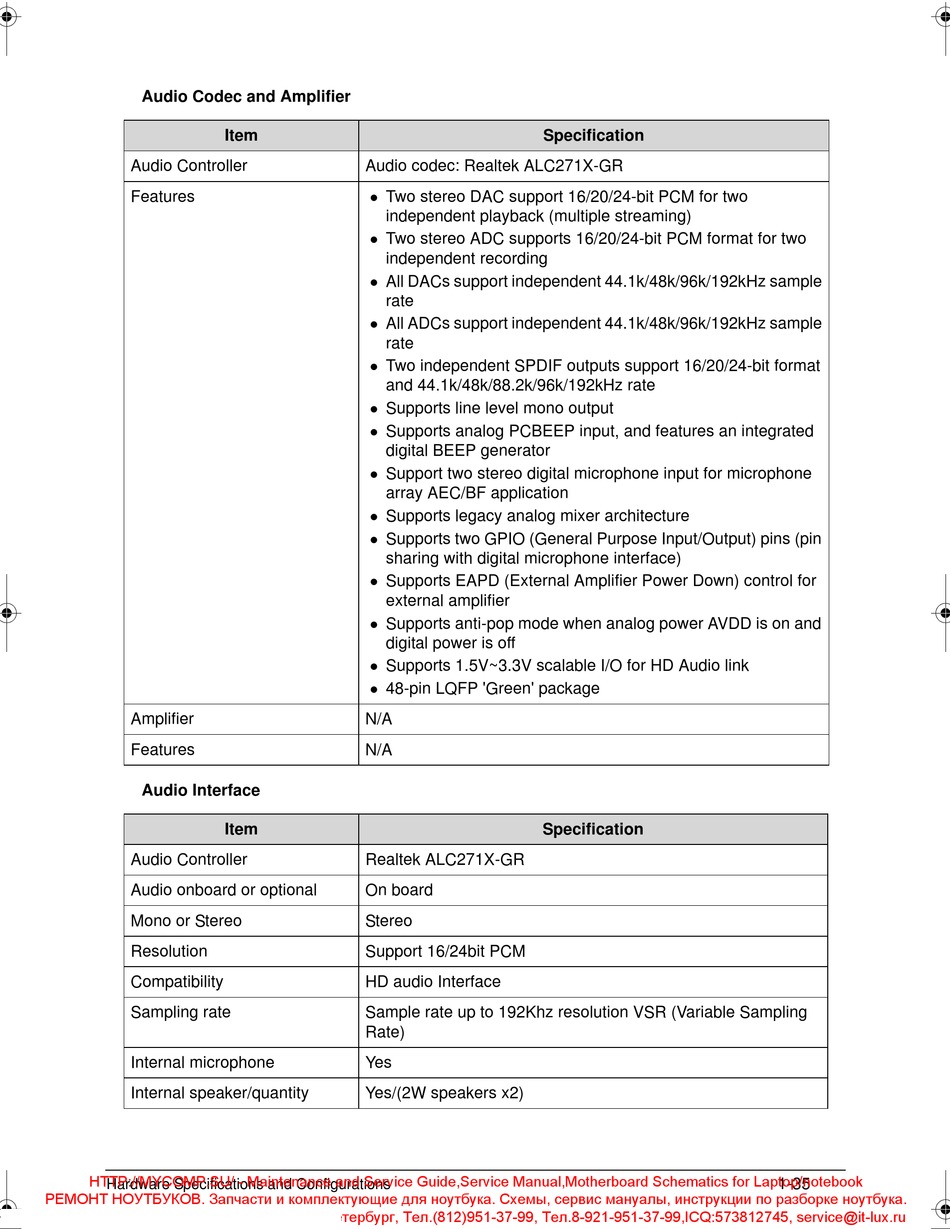

Audio Codec and Amplifier

Audio Controller
Features
Amplifier
Features

Audio Interface

Audio Controller
Audio onboard or optional
Mono or Stereo
Resolution
Compatibility
Sampling rate
Internal microphone
Internal speaker/quantity
HTTP://MYCOMP.SU/ - Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook
Hardware Specifications and Configurations
РЕМОНТ НОУТБУКОВ. Запчасти и комплектующие для ноутбука. Схемы, сервис мануалы, инструкции по разборке ноутбука.
ВОССТАНОВЛЕНИЕ ДАННЫХ. г. Санкт-Петербург, Тел.(812)951-37-99, Тел.8-921-951-37-99,ICQ:573812745, service@it-lux.ru
Item
Audio codec: Realtek ALC271X-GR
Two stereo DAC support 16/20/24-bit PCM for two

independent playback (multiple streaming)
Two stereo ADC supports 16/20/24-bit PCM format for two

independent recording
All DACs support independent 44.1k/48k/96k/192kHz sample

rate
All ADCs support independent 44.1k/48k/96k/192kHz sample

rate
Two independent SPDIF outputs support 16/20/24-bit format

and 44.1k/48k/88.2k/96k/192kHz rate
Supports line level mono output

Supports analog PCBEEP input, and features an integrated

digital BEEP generator
Support two stereo digital microphone input for microphone

array AEC/BF application
Supports legacy analog mixer architecture

Supports two GPIO (General Purpose Input/Output) pins (pin

sharing with digital microphone interface)
Supports EAPD (External Amplifier Power Down) control for

external amplifier
Supports anti-pop mode when analog power AVDD is on and

digital power is off
Supports 1.5V~3.3V scalable I/O for HD Audio link

48-pin LQFP 'Green' package

N/A
N/A
Item
Realtek ALC271X-GR
On board
Stereo
Support 16/24bit PCM
HD audio Interface
Sample rate up to 192Khz resolution VSR (Variable Sampling
Rate)
Yes
Yes/(2W speakers x2)
Specification
Specification
