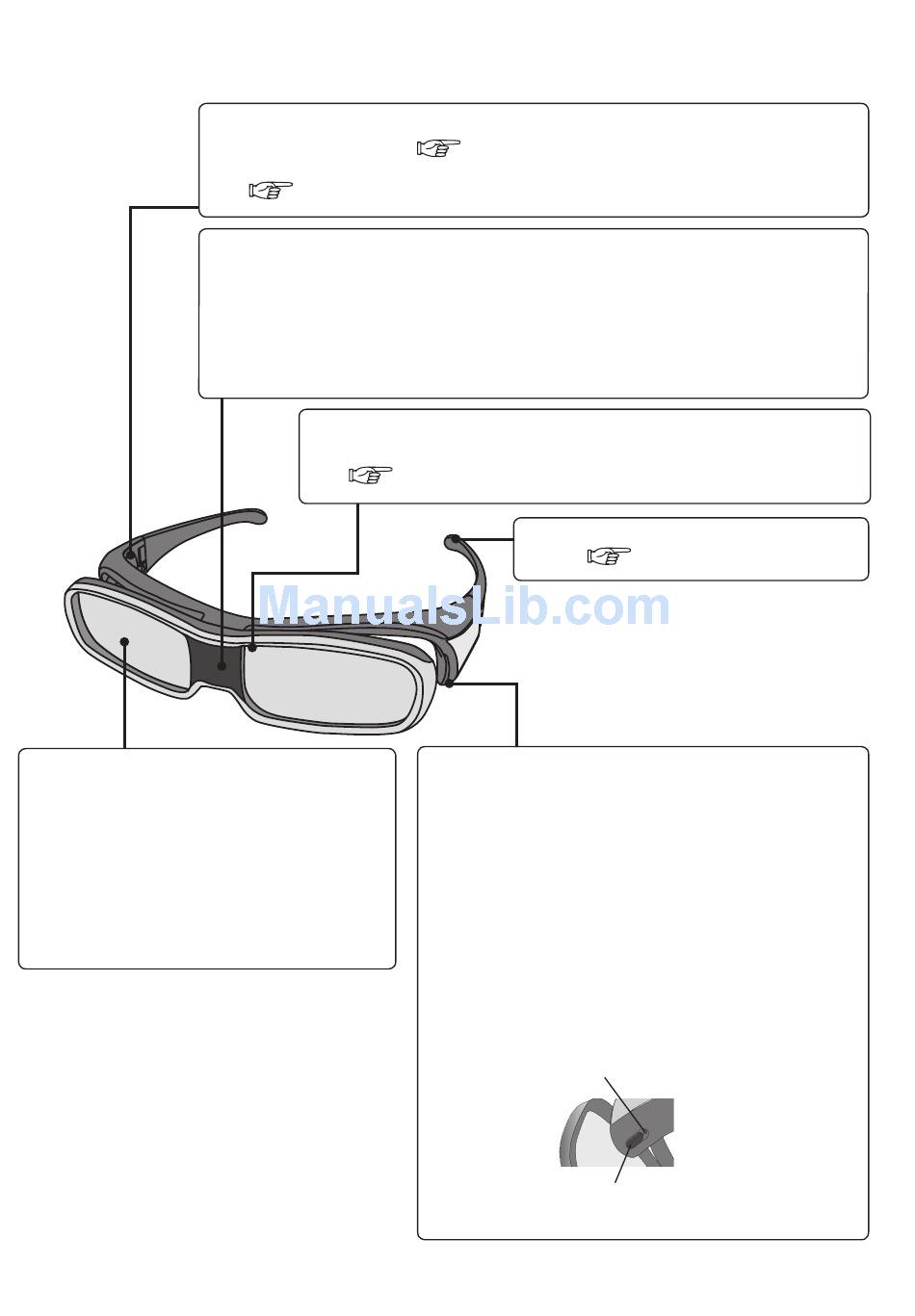

Identifying Controls

„ Liquid Crystal Shutter
„
(lens)
Controls the images for 3D viewing.
The left and right liquid crystal
shutters are alternately opened
and closed in time with the left
side and right side images that
are alternately displayed on the
television to achieve the 3D effect.
4 - ENGLISH
„ Battery case
„
Fitting the battery (
When using for the first time, remove the insulating sheet.
( page 7)
„ Infra-red receiver
„
Receives infra-red signals from the television.
The liquid crystal shutter open/close timing is controlled by
receiving infra-red signals from the television, which provide 3D
expression of the images.
If the eyewear stops receiving infra-red signal from the television,
the power automatically switches off after 5 minutes.
„ Nose pad installation section
„
(3D Eyewear inner section)
(
page 9)
page 7)
Specialized band can be attached
here. (
„ Power button (bottom side of
„
3D Eyewear)
Switches on the 3D Eyewear power.
Press and hold the power button for
approximately 1 second to switch the
power on, and the indicator lamp lights
for approximately 2 seconds. (When the
battery is low, the indicator lamp flashes
5 times on switching the power.)
To switch the power off, press and hold the
power button for approximately 1 second.
The indicator lamp flashes 3 times, then the
power switches off.
Indicator lamp
Power button
page 7)
