Summary of Contents for Mercury 135 Optimax

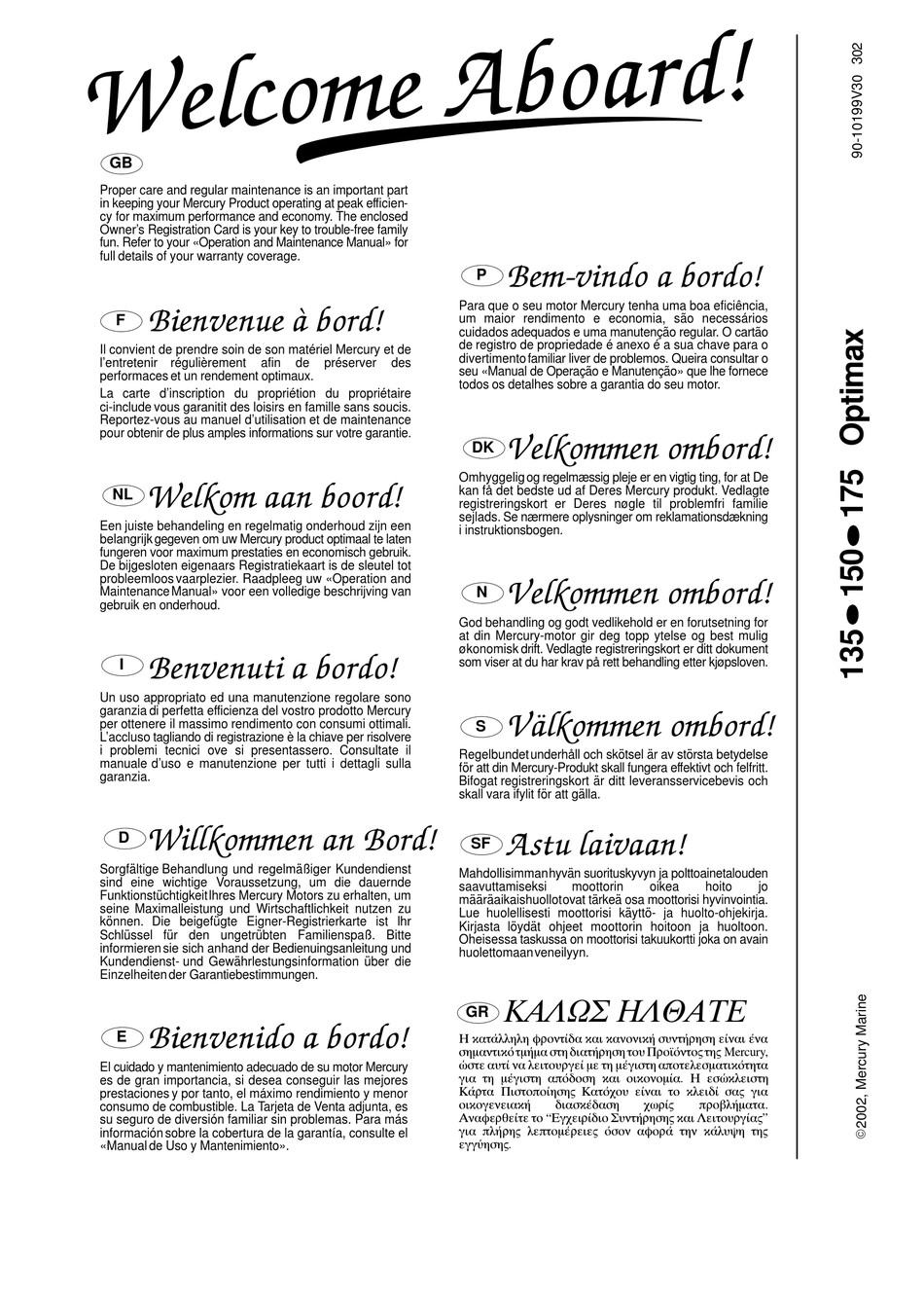

  • Page 1 O cartão de registro de propriedade é anexo é a sua chave para o Il convient de prendre soin de son matériel Mercury et de divertimento familiar liver de problemos. Queira consultar o l’entretenir régulièrement...
  • Page 2 –4 90-10199R30...
  • Page 3 –3 90-10199R30...
  • Page 4 –2 90-10199R30...
  • Page 5 If the outboard motor’s serial number plate contains the CE mark in the lower left–hand corner, the following statement applies: This outboard motor manufactured by Mercury Marine, Fond du Lac, Wisconsin, USA or Marine Power Europe Inc. Park Industrial, de Petit–Rechain, Belgium complies with the requirements of the following...
  • Page 6 90-10199R30...

  • Page 7: Table Of Contents

    The description and specifications contained herein were in effect at the time this Features & Controls manual was approved for printing. Mercury Marine, whose policy is one of continued improvement, reserves the right to discontinue models at any time, to Warning System .

  • Page 8: Warranty Information

    For products purchased outside the United States and Canada, contact the the “Factory Copy” of the Warranty Registration Card from your distributor in your country, or the Mercury Marine Service Office closest to you. distributor/dealer. If you receive a plastic Warranty Registration Card, you may discard the “Purchaser’s Copy”...

  • Page 9: Mercury Marine Two Years Limited Warranty(Europe)

    If purchaser cannot deliver the product to such a dealer, written notice must be given to Mercury. We will then arrange for the inspection and any covered repair. Purchaser in that case shall pay for all related transportation charges and/or travel time.

  • Page 10: Mercury Marine One Year Limited Warranty(Confederation Of Independent States, Middle- East, Africa)

    If purchaser cannot deliver the product to such a dealer, written notice must be given to Mercury. We will then arrange for the inspection and any covered repair. Purchaser in that case shall pay for all related transportation charges and/or travel time.

  • Page 11: Year Limited Warranty Against Corrosion

    Mercury’s sole and exclusive obligation under this warranty is limited to, at our COUNTRIES DO NOTALLOW FOR THE DISCLAIMERS, LIMITATIONS option, repairing a corroded part, replacing such part or parts with new or Mercury AND EXCLUSIONS IDENTIFIED ABOVE, AS A RESULT, THEYMAY NOT Marine certified re–manufactured parts, or refunding the purchase price of the...

  • Page 12: Warranty Coverage And Exclusions

    Installation errors, 8. Use of other than Mercury Precision or Quicksilver replacement parts when accidents, normal wear, and a variety of other causes that affect the product are making warranty repairs.

  • Page 13: General Information

    Guide to Hi-Performance Boat Operation booklet (Part Number 90-848481) normal operator’s position. If it is desired to have a shorter lanyard, wrap the from your dealer, distributor, or Mercury Marine. lanyard around the operator’s wrist or leg, or tie a knot in the lanyard.

  • Page 14: Protecting People In The Water

    gob3 GENERAL INFORMATION LANYARD STOP SWITCH (CONTINUED) Read the following Safety Information before proceeding. Important Safety Information: The purpose of a lanyard stop switch is to stop the engine when the operator moves far enough away from the operator’s position to activate the switch.

  • Page 15: Wave And Wake Jumping

    obt6 IMPACT WITH UNDERWATER HAZARDS Keep in mind, the most important thing you can do to help reduce injury or impact damage in these situations is control the boat speed. Boat speed should be kept to a minimum planing speed when driving in waters known to have underwater obstacles.

  • Page 16: Selecting Accessories For Your Outboard

    19XX dealers. XXXX Some accessories not manufactured or sold by Mercury Marine are not designed to be safely used with your outboard or outboard operating system. Acquire and read the installation, operation, and maintenance manuals for all your selected accessories.

  • Page 17: Component Identification

    gob27 goc11 och1 PROPELLER SELECTION For best all around performance from your outboard/boat combination, select a propeller that allows the engine to operate in the upper half of the recommended full throttle RPM range with the boat normally loaded (refer to Specifications). This RPM range allows for better acceleration while maintaining maximum boat speed.

  • Page 18: Fuel & Oil

    Refill the engine mounted oil reservoir tank along with Mercury or Quicksilver Optimax/DFI 2–Cycle engine oil is recommended for your the remote oil tank. Refer to Fuel & Oil engine. If Optimax/DFI 2–Cycle engine oil is not available, we recommend using Section.

  • Page 19: Remote Control Features

    REMOTE CONTROL FEATURES pump should ever stop functioning Your boat may be equipped with one of the Mercury Precision or Quicksilver electrically. No lubricating oil is being remote controls shown. If not, consult your dealer for a description of the functions supplied to the engine.

  • Page 20: Tilting Operation

    Wash down the outboard exterior and flush out the exhaust outlet of the propeller Lower outboard to rest on the tilt support lever. and gear case with fresh water after each use. Each month, spray Mercury Precision or Quicksilver Corrosion Guard on external metal surfaces (do not spray Disengage the tilt support lever, by raising the outboard off the support lever on corrosion control anodes as this will reduce the effectiveness of the anodes).

  • Page 21: Setting Trim Angle While Running Engine At Idle Speed

    og124 gof76 OPERATION onn2 SETTING TRIM ANGLE WHILE RUNNING ENGINE AT IDLE SPEED Submerging the exhaust relief hole (a) on the outboard can happen on some boats if you trim the outboard “full-in” while running the engine at idle speed. This will cause an exhaust restriction, resulting in rough idle, excessive smoke, and fouled spark plugs.

  • Page 22: Gear Shifting

    2. Replace spark plugs at first 100 hours or first year. After tht, inspect spark plugs OUTBOARD every 100 hours or once yearly. Replace spark plugs as needed. (page 71) We recommend using original Mercury Precision or Quicksilver replacement parts 3. Replace Water separating fuel filter. (Page 65) and Genuine Lubricants.

  • Page 23: Flushing The Cooling System

    goh107 ohh10 FUEL SYSTEM WARNING Avoid serious injury or death from gasoline fire or explosion. Carefully follow all fuel system service instructions. Always stop the engine and DO NOT smoke or allow open flames or sparks in the area while servicing any part of the fuel system.

  • Page 24: Steering Link Rod Fasteners

    goh111 goh150 ohk16 CORROSION CONTROL ANODE The gear case has two corrosion control anodes (a). Another anode (b) is MAINTENANCE installed on the bottom of the transom bracket assembly. An anode helps ohi5 protect the outboard against galvanic corrosion by sacrificing its metal to be STEERING LINK ROD FASTENERS slowly eroded instead of the outboard metals.

  • Page 25: Spark Plug Inspection And Replacement

    PROPELLER REPLACEMENT ohs2 COMPRESSOR AIR INTAKE FILTER Coat the propeller shaft with Quicksilver or Mercury Precision Lubricants Anti-Corrosion Grease or 2-4-C Marine Lubricant with Teflon. The filter should be changed every 100 hours of operation, or once a season. Never run the engine without the air filter.

  • Page 26: Checking Power Trim Fluid

    (chips) may indicate abnormal gear wear and should be of the boat. Adding Fuel Stabilizer will help prevent the formation of varnish and checked by an authorized dealer. gum in the gasoline. The Mercury Precision Quickleen product will help clean and Draining Gear Case lubricate the fuel injectors.

  • Page 27: Troubleshooting

    4. Premix the following in a container: • Outboard is not shifted to neutral position. .27 oz (8cc) or 2 teaspoons of Mercury Precision Quickleen lubricant. • Weak battery or battery connections are loose or corroded. .27 oz (8cc) or 2 teaspoons of Mercury Precision Fuel Stabilizer •...

  • Page 28: Owner Service Assistance

    Refer to the Yellow Pages of the telephone directory. your dealership to resolve all problems. If, for any reason, you cannot obtain service, contact the nearest Mercury Marine The following information will be needed by the service office: (International) Marine Power Service Office •...

  • Page 29: Mercury Marine Service Offices

    (32) (87) 31 • 19 • 65 Parc Industriel de Petit - Rechain B - 4800 Verviers, Belgium Mexico, Central America, South America, Caribbean Mercury Marine - Latin America & Caribbean (305) 385 - 9585 (305) 385 - 5507 9010 S.W. 137th Ave., Suite 226 Miami, Fl 33186 U.S.A.

  • Page 30: Maintenance Log

    MAINTENANCE LOG oka1 Record here all maintenance performed on your outboard. Be sure to save all work orders and receipts. Date Maintenance Performed Engine Hours 90-10199R30...
