Subject And Group Management; Groups; Adding A New Group - netest Powertimer SW-300 User Manual

SUBJECT
AND
GROUP
MANAGEMENT
6
6 SUBJECT AND GROUP MANAGE-
MENT
The previous chapters assumed that you had created the sub-
jects and groups with the Powertimer Analyzer and uploaded
them into the Powertimer SW-300. This chapter explains how
to manage groups and subjects with the Powertimer SW-300.

6.1 Groups

Properties of Test Groups were defined in chapter 1.1. This
chapter explains how those properties are changed and how
new groups are created using the Powertimer SW-300.

Adding a new group

To add a new group, tap on the Groups button in the Main
View. This enters the Group Manager shown in Figure 36.
From the Group Manager choose the Add New Group action
and tap on the Do Action button. This enters the Edit Group
view shown in Figure 37.

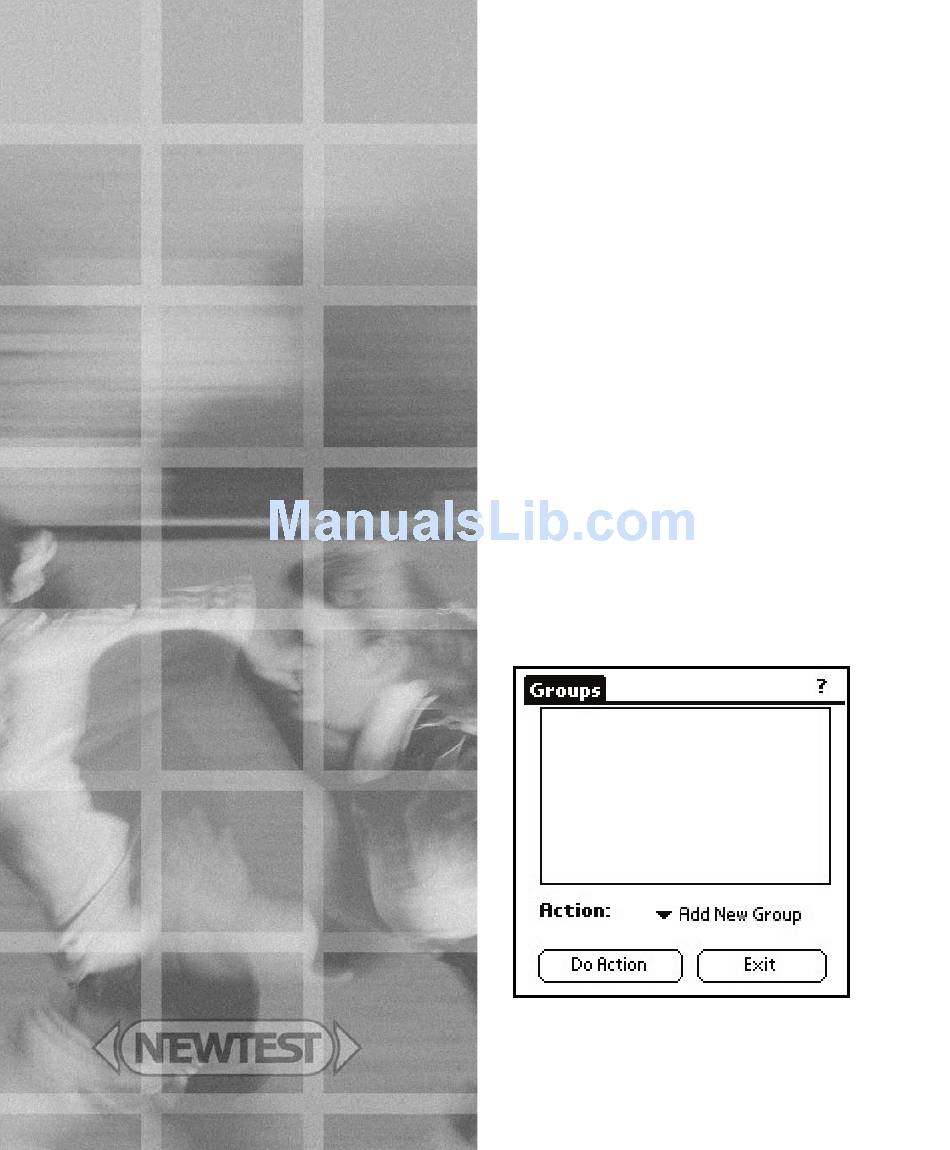

Figure 36 Group Manager
The Group Description is optional and can be left blank, but
the Name is mandatory, since it identifies the group. It is pos-
sible to have multiple groups with the same name, but in that
case selecting the proper group from a list or selector will be
